ISCAR Turning Inserts 10pcs: CNMG643NR IC8250 Carbide 5507696

ISCAR

 Turning Inserts 10pcs: CNMG643NR IC8250 Carbide 5507696
MSRP: $300

• Insert Style CNMG
• Insert Shape Code C
• Insert Size Code 643
• Insert Shape Diamond
• Coating/Finish TiCN/Al2O3/TiN
• Manufacturer Grade IC8250
• Corner Radius (Inch) 3/64
• Corner Radius (Decimal Inch) 0.0472
• Insert Material Solid Carbide
• Maximum Depth of Cut (mm) 8.00
• Maximum Depth of Cut (Decimal Inch) 0.3150
• Inscribed Circle (Inch) 3/4
• Inscribed Circle (Decimal Inch) 0.7500
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 1/4
• Insert Thickness (Decimal Inch) 0.2500
• Clearance Code N
• Tolerance Code M
• Included Angle 80.0
• Relief Angle 0
• Series Isoturn
• Coating Process CVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Insert Length (Decimal Inch) 0.7598
• Insert Length (mm) 19.30
• Primary Workpiece Material Stainless Steel; Steel
• Primary Workpiece Material Code P; M
• Iso Code ISO 13399
• Standards ISO 13399
• Chip Breaker NR

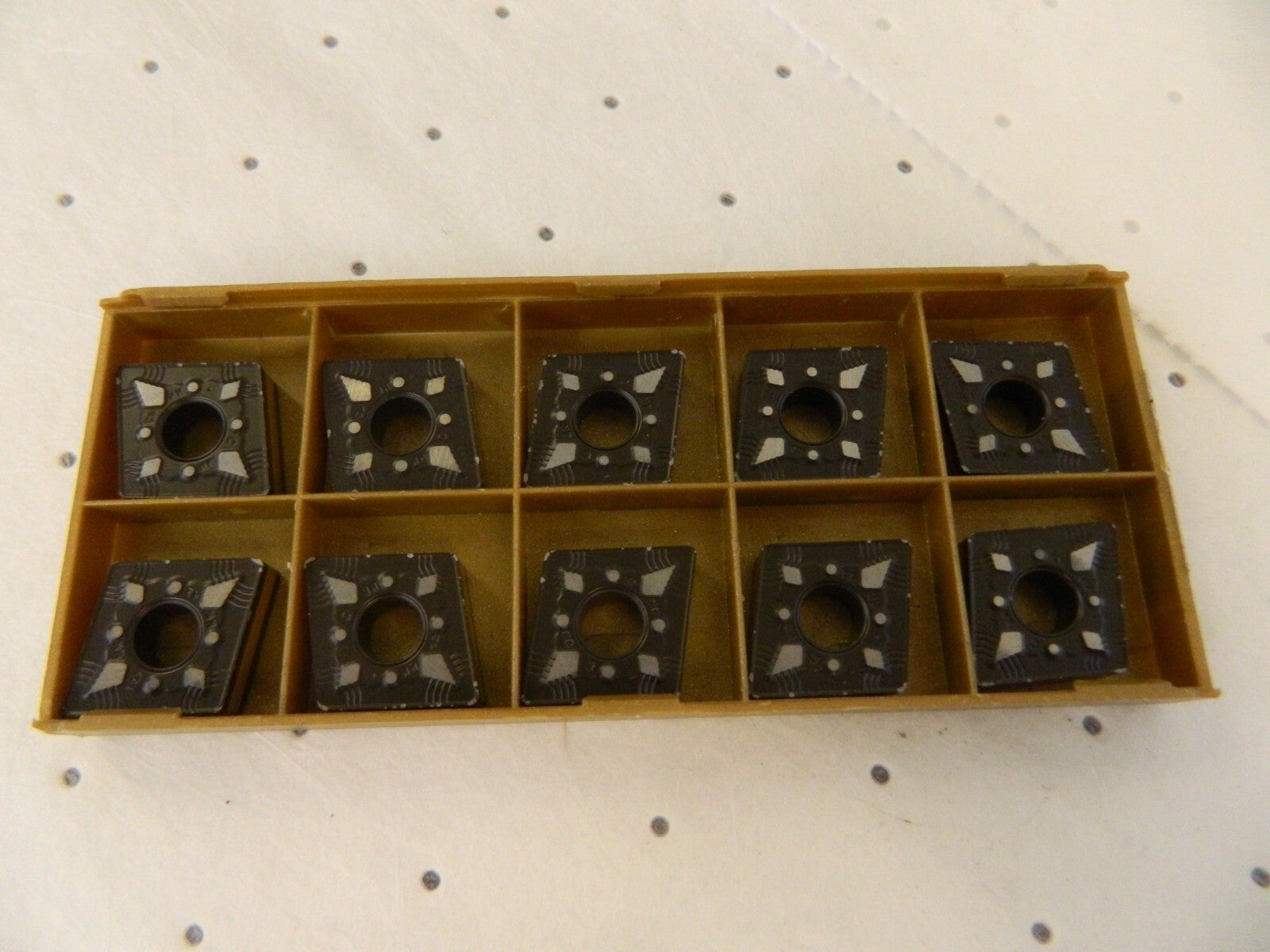

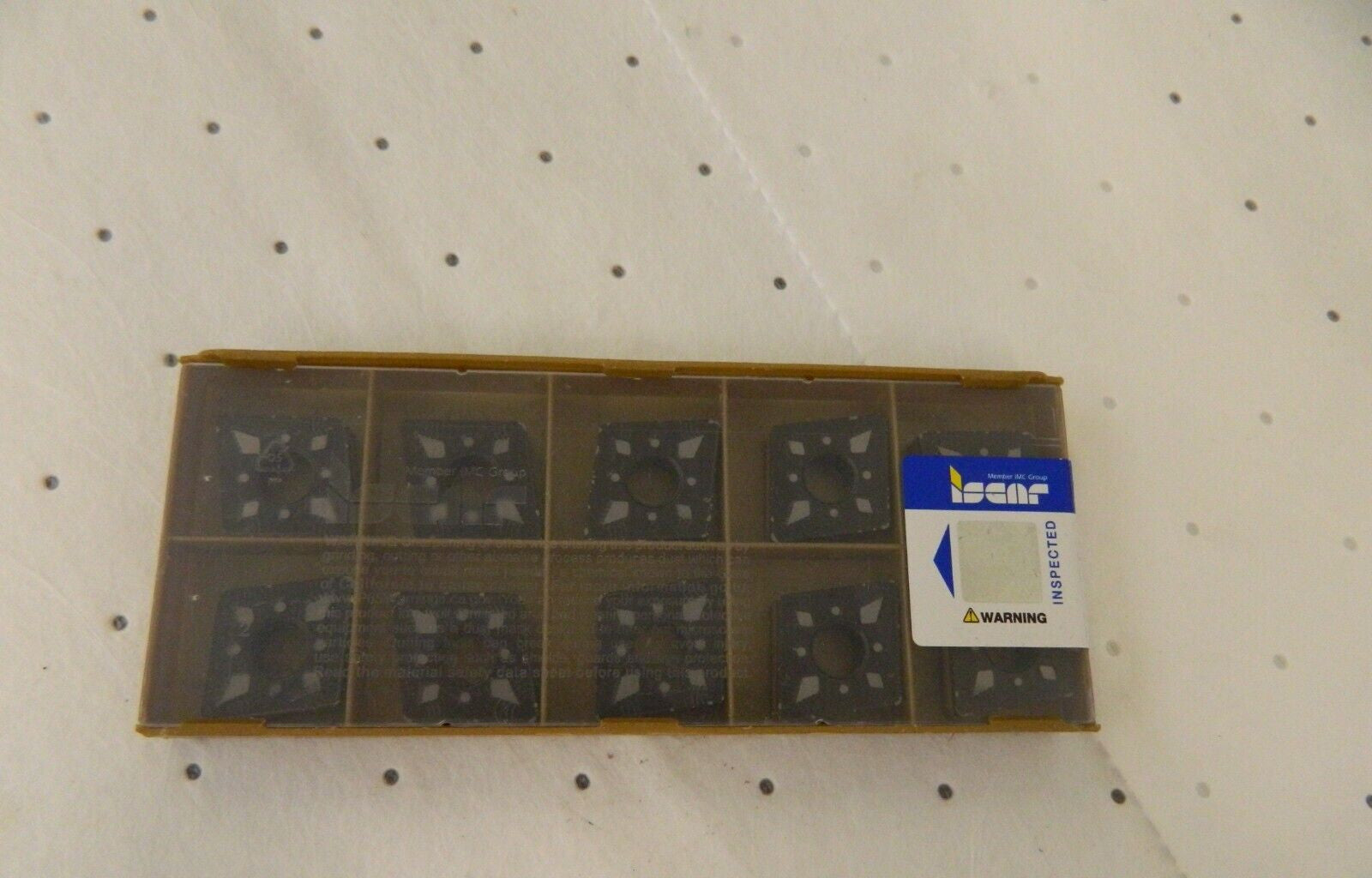

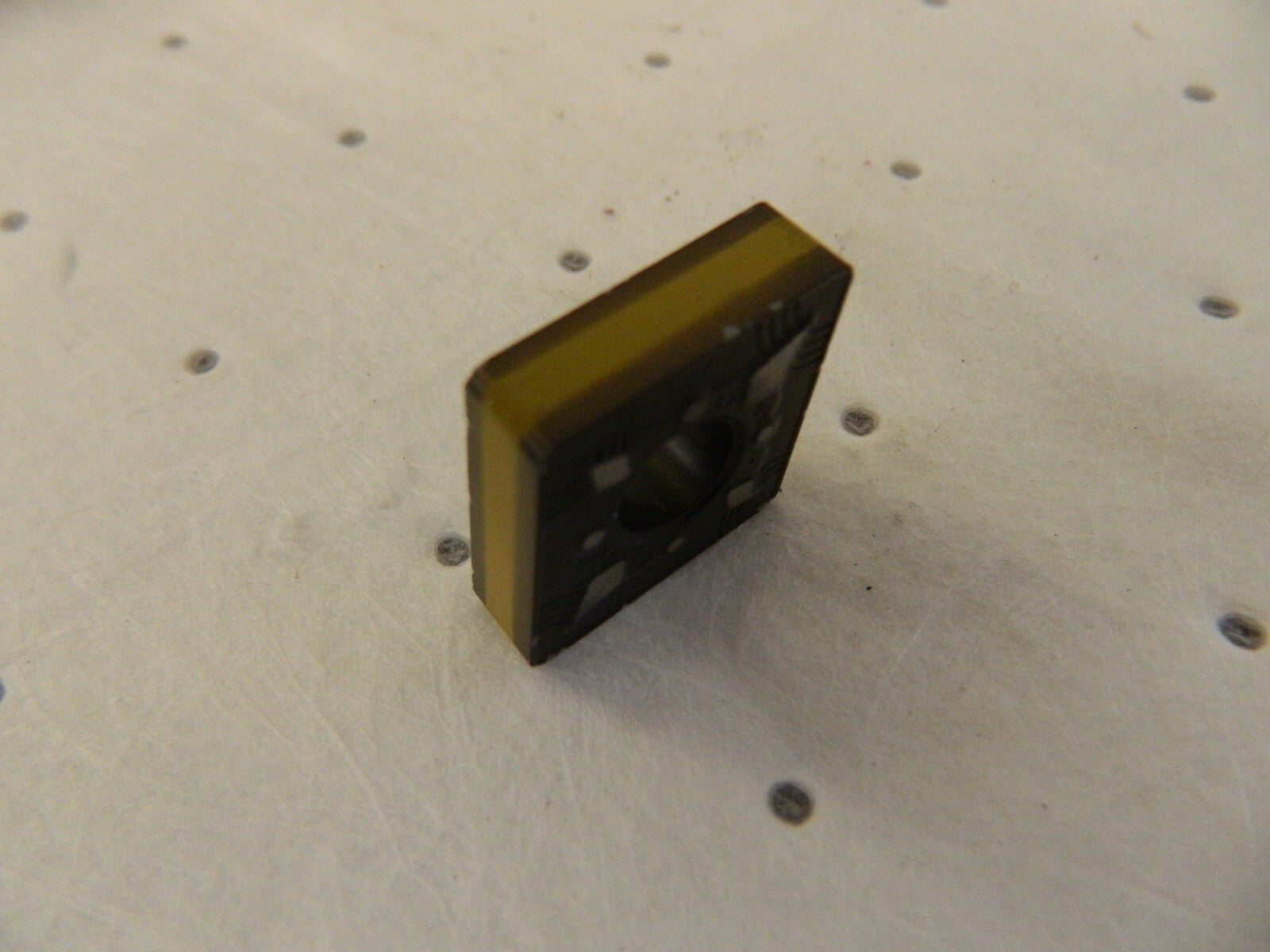

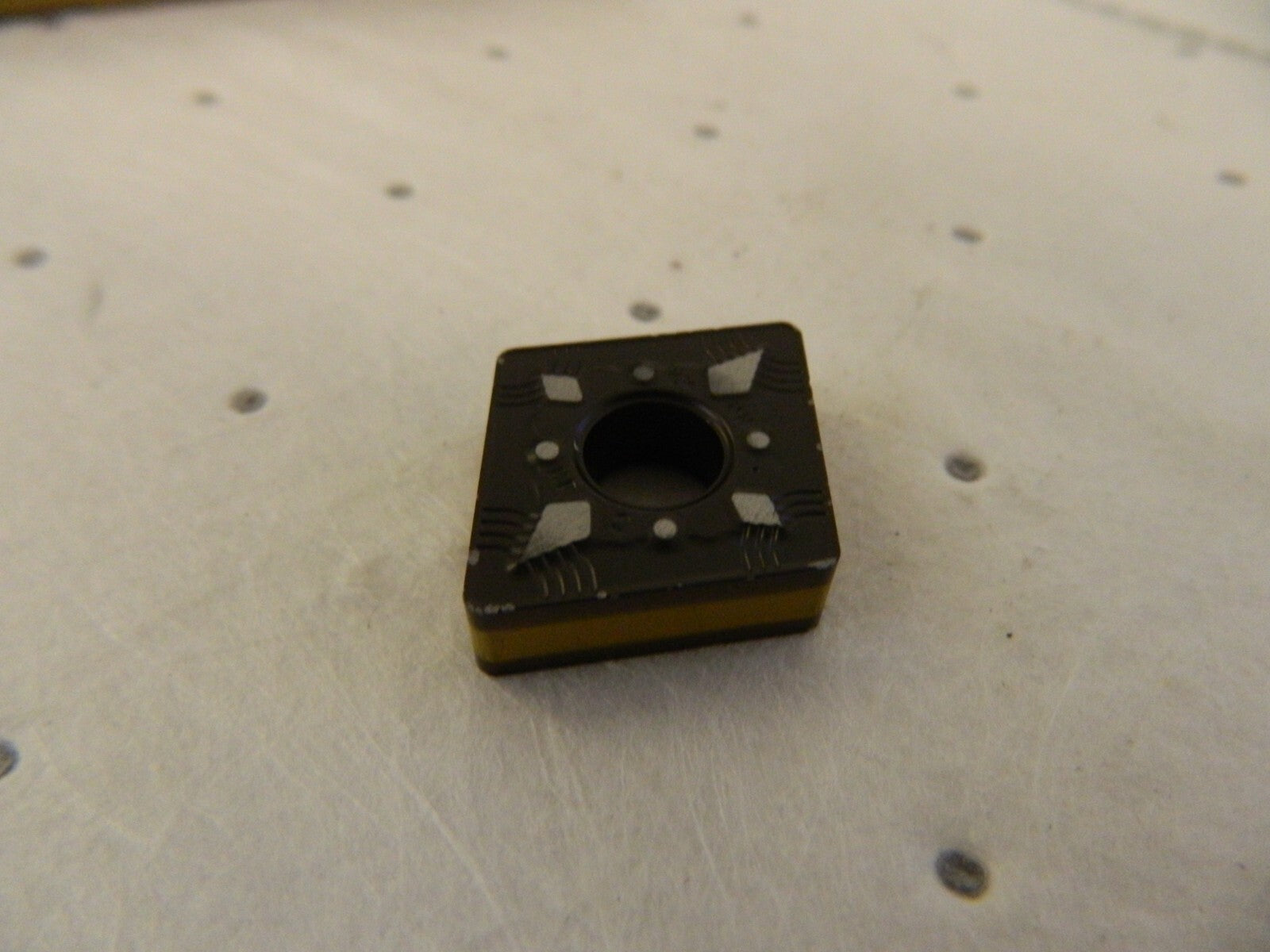

 Please review photos, comes as shown.
