ISCAR Turning Insert: VNMG 331-NF IC8150, Carbide 8pk 5508171

ISCAR Turning Insert: VNMG 331-NF IC8150, Carbide 8pk 5508171

MSRP: $230

• Insert Style VNMG
• Insert Size Code 331
• Insert Shape Diamond
• Included Angle 35
• Inscribed Circle (Decimal Inch) 0.3748
• Corner Radius (Decimal Inch) 0.0157
• Insert Material Carbide
• Manufacturer Grade IC8150
• Coating/Finish TiCN; Al2O3
• Relief Angle 0
• Insert Thickness (Decimal Inch) 0.1874
• Insert Shape Code V
• Corner Radius (Inch) 1/64
• Hole Diameter (Decimal Inch) 0.1500
• Maximum Depth of Cut (mm) 2.50
• Maximum Depth of Cut (Decimal Inch) 0.0984
• Inscribed Circle (Inch) 3/8
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Series Isoturn
• Coating Process CVD
• Length Range (Decimal Inch) 0.6500 - 0.7000
• Rake Positive
• Insert Length (Decimal Inch) 0.6535
• Insert Length (mm) 16.60
• Primary Workpiece Material Code P; K
• Secondary Workpiece Material Code K
• Iso Code ISO 13399
• Standards ISO 13399
• UNSPSC Code 23242105
• Chip Breaker NF

(Description).

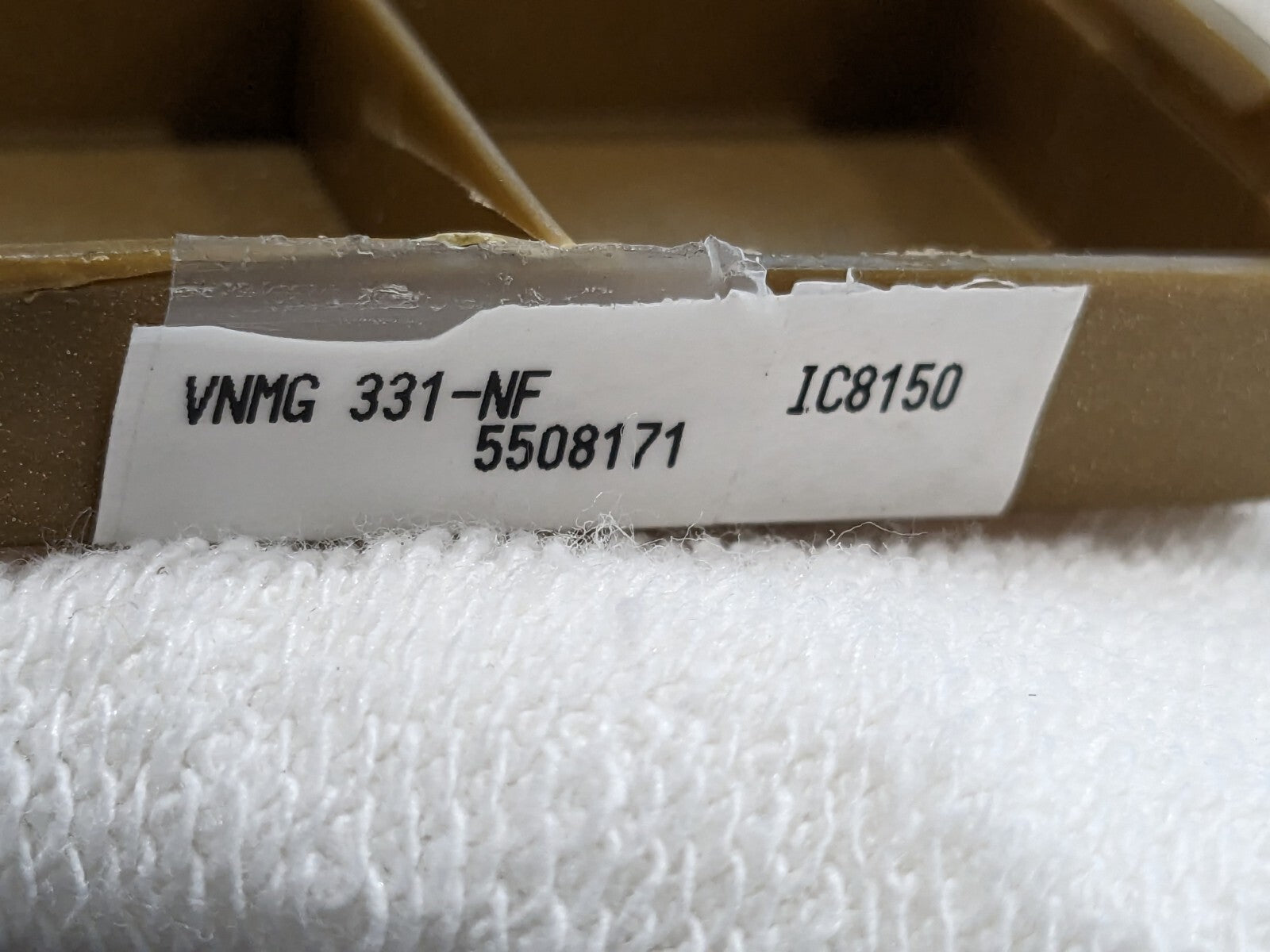

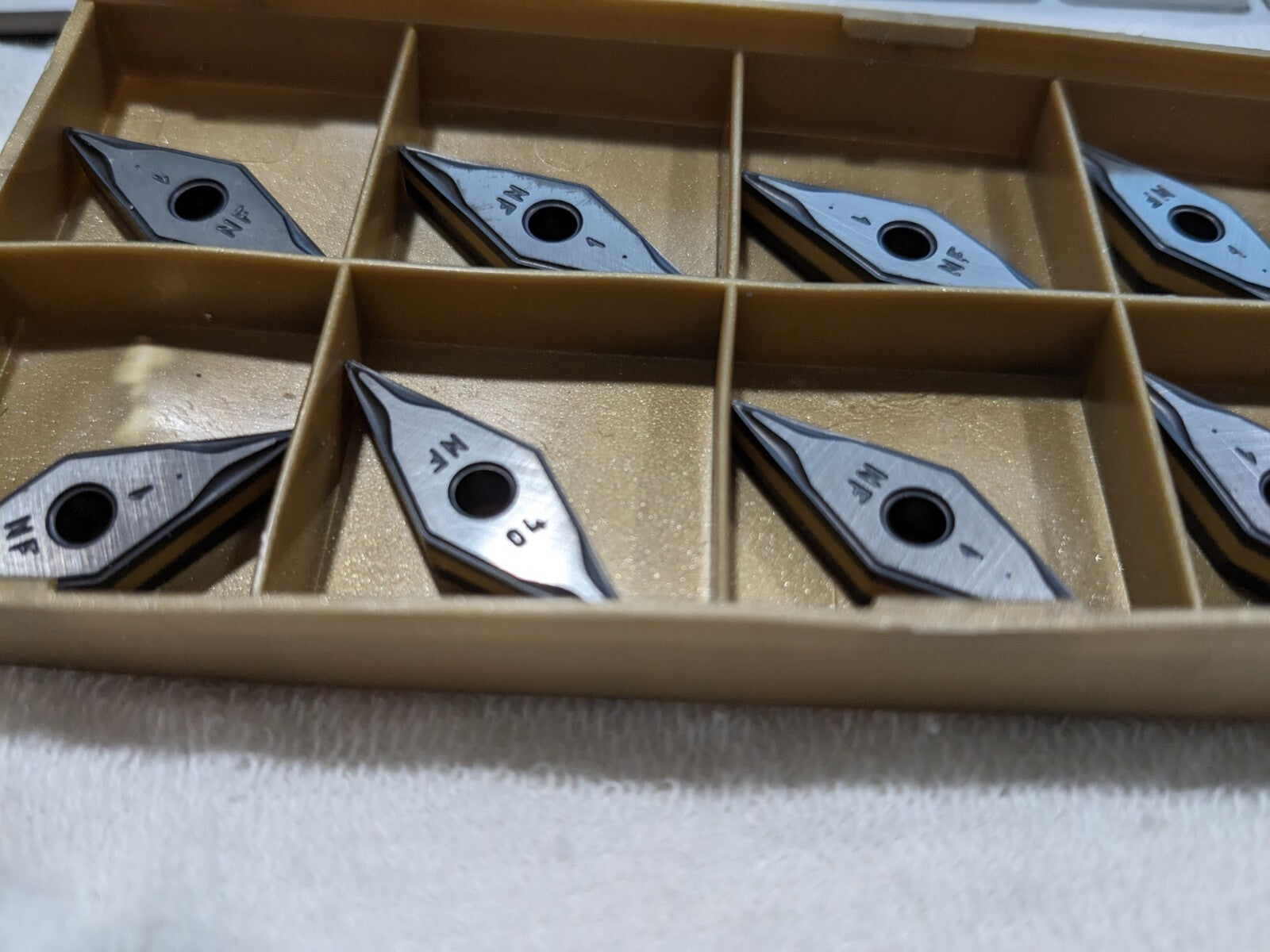

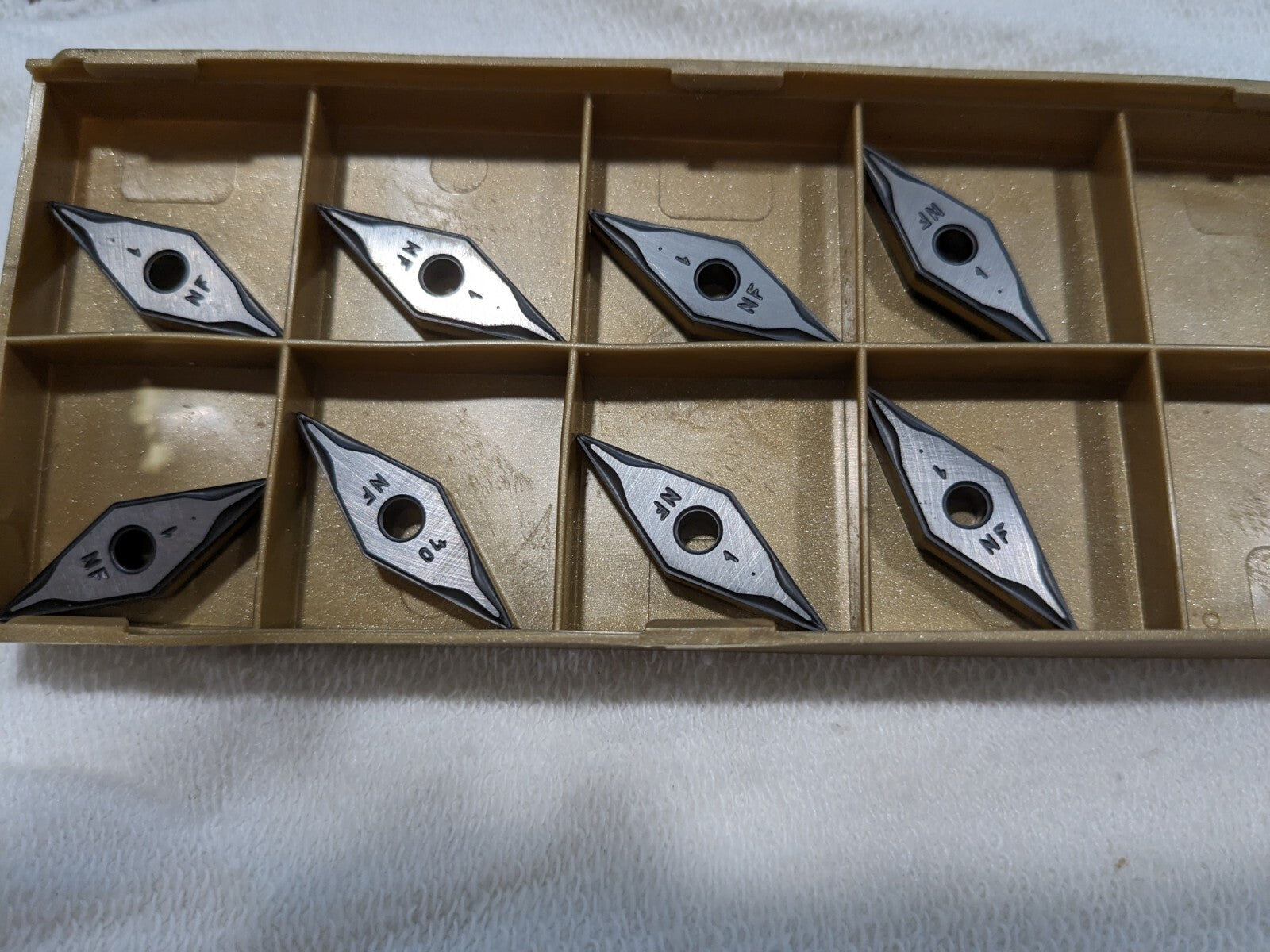

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
