ISCAR Turning Insert: VCMT333SM IC807, Solid Carbide Qty 10 5550500

Iscar
1 Lot of 10 Inserts

MSRP: $125.00

• Insert Style VCMT
• Insert Size Code 333
• Insert Shape Diamond
• Included Angle 35
• Inscribed Circle (Decimal Inch) 0.3750
• Corner Radius (Decimal Inch) 0.0469
• Insert Material Carbide
• Manufacturer Grade IC807
• Coating/Finish TiAlN
• Relief Angle 7
• Insert Thickness (Decimal Inch) 0.1875
• Insert Shape Code V
• Corner Radius (Inch) 3/64
• Hole Diameter (Mm) ( - 0 Decimals) 4.40
• Hole Diameter (Decimal Inch) 0.1732
• Maximum Depth of Cut (mm) 3.00
• Maximum Depth of Cut (Decimal Inch) 0.1180
• Inscribed Circle (Inch) 3/8
• Insert Holding Method Screw
• Insert Thickness (Inch) 3/16
• Clearance Code C
• Tolerance Code M
• Series Isoturn
• Coating Process PVD
• Length Range (Decimal Inch) 0.6500 - 0.7000
• Rake Positive
• Insert Length (Decimal Inch) 0.6535
• Insert Length (mm) 16.60
• Primary Workpiece Material Code P; S; H; K; M
• Iso Code ISO 13399
• Standards ISO 13399
• Material Grade Submicron
• Stocking Category D
• Chip Breaker SM

These items appear to be new and in good condition. SOLD AS IS.

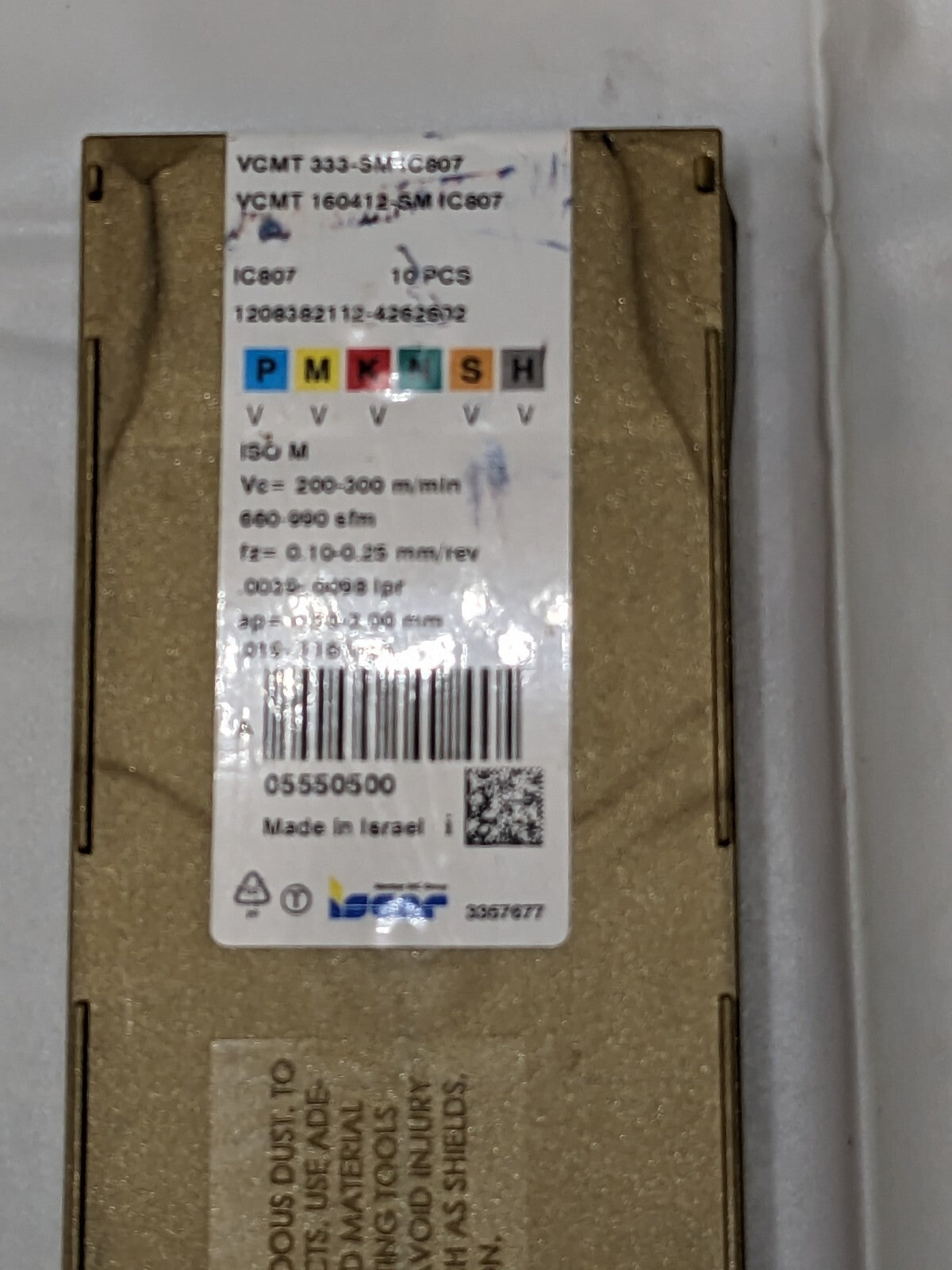

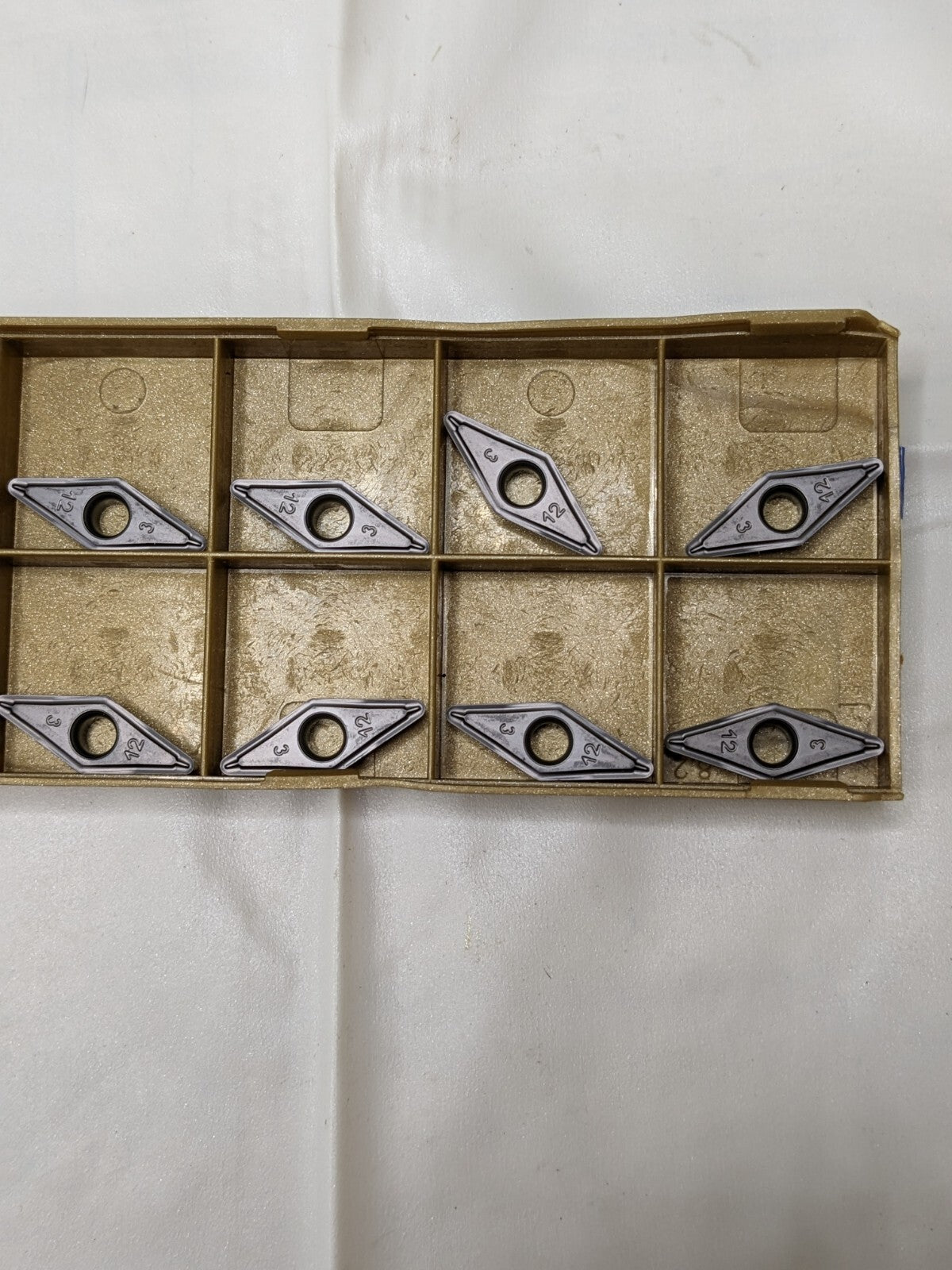

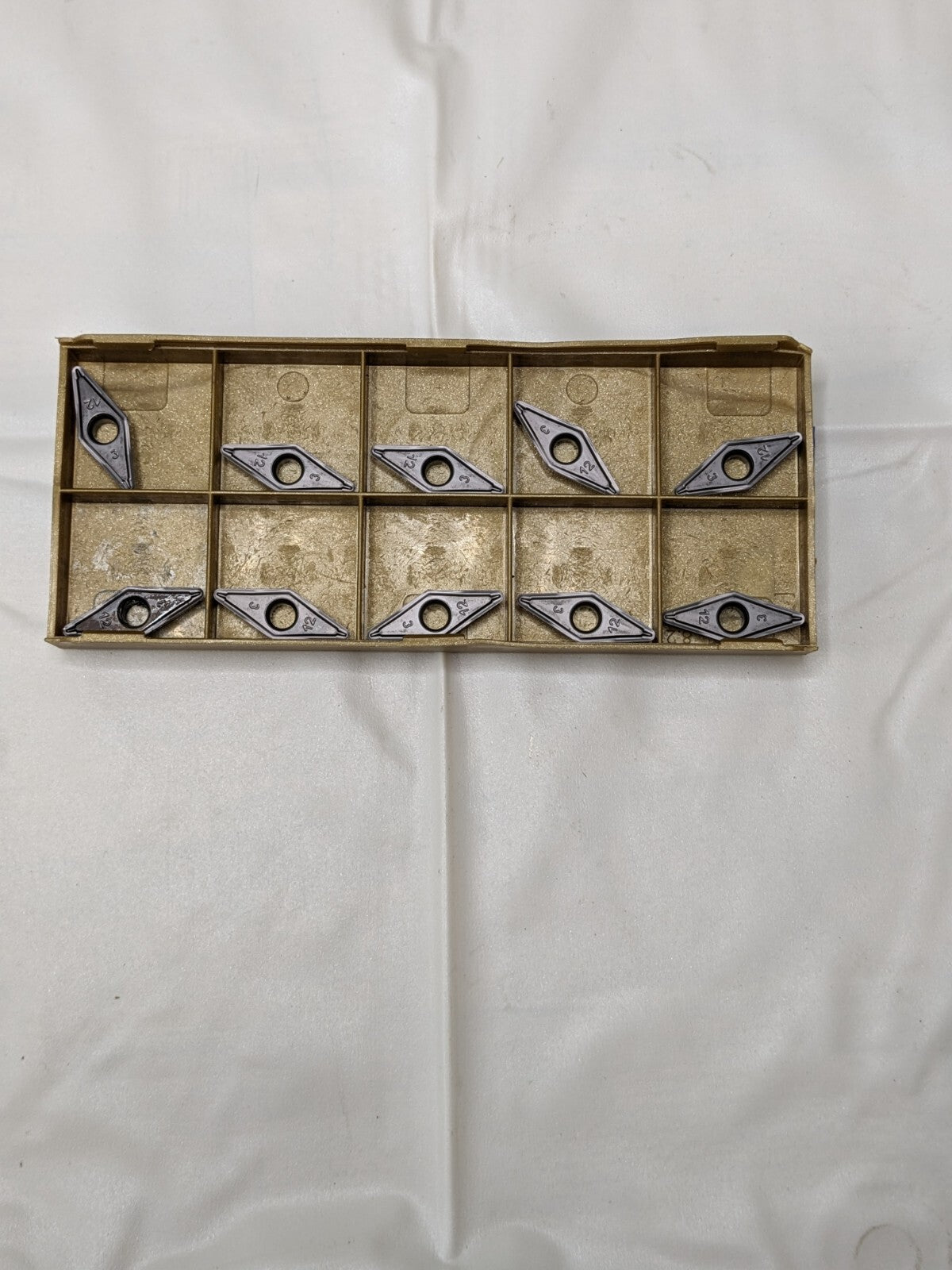

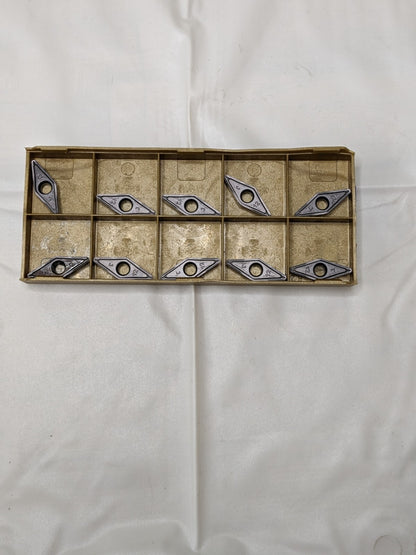

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
