Iscar Turning Insert TPG 321 IC-20 Carbide Qty10 5502026

Iscar
10pc Carbide Turning Insert

MSRP: $230.00

• Insert Style: TPG
• ANSI Size Code: 321
• ISO Size Code: 160304
• Insert Shape: T - Triangle
• Included Angle: 60.00
• Inscribed Circle (Decimal Inch): 0.3750
• Corner Radius (Inch): 1/64
• Corner Radius (Decimal Inch): 0.0156
• Insert Material: Carbide
• Manufacturer Grade: IC20
• Relief Angle: 11.000
• Insert Thickness (Inch): 1/8
• Insert Thickness (Decimal Inch): 0.1250
• Chip Breaker Operation: Flat Top
• Grade Characteristics: Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance: Positive
• ANSI Insert Code: TPG321
• ISO Insert Code: TPG160304
• Insert Holding Method: Clamp
• Clearance Code: P
• Tolerance Code: G
• Primary Workpiece Material Code: P; S; K; M; N
• Chip Breaker: Flat Top
• UNSPSC Code: 23242105

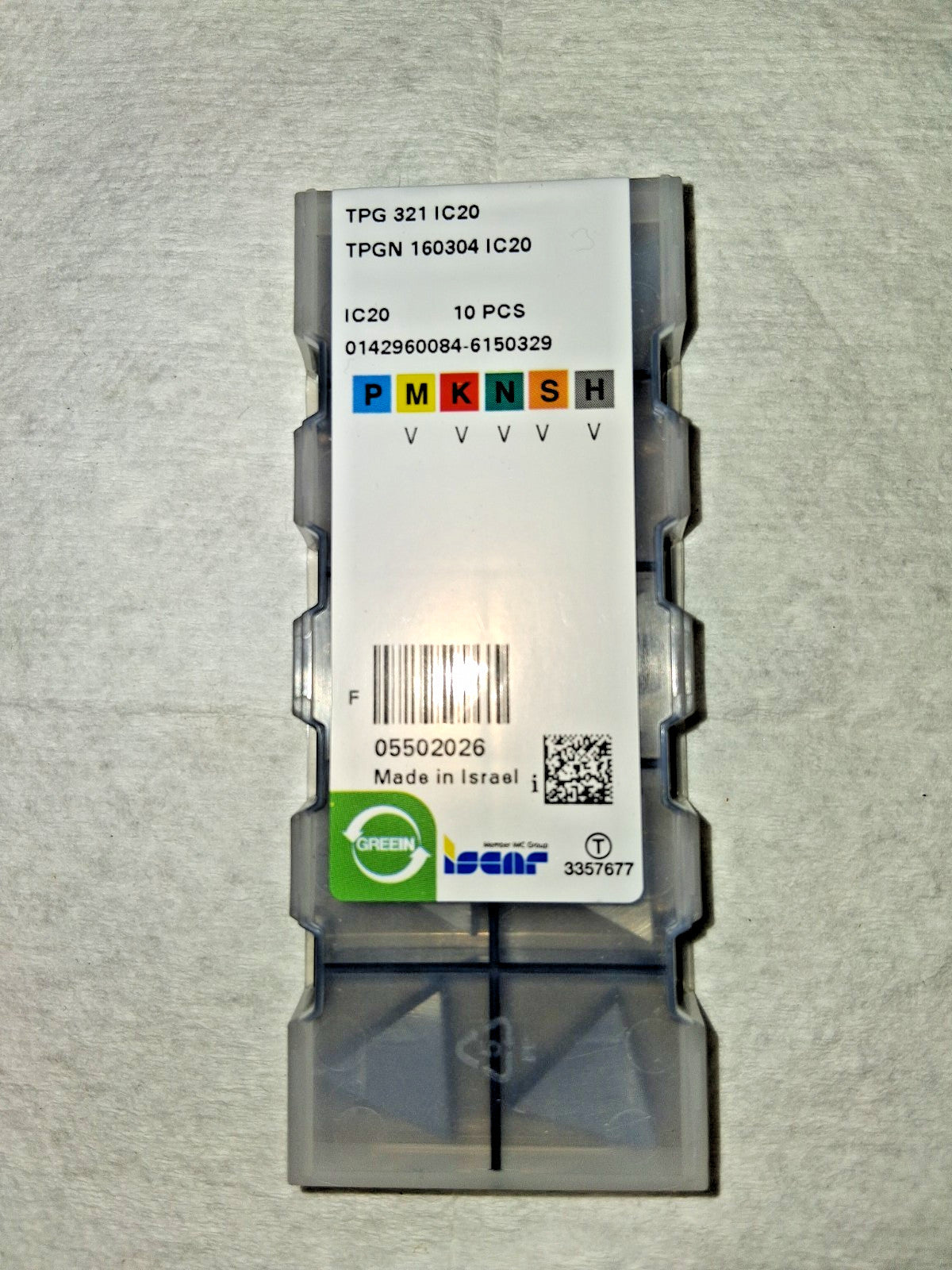

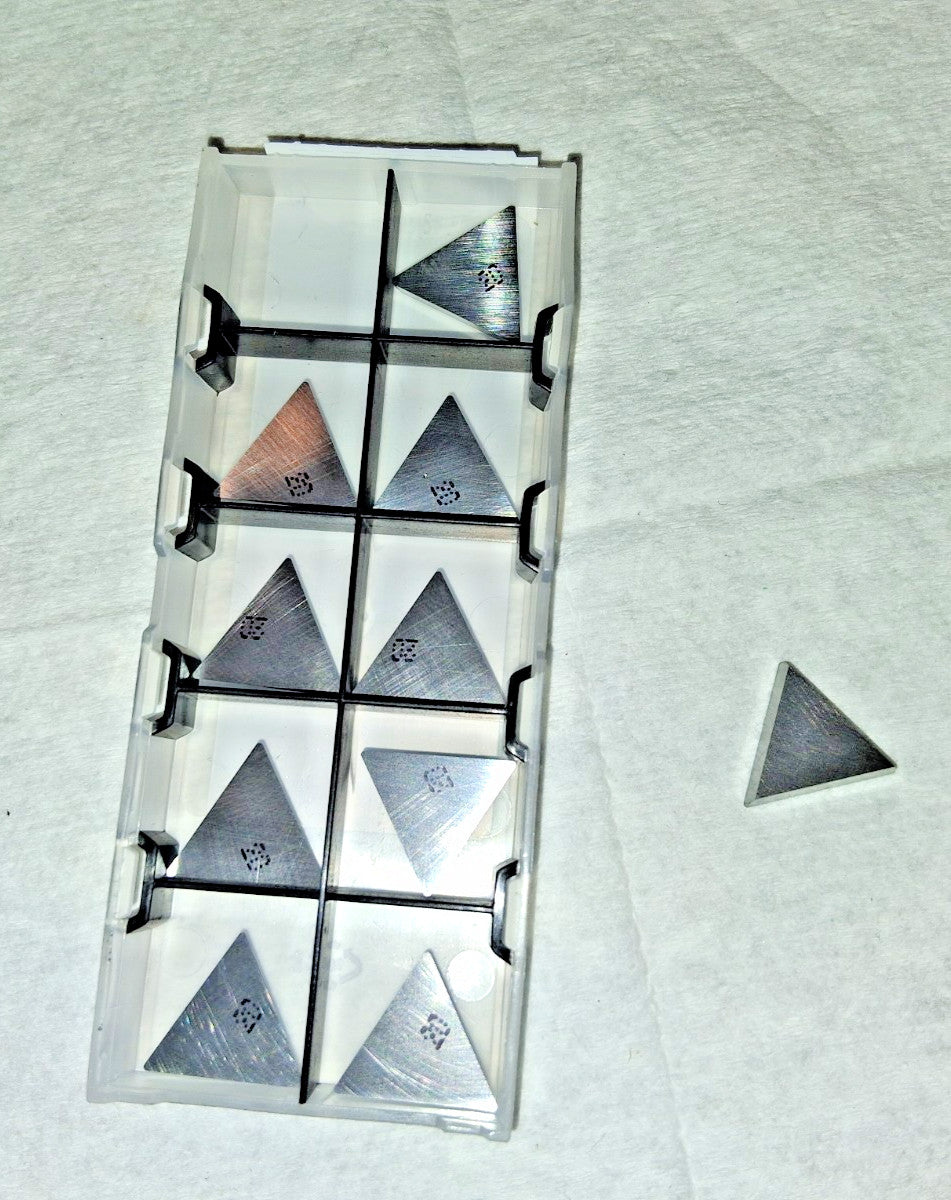

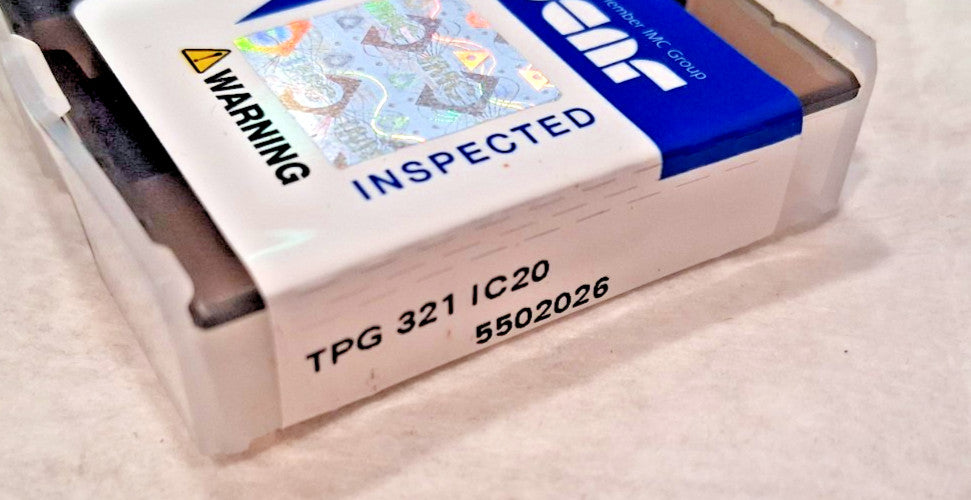

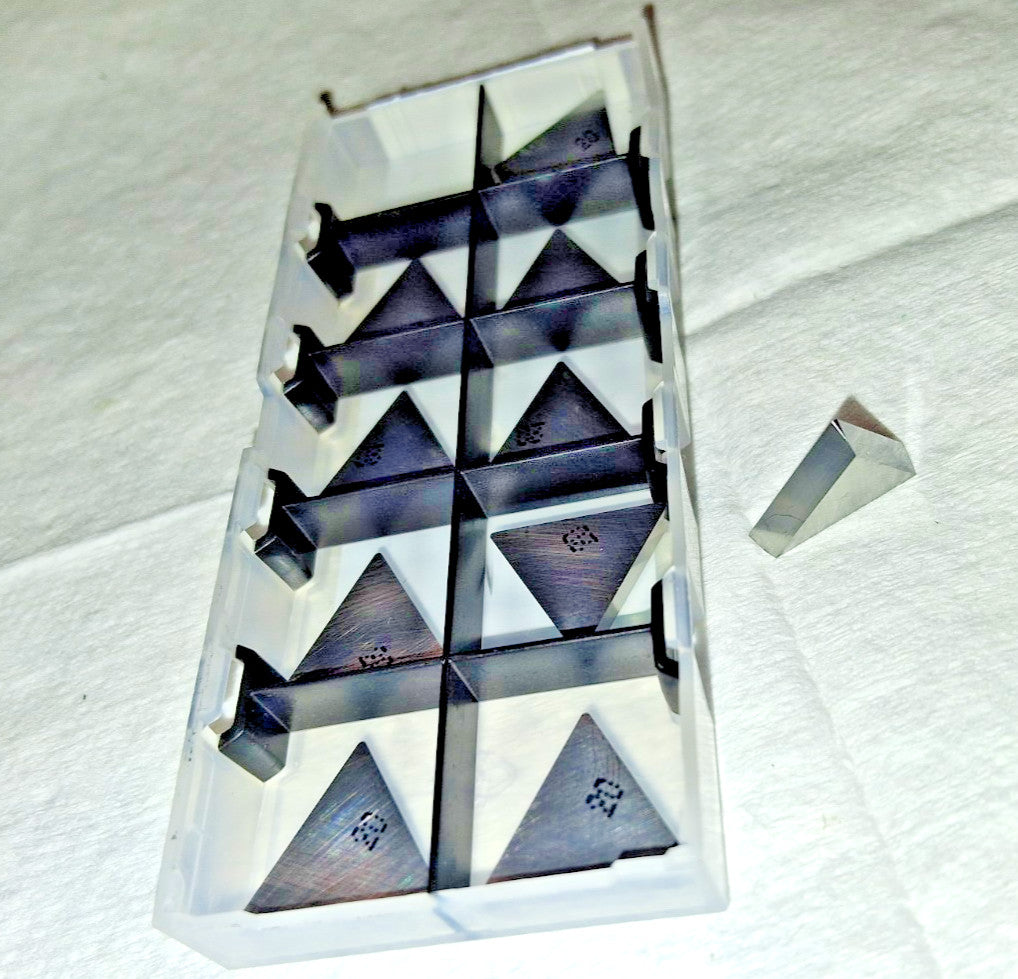

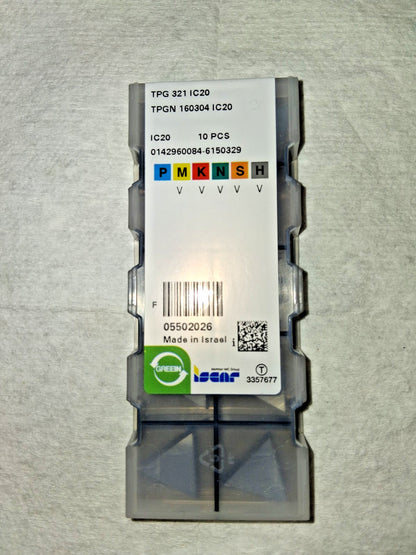

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
