ISCAR Turning Insert: CNMX 453-HTW IC9150, Solid Carbide 5507341

ISCAR

 Turning Insert: CNMX 453-HTW IC9150, Solid Carbide 5507341

MSRP: $180

• Insert Style CNMX
• Insert Size Code 453
• Insert Shape Diamond
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0472
• Corner Radius (mm) 0.05
• Insert Material Carbide
• Manufacturer Grade IC9150
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 0
• Wiper Edge Yes
• Insert Thickness (Decimal Inch) 0.2657
• Insert Shape Code C
• Corner Radius (Inch) 3/64
• Maximum Depth of Cut (mm) 6.00
• Maximum Depth of Cut (Decimal Inch) 0.2362
• Inscribed Circle (Inch) 1/2
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code M
• Series Heliturn LD
• Coating Process CVD
• Length Range (Decimal Inch) 0.5000 - 0.6000
• Rake Positive
• Insert Length (Decimal Inch) 0.5079
• Insert Length (mm) 12.90
• Primary Workpiece Material Cast Iron; Steel
• Primary Workpiece Material Code P; K
• Iso Code ISO 13399
• Standards ISO 13399
• UNSPSC Code 23242105
• Chip Breaker HTW

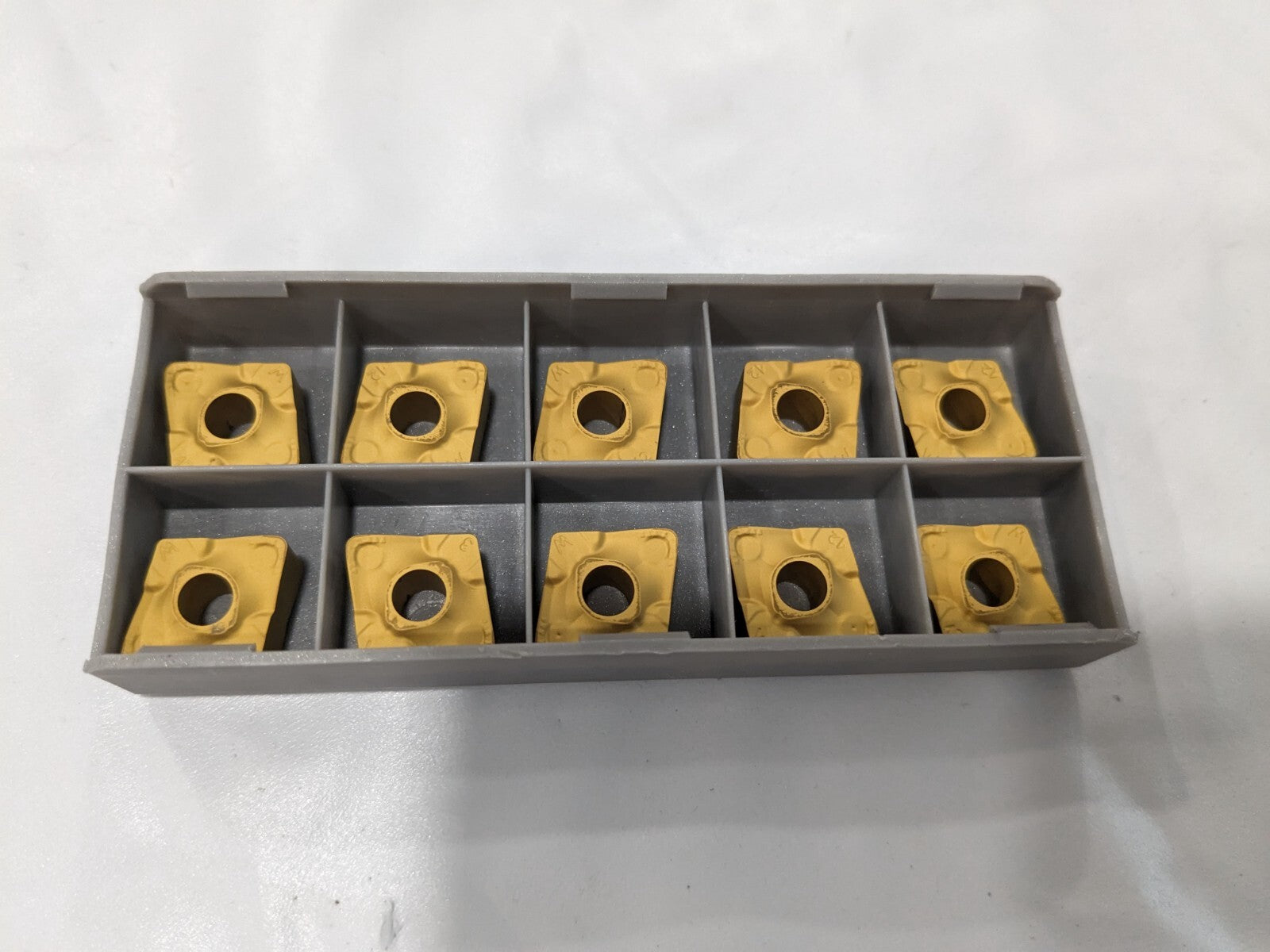

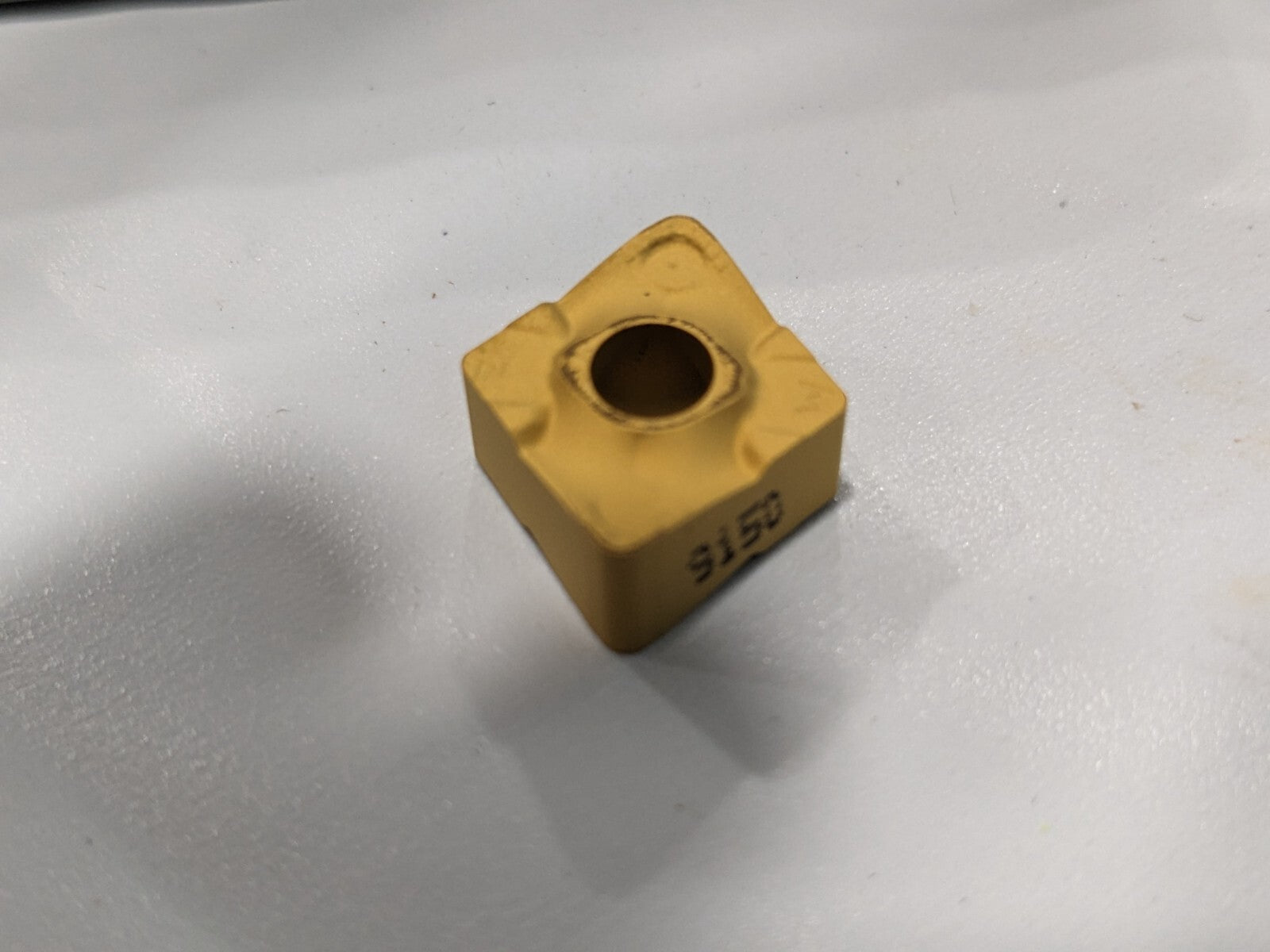

Please review photos, comes as shown.
