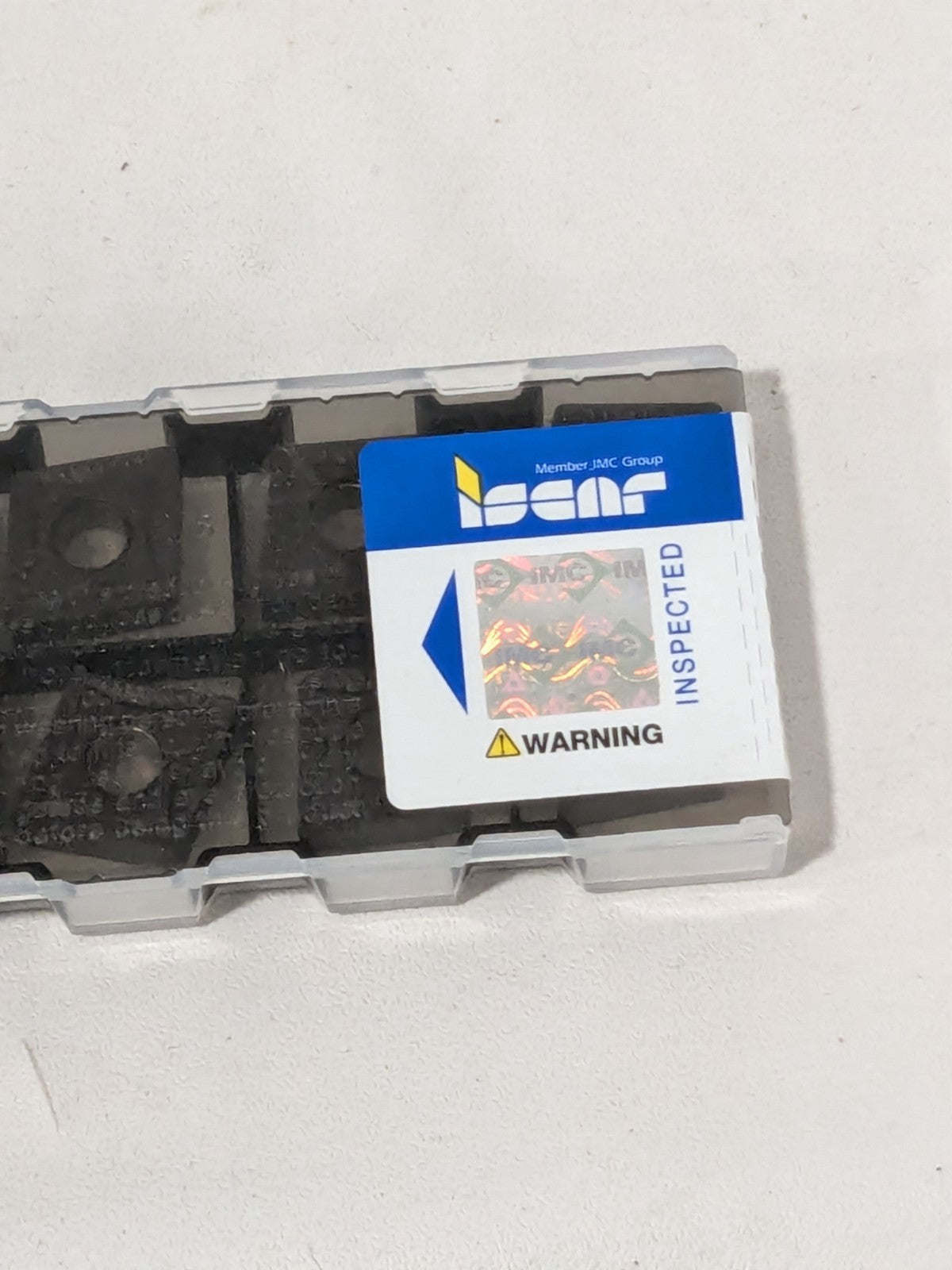

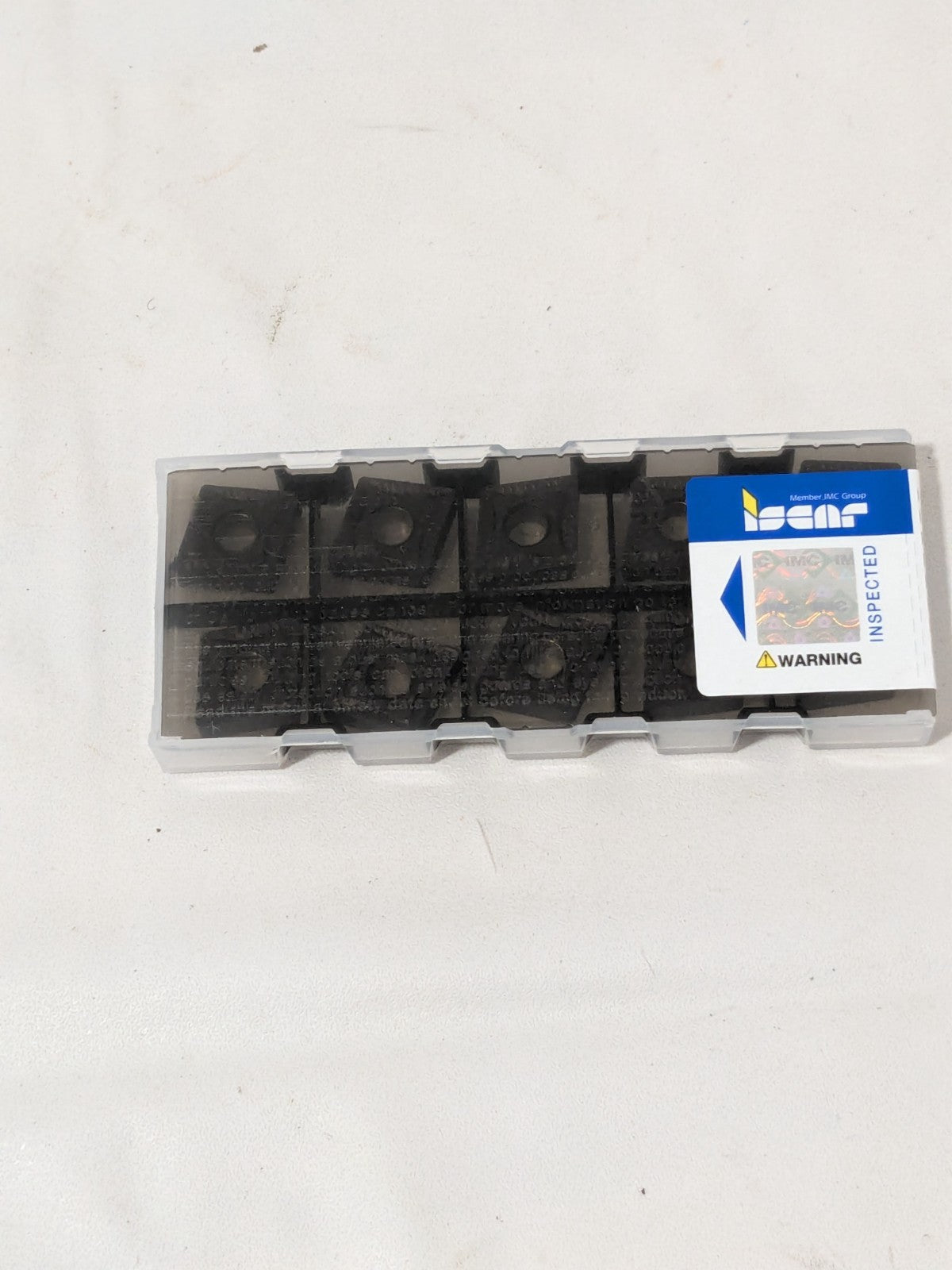

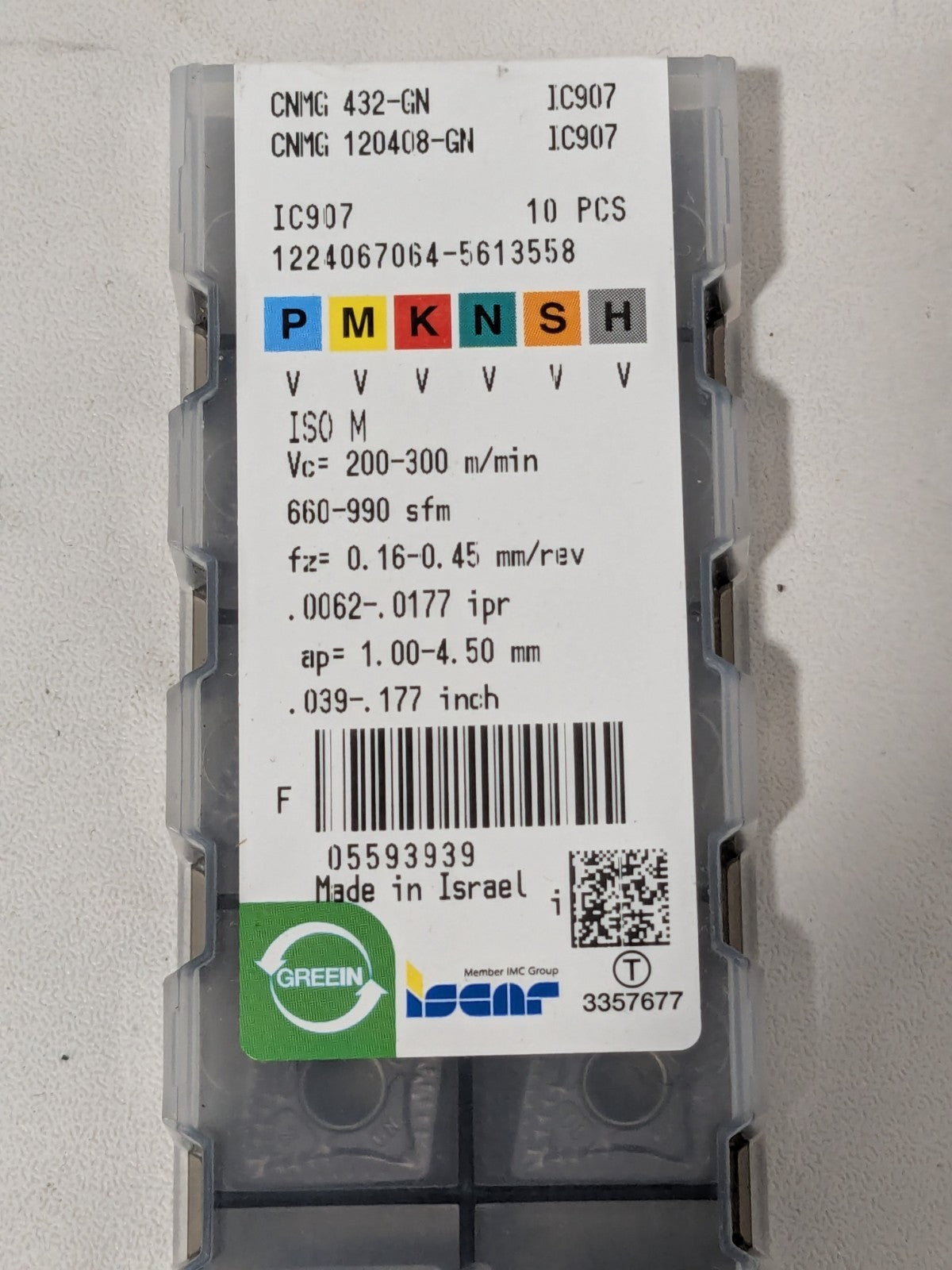

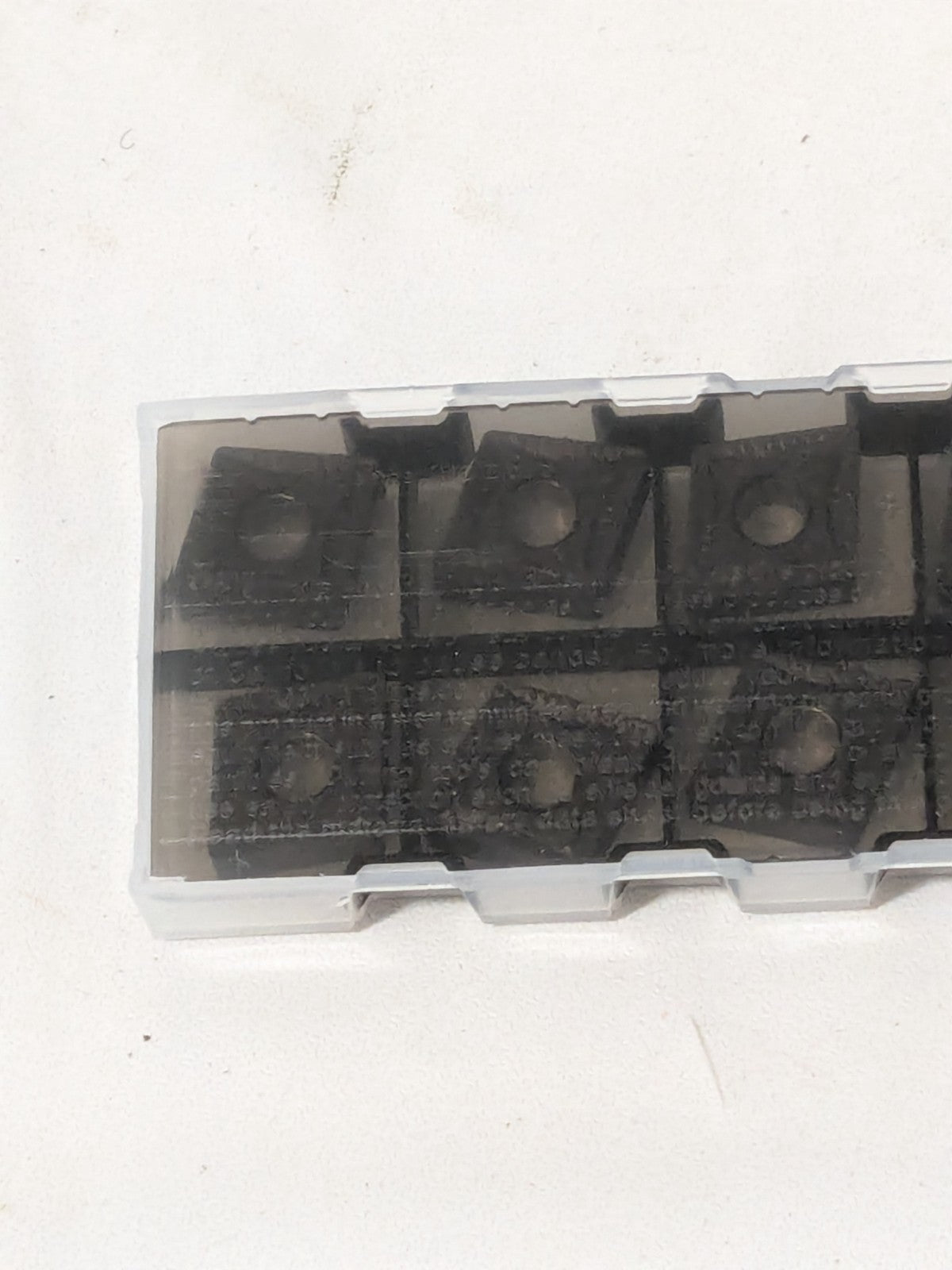

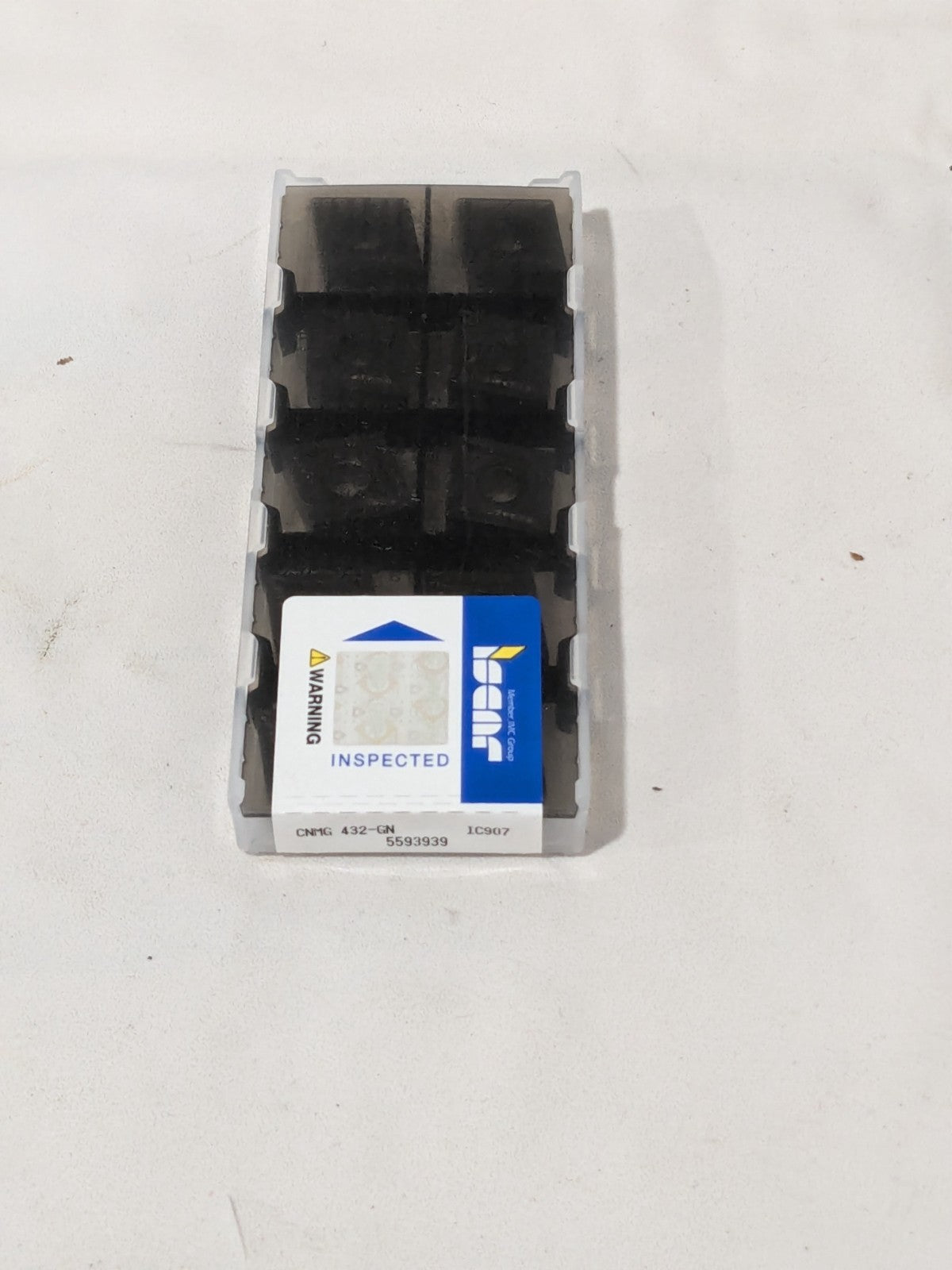

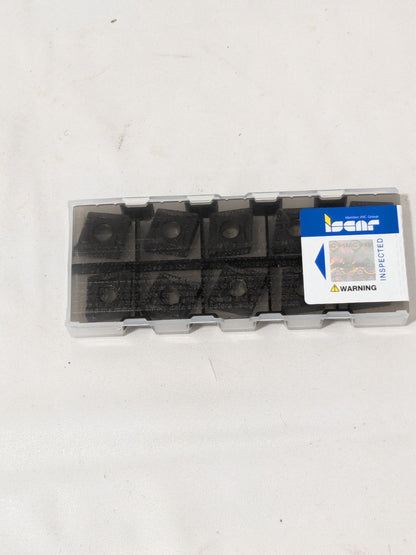

Name: Iscar Turning Insert: CNMG 432-GN IC907, Carbide Qty 10 5593939
Brand: ISCAR
SKU: August042026TB22493BW1Bin17
Price: 165.00 USD
Availability: InStock

Item Description

Iscar

Pack of 10 Inserts

MSRP $165.00

Insert Style: CNMG
ANSI Size Code: 432
ISO Size Code: 120408
Insert Shape: C - Diamond (Rhombic) 80-Deg
Included Angle: 80.00
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0315
Insert Material: Carbide
Manufacturer Grade: IC907
Relief Angle: 0.000
Insert Thickness (Inch): 3/16
Insert Thickness (Decimal Inch): 0.1874
Series: Isoturn
Chip Breaker Operation: Medium Machining; Roughing
Grade Characteristics: Cast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance: Negative
Hole Diameter (Decimal Inch): 0.2030
Maximum Depth of Cut (mm): 4.50
Maximum Depth of Cut (Decimal Inch): 0.1772
ANSI Insert Code: CNMG432
ISO Insert Code: CNMG120408
Insert Holding Method: Pin; Clamp
Clearance Code: N
Tolerance Code: M
Coating Process: PVD
Insert Length (Decimal Inch): 0.5079
Insert Length (mm): 12.90
Primary Workpiece Material Code: P; S; K; M; N
Iso Code: ISO 13399
Standards: ISO 13399
Material Grade: C4
Chip Breaker: GN
UNSPSC Code: 23242105
Country of Origin: Israel
