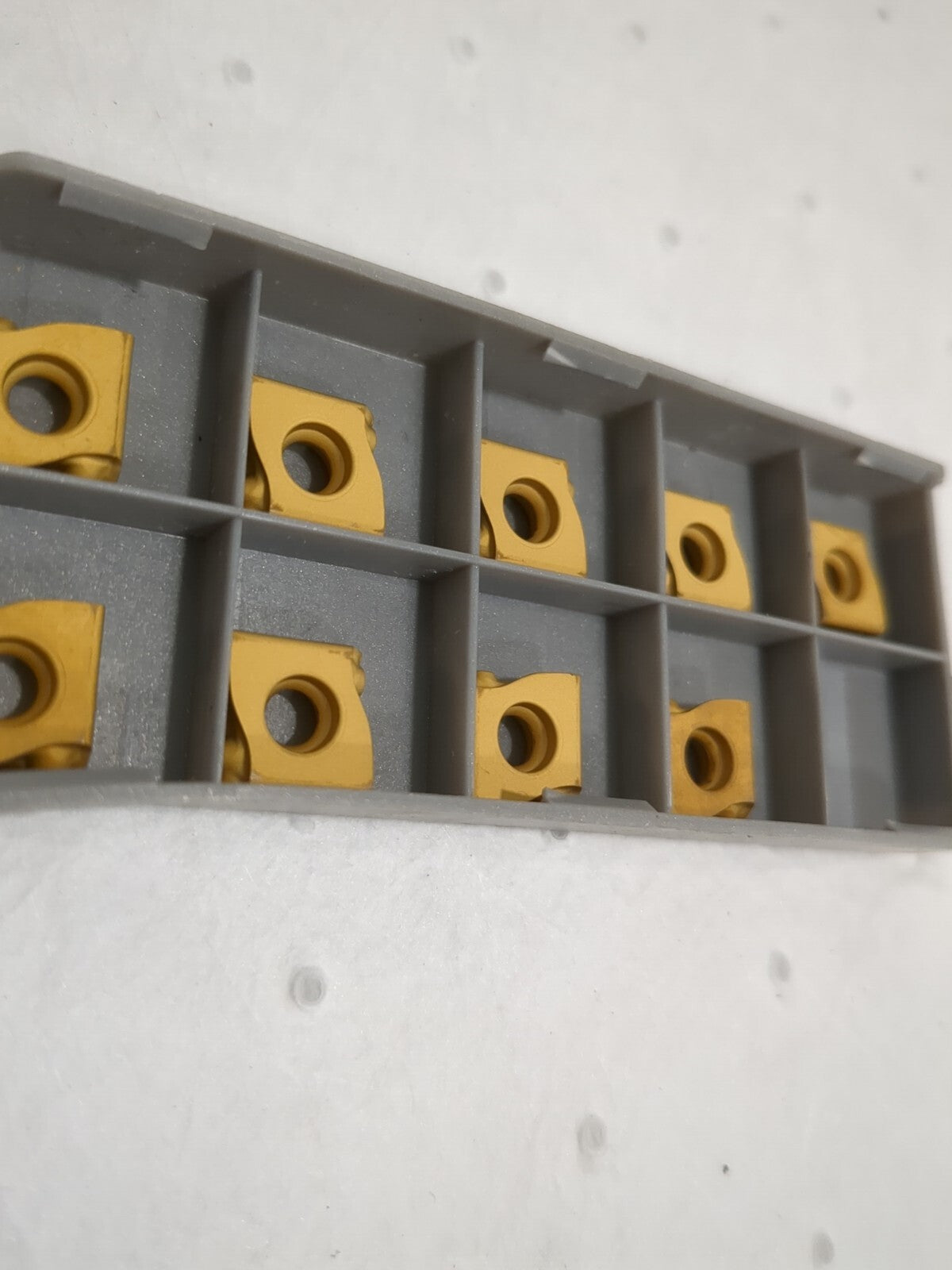

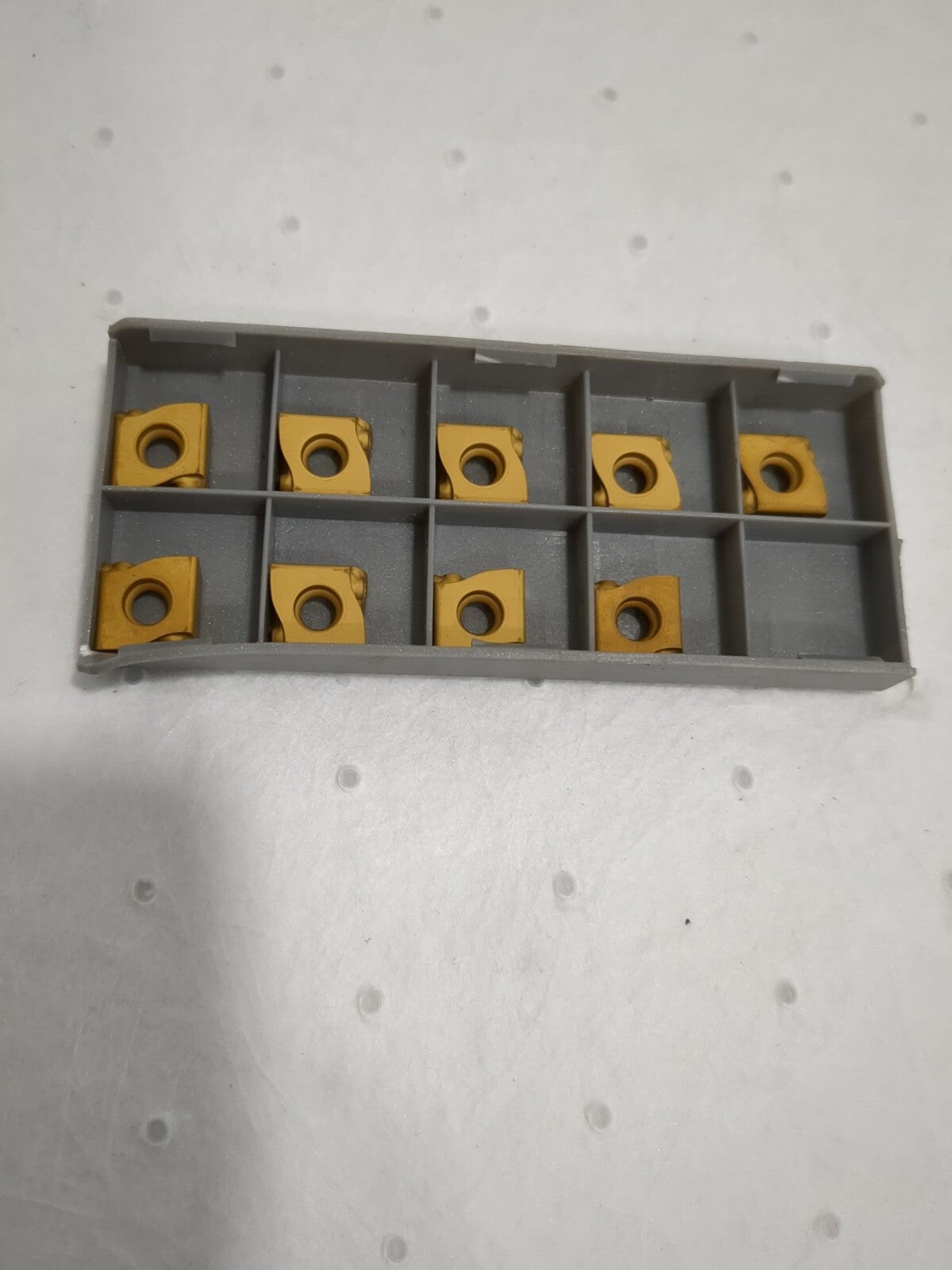

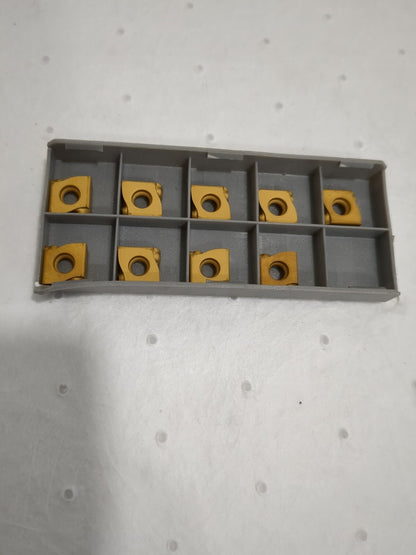

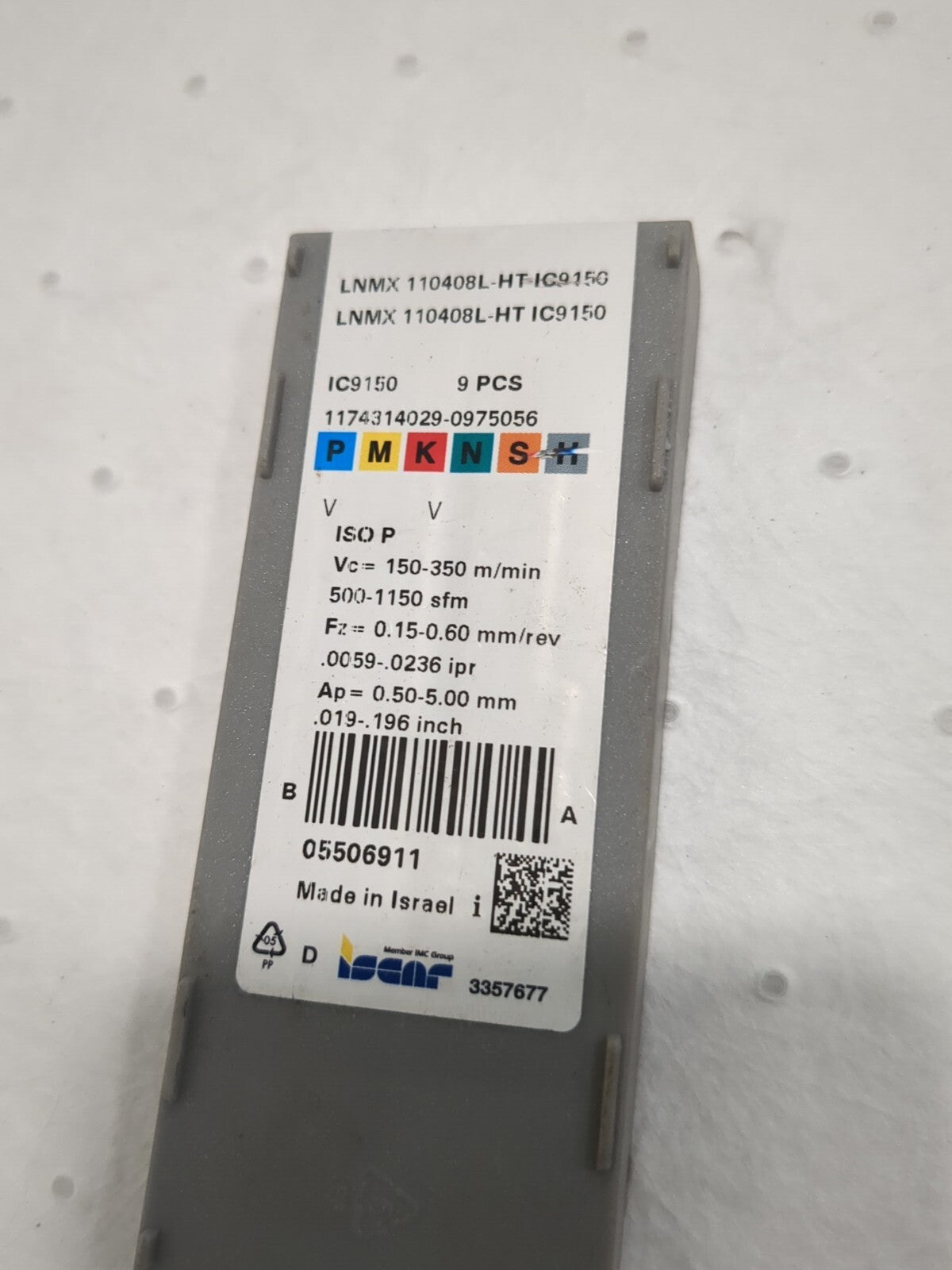

ISCAR Turning Insert 9pk: LNMX110408LHT IC9150, Carbide 5506911

MSRP: $140

• ANSI Insert Code LNMX
• ISO Insert Code LNMX110408
• Relief Angle 0
• Insert Style LNMX
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0313
• Included Angle 90
• Manufacturer Grade IC9150
• Coating/Finish TiCN; TiN; Al2O3
• Insert Hand Left Hand
• Insert Thickness 11.40
• Insert Thickness (Decimal Inch) 0.4490
• Series Heliturn
• Insert Material Carbide
• Insert Shape L - Rectangle
• Chip Breaker Operation Medium Machining; Finishing
• Grade Characteristics Cast Iron (K) - High Wear-Resistance; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Negative
• Insert Shape Code L
• Maximum Depth of Cut (mm) 5.00
• Insert Holding Method Screw
• Clearance Code N
• Tolerance Code M
• Coating Process CVD
• Length Range (Decimal Inch) 0.4000 - 0.5000
• Rake Positive
• Insert Length (Decimal Inch) 0.4330
• Insert Length (mm) 11.00
• Primary Workpiece Material Cast Iron; Steel
• Primary Workpiece Material Code P; K
• Iso Code ISO 13399
• Standards ISO 13399
• Stocking Category D
• Chip Breaker HT
• ISO Size Code 110408
• UNSPSC Code 23242105
• Insert Size Code 110408

(Description).

Please review photos, comes as shown.
