ISCAR Turning Insert 10pk LNMX150608R-HT IC807, Solid Carbide 5550356

ISCAR Turning Insert 10pk LNMX150608R-HT IC807, Solid Carbide 5550356

MSRP: $210

• Insert Style LNMX
• Insert Size Code 150608
• Insert Shape Rectangle
• Included Angle 90
• Corner Radius (Decimal Inch) 0.0315
• Insert Material Carbide
• Manufacturer Grade IC807
• Coating/Finish TiAlN
• Relief Angle 0
• Insert Thickness 13.40
• Insert Thickness (Decimal Inch) 0.5276
• Insert Hand Right Hand
• Insert Shape Code L
• Corner Radius (Inch) 1/32
• Maximum Depth of Cut (mm) 6.00
• Maximum Depth of Cut (Decimal Inch) 0.2360
• Insert Holding Method Screw
• Clearance Code N
• Tolerance Code M
• Series Isoturn
• Coating Process PVD
• Length Range (Decimal Inch) 0.5000 - 0.6000
• Rake Positive
• Insert Length (Decimal Inch) 0.5906
• Insert Length (mm) 15.00
• Primary Workpiece Material Code P; S; H; K; M
• Iso Code ISO 13399
• Standards ISO 13399
• Manufacturers Catalog Number LNMX150608R
• UNSPSC Code 23242105
• Chip Breaker HT
• Width (Decimal Inch - 4 Decimals) 0.2520
• Width (Mm - 2 Decimals) 6.40

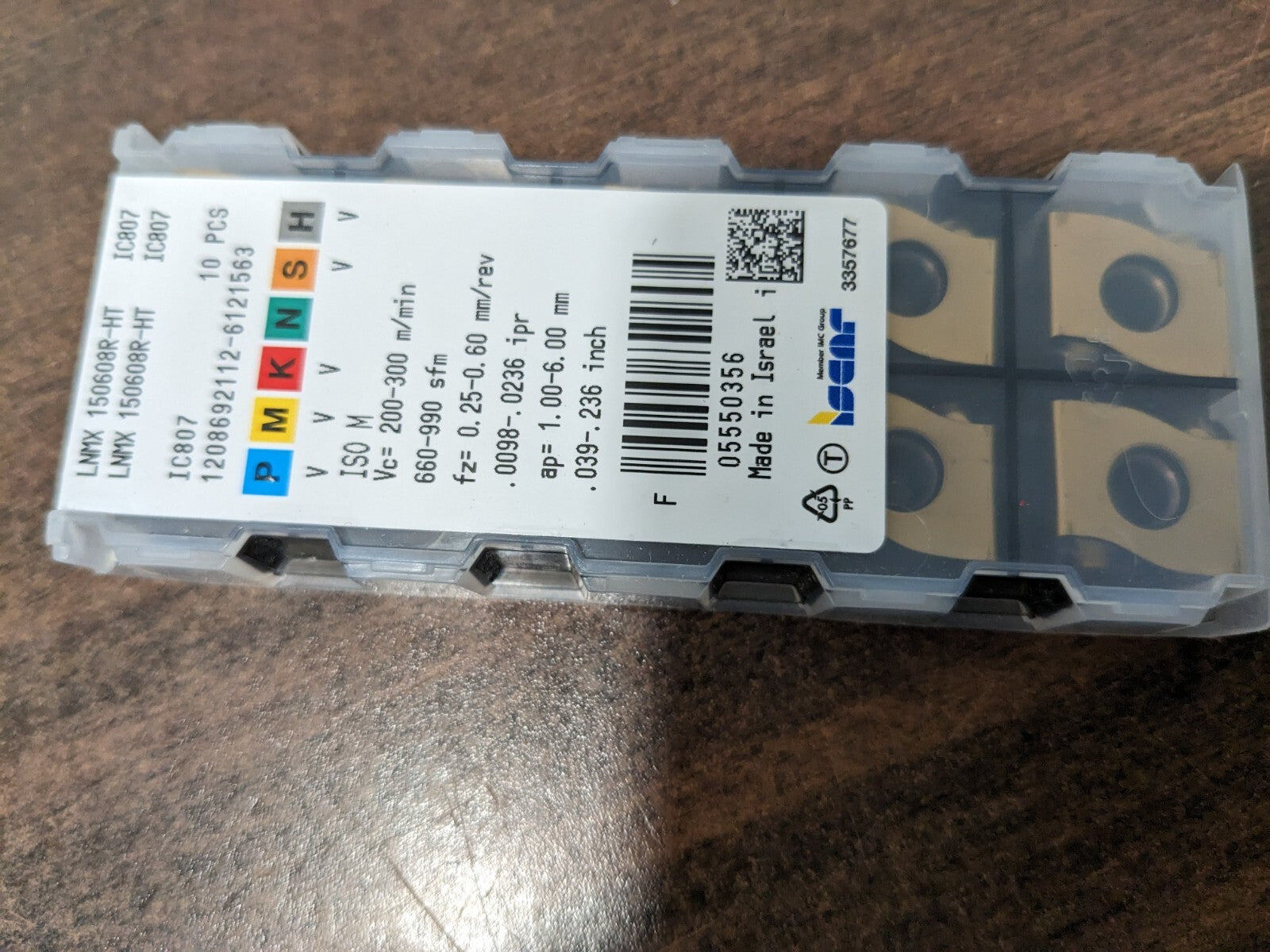

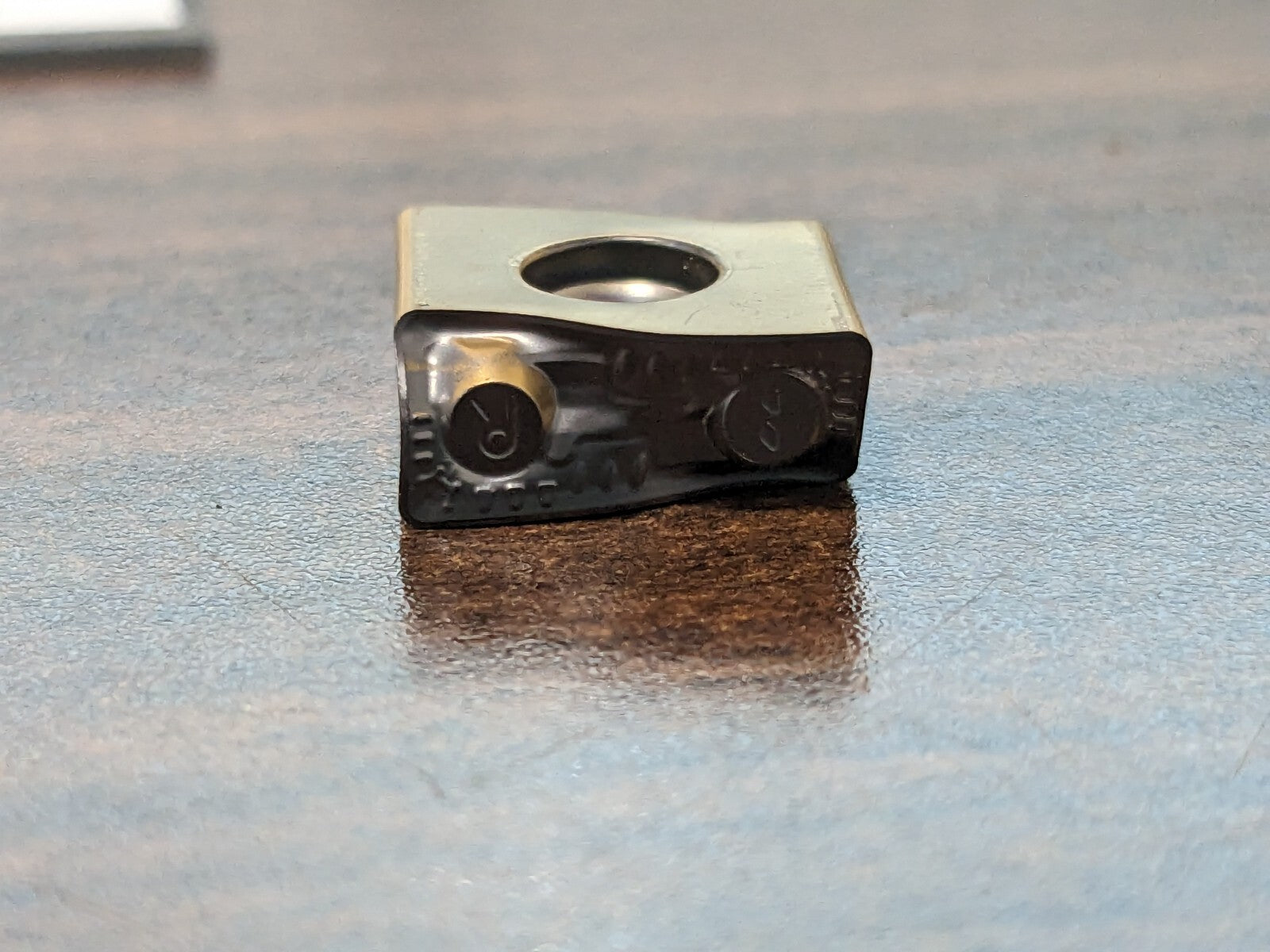

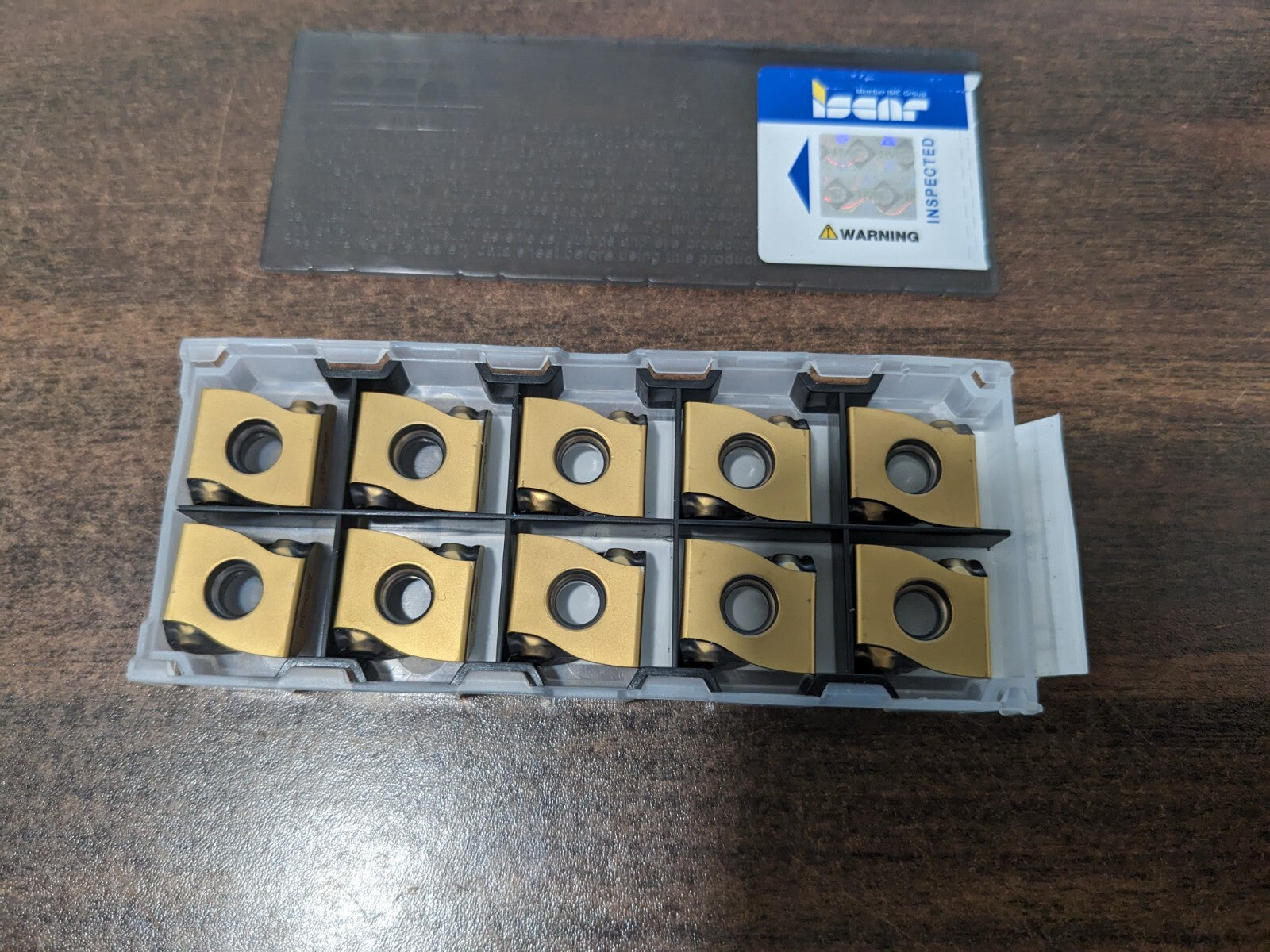

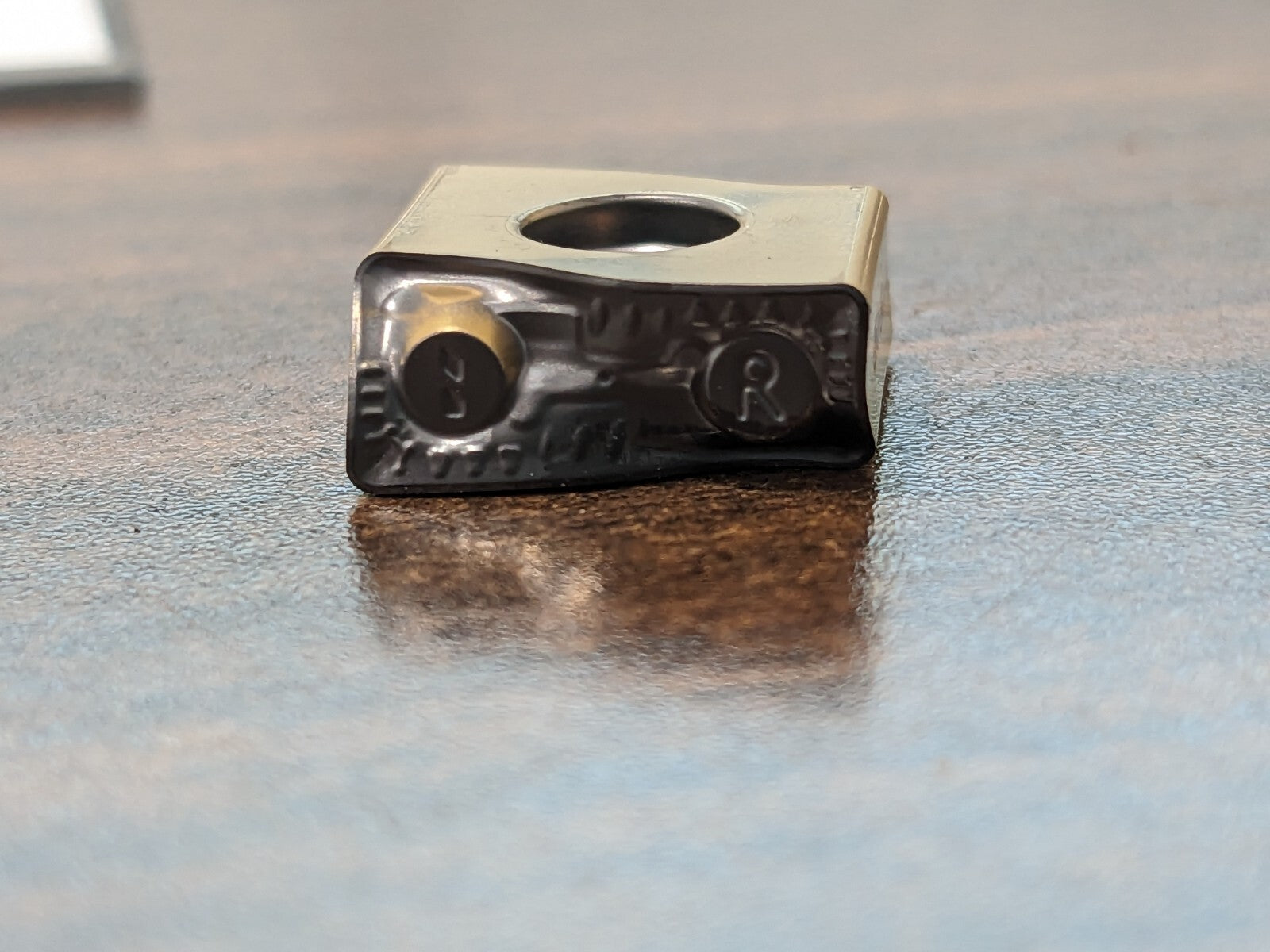

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
