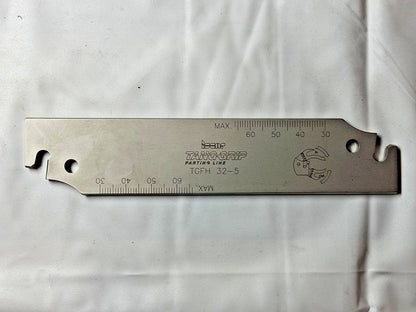

Iscar TGFH Single End Neutral Indexable Cutoff Blade 2302143

Iscar
TGFH Single End Neutral Indexable Cutoff Blade

MSRP: $155

• End Type Single
• Cutting Direction Neutral
• Blade Height (mm) 32.00
• Blade Height (Decimal Inch) 1.2600
• Blade Width (Decimal Inch) 0.1570
• Blade Width (mm) 4.00
• Blade Overall Length (Decimal Inch) 5.9060
• Blade Overall Length (mm) 150.00
• Blade Style TGFH
• Compatible Insert Style TAG
• Compatible Insert Size Code 5
• Insert Holding Method Clamp
• Maximum Workpiece Diameter (Decimal Inch) 4.7200
• Series Tang-Grip
• Insert Style TAG 5..
• Cutting Tool Application Grooving; Turning; Parting
• Insert Width (mm) 4.70
• Standards ISO 13399
• Insert Seat Size 4
• Cutting Height (mm) 24.80
• Cutting Height (Decimal Inch) 0.9764
• Minimum Insert Width (Decimal Inch) 0.1850
• Minimum Insert Width (mm) 4.70
• Maximum Insert Width (mm) 5.50
• Maximum Insert Width (Decimal Inch) 0.2165
• Complete Insert Compatibility TAG N5JT; TAG R5J-4D; TAG L5J-4D; TAG N5J; TAG N4.8C; TAG L5C-4D; TAG N5C; TAG R5C-4D; TAG N5UT
• Complete Tool Block/Toolholder Style Compatibility C..TBK..,HS..TBK..,IM..TBK..,SGT..
• Manufacturers Catalog Number TGFH 32-5
• Insert Width 0.1850
• UNSPSC Code 23241600

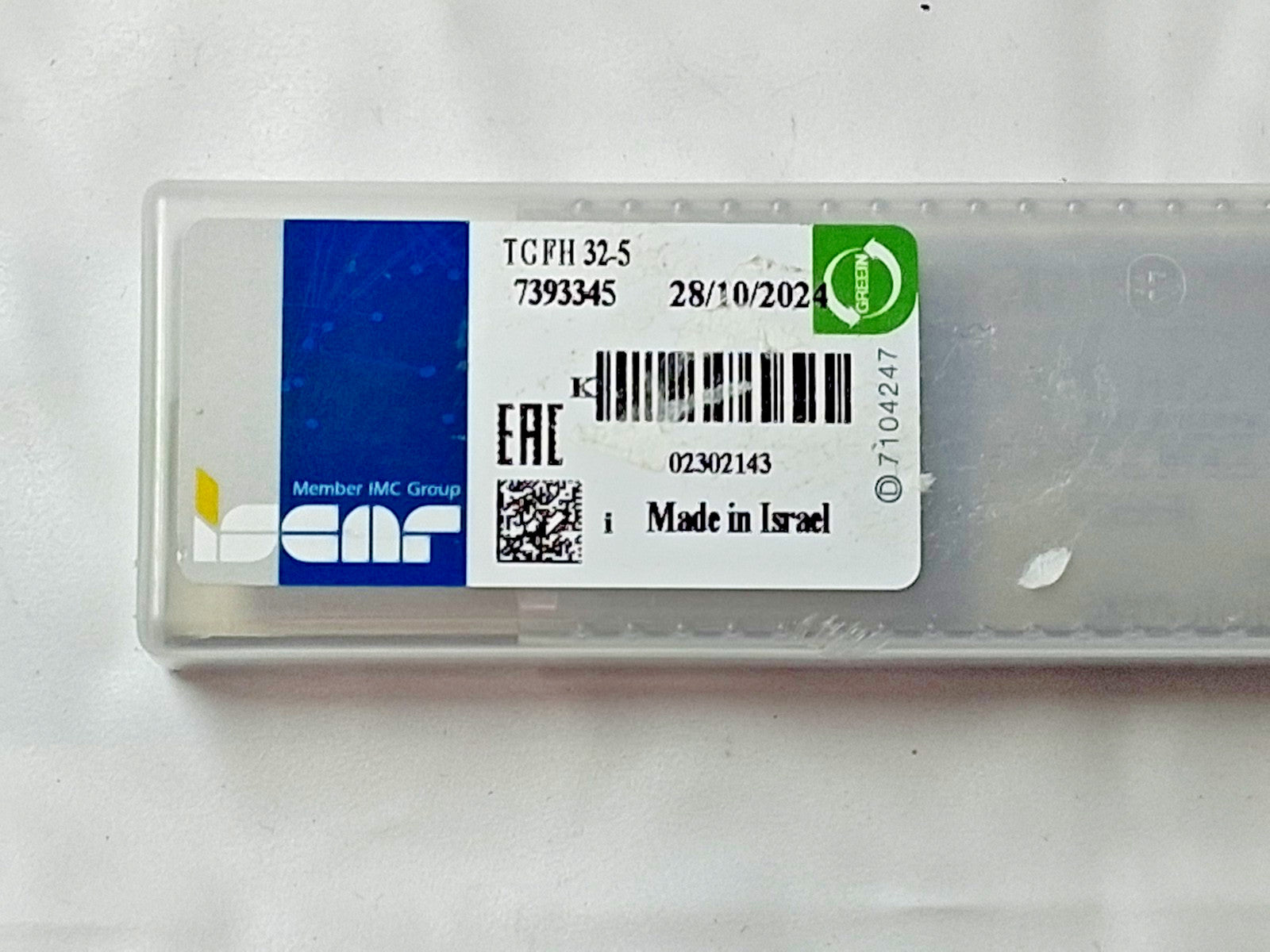

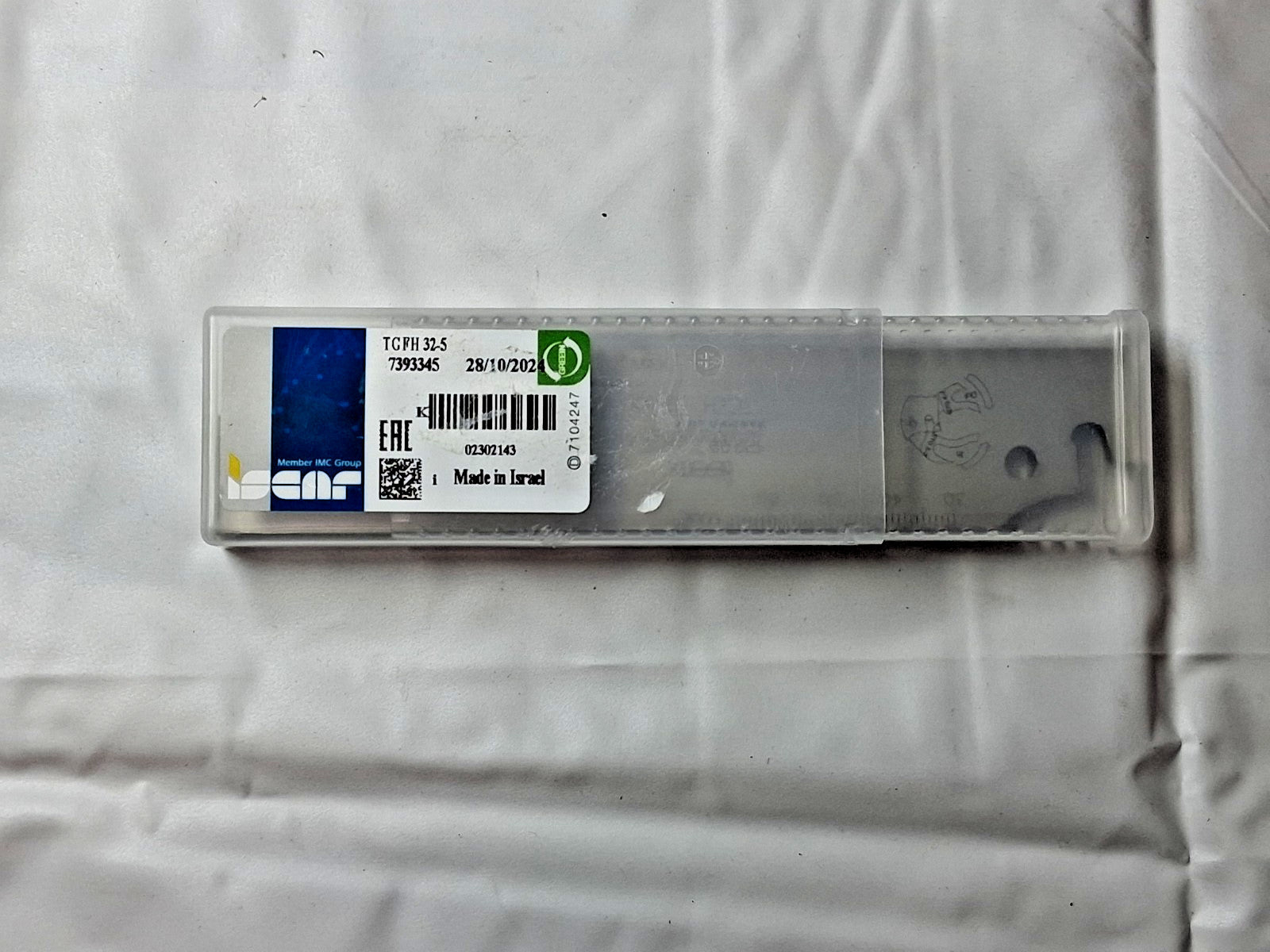

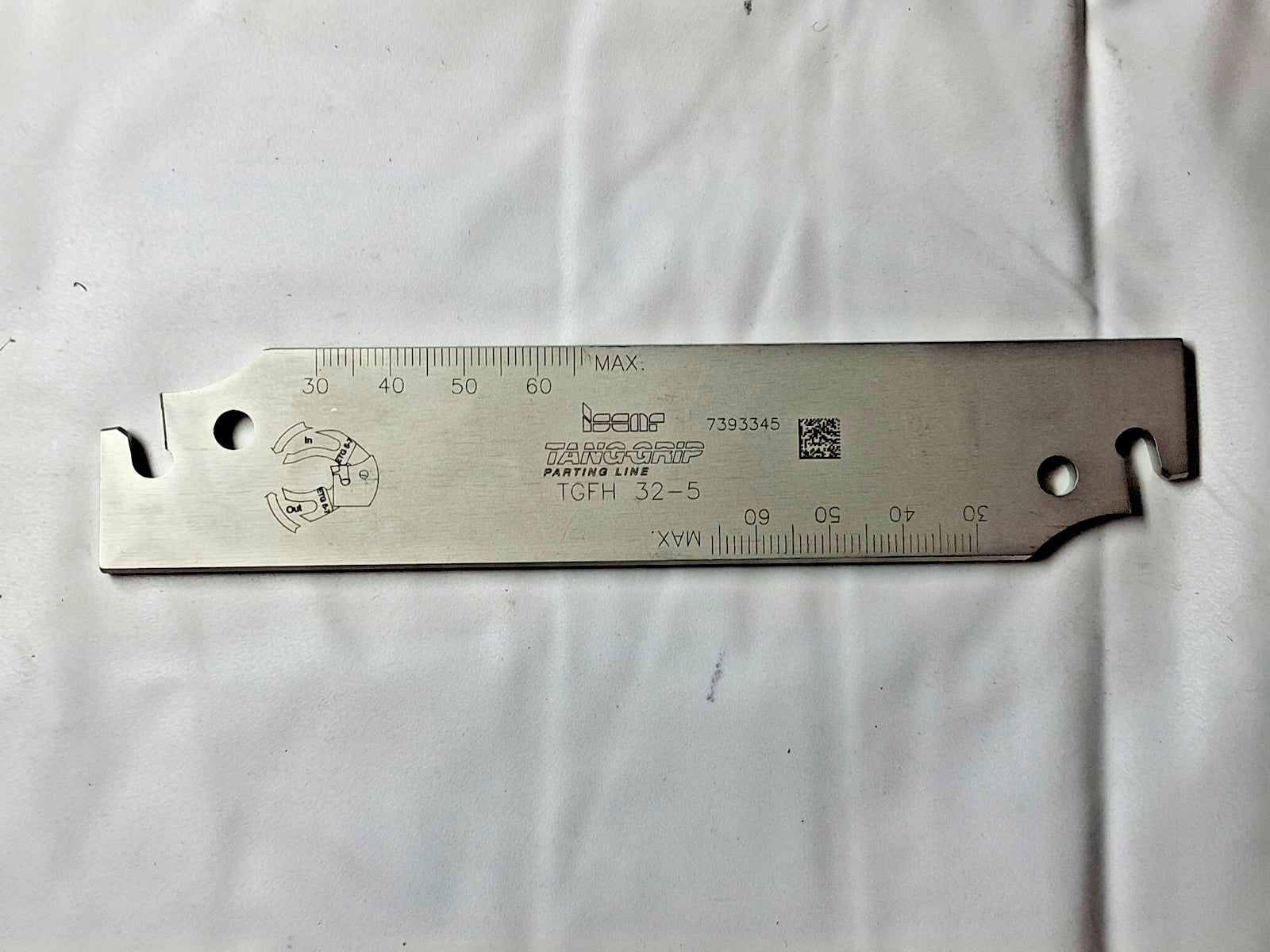

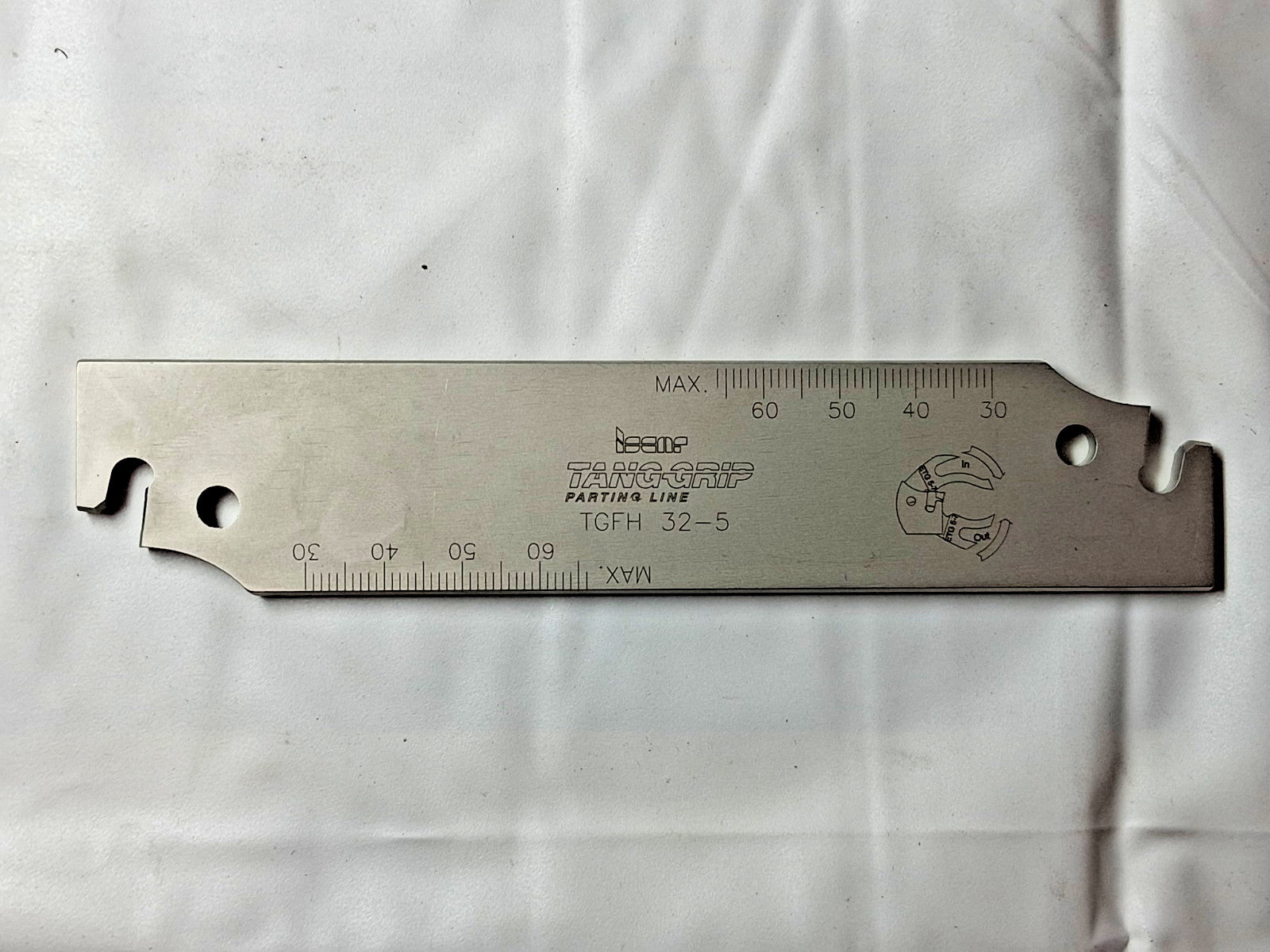

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
