Iscar Solid Carbide Square End Mill 4 Flute 30° Helix Qty 2 5651180
Iscar Solid Carbide Square End Mill 4 Flute 30° Helix Qty 2 5651180
Regular price
$36.71 USD
Regular price
$75.00 USD
Sale price
$36.71 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Iscar
MSRP: $75.00
Model: 5651180
Description:
Mill Diameter (mm) 5.00
Mill Diameter (Decimal Inch) 0.1969
Number of Flutes 4
Length of Cut (mm) 40.00
Length of Cut (Decimal Inch) 1.5748
Material Solid Carbide
Finish/Coating TiAlN
Shank Diameter (mm) 5.00
Single or Double End Single
Overall Length (mm) 100.00
Center Cutting Center Cutting
Flute Direction Right Hand
Cutting Direction Right Hand
Helix Angle 30.00
Variable Helix No
Variable Index No
Flute Type Spiral
Length Type Extra Long
Helix Style Medium
Mill Diameter Tolerance (mm) -0.020 to 0.038
Material Grade Submicron
Manufacturer Grade IC900
Chipbreaker No
Extended Reach No
Shank Diameter Tolerance (mm) 0.000/-0.008

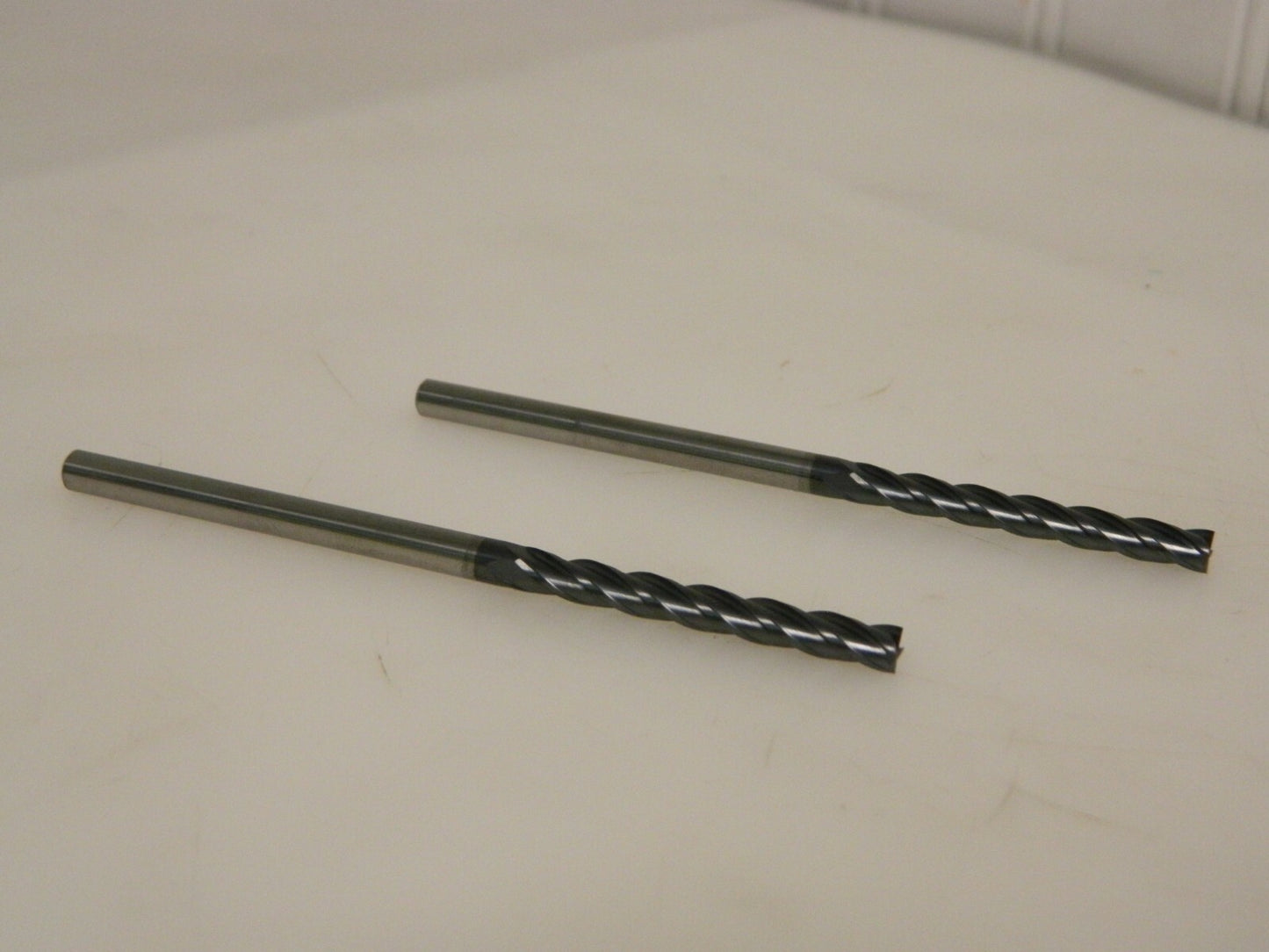

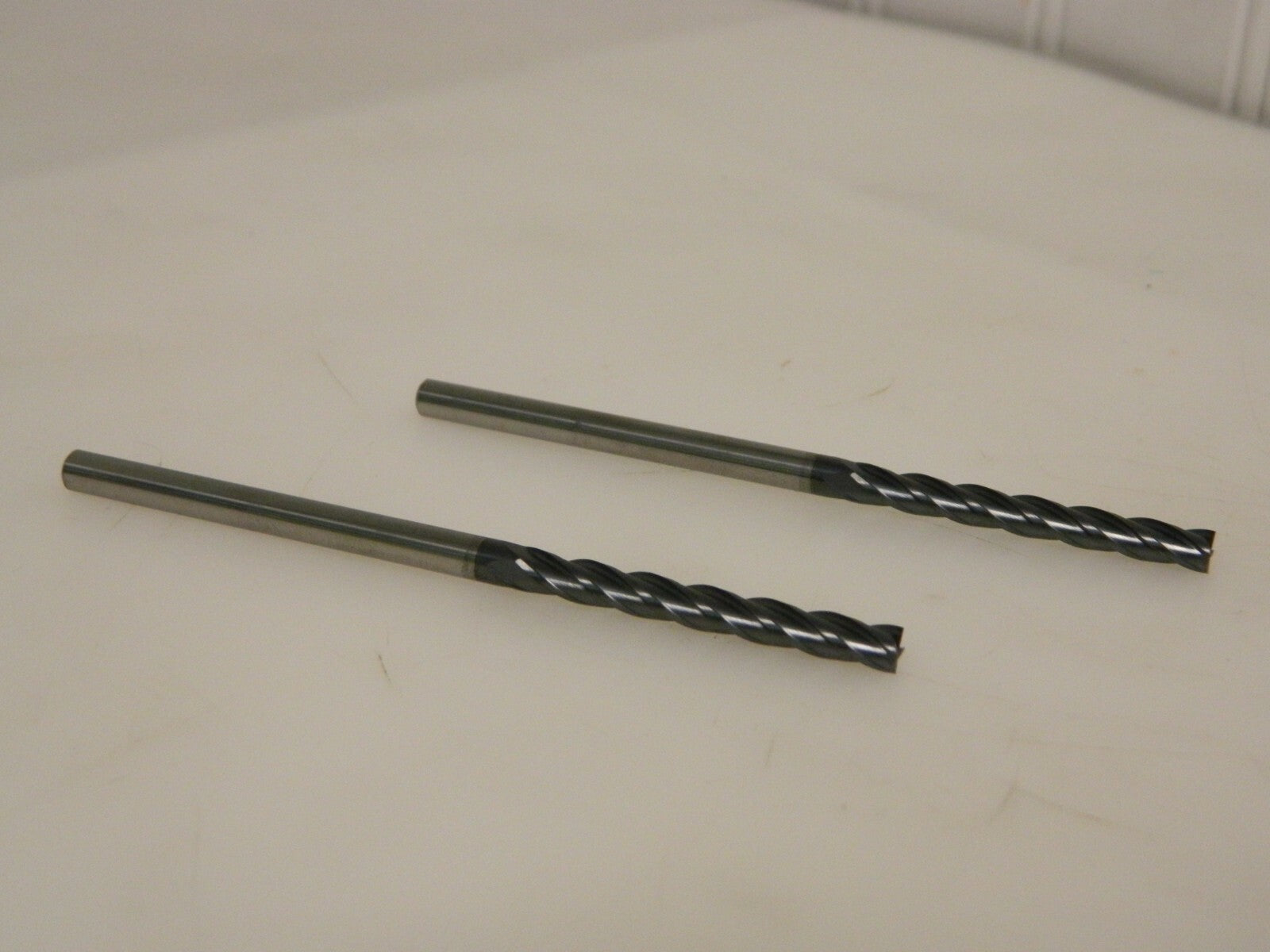

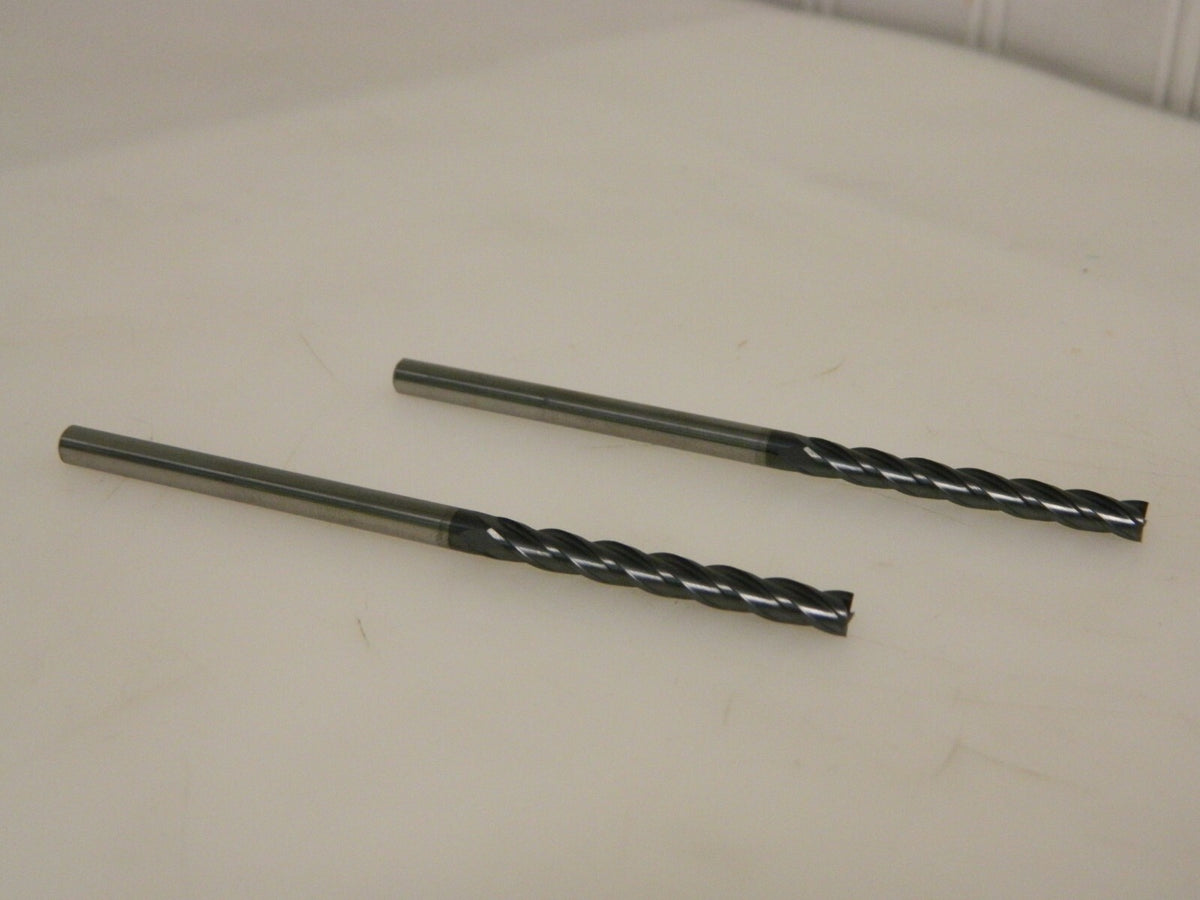

This listing is for One Lot of 2 End Mills that is in the picture as well as described. Please ask any questions prior to buying!
