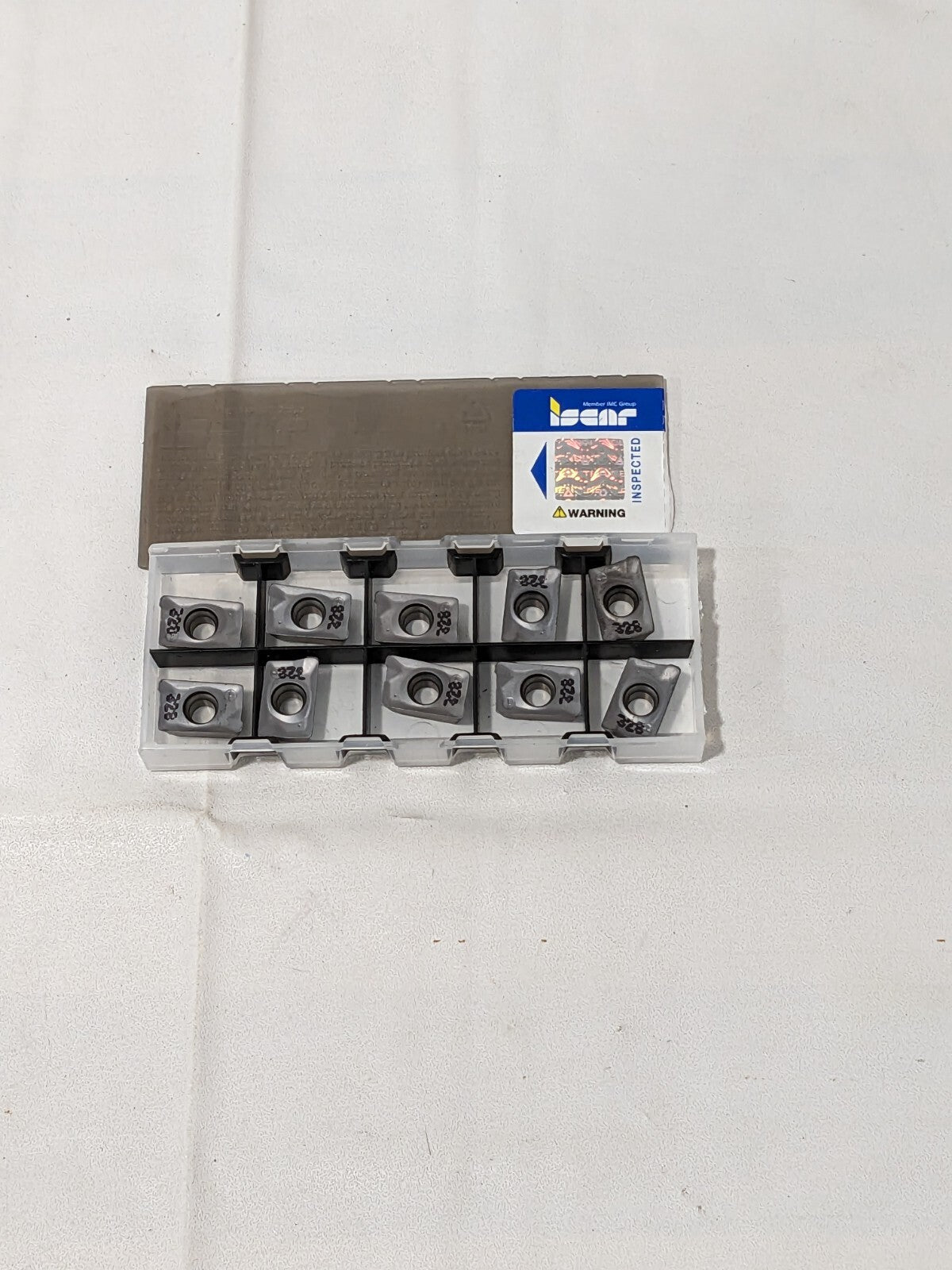

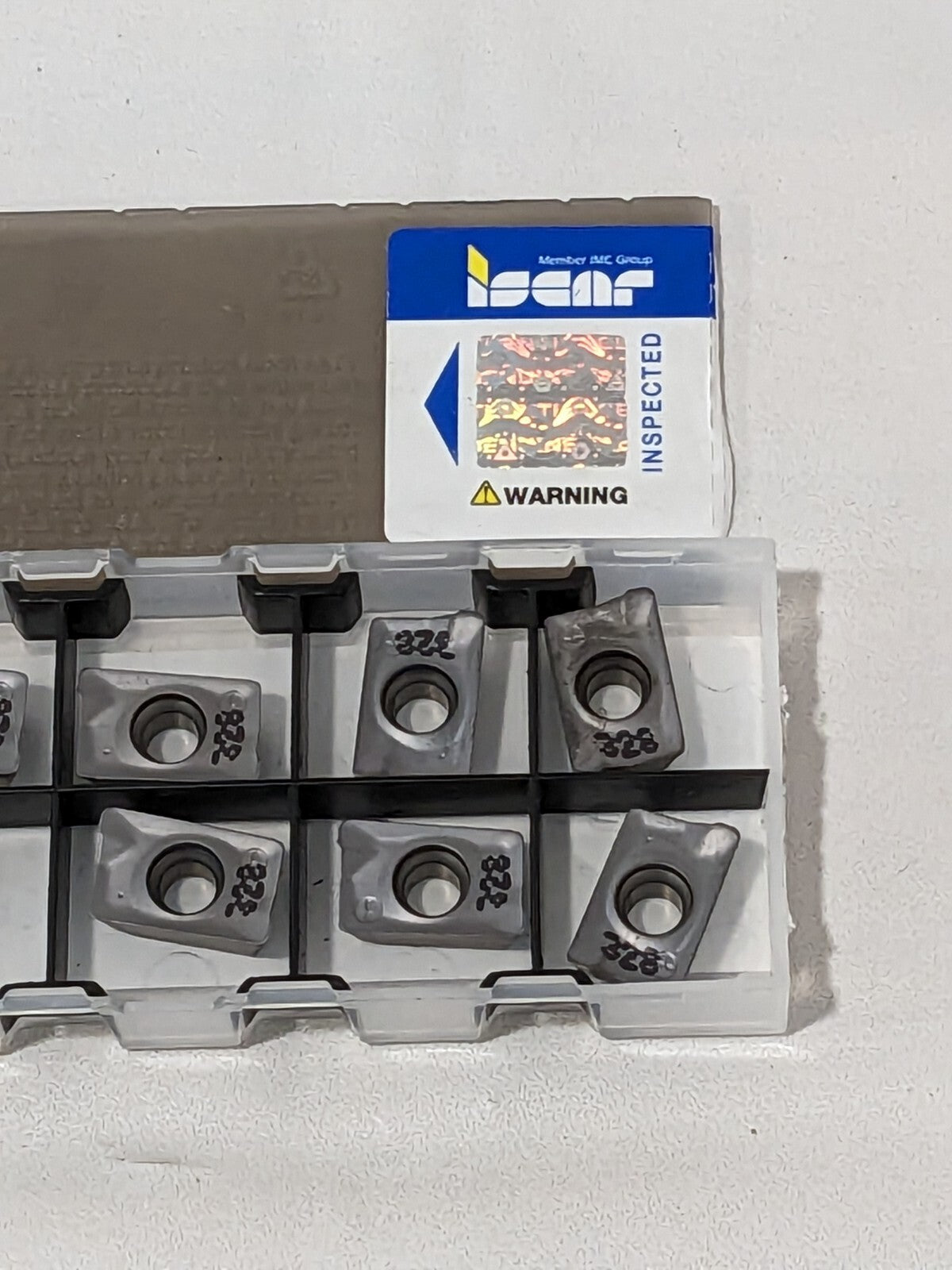

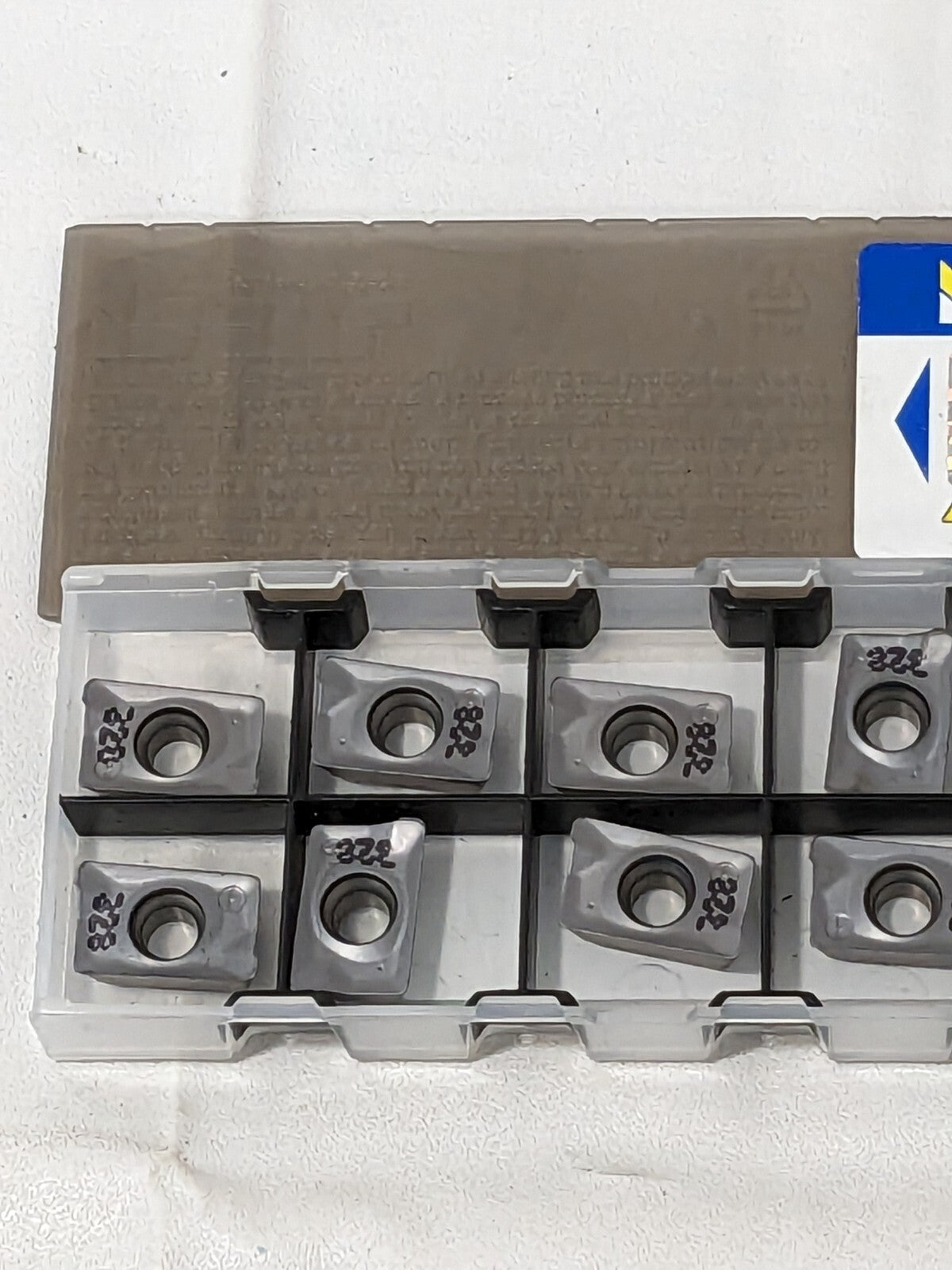

ISCAR Solid Carbide Milling Insert: ANSI ADKT 1505PDL-HM IC328 Qty 10 5601298

Iscar
1 Lot of 10 Inserts

MSRP: $200.00

• Insert Style ADKT
• Insert Size 15
• Insert Material Solid Carbide
• Insert Shape Parallelogram
• Manufacturer Grade IC328
• Corner Radius (Decimal Inch) 0.0315
• Corner Radius (mm) 0.80
• Number Of Cutting Edges 2
• Thickness (Decimal Inch - 4 Decimals) 0.2220
• Coating/Finish TiCN
• Relief Angle 15.00
• Insert Size Code 1505
• Inscribed Circle (Decimal Inch) 0.3770
• Thickness Range (Decimal Inch) 0.2200 to 0.2350
• Corner Radius (Inch) 1/32
• Inscribed Circle Range (Decimal Inch) 0.3500 to 0.4000
• Length Range (Decimal Inch) 0.6000 to 0.6500
• Insert Hand Left Hand
• Maximum Depth of Cut (Decimal Inch) 0.4720
• Maximum Depth of Cut (mm) 13.80
• Series HELIMILL
• Coating Process PVD
• Cutting Edge Effective Length (Decimal Inch) 0.5430
• Rake Positive
• Primary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; M
• Ansi Code ADKT 1505PDL-HM IC328
• Iso Code ADKT 1505PDL-HM
• Standards ISO 13399; ANSI
• Rake Angle 22
• Cutting Edge Style Honed
• Manufacturers Catalog Number ADKT 1505PDL-HM IC328
• Cutter Series Compatibility FTS; ETS; ADK; E90
• Chip Breaker HM
• UNSPSC Code 23291601
• Material Application Stainless Steel; Superalloys & Titanium; Steel
• Insert Holding Method Screw
• Coating Classification PVD
• Single or Double Sided Insert Single
• Included Angle Degree 85
• Width (Decimal Inch - 4 Decimals) 0.3770
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.6180

These items appear to be new and in good condition. SOLD AS IS.

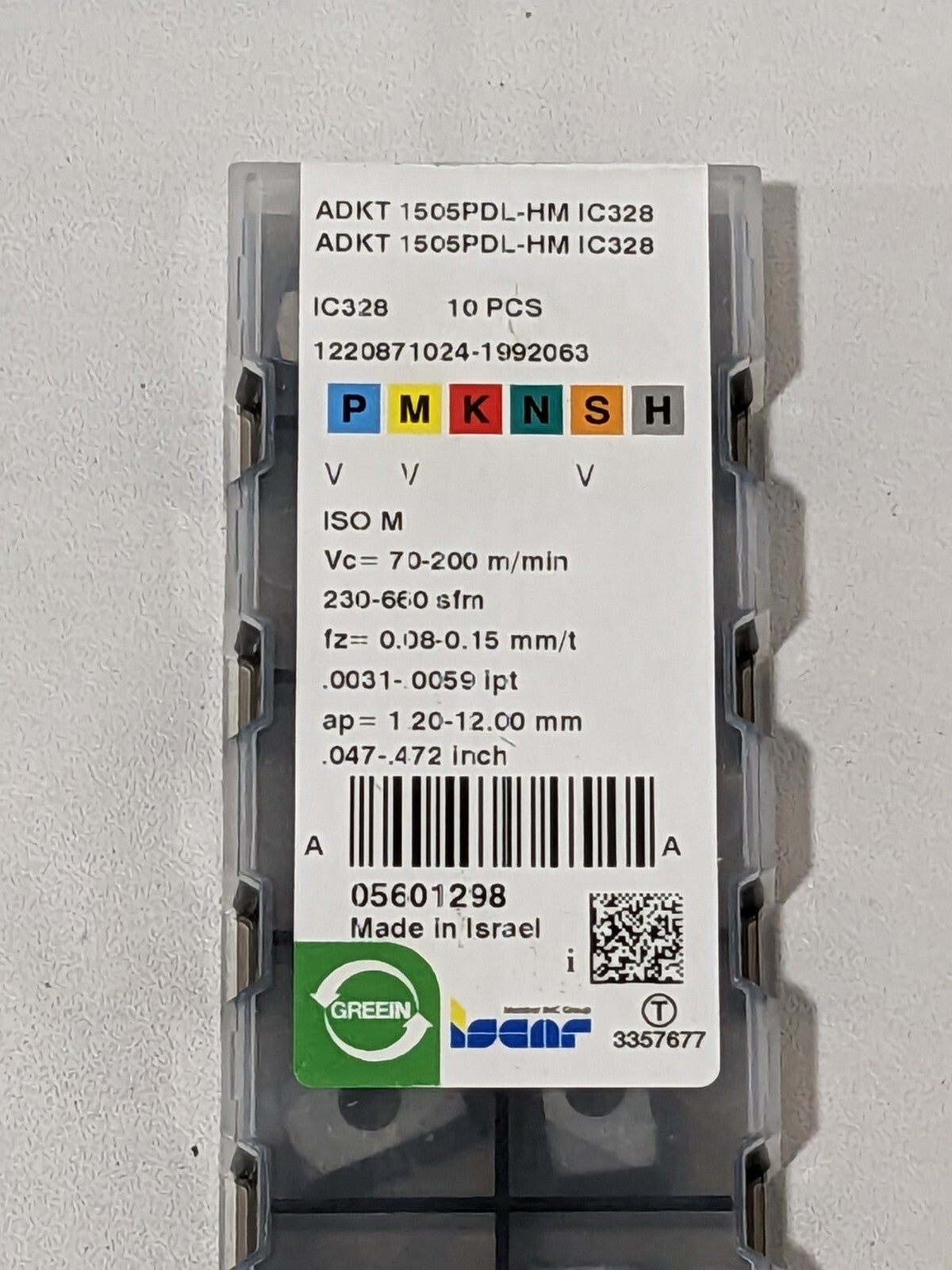

Please review photos, comes as shown.
