ISCAR Screw Machine Length Drill Bit: 0.209″ Dia Carbide 5530759

ISCAR

Screw Machine Length Drill Bit: 0.209″ Dia Carbide 5530759
MSRP: $100

• Drill Bit Size (Decimal Inch) 0.2090
• Tool Material Solid Carbide
• Cutting Direction Right Hand
• Coating/Finish Coated
• Number Of Flutes 2
• Spiral Type Regular
• Flute Type Spiral
• Point Type Standard
• Coolant Through Yes
• Shank Type Straight-Cylindrical
• Shank Diameter (Decimal Inch) 0.2500
• Overall Length (Decimal Inch) 2.8200
• Series SCD-ACP3
• Web Configuration Tapered
• Drill Length Type Screw Machine
• Maximum Drilling Depth (Decimal Inch) 0.9600
• Shank Length (Decimal Inch) 1.4400
• Drill Point Length (Decimal Inch) 0.0380
• Flute By Diameter Ratio 3xD
• Drill Bit Diameter Tolerance 0.00016 to 0.00063 in
• Flute Length (Decimal Inch) 1.2800
• Flute Length (Inch) 1-9/32
• Drill Bit Size Range (Decimal Inch) 0.2000 to 0.2500
• Material Grade Submicron
• UNSPSC Code 23241635

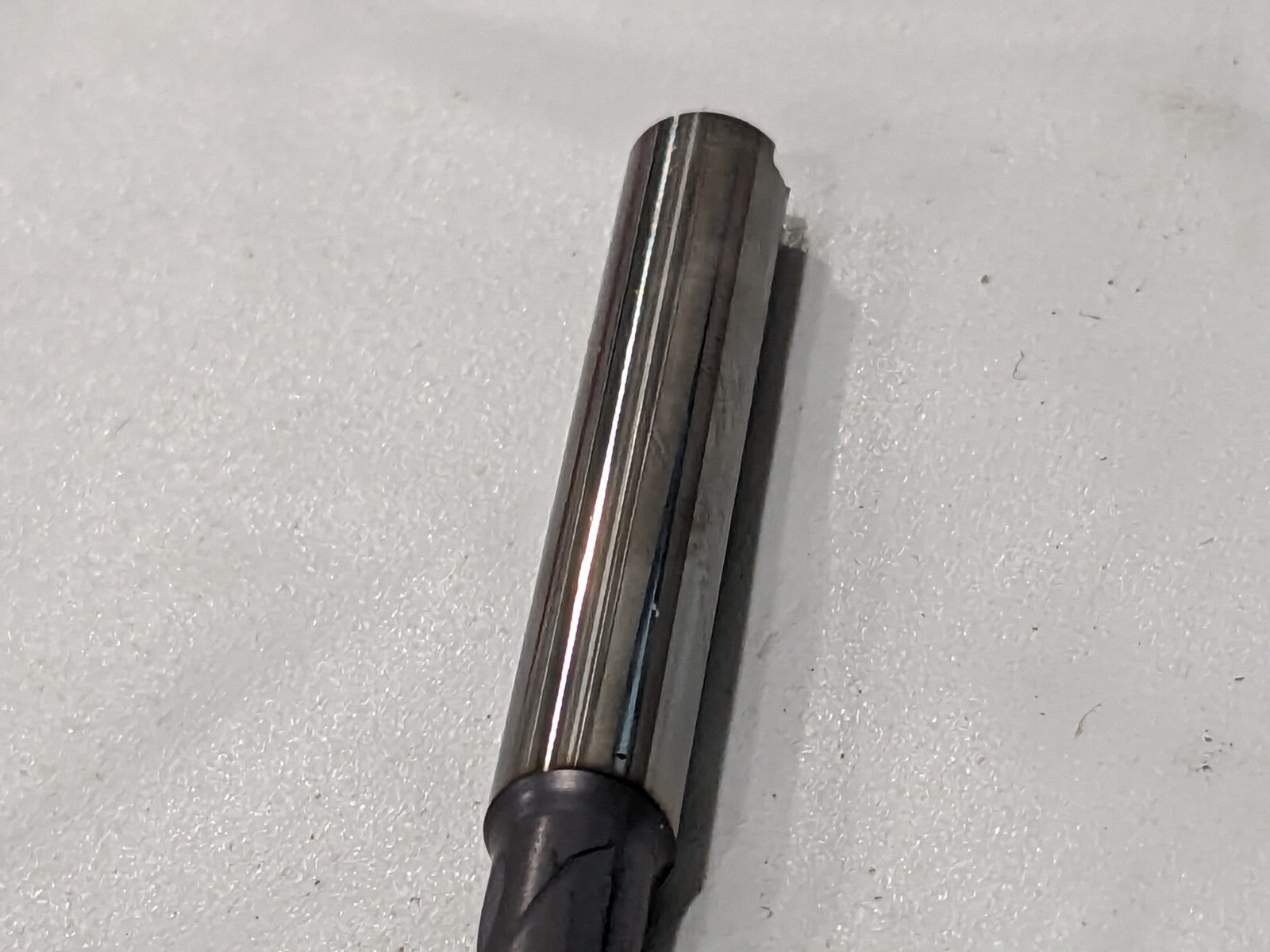

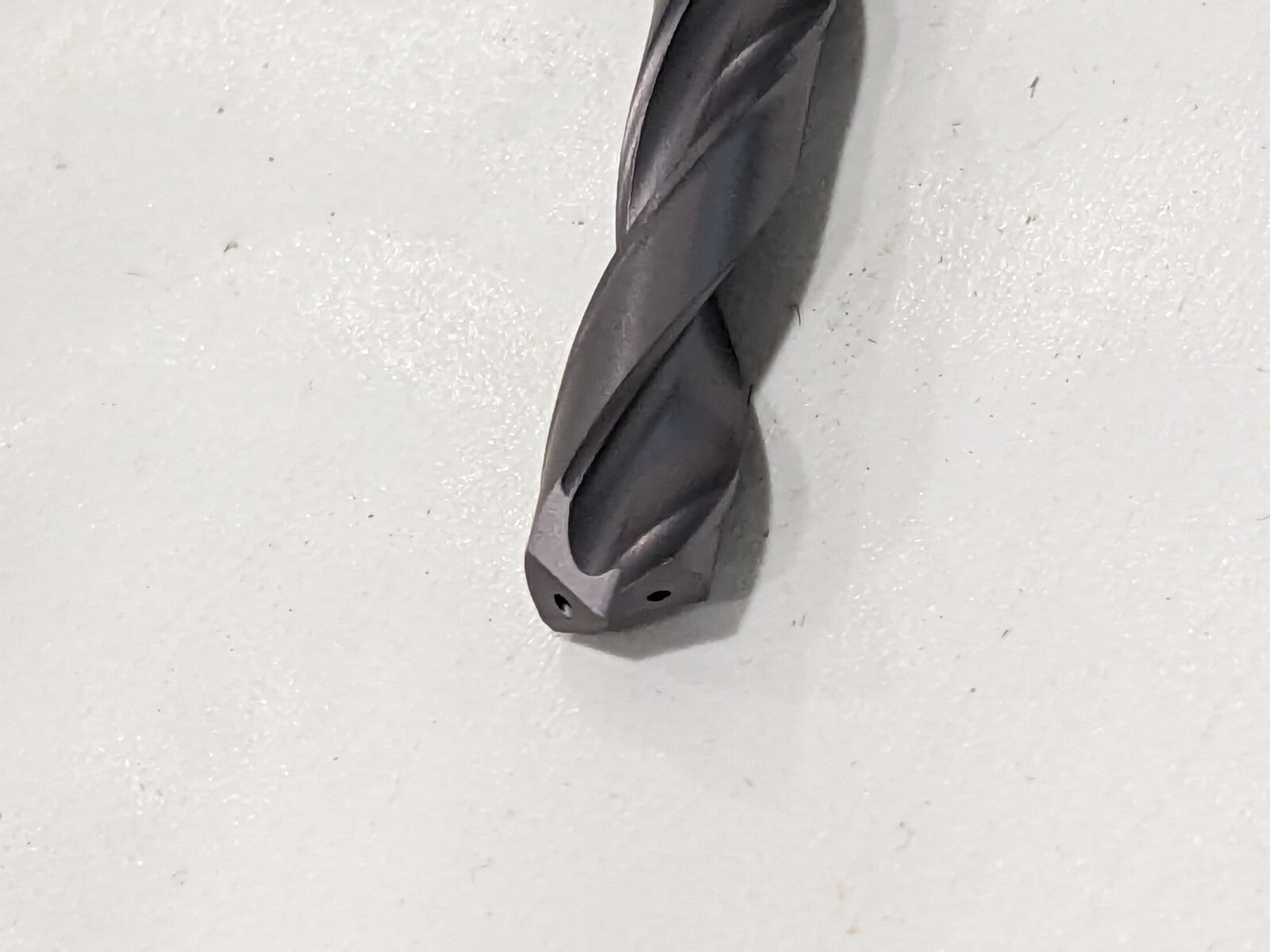

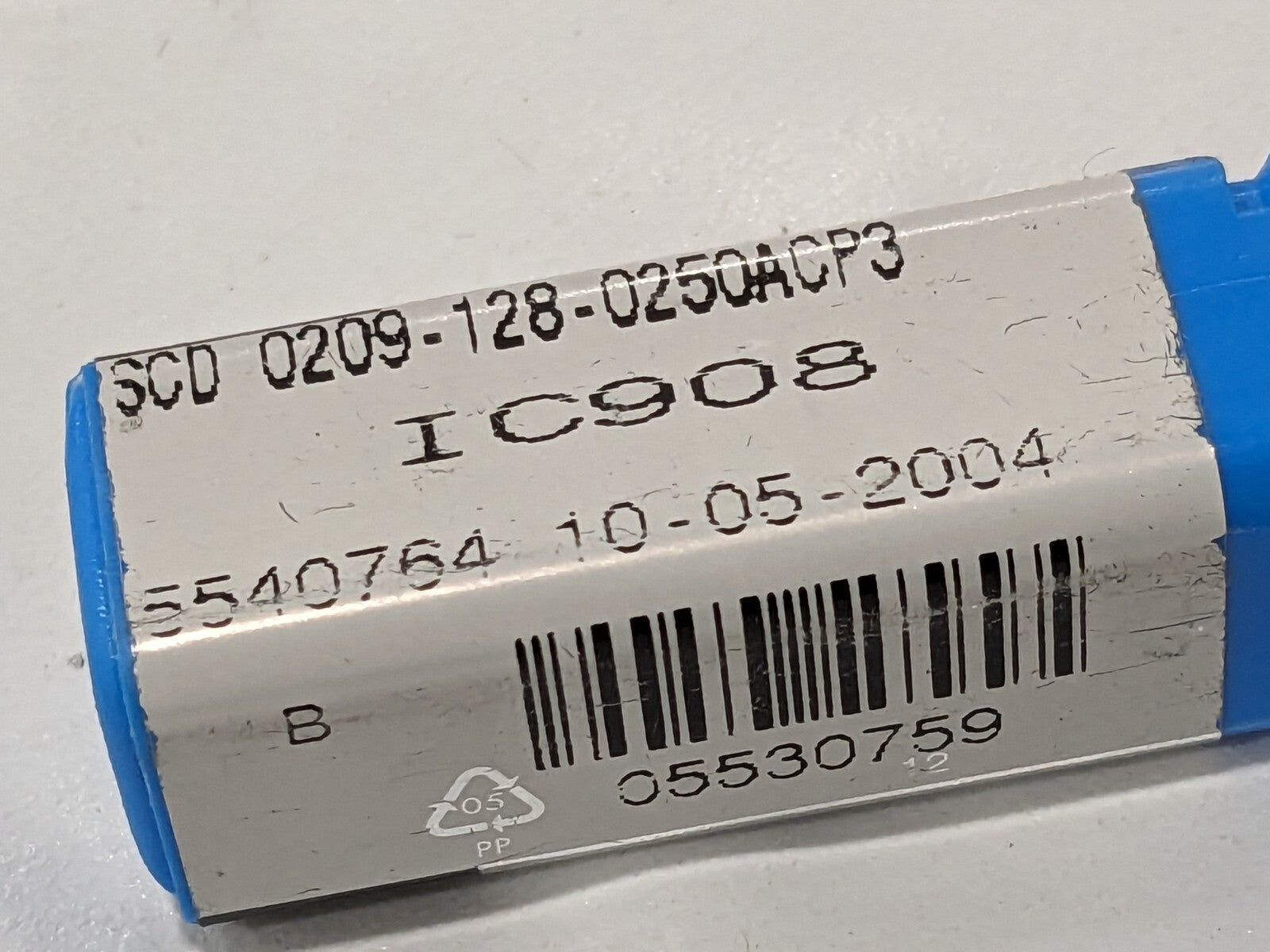

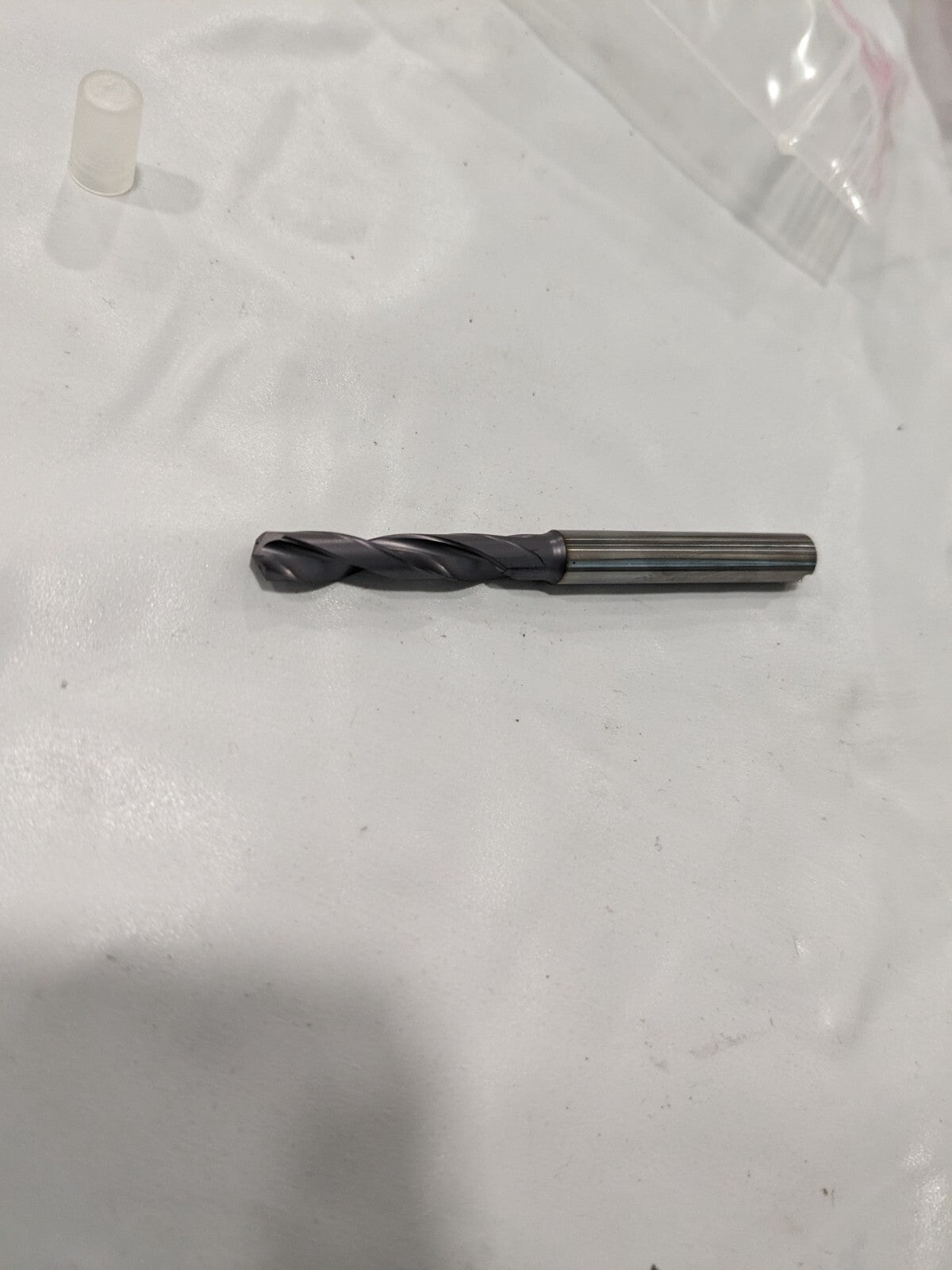

Please review photos, comes as shown.
