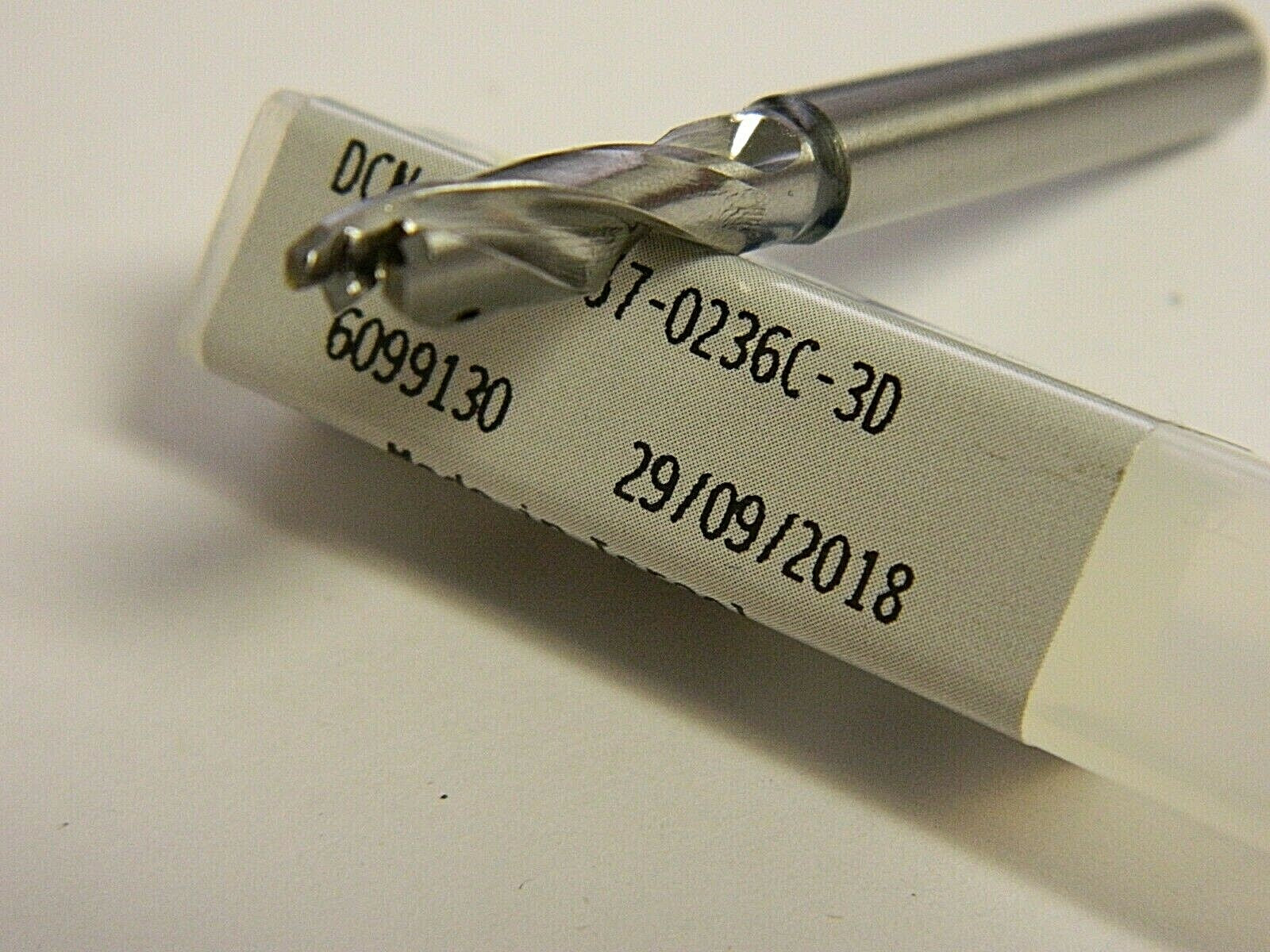

Iscar Replaceable-Tip Drills Series: SumoCham Minimum Drill Diameter (mm): 5.5
Iscar Replaceable-Tip Drills Series: SumoCham Minimum Drill Diameter (mm): 5.5
Regular price
$102.80 USD
Regular price
$210.00 USD
Sale price
$102.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
MSRP: $210.00
Model: 3346491
Description:
Series SumoCham
Minimum Drill Diameter (mm) 5.5
Minimum Drill Diameter (Decimal Inch) 0.2165
Maximum Drill Diameter (mm) 5.9
Maximum Drill Diameter (Decimal Inch) 0.2323
Drill Depth by Diameter Ratio 3xD
Maximum Drill Depth (Decimal Inch) 0.6496
Maximum Drill Depth (mm) 16.5
Shank Diameter (mm) 6
Insert Style ICP
Insert Seat Size 5.5
Toolholder Style DCN
Through Coolant Yes
Shank Type Cylindrical
Tip Length (mm) 0.81
Tip Length (Decimal Inch) 0.0319
Body Length (mm) 28.15
Body Length (Decimal Inch) 1.1083
Overall Length (mm) 63.15
Overall Length (Decimal Inch) 2.4862
Toolholder Material Steel (Shank)
Shank Length (mm) 35
Shank Length (Decimal Inch) 1.378
Shank Type Cylindrical
Overall Length (mm) 63.15
Number of Flutes 2
Cutting Direction Right Hand
This listing is for One that is in the picture as well as described. Please ask any questions prior to buying!
