Series SumoCham
Minimum Drill Diameter (mm) 18.00
Maximum Drill Diameter (mm) 18.90
Drill Depth by Diameter Ratio 12xD
Maximum Drill Depth (mm) 216.00
Shank Diameter (mm) 25.00
Insert Style FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Insert Seat Size 18
Toolholder Style DCN
Through Coolant Through Coolant
Shank Type Straight Shank
Body Length (mm) 244.50
Overall Length (mm) 300.50
Shank Length (mm) 56.00

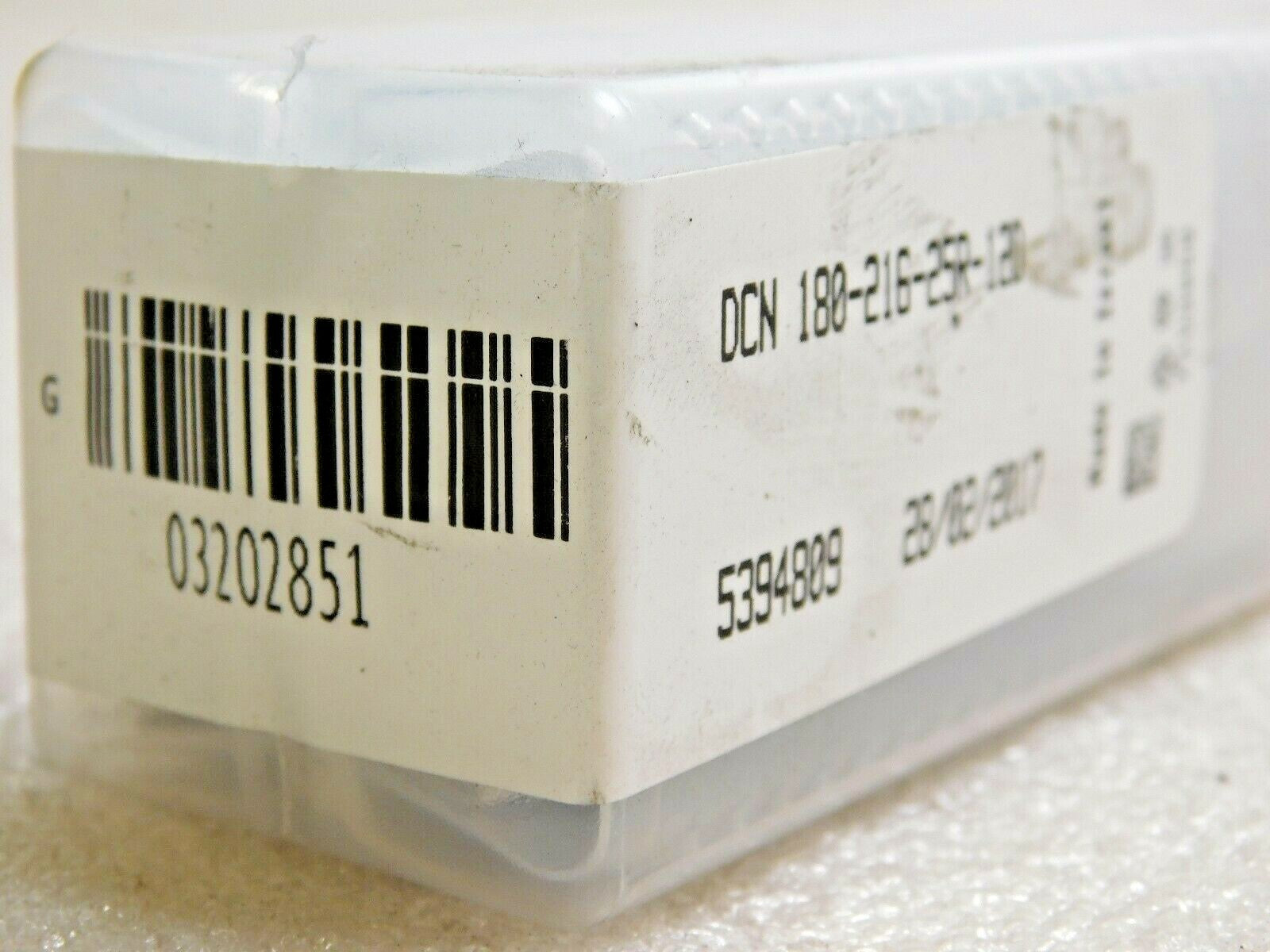

*OPEN PACKAGE/BOX FOR INSPECTION AND PICTURES ONLY. Item is in excellent condition. Please Refer to our Pictures and description. SOLD AS IS. If you have any questions, please contact us!

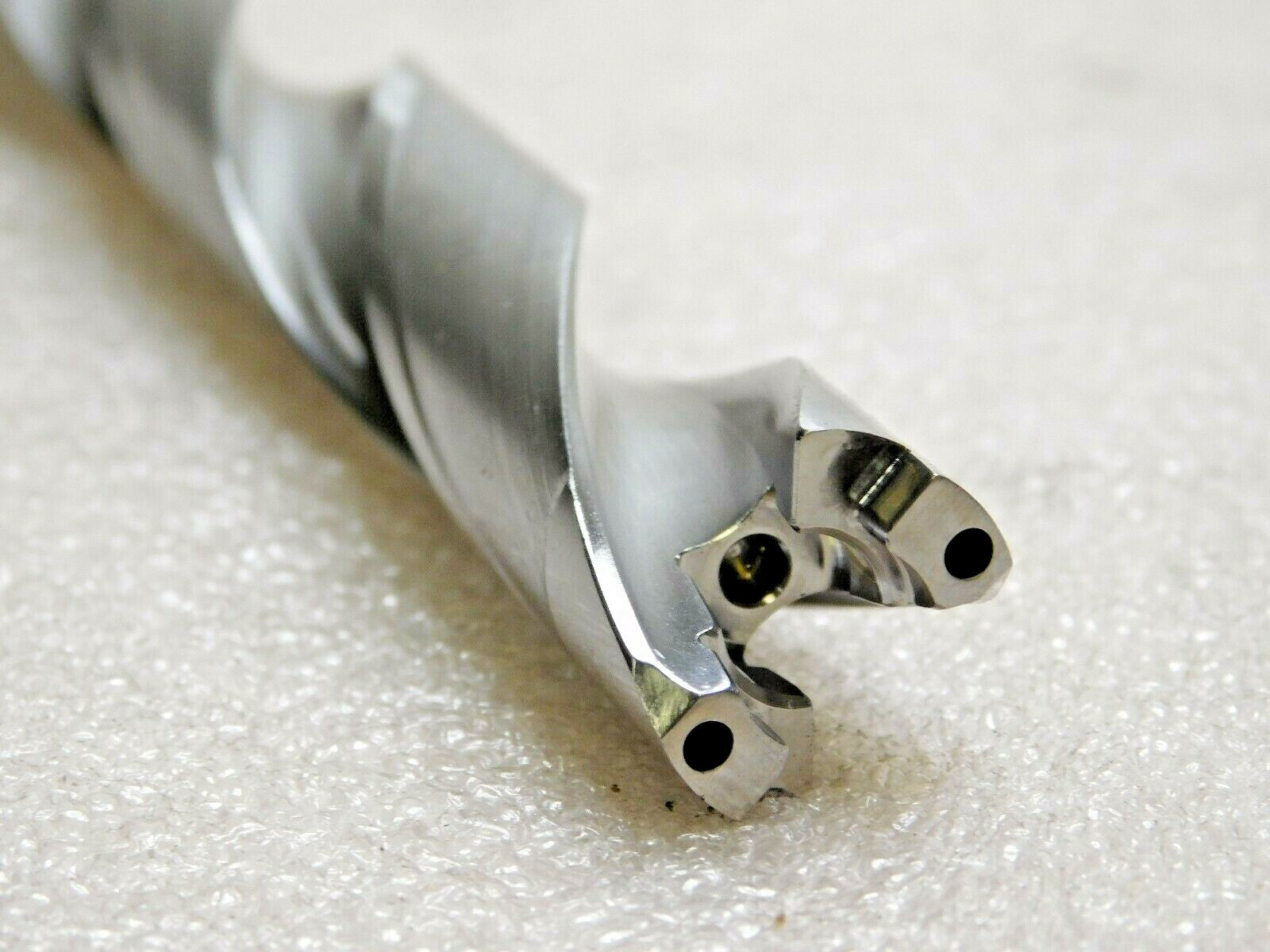

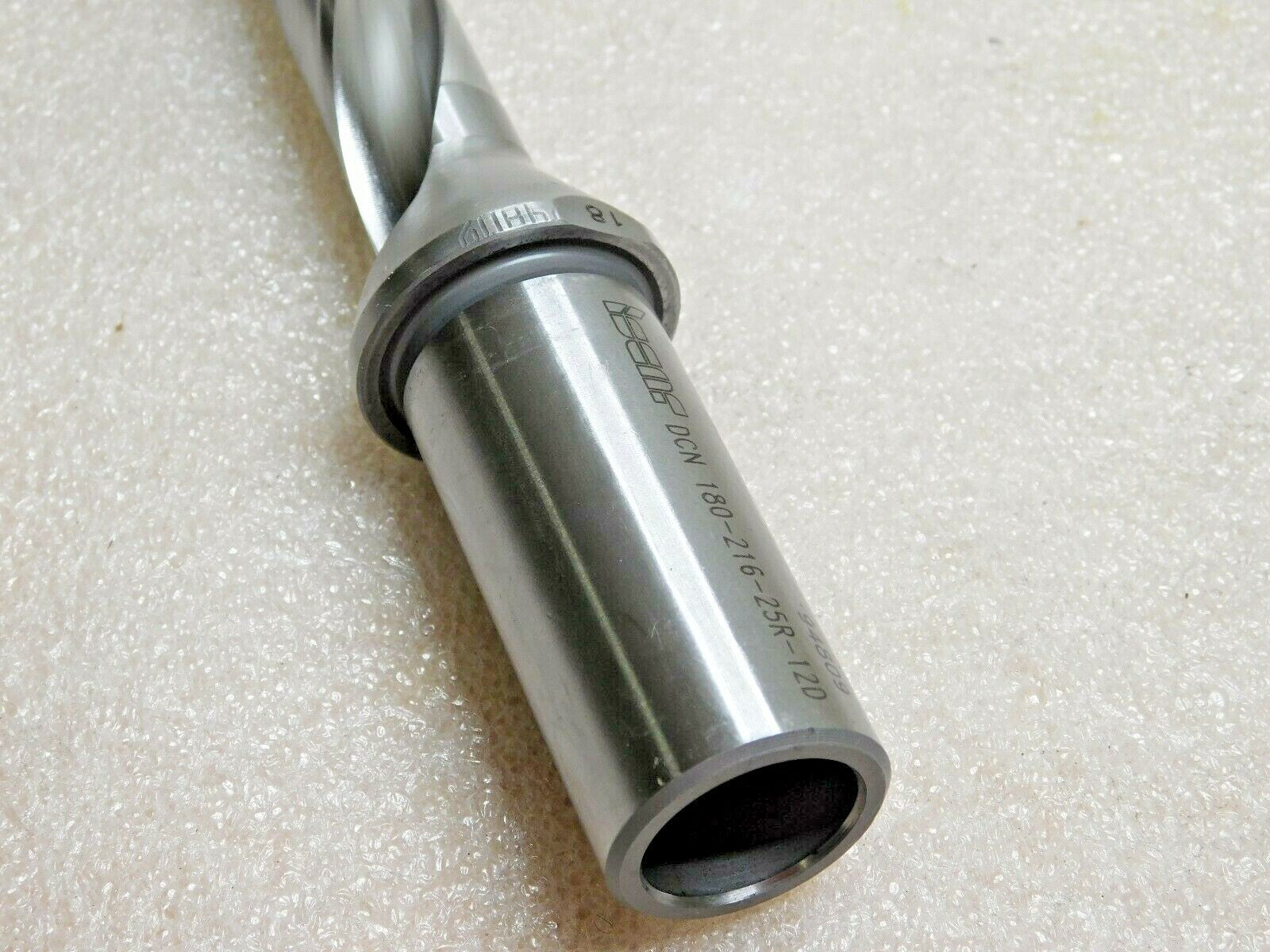

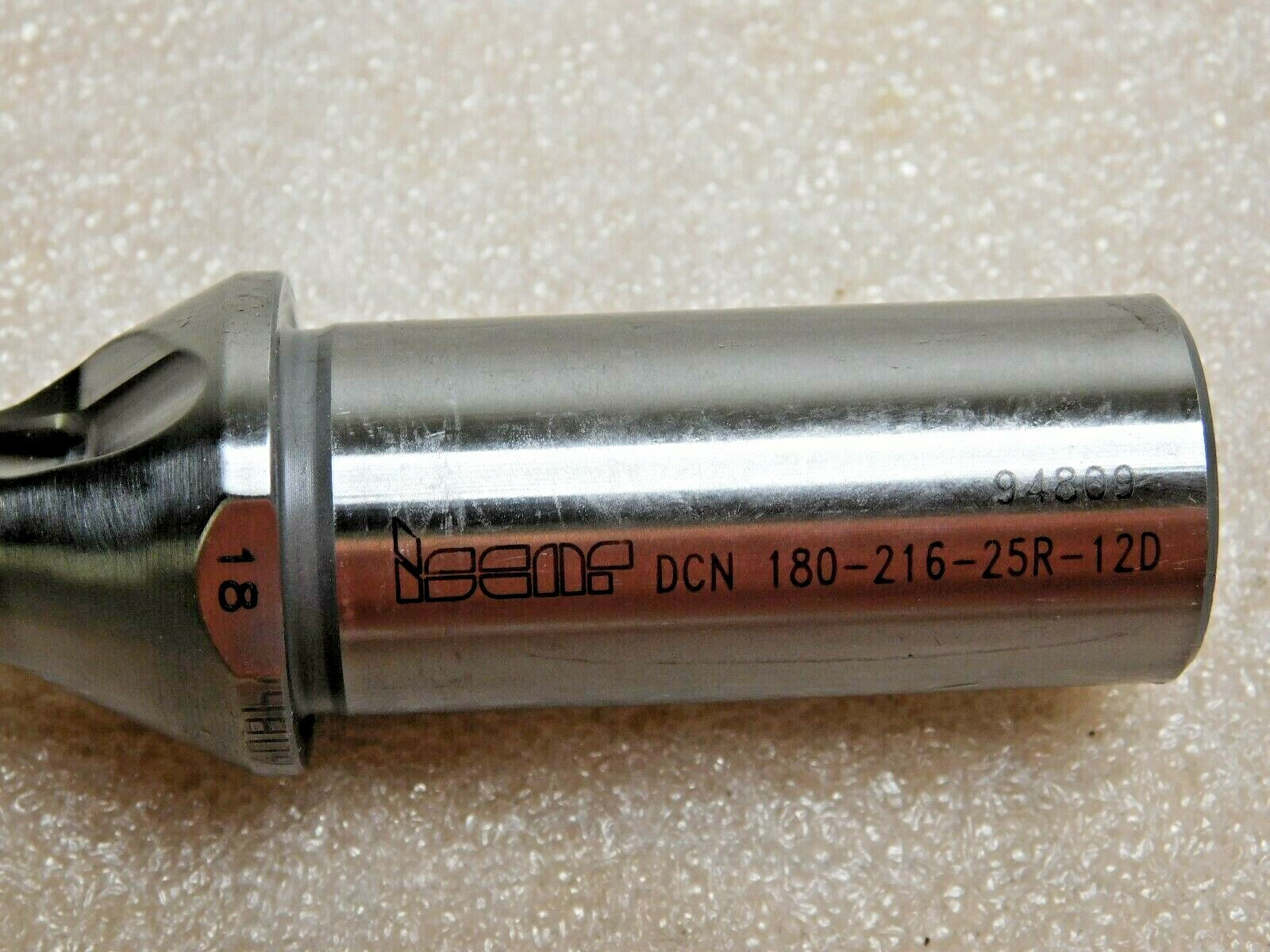

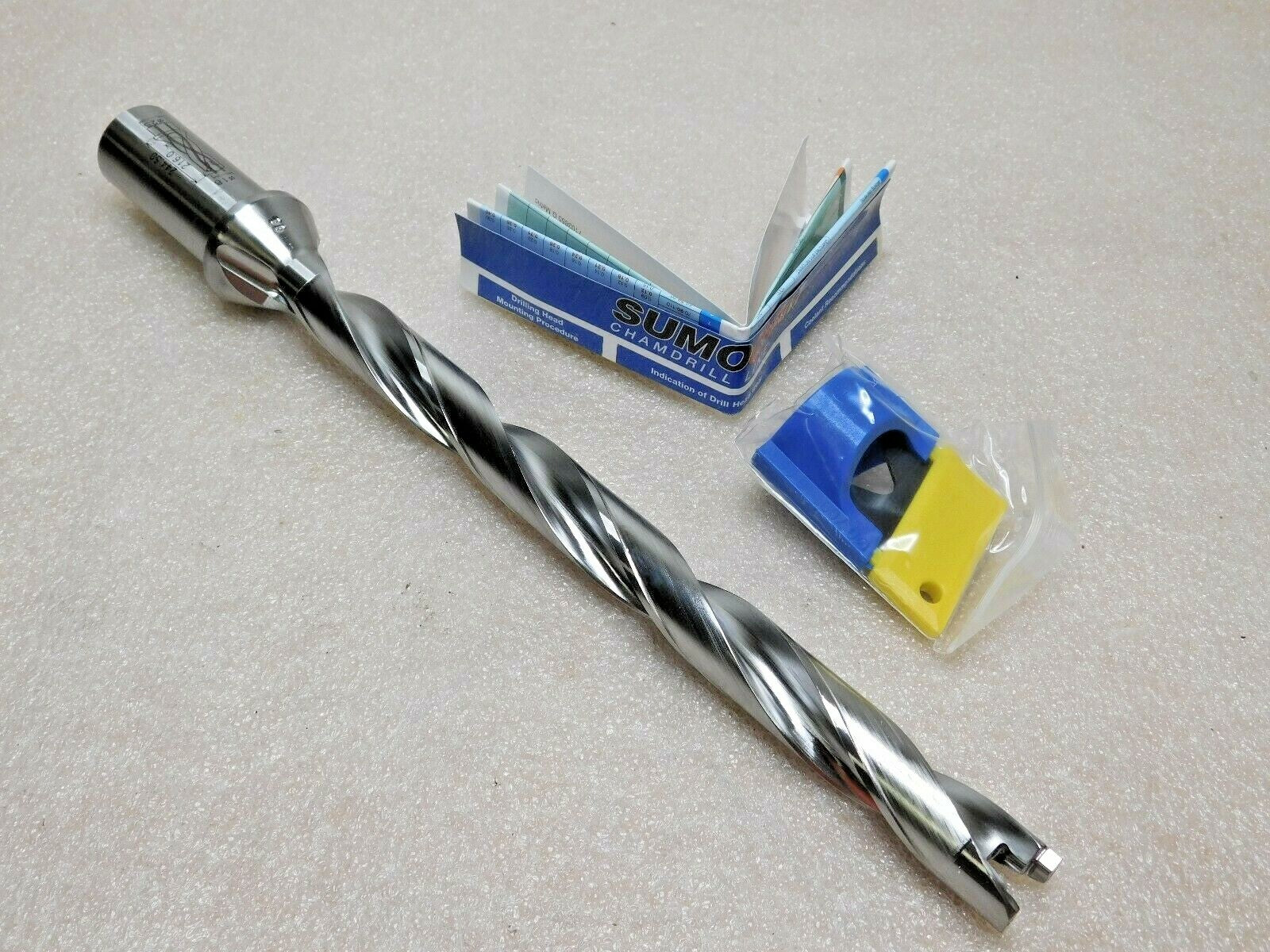

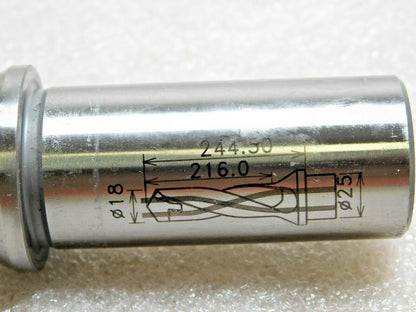

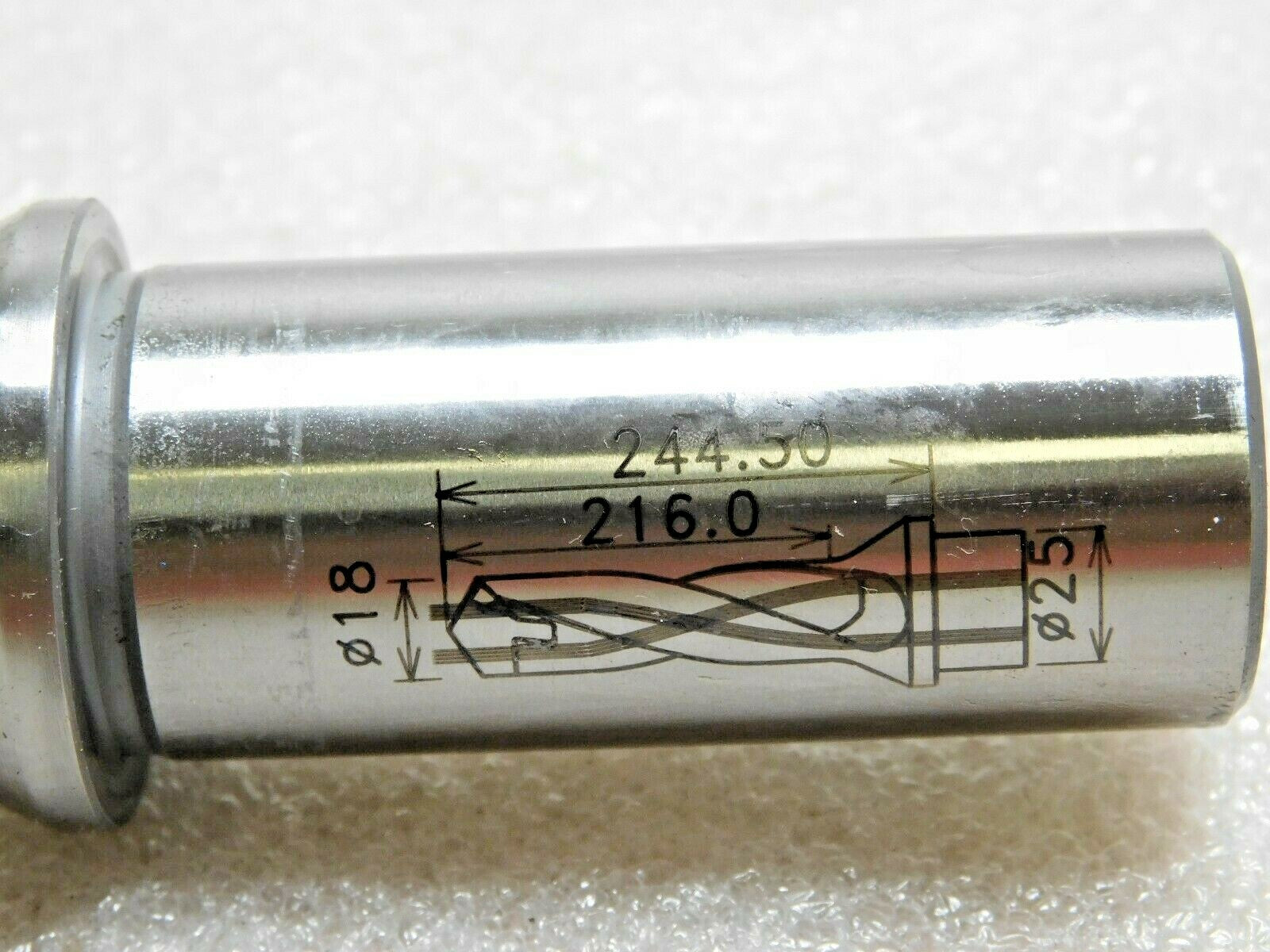

This listing is for One Replaceable-Tip Drill that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
