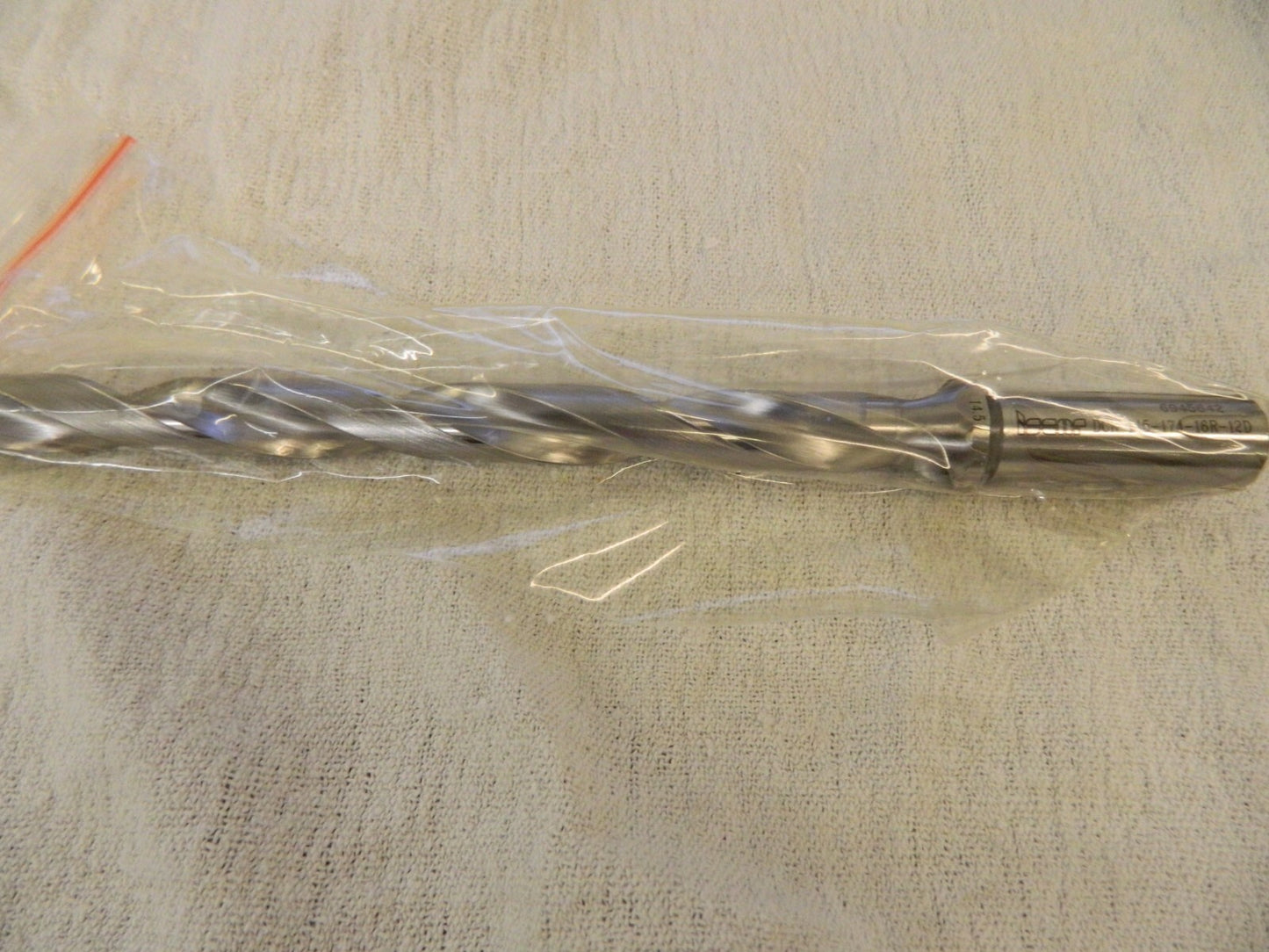

ISCAR

Replaceable-Tip Drill: 14.5 to 14.9 mm Dia StraightCylindrical Shank 32032
MSRP: $390

• Minimum Drill Diameter (mm) 14.50
• Maximum Drill Diameter (mm) 14.90
• Drill Depth by Diameter Ratio 12xD
• Maximum Drill Depth (mm) 174.00
• Shank Type Straight-Cylindrical
• Insert Style ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP
• Insert Seat Size 14
• Shank Diameter (mm) 16.00
• Maximum Drill Depth Range (mm) 160.00 to 200.00
• Compatible Insert Style ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP
• Compatible Insert Size Code 145
• Overall Length (mm) 242.00
• Series SumoCham
• Toolholder Style DCN
• Body Length 194.00
• Shank Length (mm) 48.00
• Tool Application Holemaking
• Standards ISO 13399
• Coolant Through Yes

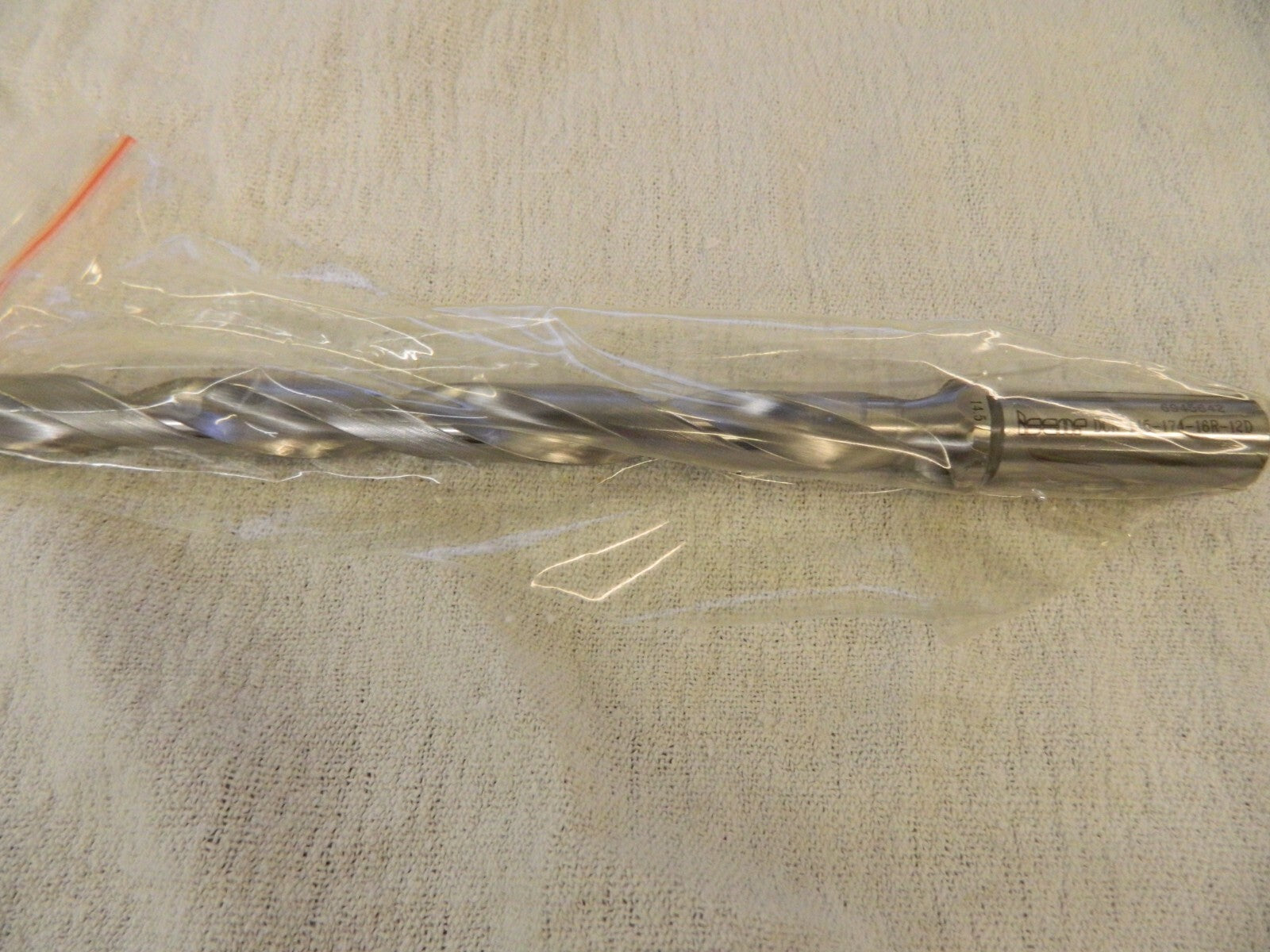

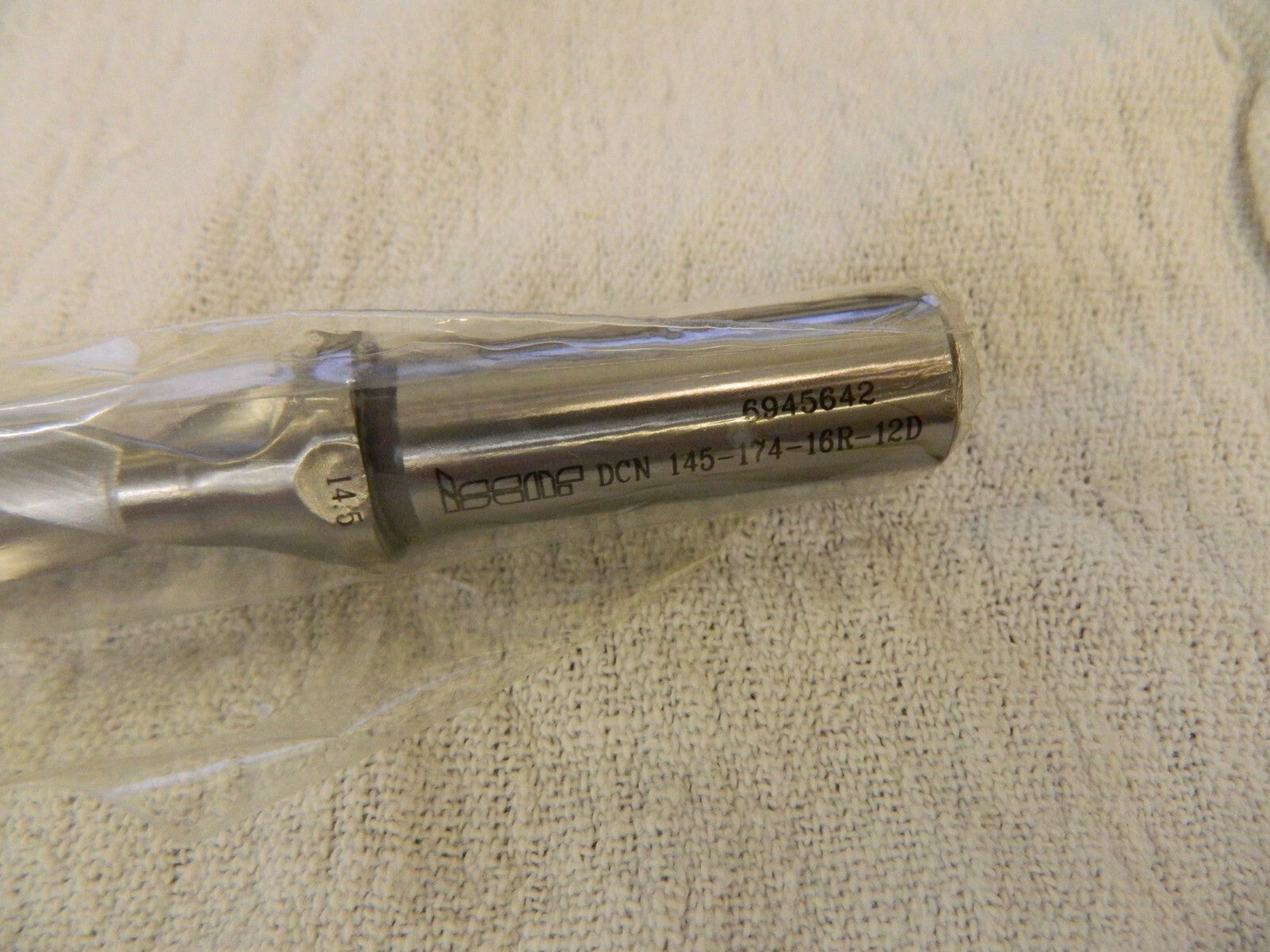

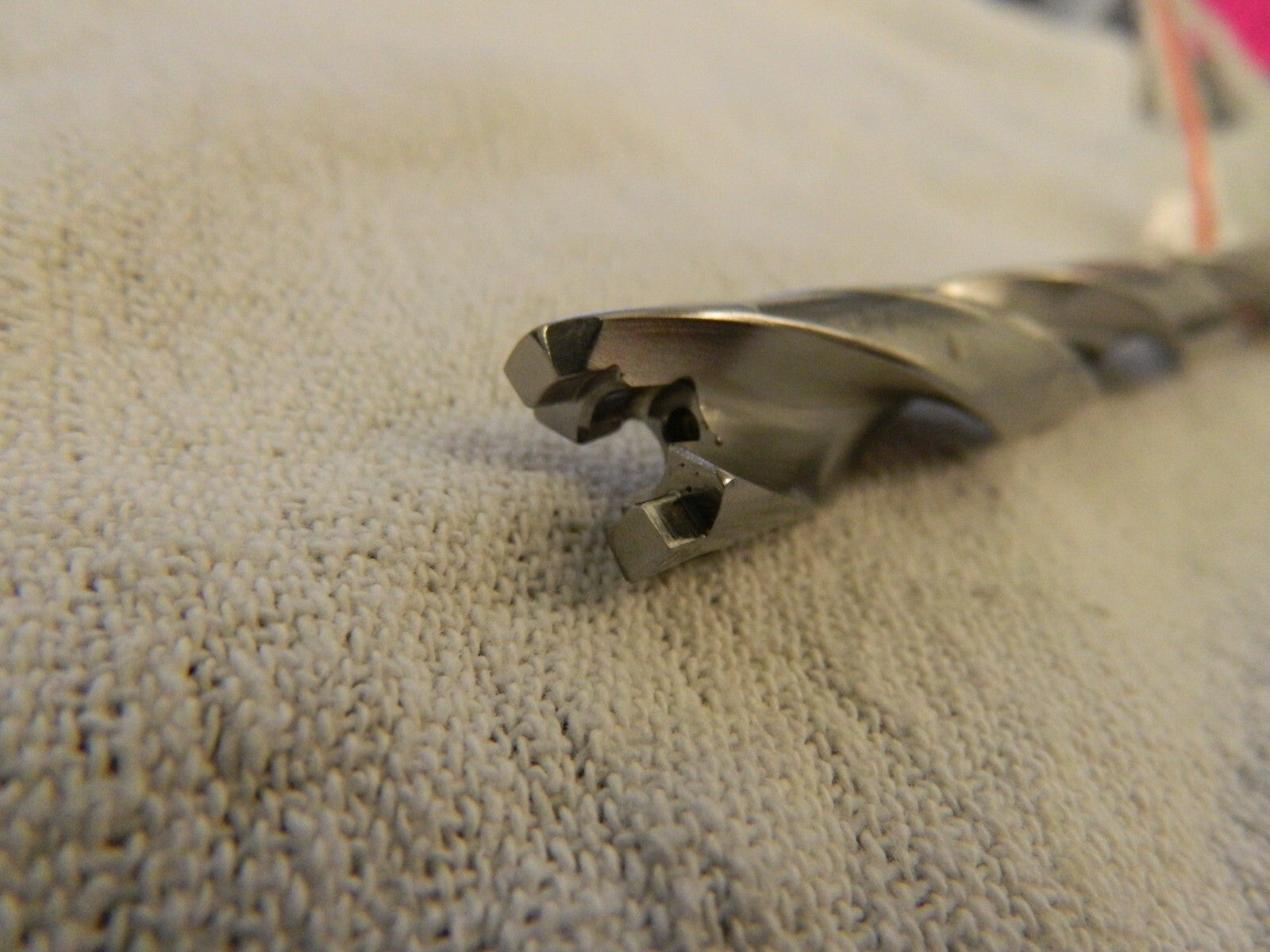

 Please review photos, comes as shown.
