Iscar Replaceable-Tip Drill: 0.945 to 0.98" Dia, 4.72" Max Depth, 1-1/4" 3201743

Name: Iscar Replaceable-Tip Drill: 0.945 to 0.98" Dia, 4.72" Max Depth, 1-1/4" 3201743
Brand: ISCAR
SKU: Oct2824CM14295meep9
Price: 318.98 USD
Availability: InStock

$318.98 USD

~~$640.00 USD~~ $318.98 USD

Sale Sold out

Shipping calculated at checkout.

BRAND Iscar
Item

MSRP: $640.00

specs

Minimum Drill Diameter (Decimal Inch) 0.9450

Maximum Drill Diameter (Decimal Inch) 0.9800

Drill Depth by Diameter Ratio 5xD

Maximum Drill Depth (Decimal Inch) 4.7200

Shank Type Weldon Flat

Shank Diameter (Inch) 1-1/4

Shank Diameter (Decimal Inch) 1.2500

Insert Seat Size 24

Maximum Drill Depth Range (Decimal Inch) 4.5000 to 6.0000

Compatible Insert Style ICK; iCP-2M; FCP; ICM; ICK-2M; ICN; ICP

Overall Length (Decimal Inch) 8.58

Series SumoCham

Toolholder Style DCN

Body Length (Decimal Inch) 6.22

Shank Length (Decimal Inch) 2.3600

Tool Application Holemaking

Standards ISO 13399

Coolant Through Yes

UNSPSC Code 23291502

(Description).

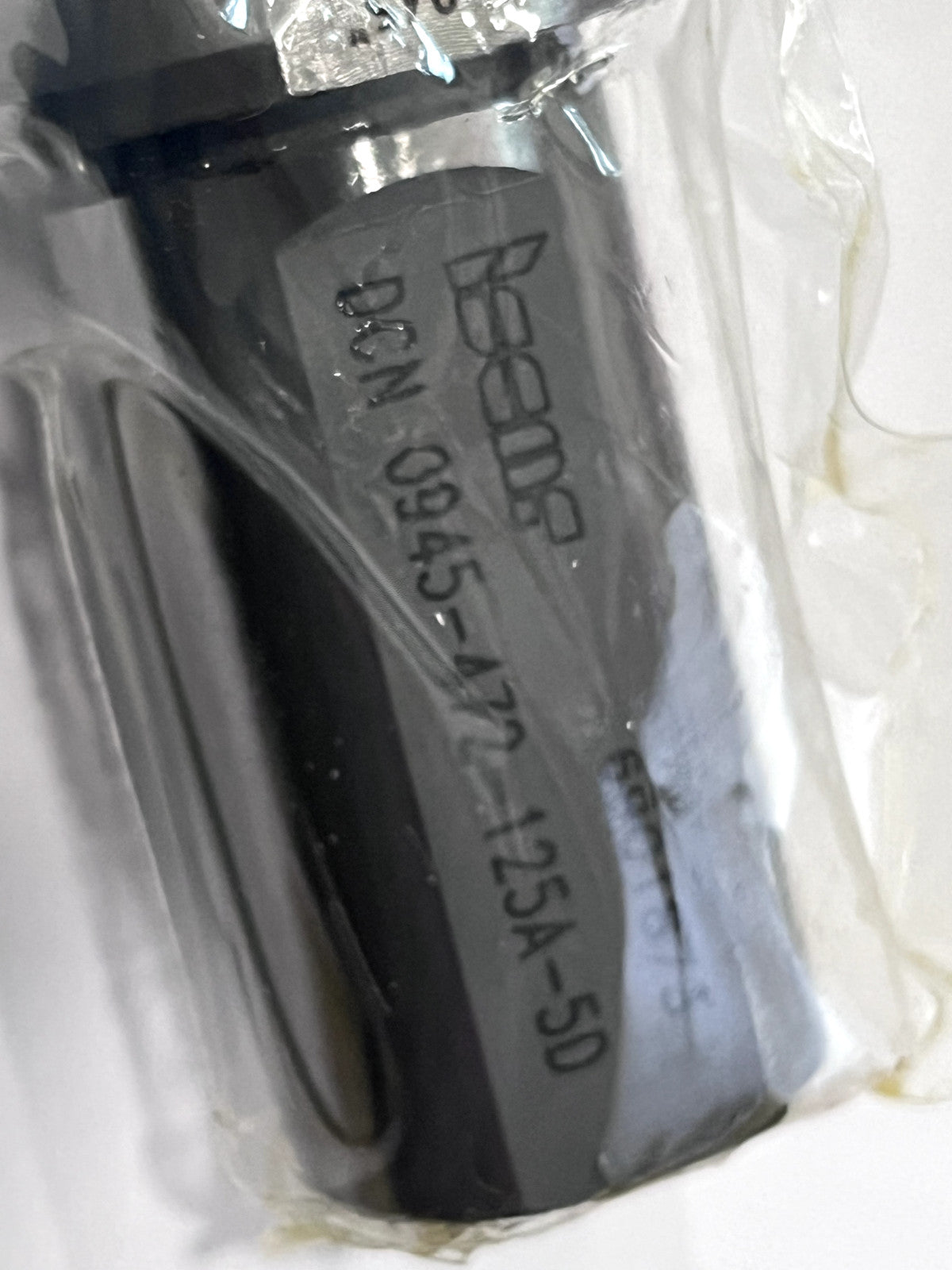

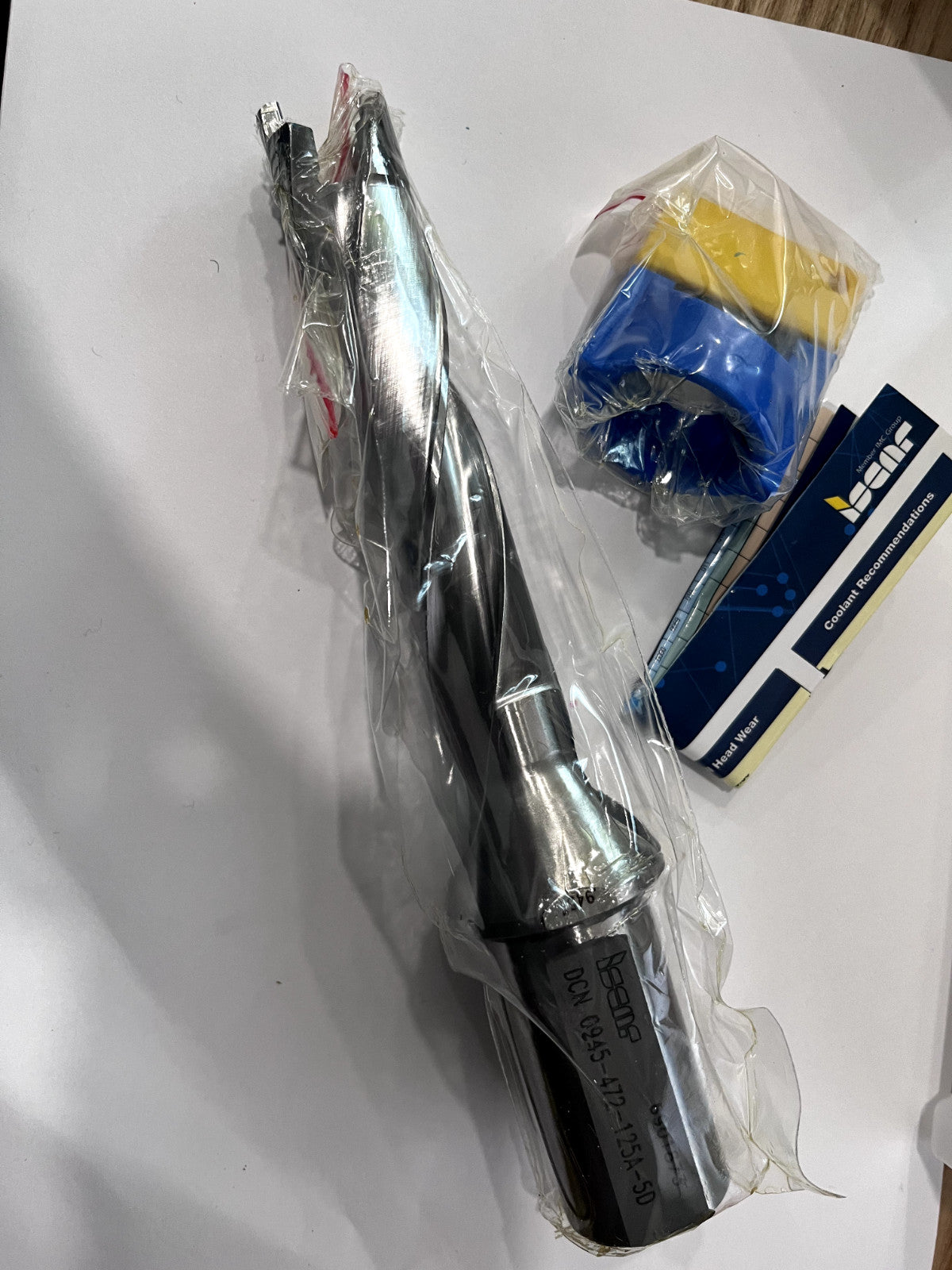

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!

Industry Recycles

155 Center Ct, Venice, FL 34285

Date Oct 28 24

Lister#CM 14296

LocMeep 9
