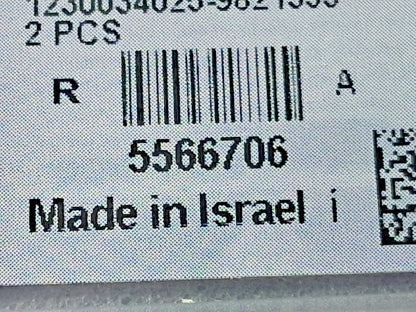

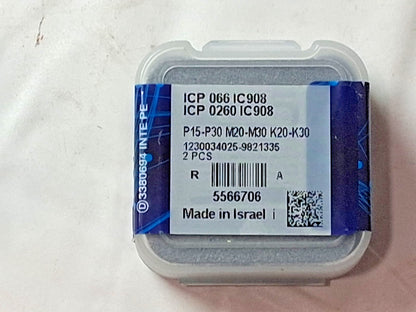

Iscar Replaceable Drill Tips 2PK ICP0259 IC908 0.2600" Dia 6.60 mm Dia 5566706

Iscar
Replaceable Drill Tips 1 pack of 2

MSRP: $205

• spec
• Cutting Diameter (Decimal Inch) 0.2600
• Cutting Diameter (mm) 6.60
• Tip Material Solid Carbide
• Manufacturer Grade IC908
• Material Grade Submicron
• Series ICP
• Coating Process PVD
• Insert Geometry P
• Insert Seat Size 6.5
• Functional Length (Decimal Inch) 0.1221
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium
• Secondary Workpiece Material Code S; H; K; M
• Standards ISO 13399
• Height (Decimal Inch) 0.169
• Height (mm) 4.00
• Overall Length/Projection (Decimal Inch) 0.1694
• Web Thinning Web Thinned
• Drill Point Angle 140
• Flute Type Helical
• Insert Holding Method Clamp
• ISO Number ICP 066
• Coolant Through No
• Flute Length (mm) 3.00
• Point Type Standard
• Spiral Type Regular Spiral
• Style ICP
• Applications Drilling; Chamfering; Gundrills; Hole Making
• UNSPSC Code 23242105
• Coating/Finish TiAlN
• Included Angle Degree 140
• Number Of Flutes 2

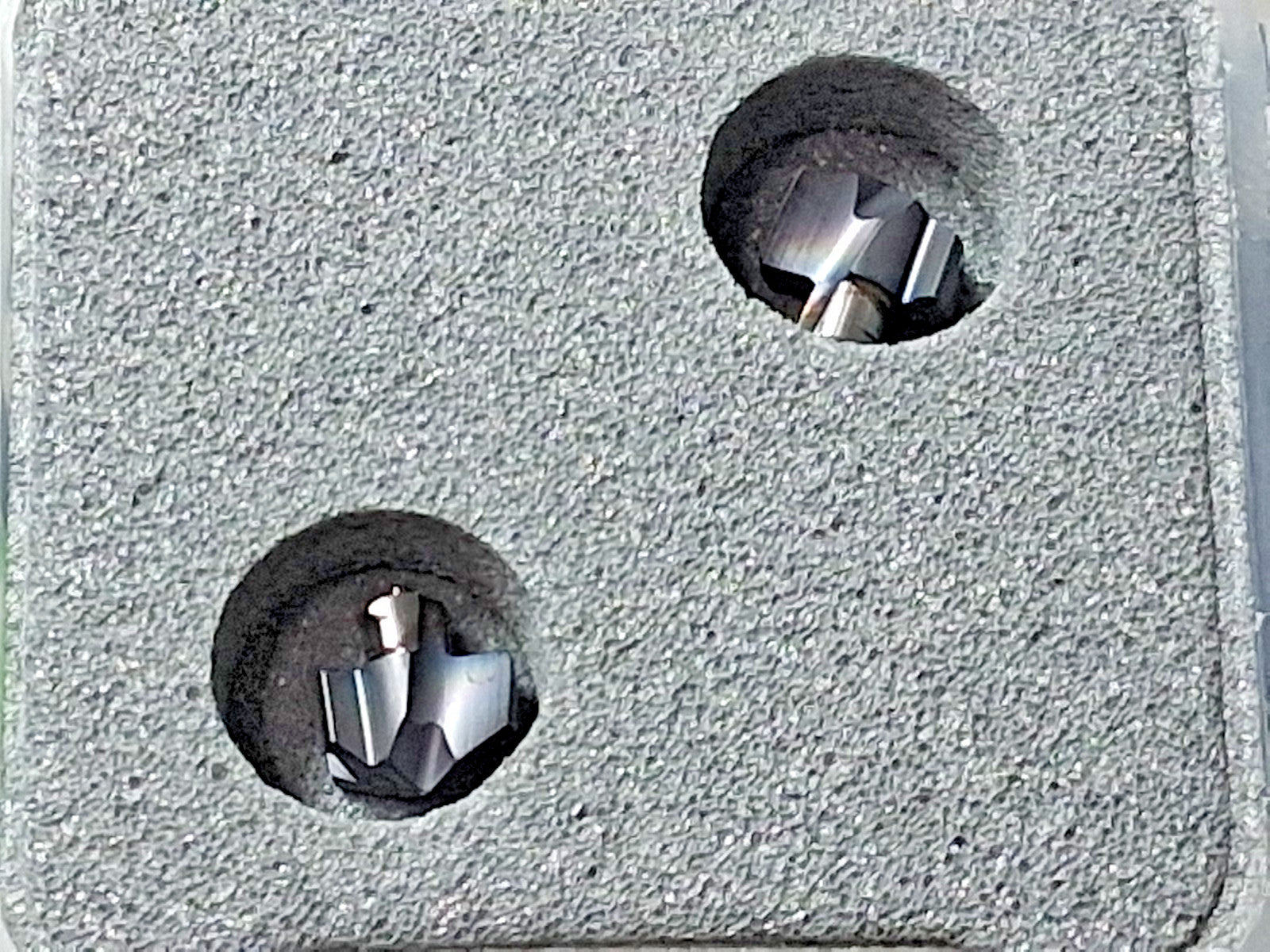

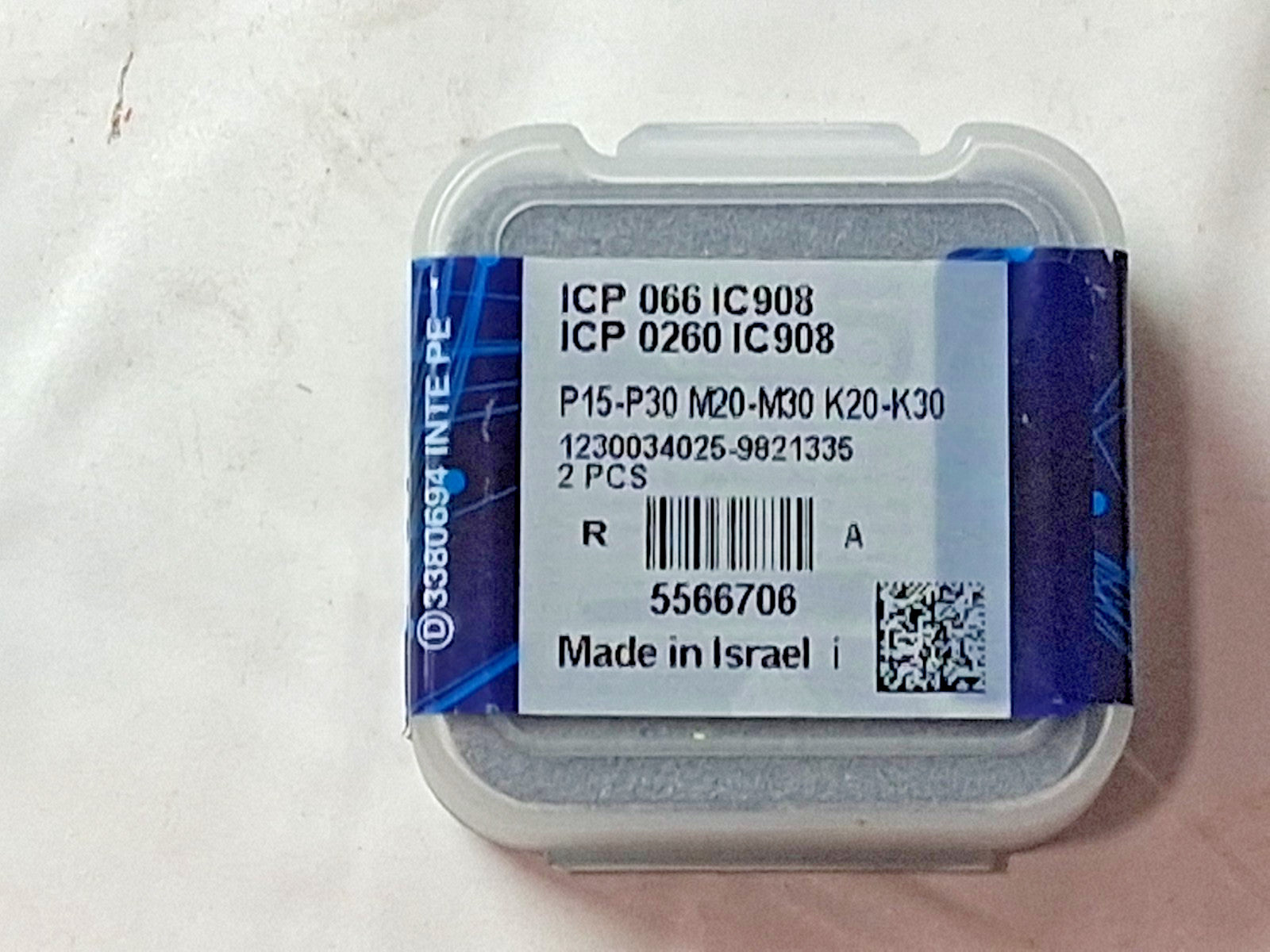

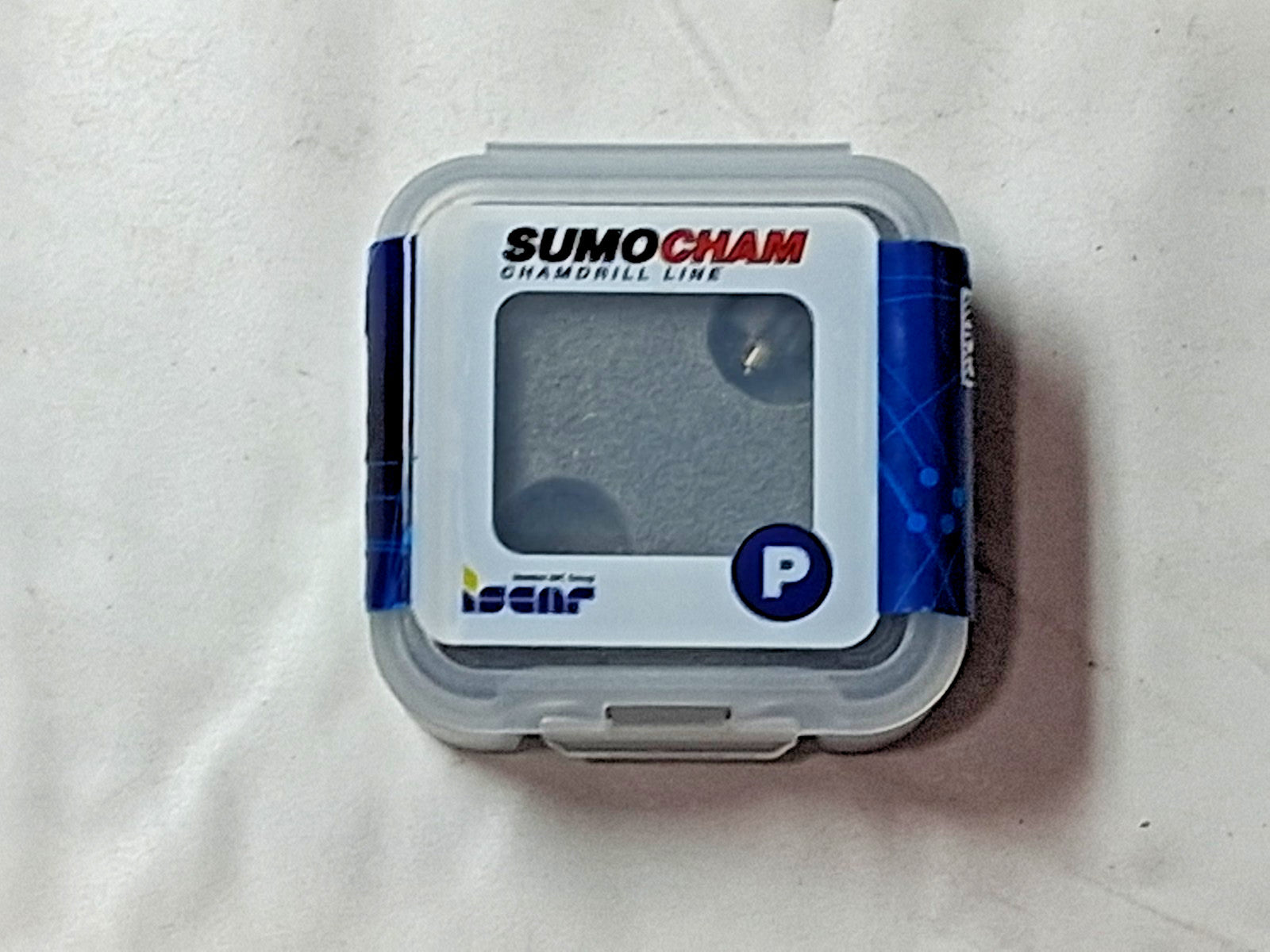

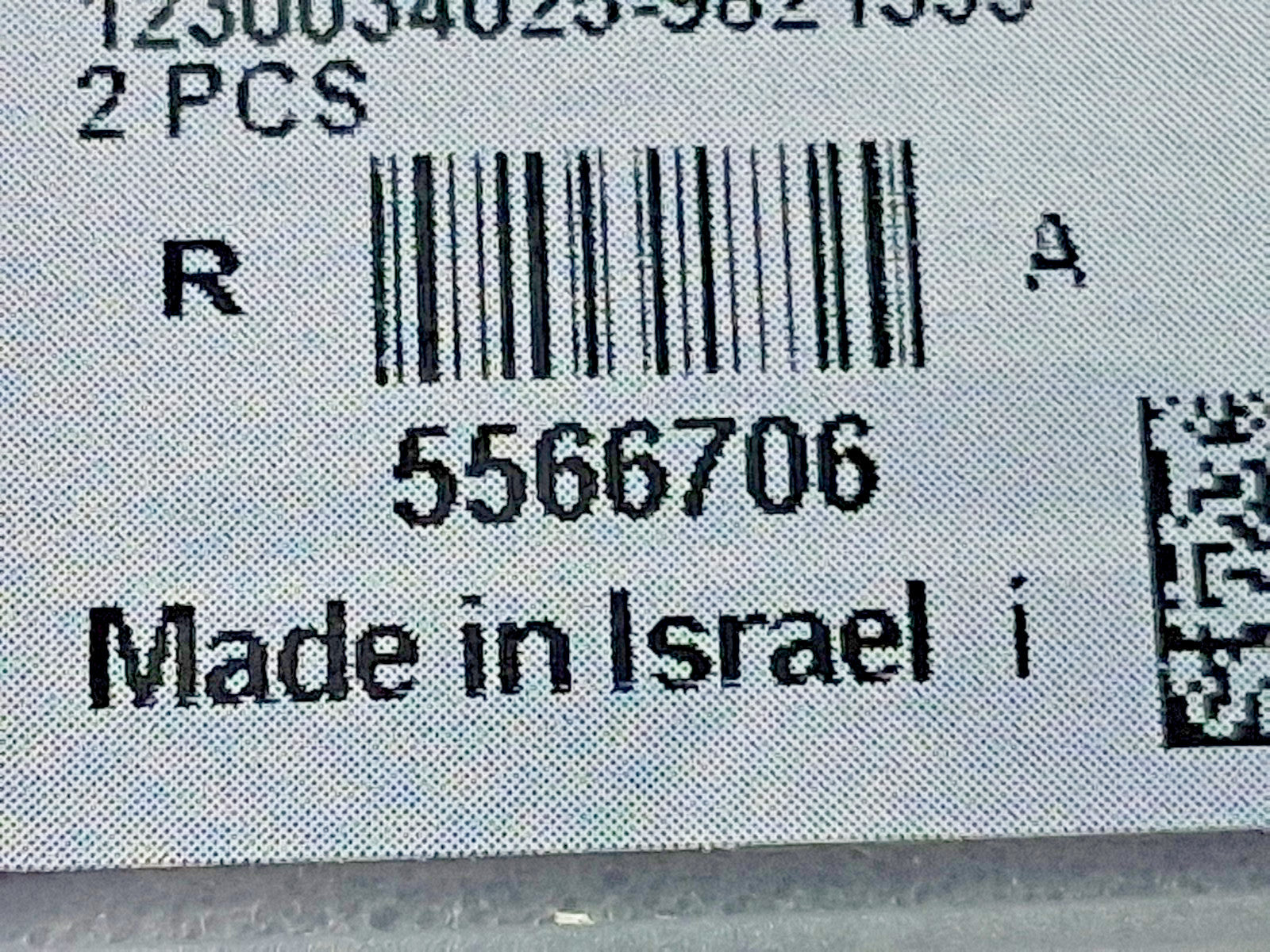

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
