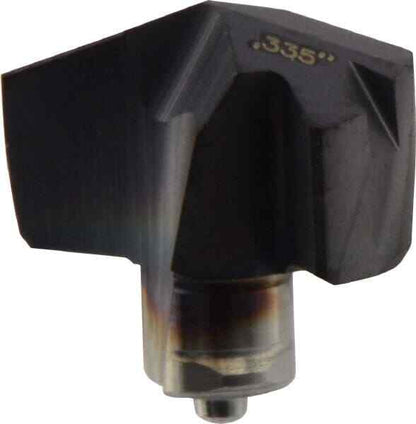

ISCAR Replaceable Drill Tip Series ICM, 140 deg Point, Grade IC908 Qty 2 5507902

Iscar
1 Lot of 2 Replaceable Drill Tips

MSRP: $140.00

• Cutting Diameter (Decimal Inch) 0.3350
• Cutting Diameter (mm) 9.00
• Tip Material Solid Carbide
• Manufacturer Grade IC908
• Material Grade Submicron
• Cutting Direction Right Hand
• Series ICM
• Coating Process PVD
• Insert Geometry M
• Insert Seat Size 8
• Functional Length (Decimal Inch) 0.1619
• Primary Workpiece Material Stainless Steel; Superalloys & Titanium
• Primary Workpiece Material Code S; M
• Secondary Workpiece Material Hard Material; Cast Iron; Steel
• Secondary Workpiece Material Code P; H; K
• Standards ISO 13399
• Height (Decimal Inch) 0.2130 in
• Height (mm) 5.00 mm
• Overall Length/Projection (Decimal Inch) 0.2127
• Web Thinning Web Thinned
• Drill Point Angle 140
• Flute Type Helical
• Insert Holding Method Clamp
• ISO Number ICM 085
• Coolant Through No
• Flute Length (mm) 4.00
• Point Type Standard
• Spiral Type Regular Spiral
• Style ICM
• UNSPSC Code 23242105
• Applications Drilling; Hole Making
• Coating/Finish TiAlN
• Included Angle Degree 140
• Number Of Flutes 2

These items are new and in the sealed original package. SOLD AS IS.

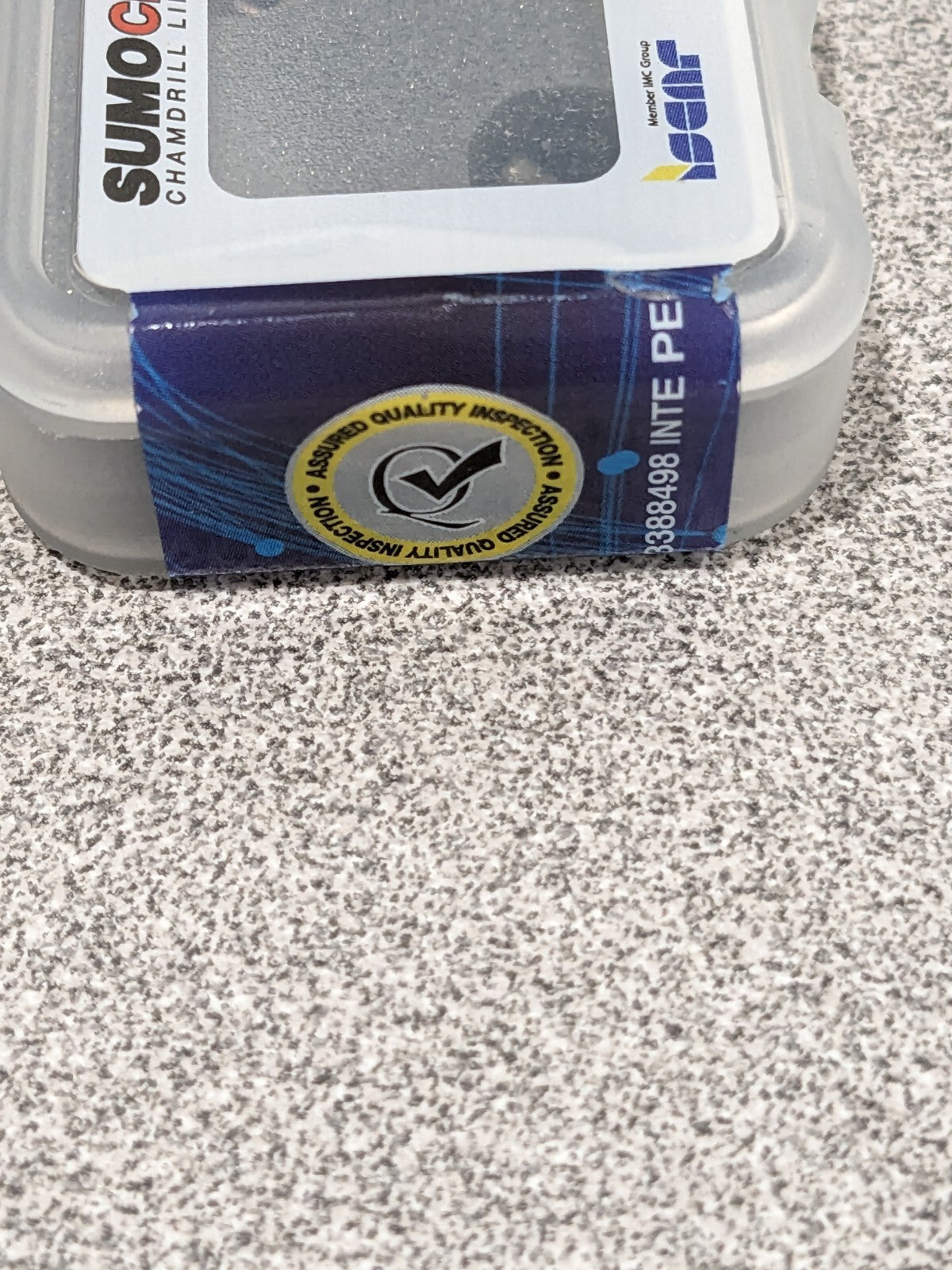

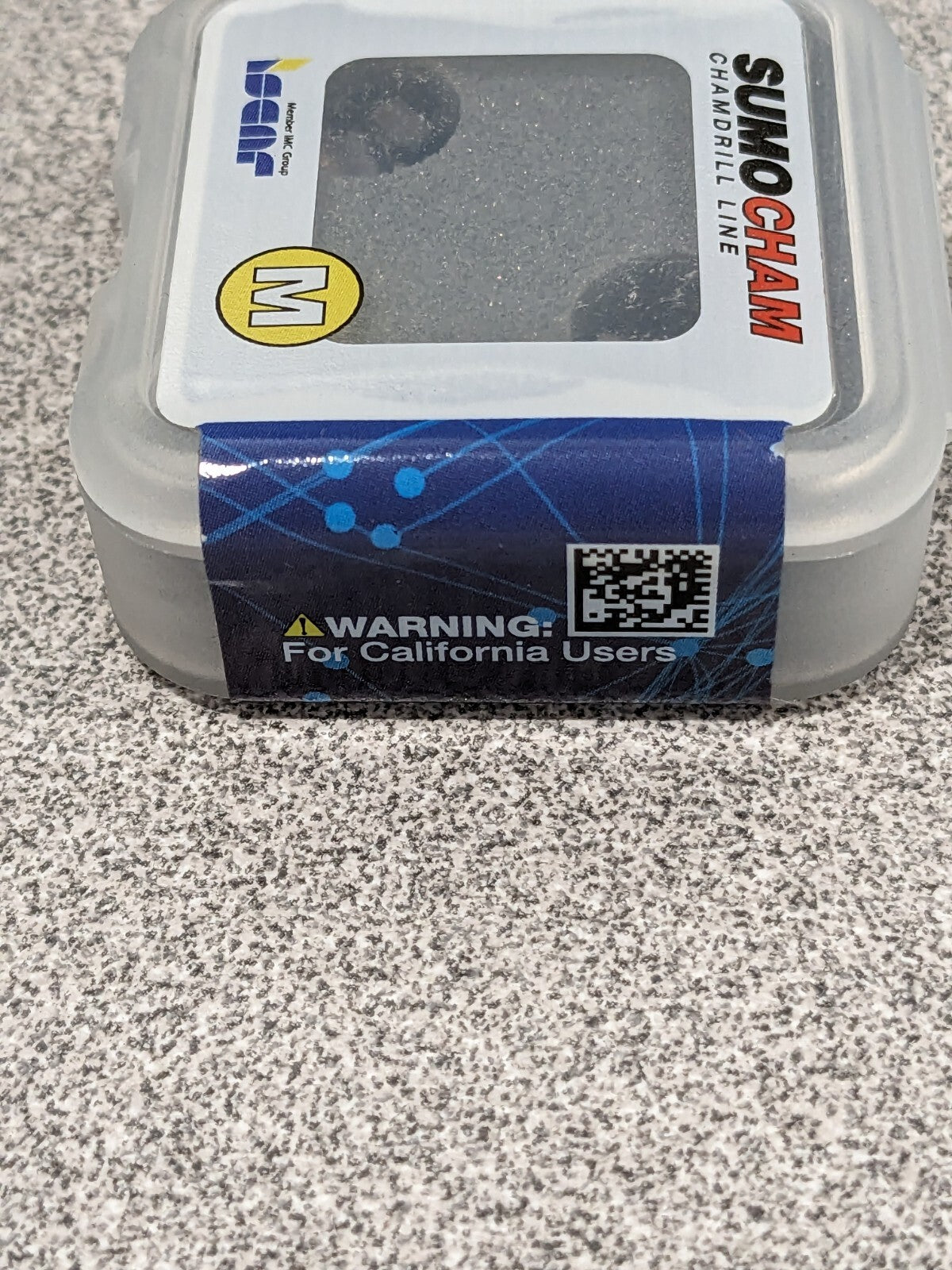

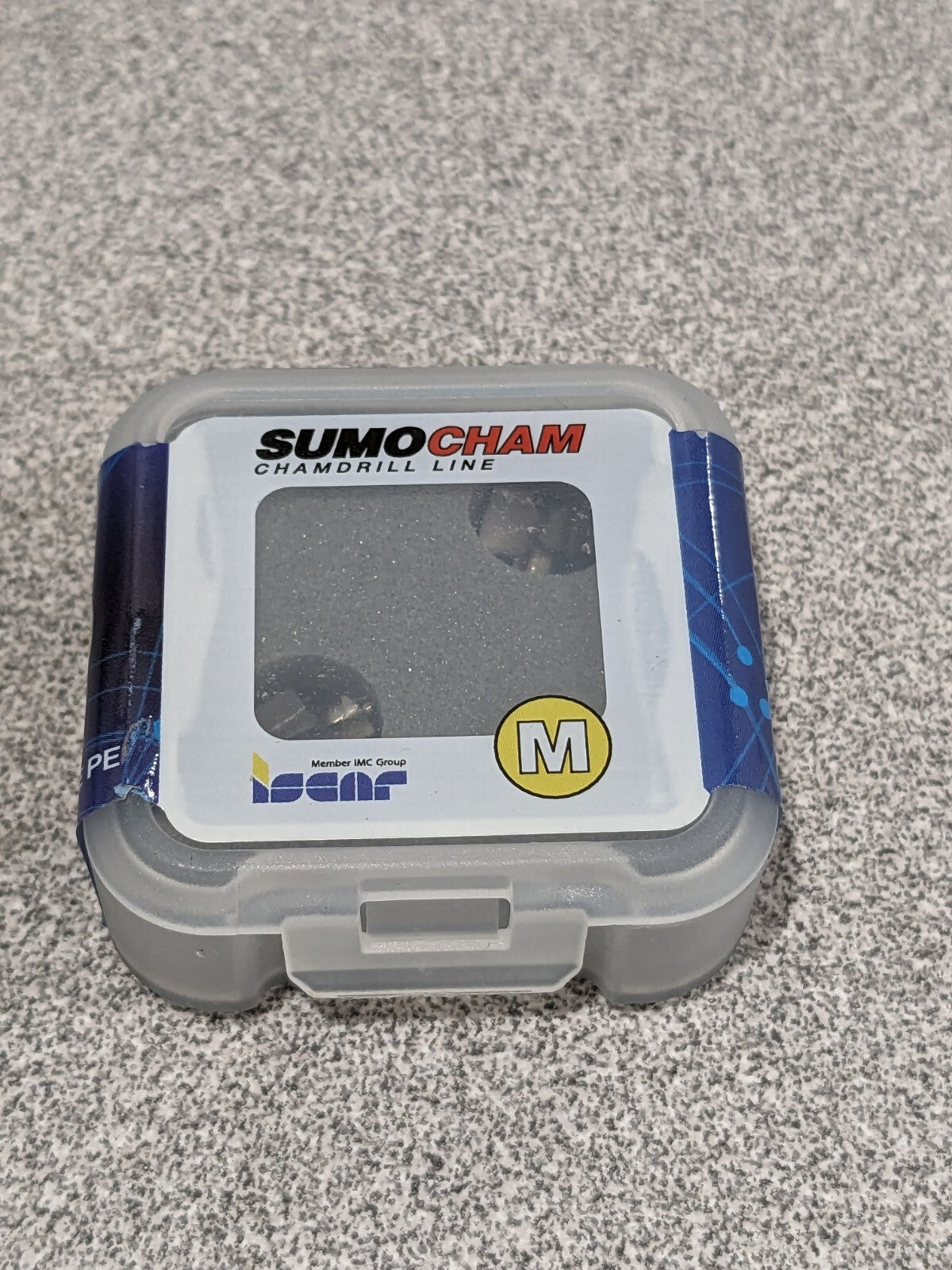

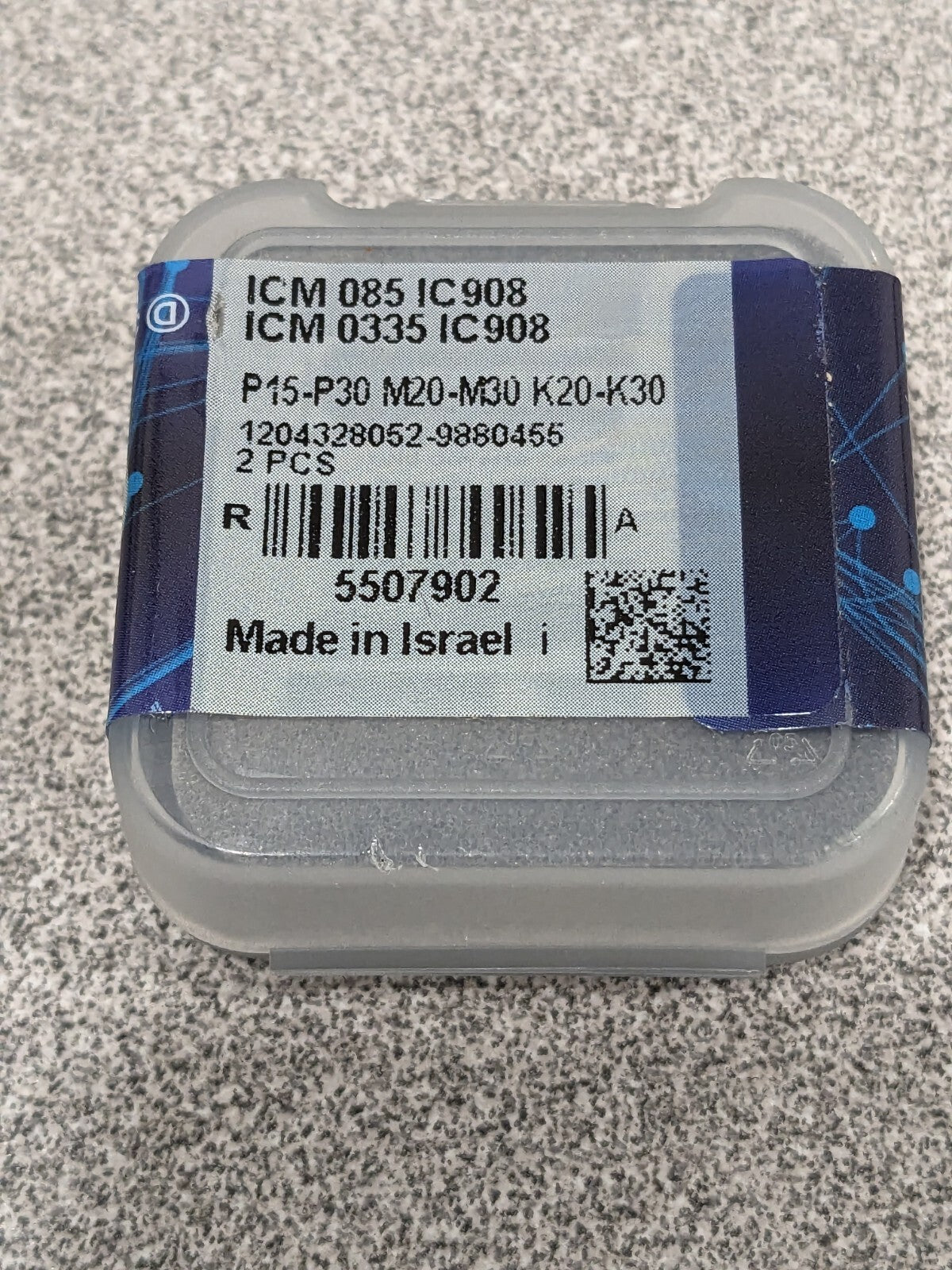

Please review photos, comes as shown.
