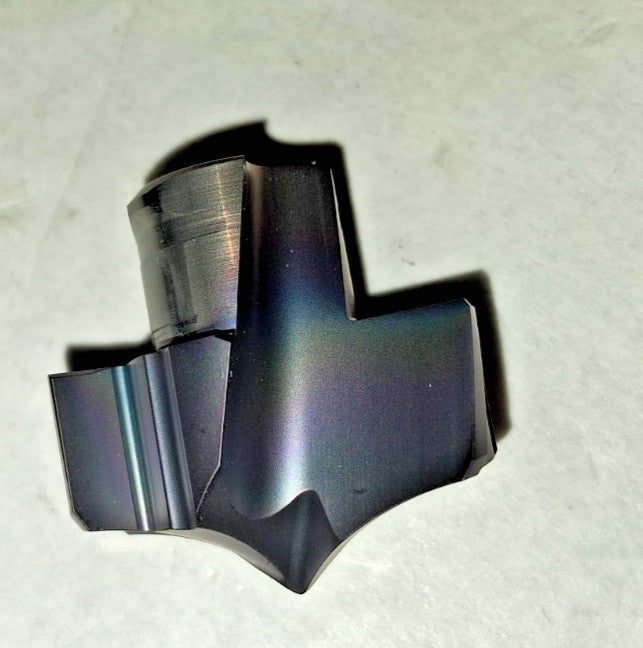

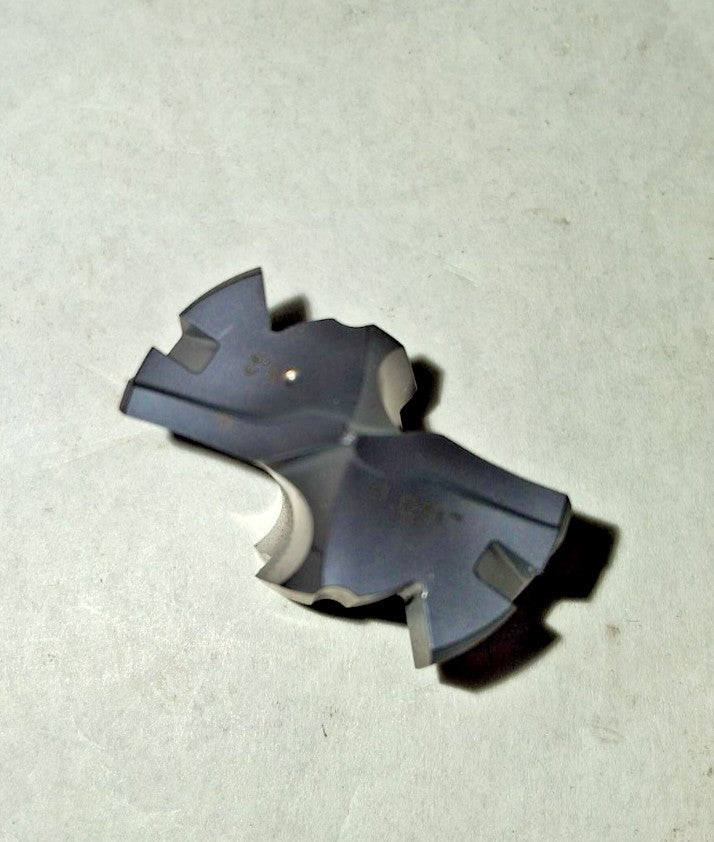

Iscar Replaceable Drill Tip HCP 1031-IQ IC908 1.0310" Dia 26.19 mm Dia 3302269

Iscar
Replaceable Drill Tip

MSRP: $245

• Cutting Diameter (Inch): 1-1/32
• Cutting Diameter (Decimal Inch): 1.0310
• Cutting Diameter (mm): 26.19
• Tip Material: Solid Carbide
• Manufacturer Grade: IC908
• Material Grade: Submicron
• Series: HCP-IQ
• Coating Process: PVD
• Insert Geometry: P
• Insert Seat Size: 26
• Functional Length (Decimal Inch): 0.3593
• Primary Workpiece Material: Cast Iron; Steel
• Primary Workpiece Material Code: P; K Secondary Workpiece Material: Hard Material; Stainless Steel; Superalloys & Titanium
• Secondary Workpiece Material Code: S; H; M
• Standards: ISO 13399
• Height (Decimal Inch): 0.5937
• Height (mm): 15.07
• Overall Length/Projection (Decimal Inch): 0.5937
• Web Thinning: Web Thinned
• Drill Point Angle: 136
• Flute Type: Helical
• Insert Holding Method: Clamp

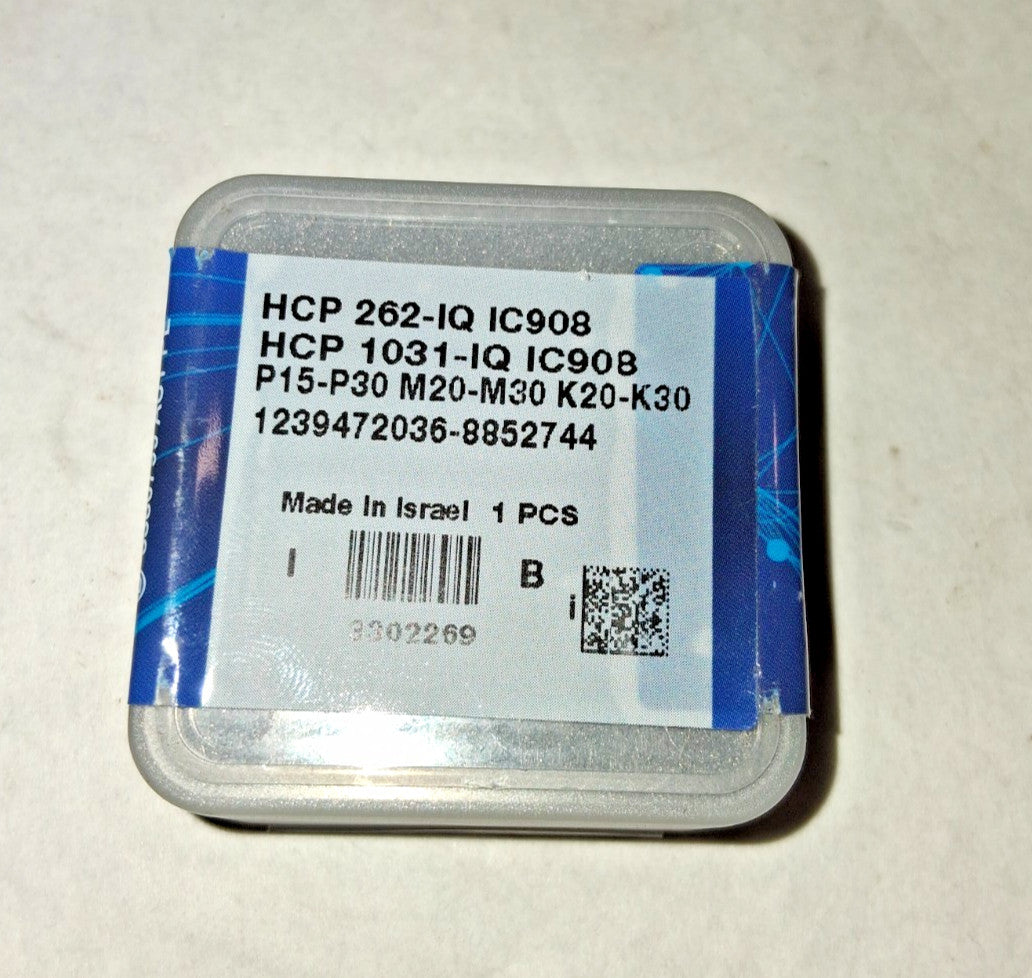

• ISO Number: HCP 262-IQ
• Coolant Through: No
• Flute Length (mm): 9.00
• Point Type: Self Centering
• Spiral Type: Regular Spiral
• Height (Inch): 19/32
• Style: HCP-IQ
• Applications: Drilling; Chamfering; Gundrills; Hole Making
• UNSPSC Code: 23242105
• Coating/Finish: TiAlN
• Included Angle Degree: 136
• Number Of Flutes: 2

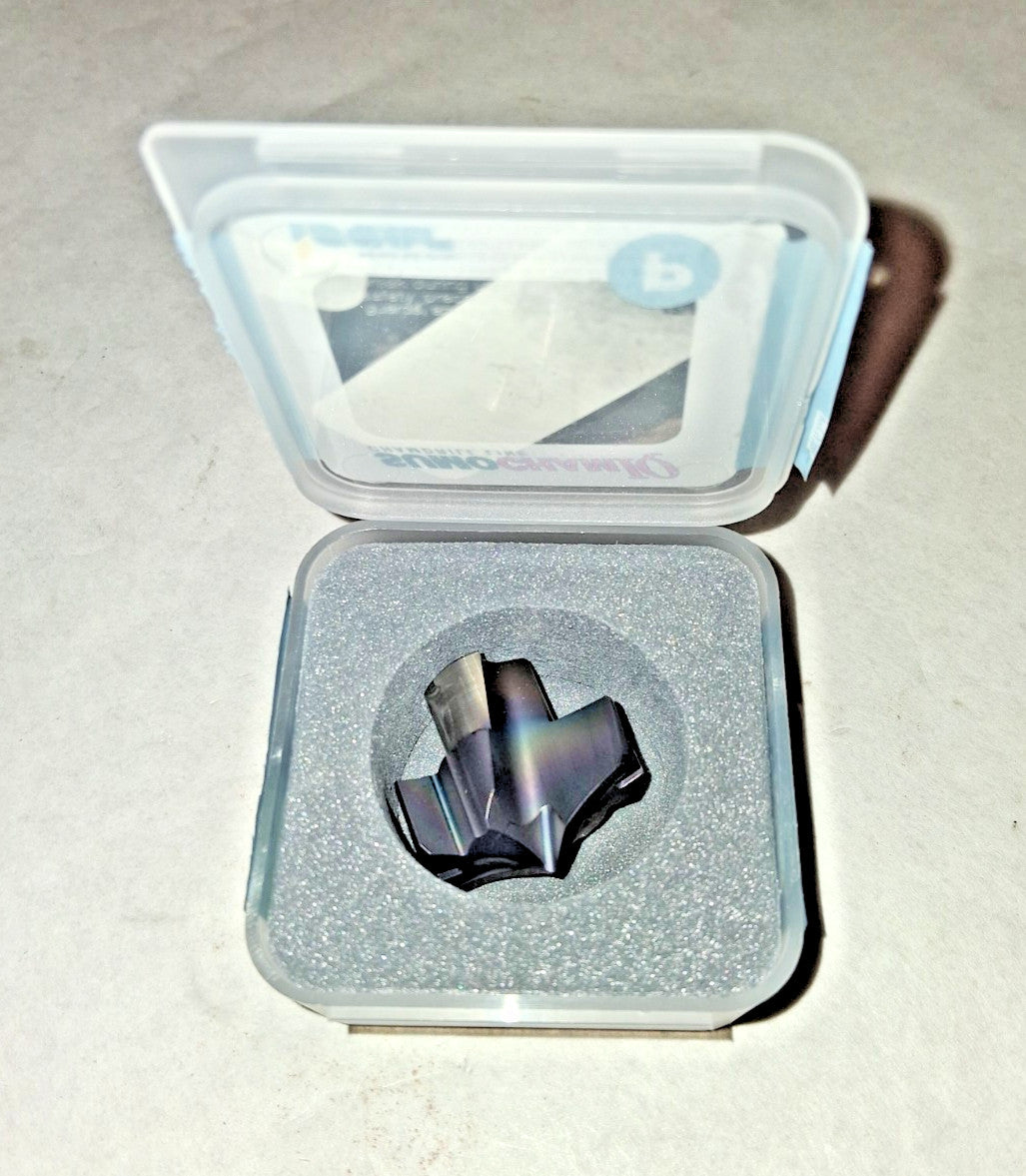

Please review photos, comes as shown.
