ISCAR Milling Tip Inserts 2pk 3311813

ISCAR Milling Tip Inserts 2pk 3311813

MSRP: $500

• Milling Tip Type Thread
• Milling Tip Style MT-UN-MM
• Maximum Depth of Cut (Decimal Inch) 0.5
• Maximum Depth of Cut (mm) 12.7
• Cutting Diameter (Decimal Inch) 0.6304
• Cutting Diameter (mm) 16.00
• Tool Material Carbide
• Manufacturer Grade IC908
• Insert Hand Right Hand
• Chipbreaker None
• Series MT-UN-MM
• Coating Process PVD
• Cutting Width (Decimal Inch) 0.6304
• Functional Length (Decimal Inch) 0.7880
• Primary Workpiece Material Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; H; K; M; N
• Standards ANSI

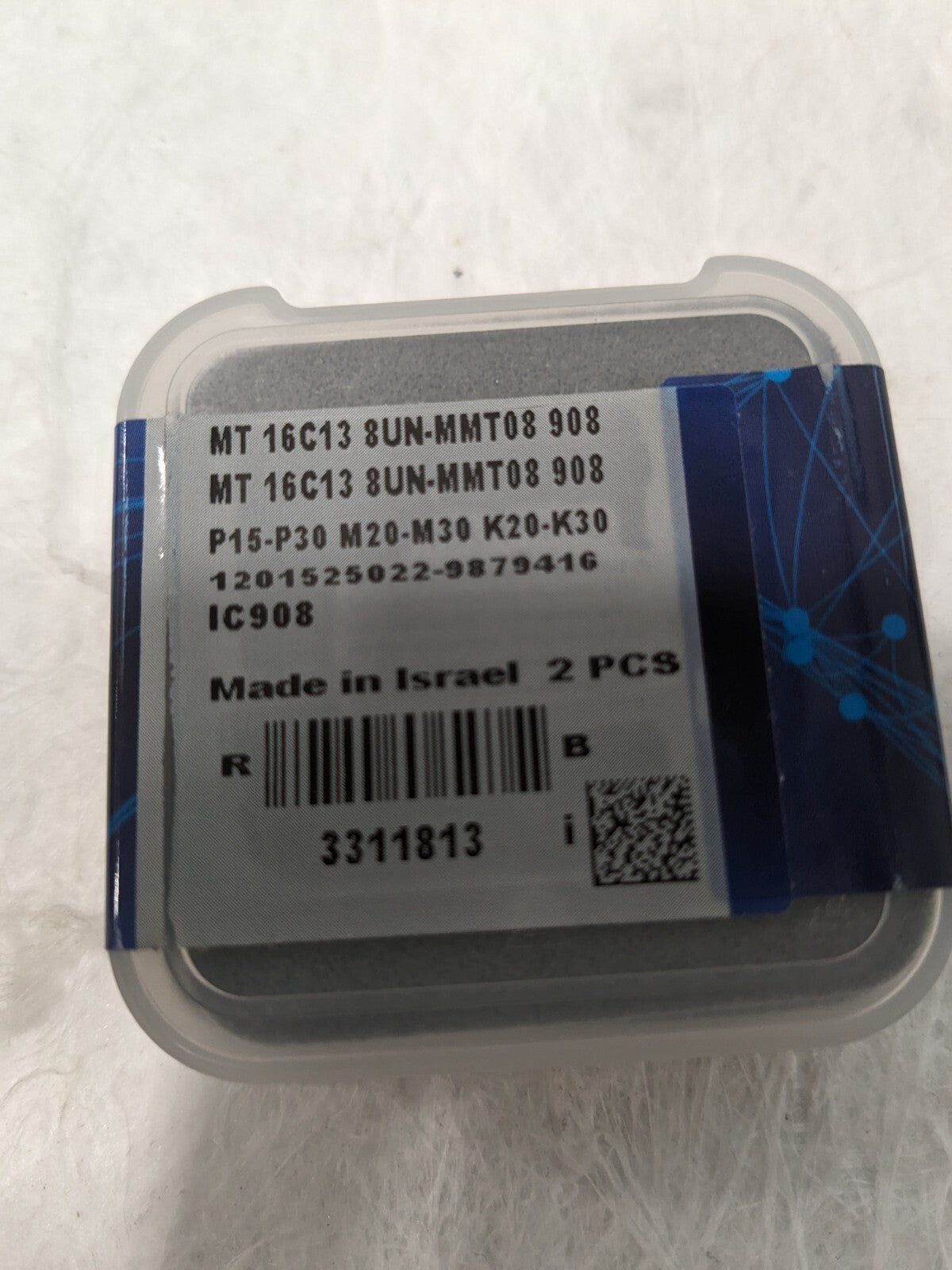

• Milling Tip Full Description MT 16C13 8UN-MMT08
• Extension From Holder (mm) 19.00
• Lead Angle 90
• Manufacturers Catalog Number 3311813
• Chamfer Angle 0
• Length of Cut (Inch) 1/2
• Overall Length (Decimal Inch) 0.788
• Insert Size 16C13 8
• Coolant Through No
• Material Grade Sub Micrograin
• Included Angle Degree 90
• Coating/Finish TiAlN
• UNSPSC Code 23291601
• Number Of Flutes 3

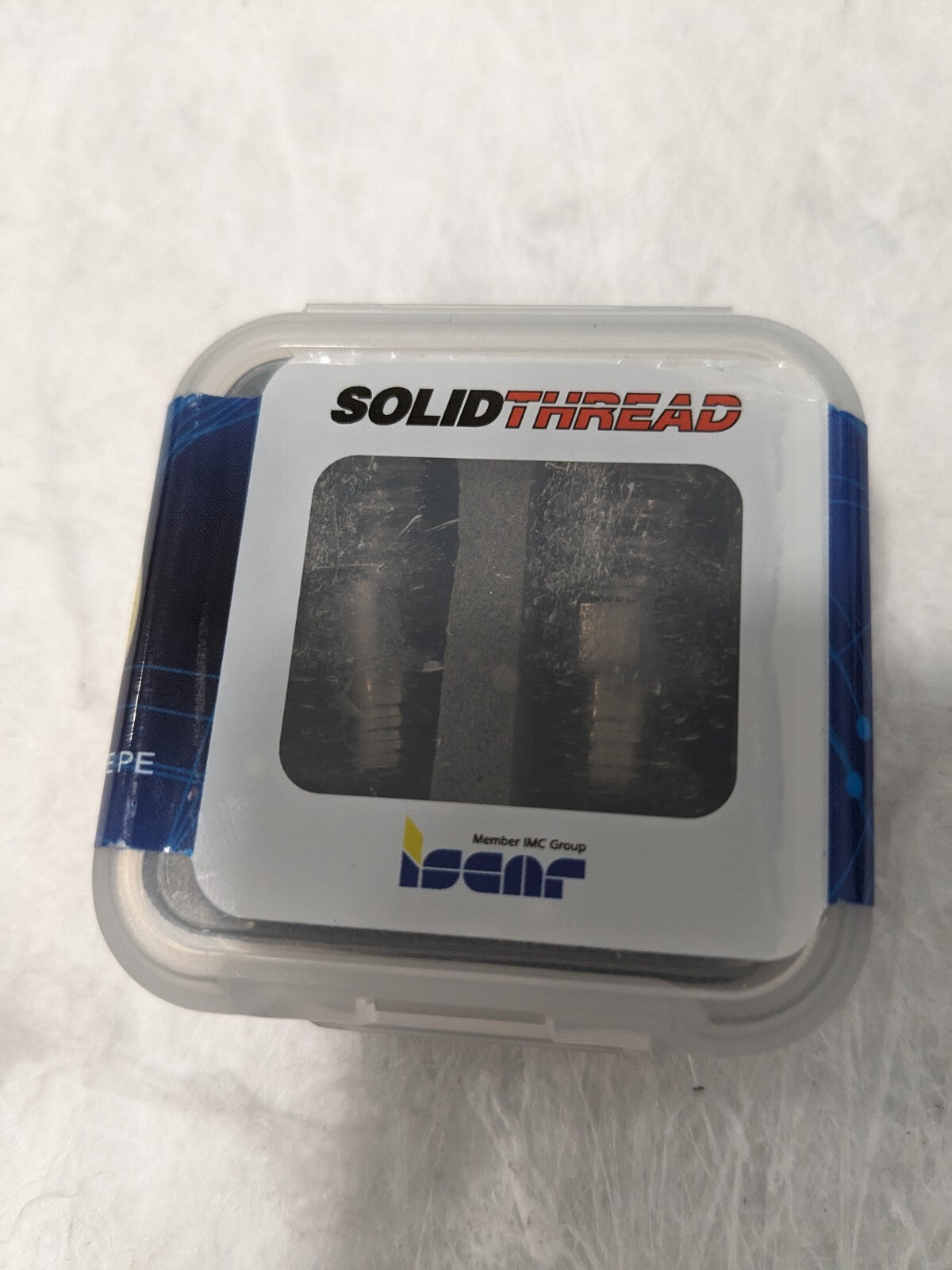

Please review photos, comes as shown.
