ISCAR Milling Insert: S845 SNMU 1305ANR-MM IC808 Carbide 5606056

ISCAR Milling Insert: S845 SNMU 1305ANR-MM IC808 Carbide 5606056

MSRP: $250

• Insert Style SNMU
• Insert Size 13
• Insert Material Solid Carbide
• Insert Shape Square
• Manufacturer Grade IC808
• Corner Radius (Decimal Inch) 0.0315
• Corner Radius (mm) 0.80
• Number Of Cutting Edges 8
• Thickness (Decimal Inch - 4 Decimals) 0.2440
• Coating/Finish AlTiN; TiN; TiAlN
• Relief Angle 0.00
• Maximum Depth of Cut (Decimal Inch) 0.2360
• Maximum Depth of Cut (mm) 6.00
• Insert Size Code 1305
• Material Grade Submicron
• Inscribed Circle (Decimal Inch) 0.5118
• Inscribed Circle (mm) 13.00
• Thickness Range (Decimal Inch) 0.2350 to 0.2500
• Corner Radius (Inch) 1/32
• Inscribed Circle Range (Decimal Inch) 0.5100 to 0.6000
• Length Range (Decimal Inch) 0.5000 to 0.6000
• Insert Hand Neutral
• Series HELIDO
• Coating Process PVD
• Cutting Edge Effective Length (Decimal Inch) 0.2758
• Rake Negative
• Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; H; K; M
• Secondary Workpiece Material Code S; H
• Ansi Code S845 SNMU 1305ANR-MM IC808
• Iso Code S845 SNMU 1305ANR-MM
• Standards ISO 13399; ANSI
• Cutting Edge Style Helical
• Manufacturers Catalog Number S845 SNMU 1305ANR-MM IC808
• Cutter Series Compatibility SOE45; SOF45
• Chip Breaker MM
• Material Application Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• UNSPSC Code 23291601
• Insert Holding Method Screw
• Coating Classification Sumotec PVD
• Single or Double Sided Insert Double
• Included Angle Degree 90
• Width (Decimal Inch - 4 Decimals) 0.5120
• Width (Mm - 2 Decimals) 13.00
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.5118
• System Of Measurement Decimal Inch

(Description).

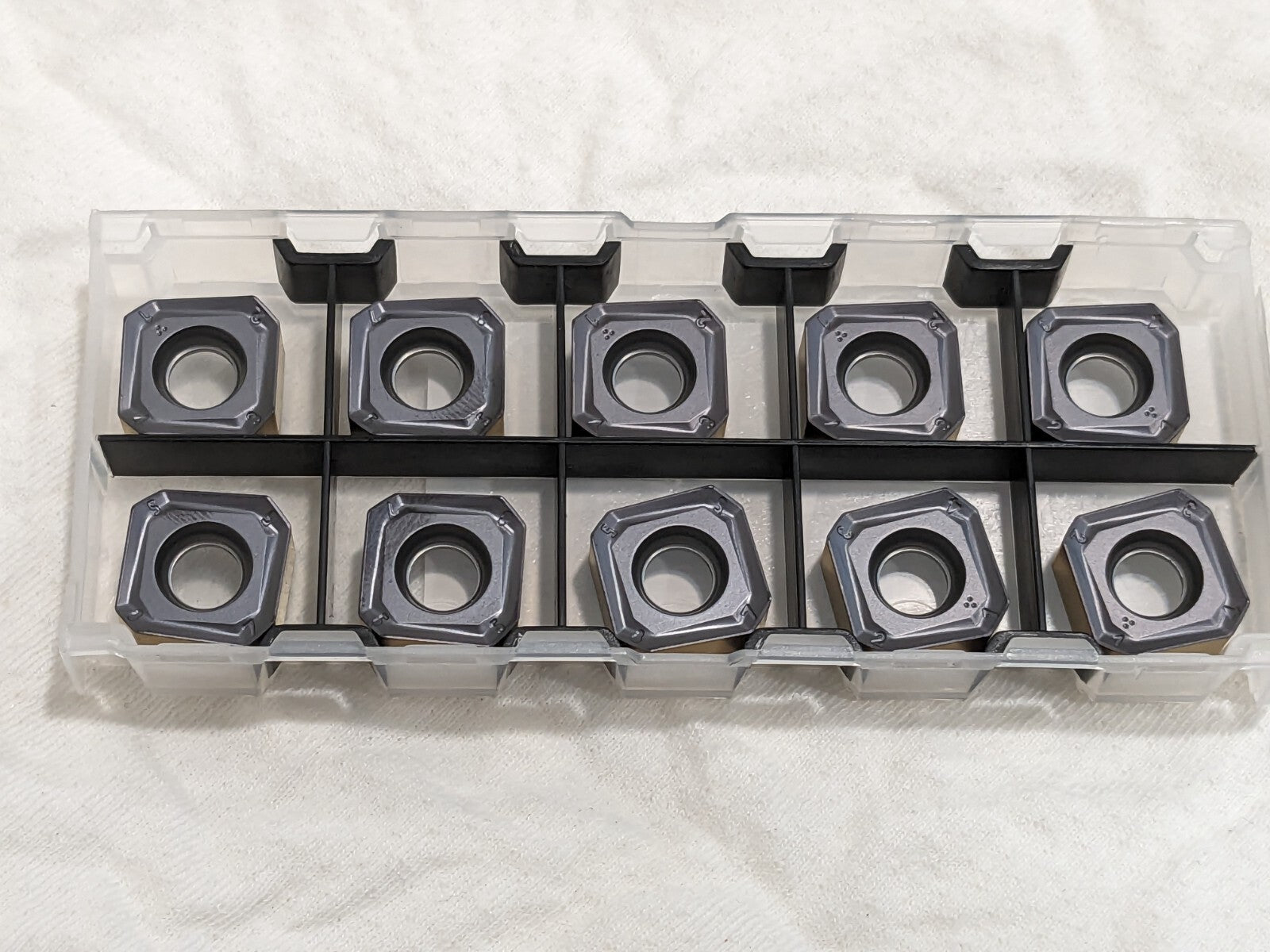

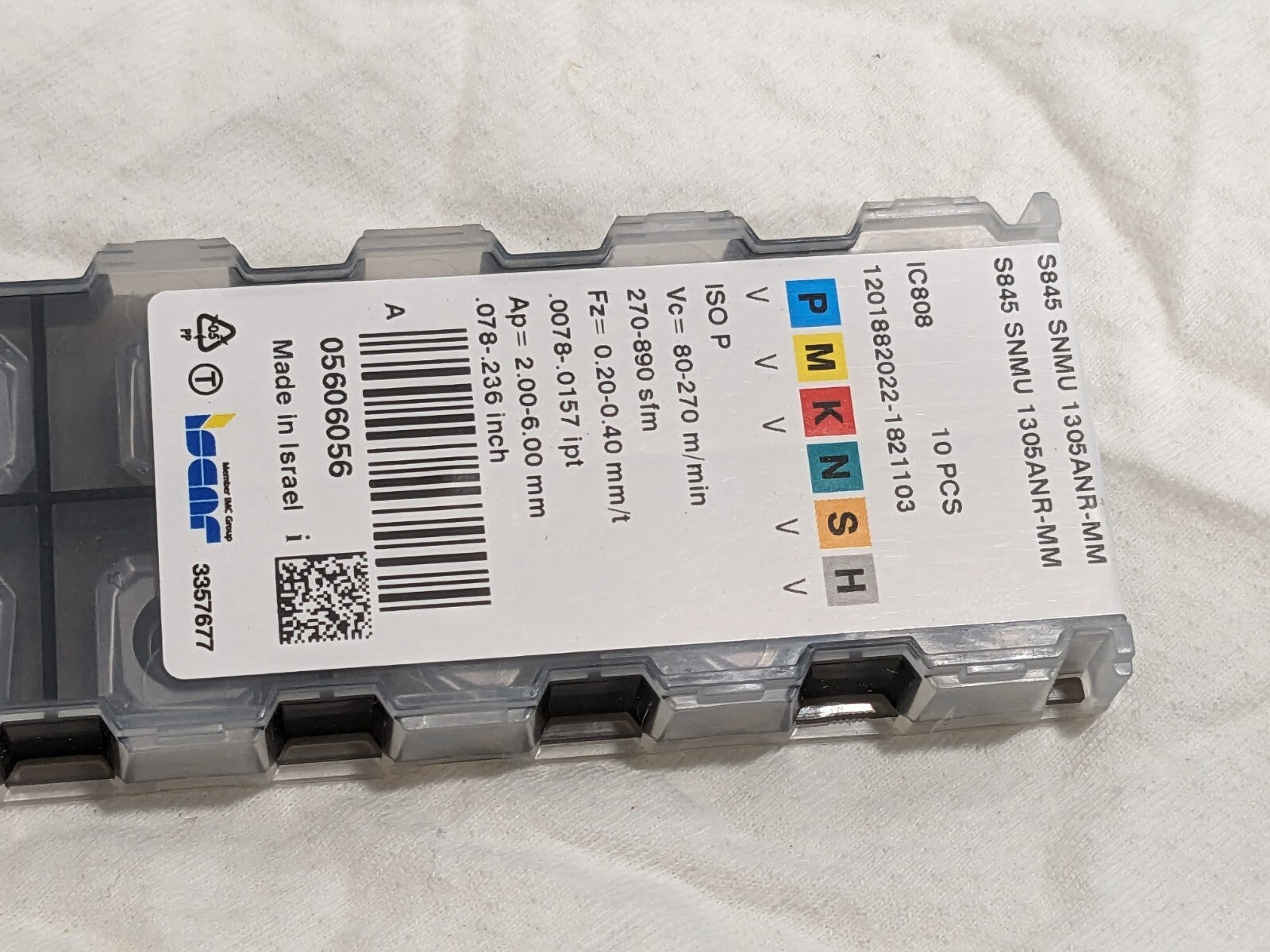

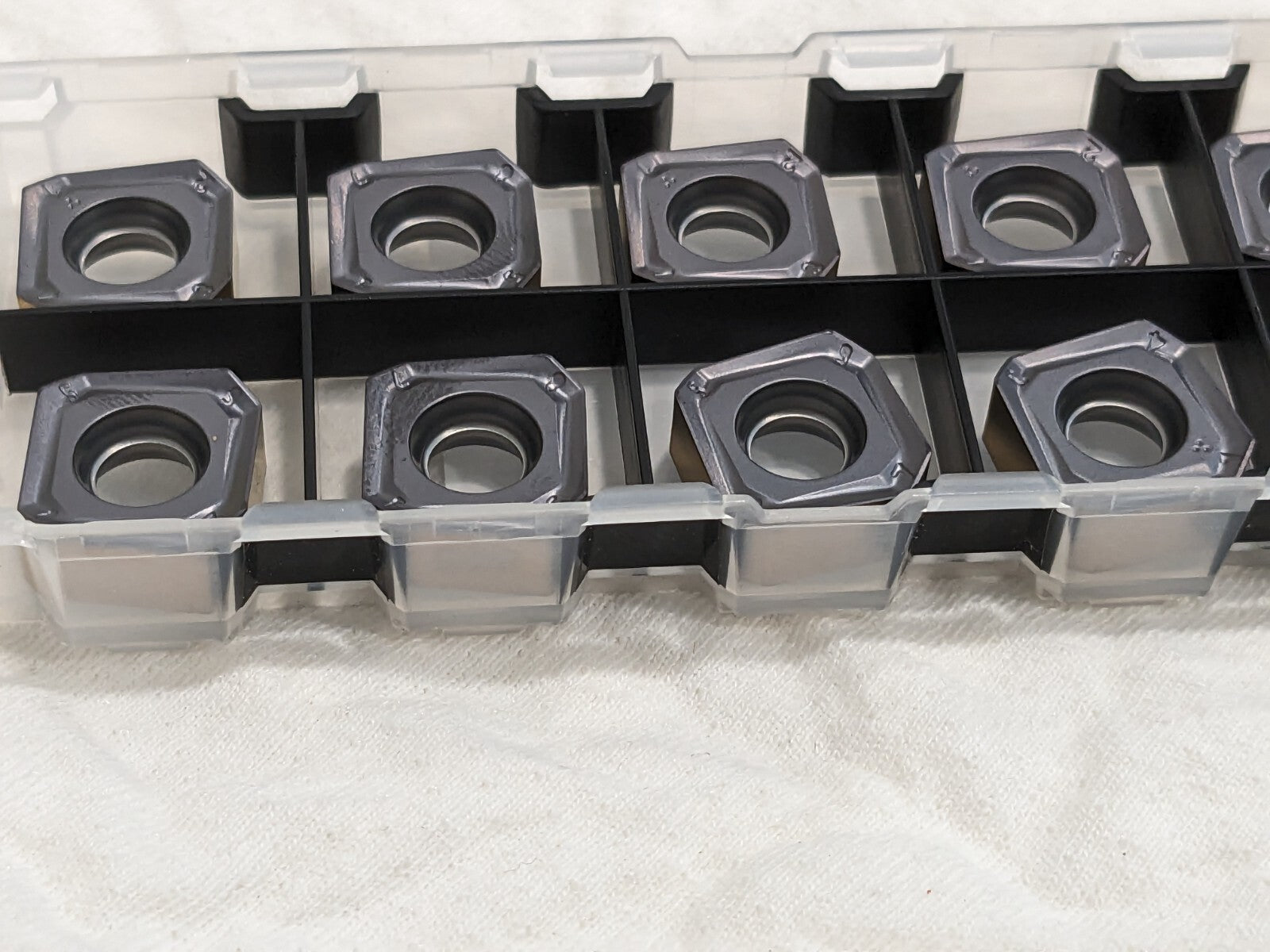

Please review photos, comes as shown.
