ISCAR Milling Insert: H690 TNKX 160610PNTR IC810, Solid Carbide 5607502

MSRP: $350

• Insert Style TNKX
• Insert Size 16
• Insert Material Solid Carbide
• Insert Shape Triangle
• Manufacturer Grade IC810
• Corner Radius (Decimal Inch) 0.0394
• Number Of Cutting Edges 6
• Thickness (Decimal Inch - 4 Decimals) 0.3940
• Coating/Finish TiN; AlTiCrN
• Relief Angle 0.00
• Maximum Depth of Cut (Decimal Inch) 0.5310
• Insert Size Code 160610
• Inscribed Circle (Decimal Inch) 0.4724
• Thickness Range (Decimal Inch) 0.3500 to 0.5000
• Inscribed Circle Range (Decimal Inch) 0.4000 to 0.5000
• Length Range (Decimal Inch) 0.6500 to 0.7000
• Insert Hand Right Hand
• Series HELIDO
• Coating Process PVD
• Cutting Edge Effective Length (Decimal Inch) 0.5310
• Rake Negative
• Primary Workpiece Material Cast Iron; Steel
• Primary Workpiece Material Code P; K
• Ansi Code H690 TNKX 160610PNTR IC810
• Iso Code H690 TNKX 160610PNTR
• Standards ISO 13399; ANSI
• Cutting Edge Style Helical
• Manufacturers Catalog Number H690 TNKX 160610PNTR IC810
• Cutter Series Compatibility H690-16
• Chip Breaker PNTR
• Material Application Cast Iron; Steel
• UNSPSC Code 23291601
• Insert Holding Method Screw
• Coating Classification Sumotec PVD
• Single or Double Sided Insert Double
• Included Angle Degree 60
• Width (Decimal Inch - 4 Decimals) 0.6890
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.6890
• System Of Measurement Decimal Inch

(Description).

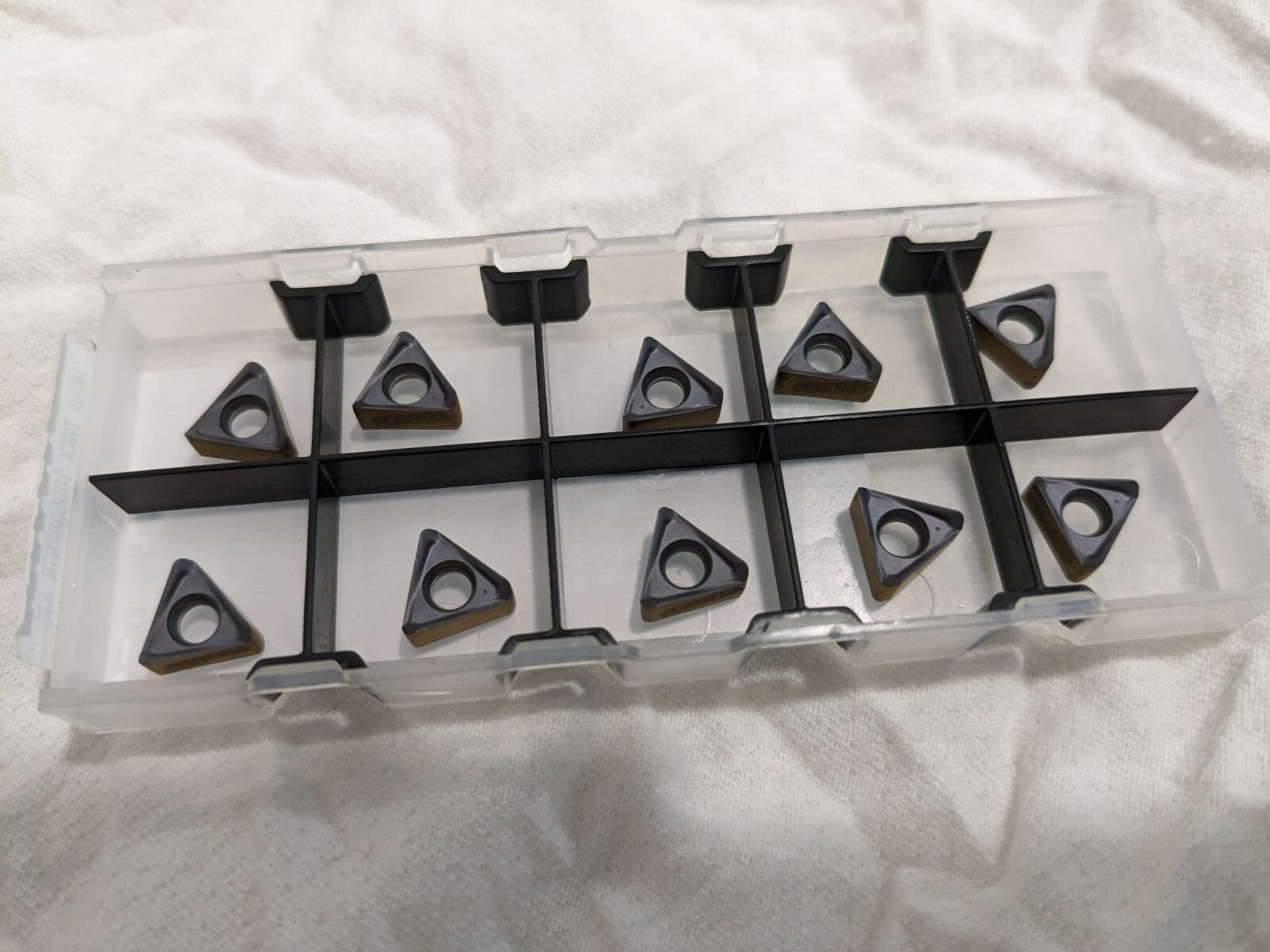

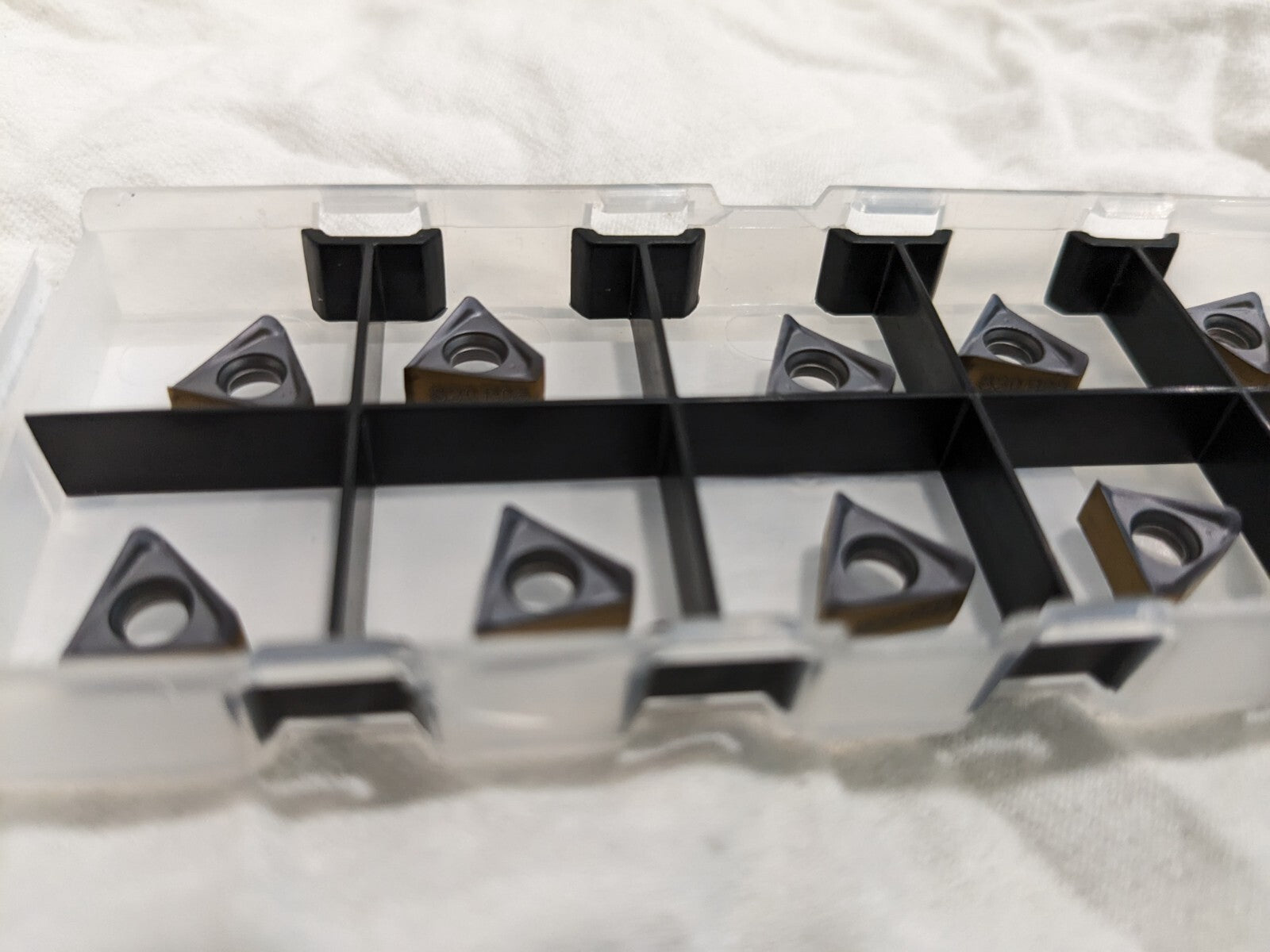

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
