Iscar LNMX110412 HM Grade IC6015 Carbide Turning Insert Qty. 10 5507191
Iscar LNMX110412 HM Grade IC6015 Carbide Turning Insert Qty. 10 5507191
Regular price
$58.74 USD
Regular price
$120.00 USD
Sale price
$58.74 USD
Shipping calculated at checkout.
MSRP: $120.00
Model: 5507191
Description:
Insert Style LNMX
Insert Size 110412
Material Carbide
Length (mm) 11.00
Length (Decimal Inch) 0.4330
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Corner Radius (Inch) 3/64
Corner Radius (Decimal Inch) 0.0469
Manufacturer's Grade IC6015
Coating TiCN/Al2O3/TiN
Chip Breaker HM
Rake Positive
Relief Angle 0
Coating Process CVD
Included Angle 90
Cutting Direction Left Hand
Series Heliturn
Maximum Depth of Cut (mm) 5.00
Maximum Depth of Cut (Decimal Inch) 0.1970
Insert Holding Method Screw
Shape Rectangle

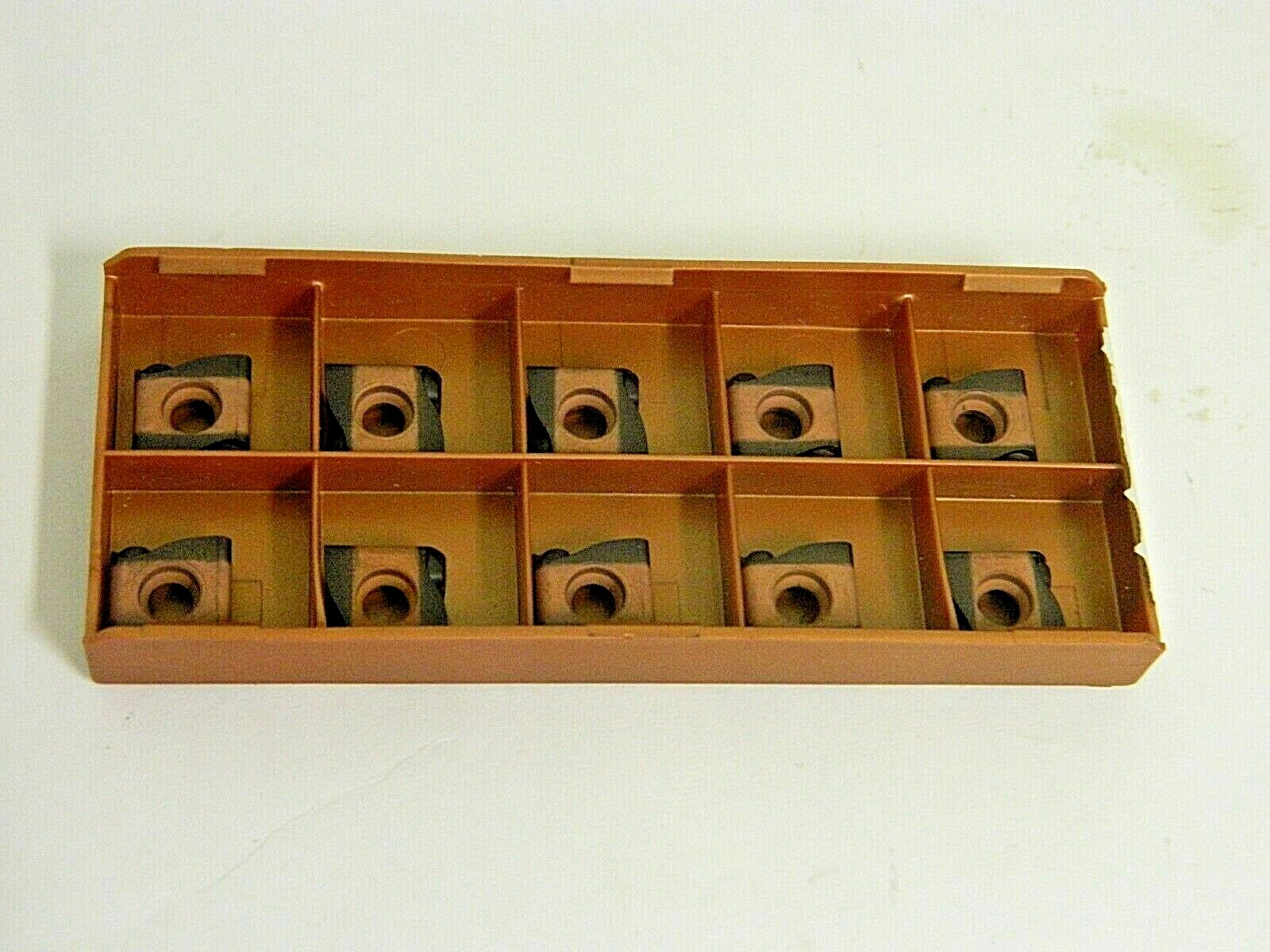

This listing is for One Pack of 10 that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
