Iscar Laydown Threading Insert 06IRM Internal RH 48-20 60° Qty 5 5920245

Iscar
1 Lot of 5 Laydown Threading Inserts

• Material Carbide
• Insert Style 06IRM
• Insert Hand Right Hand
• Thread Type Internal
• Thread Standard Partial Profile 60
• Manufacturer's Grade IC228
• Threads Per Inch 48-20
• Pitch (mm) 0.50-1.50
• Inscribed Circle (mm) 3.97
• Inscribed Circle (Inch) 5/32
• Inscribed Circle (Decimal Inch) 0.1563
• Thickness (Decimal Inch) 0.0470
• Coating TiCN/TiN
• Coating Process PVD
• Corner Radius (mm) 0.05
• Corner Radius (Decimal Inch) 0.0020
• Chipbreaker M

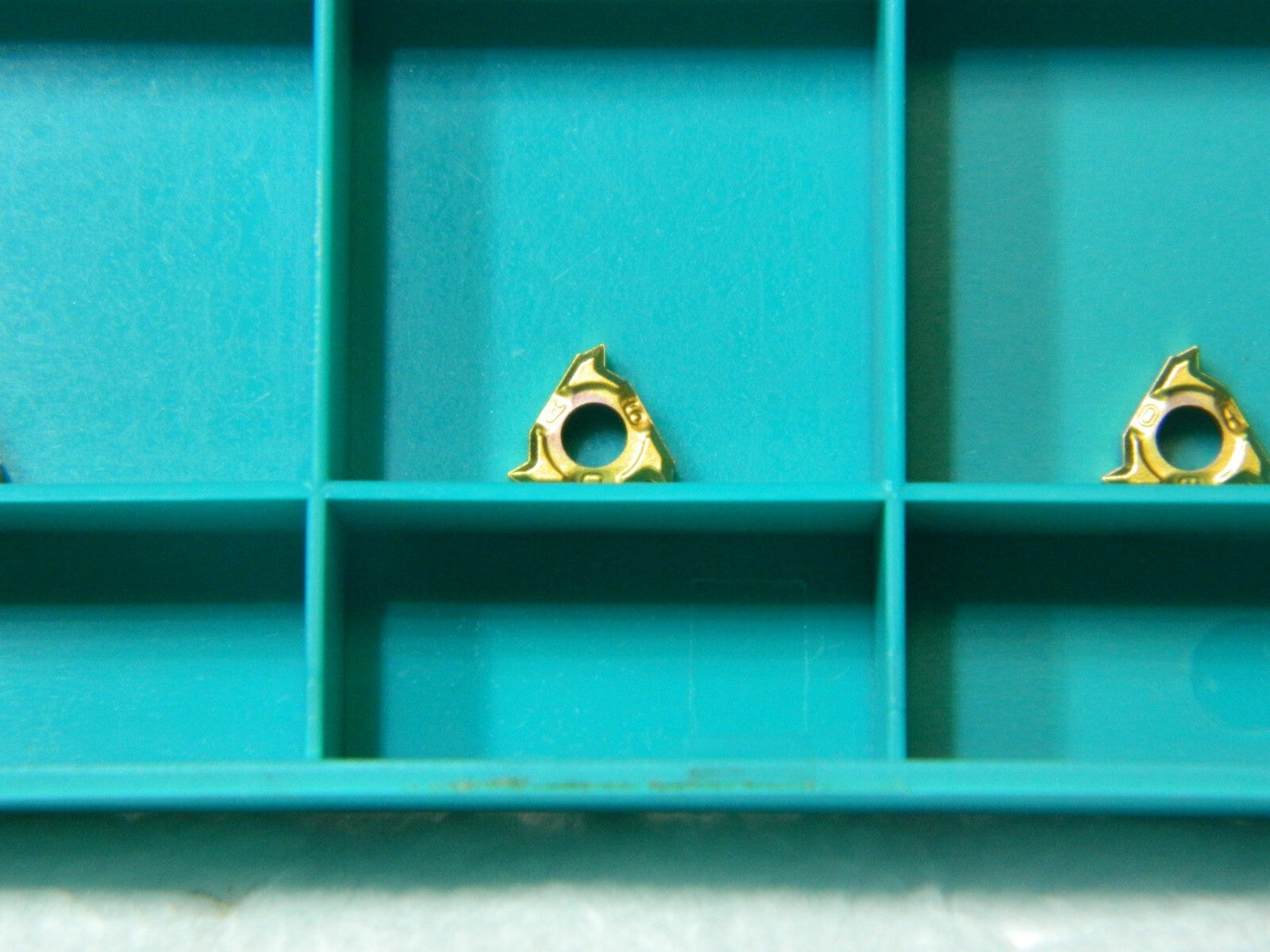

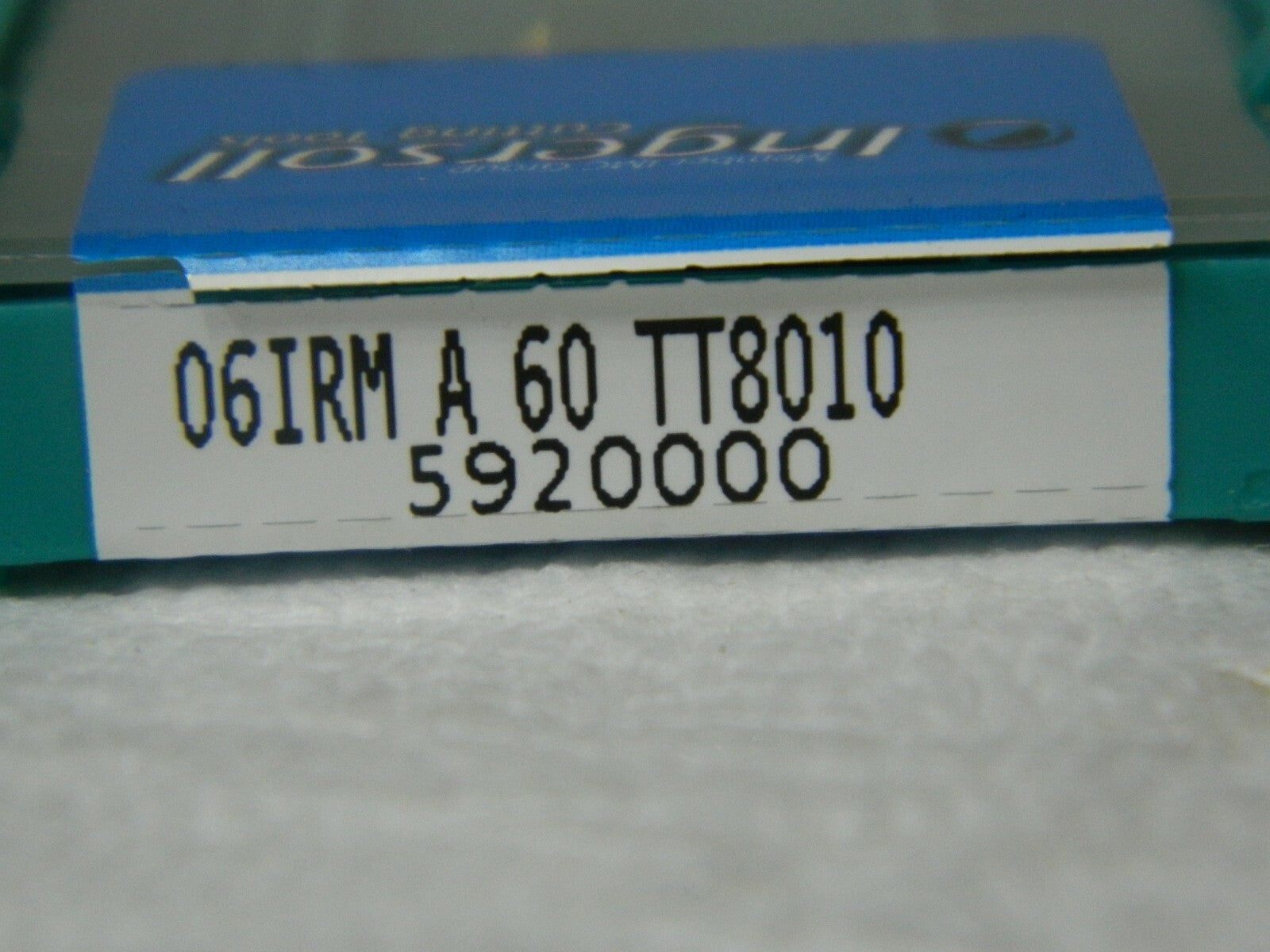

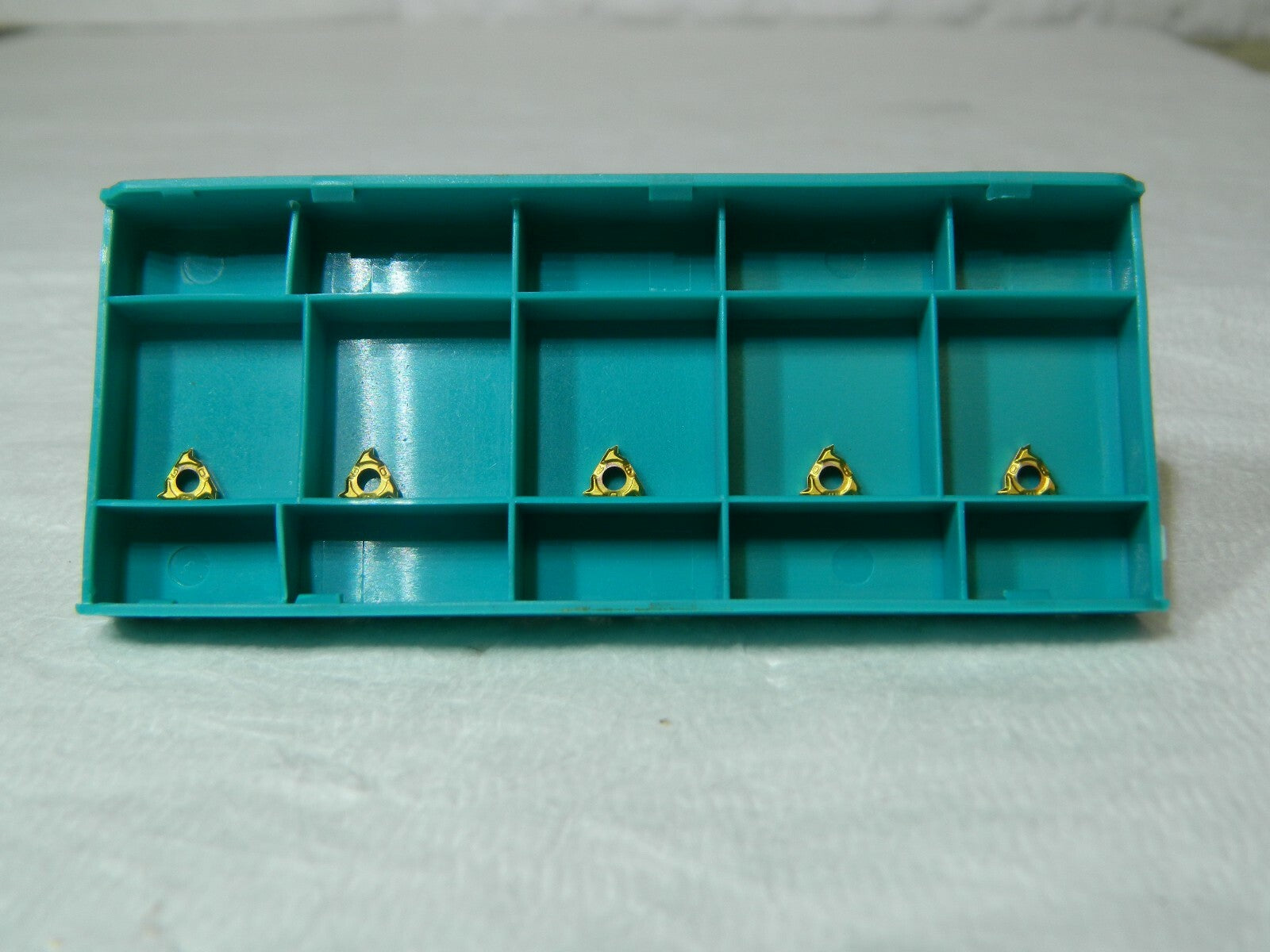

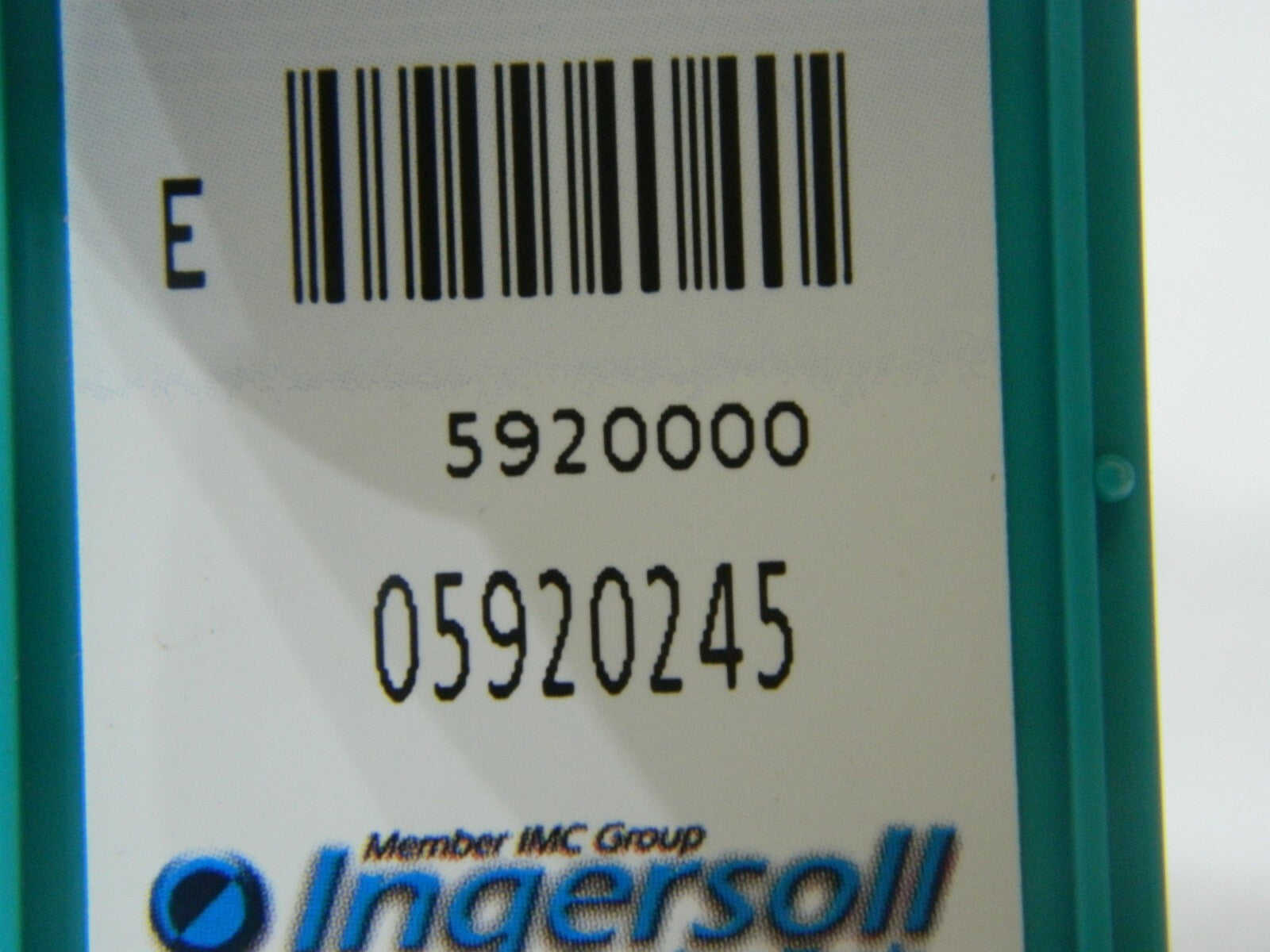

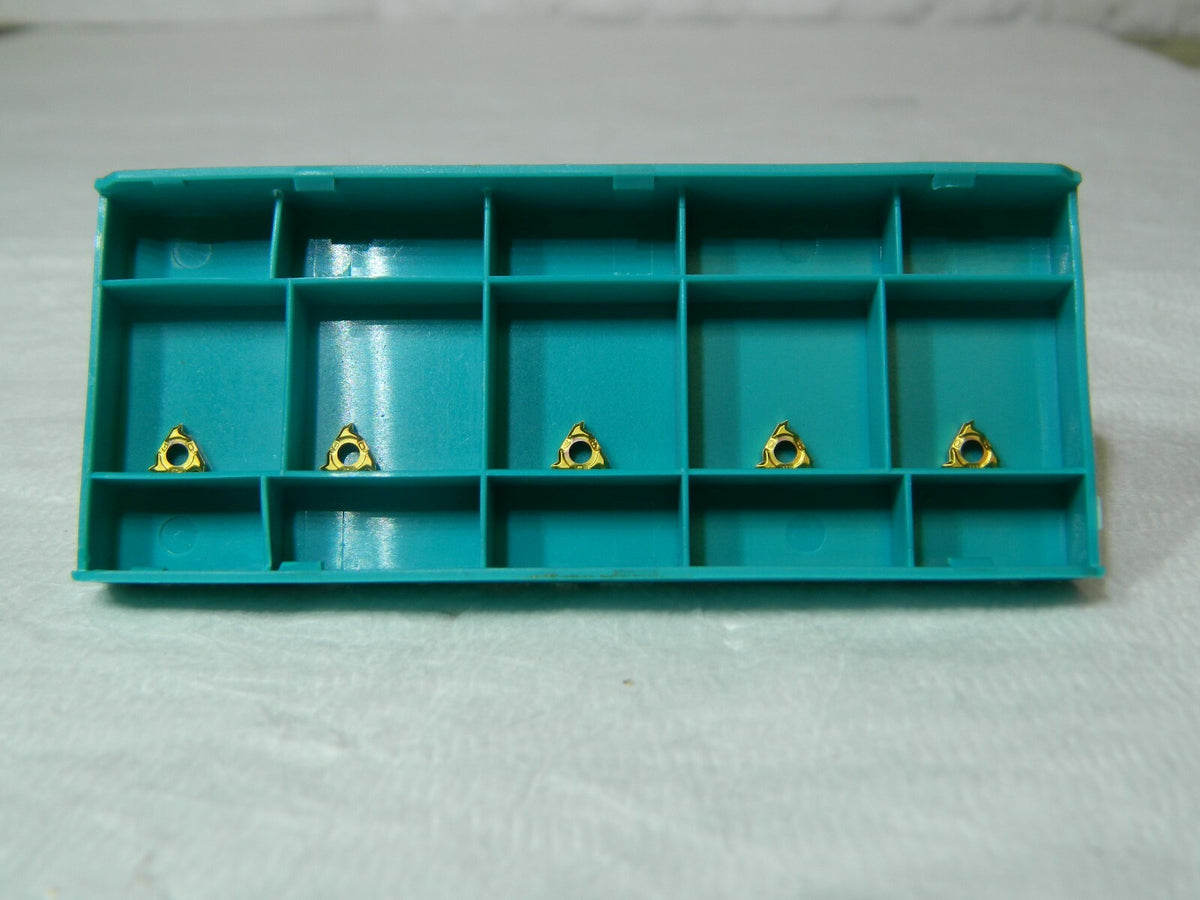

Please review photos, comes as shown.
