ISCAR

Jobber Length Drill Bit: 8.5 mm Dia, 140 ° Solid Carbide 6154762
MSRP: $100

• Drill Bit Size (mm) 8.50
• Drill Bit Material Solid Carbide
• Cutting Direction Right Hand
• Number of Flutes 2
• Spiral Type Regular
• Flute Type Spiral
• Point Type Standard
• Drill Point Angle (Degrees) 140
• Coolant Through No
• Shank Type Straight-Cylindrical
• Drill Bit Finish/Coating TiAlN
• Overall Length (mm) 89.00
• Flute Length (mm) 47.00
• Series SCD-AP3N
• Tool Application Holemaking
• Flute By Diameter Ratio 3xD
• Shank Diameter (mm) 10.00
• Maximum Drilling Depth (mm) 35.00
• Shank Length (mm) 40.00
• Drill Point Length (mm) 1.30
• Drill Bit Diameter Tolerance h6
• Standards ISO 13399
• Specification Number DIN 6537
• Drill Bit Size Range (mm) 8.00 - 9.00
• Material Grade Fine Grain
• Specification Designation DIN

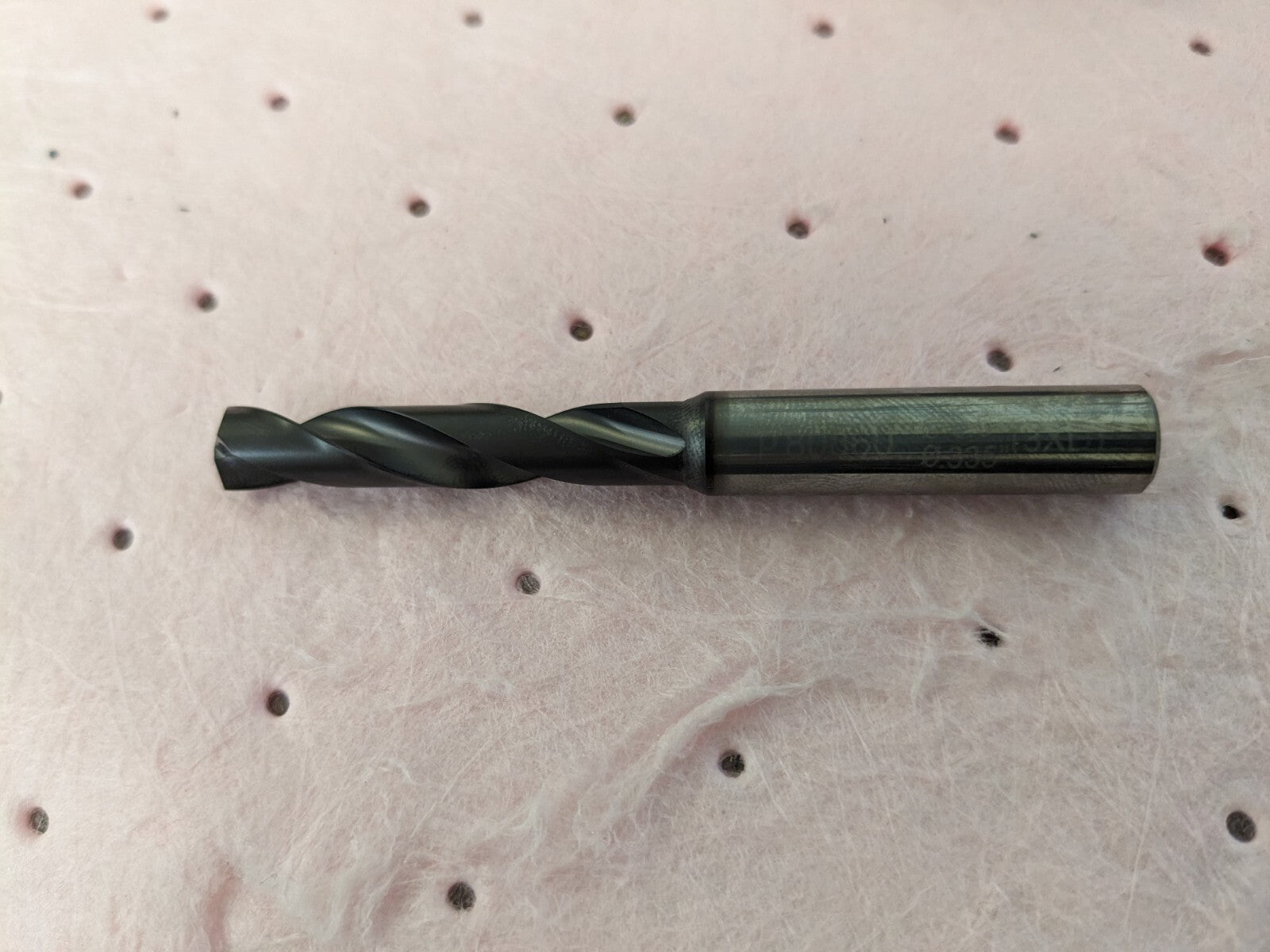

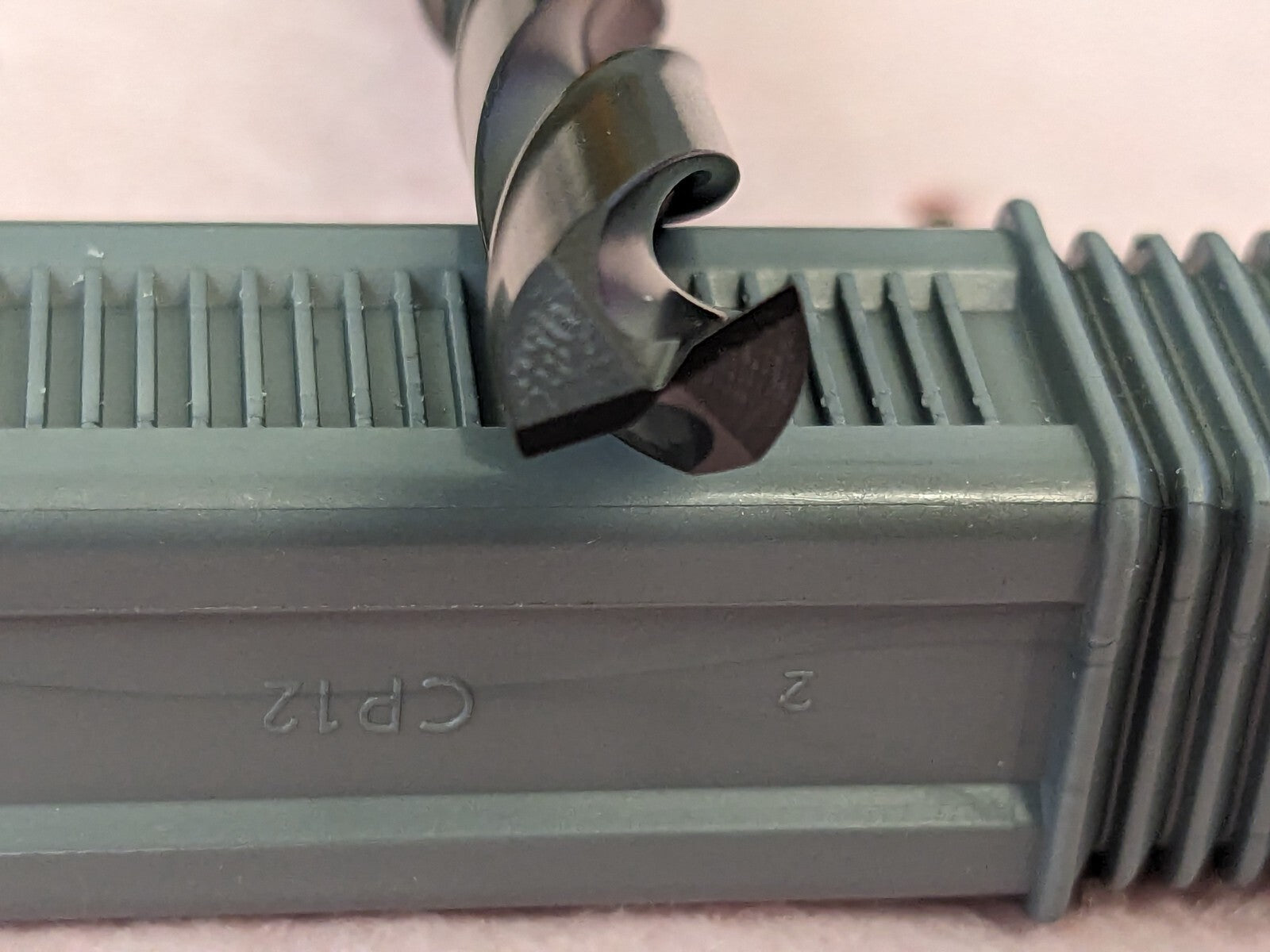

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
