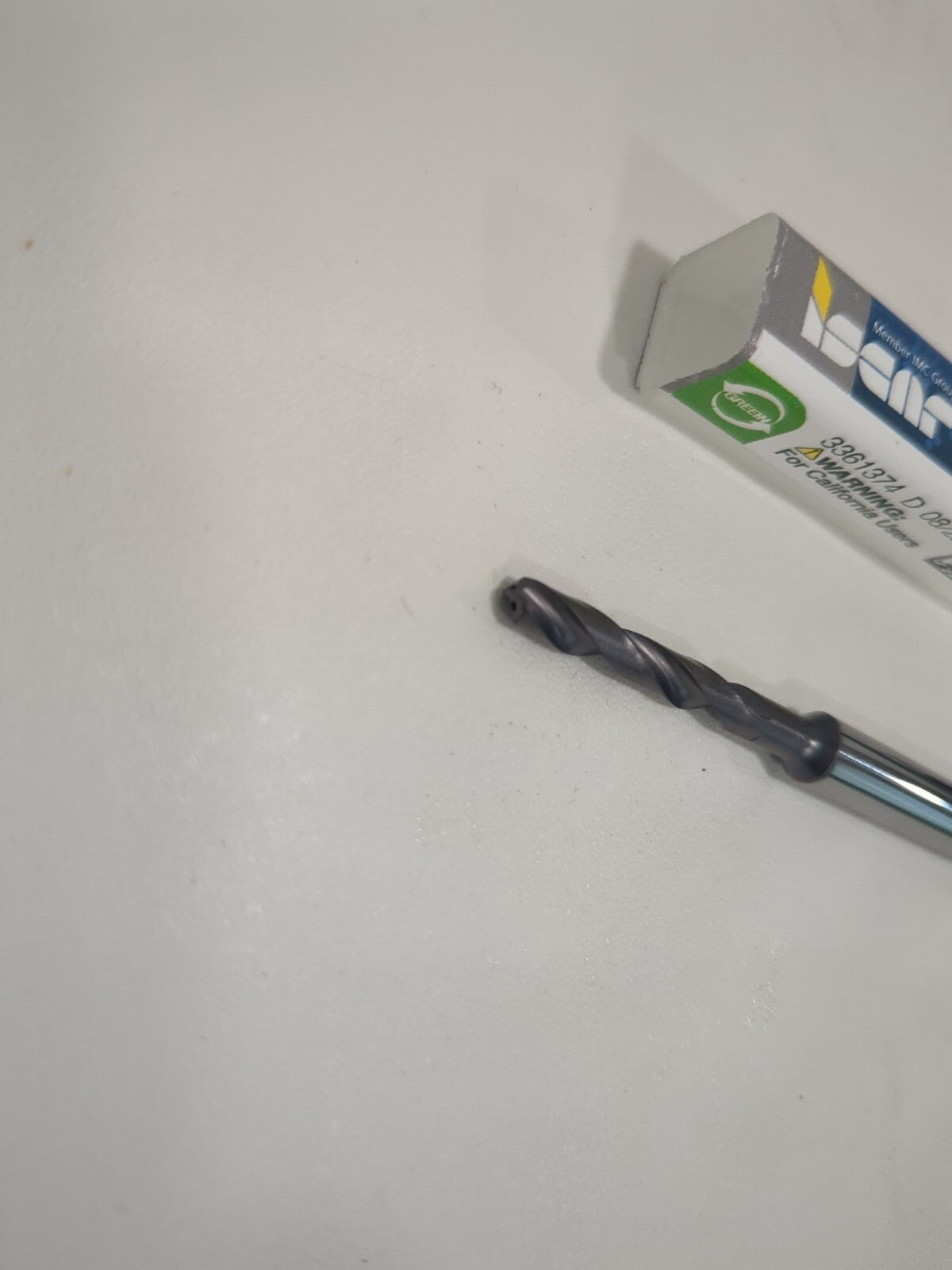

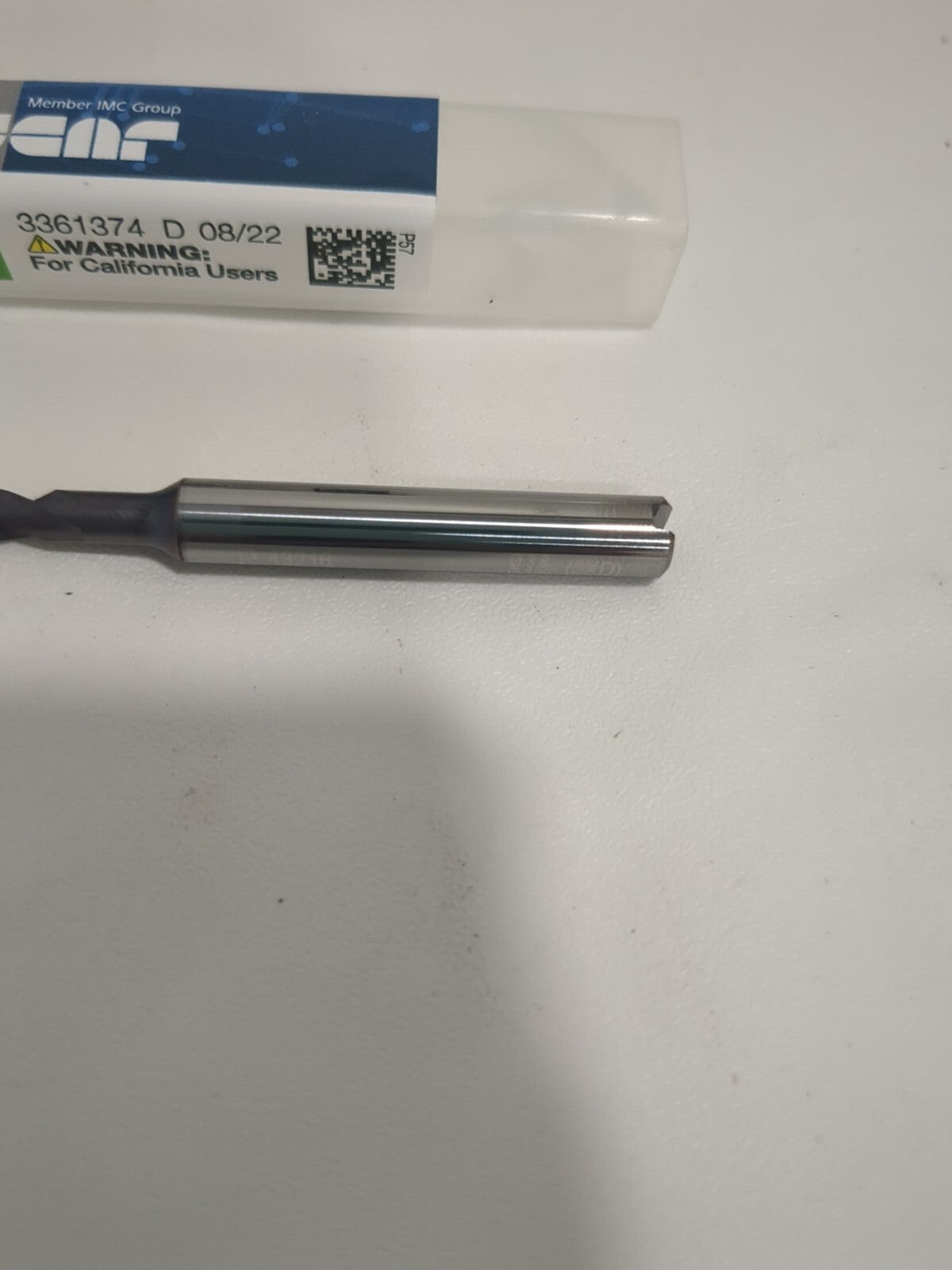

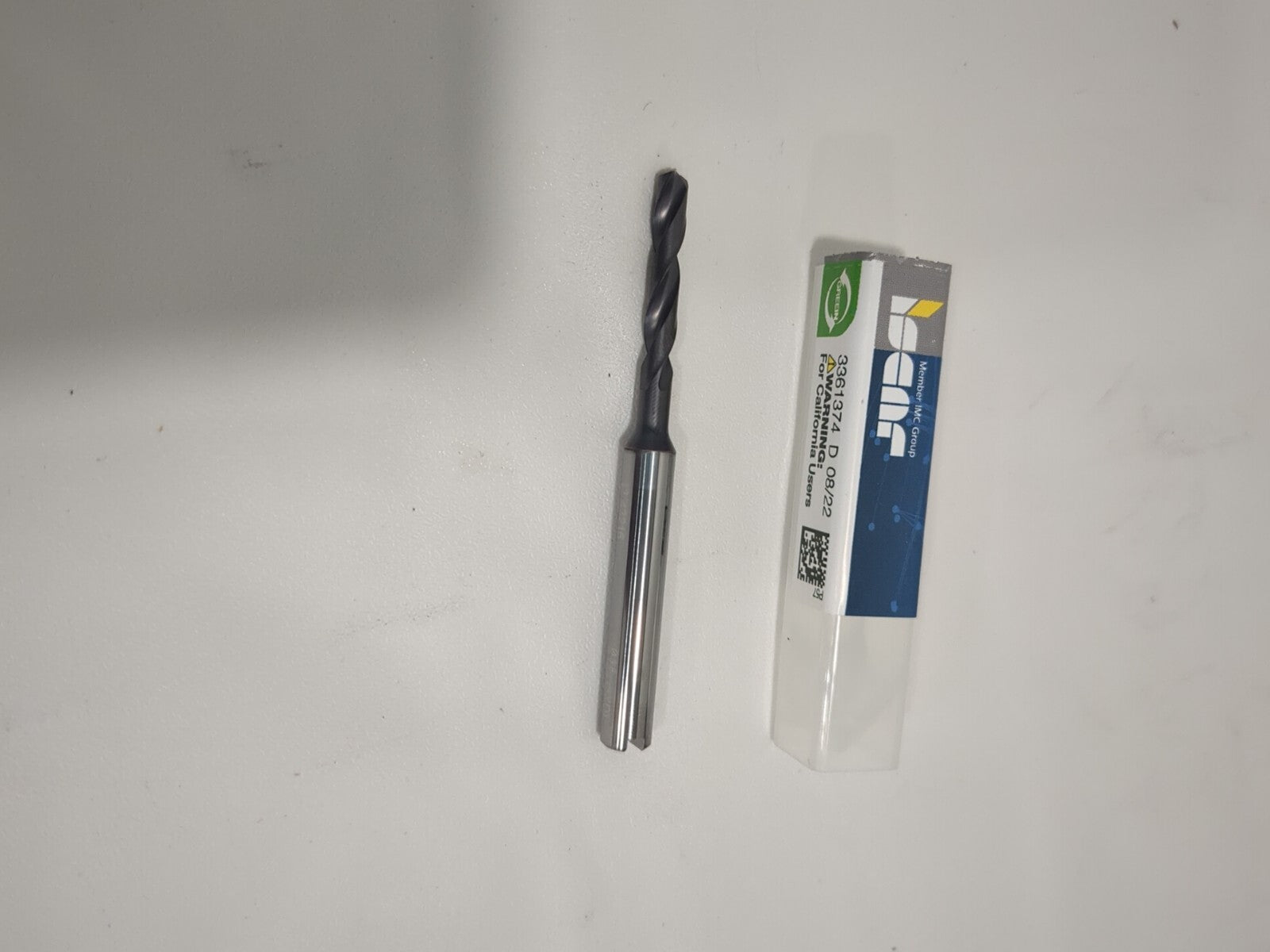

ISCAR Jobber Drill: 3.80 mm Dia, 140 deg Point, Solid Carbide 6154476

ISCAR Jobber Drill: 3.80 mm Dia, 140 deg Point, Solid Carbide 6154476

MSRP: $110

• Drill Bit Size (mm) 3.80
• Drill Bit Material Solid Carbide
• Drill Point Angle (Degrees) 140
• Coating/Finish TiAlN
• Flute Type Regular Spiral
• Cutting Direction Right Hand
• Point Type Standard
• Primary Workpiece Material Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials
• Specification Number DIN 6537
• Coolant Through Yes
• Number of Flutes 2
• Primary Workpiece Material Code P; S; H; K; M; N
• Overall Length (mm) 66.00
• Overall Length (Decimal Inch) 2.5984
• Spiral Type Regular
• Flute Length (mm) 24.00
• Flute Length (Decimal Inch) 0.9449
• Series SCD-ACP3N
• Tool Application Holemaking
• Flute By Diameter Ratio 3xD
• Shank Diameter (mm) 6
• Maximum Drilling Depth (mm) 17.00
• Shank Length (mm) 35
• Drill Point Length (mm) 0.60
• Drill Bit Diameter Tolerance h6
• Shank Type Straight
• Standards ISO 13399
• Drill Bit Size Range (mm) 3.00 - 4.00
• Material Grade Fine Grain
• Specification Designation DIN
• UNSPSC Code 23241634

(Description).

Please review photos, comes as shown.
