ISCAR Indexable Turning Toolholder: SDJCL1616H-13-SL, Screw 3603396

ISCAR

 Indexable Turning Toolholder: SDJCL1616H-13-SL, Screw 3603396
MSRP: $120

• Cutting Direction Left Hand
• Hand of Holder Left Hand
• Compatible Insert Size Code DCMT13T504-F3P-SL
• Toolholder Style SDJC
• Rake Neutral
• Rake Angle 0
• Multi-use Tool No
• Insert Holding Method Screw
• Shank Width (Decimal Inch) 0.6299
• Insert Compatibility DCMT 13T5-SL
• Shank Width (mm) 16.00
• Shank Height (Decimal Inch) 0.6299
• Shank Height (mm) 16.00
• Series Isoturn
• Overall Length (mm) 100.00
• Overall Length (Decimal Inch) 3.9370
• Cutting Tool Application Milling; Turning
• Head Length (Decimal Inch) 0.9449
• Head Length (mm) 24.00
• Back of Bar to Cutting Edge (Decimal Inch) 0.8268
• Back of Bar to Cutting Edge (mm) 21.00
• Standards ISO 13399
• Coolant Through No

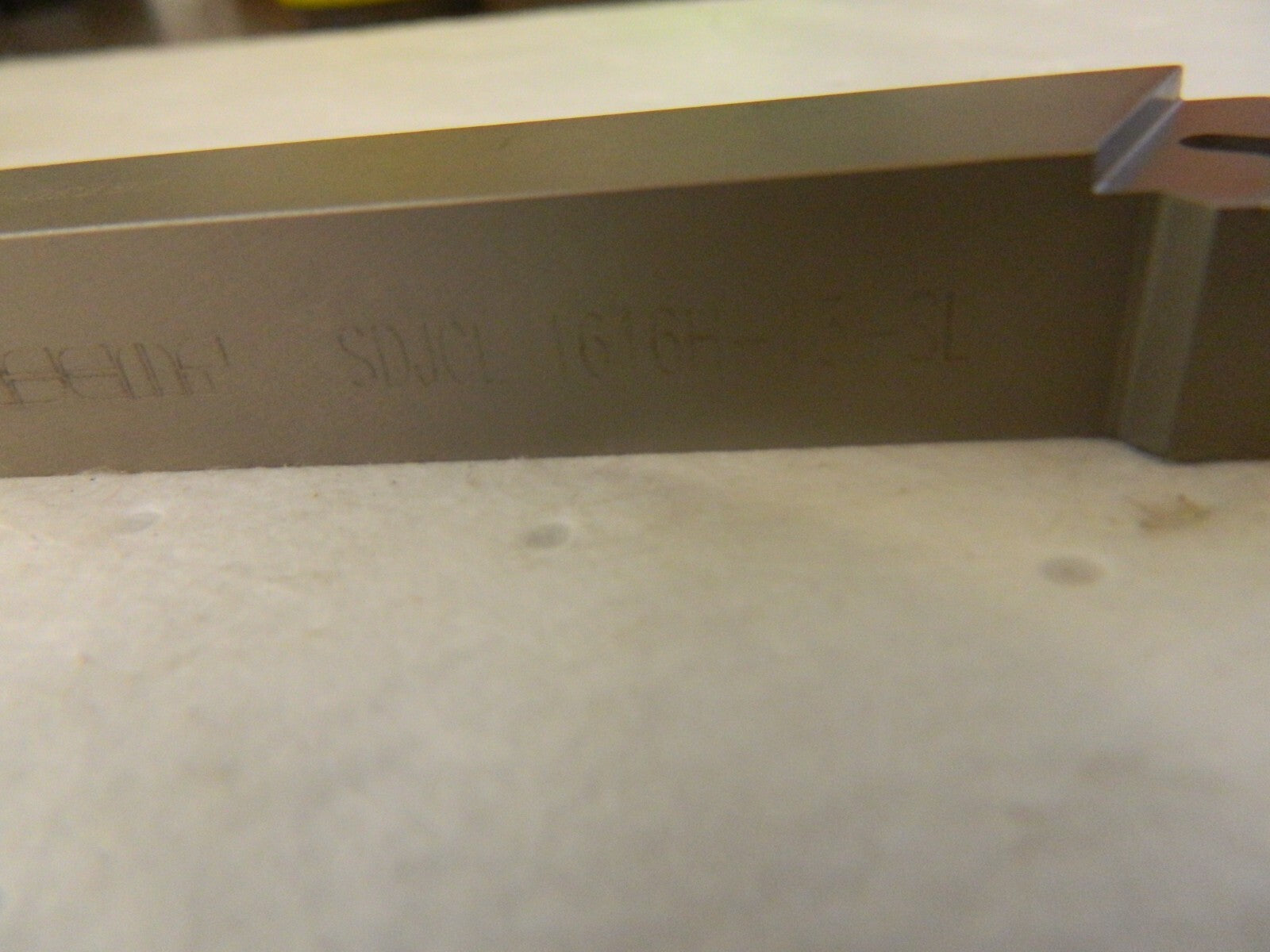

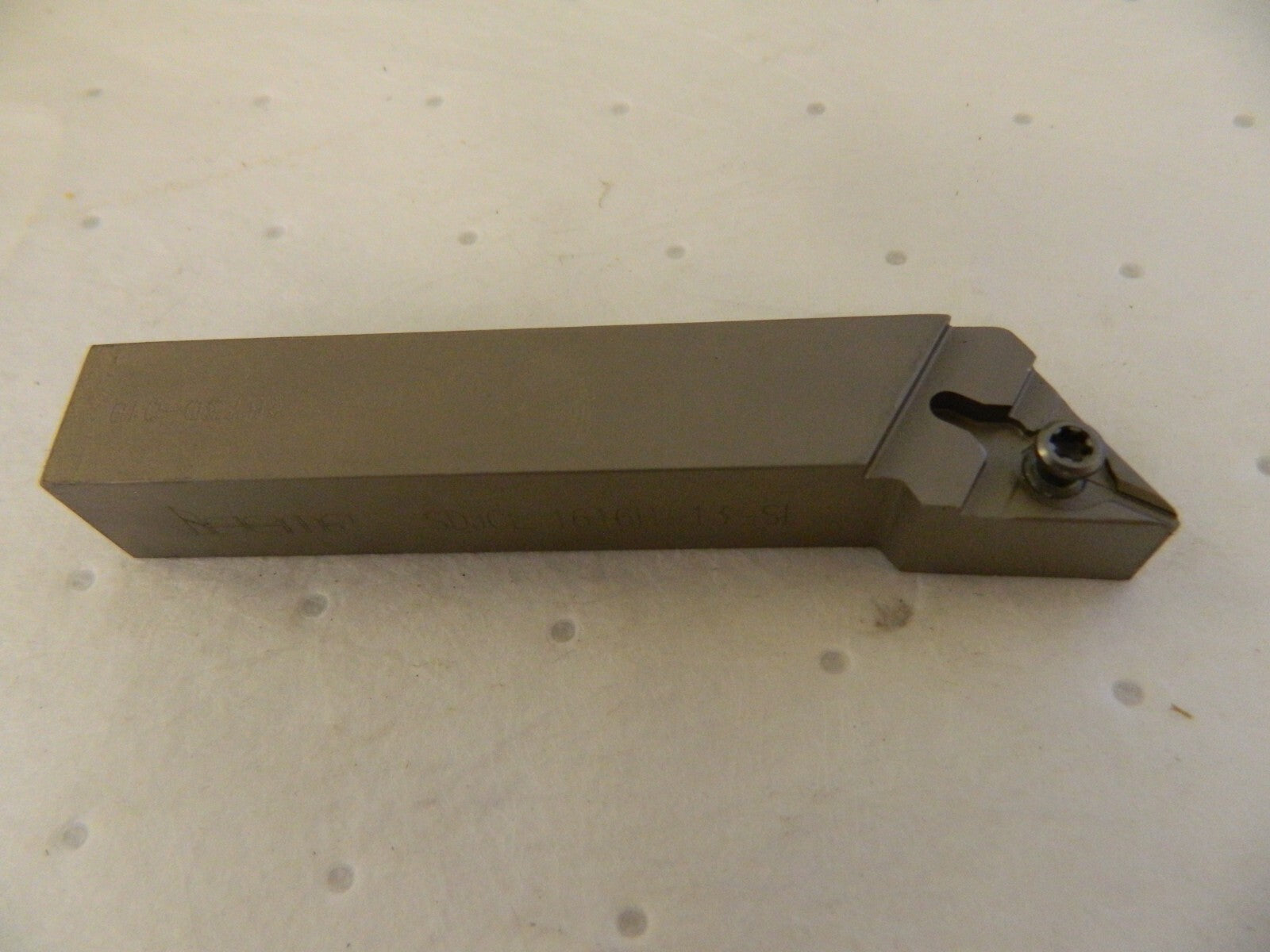

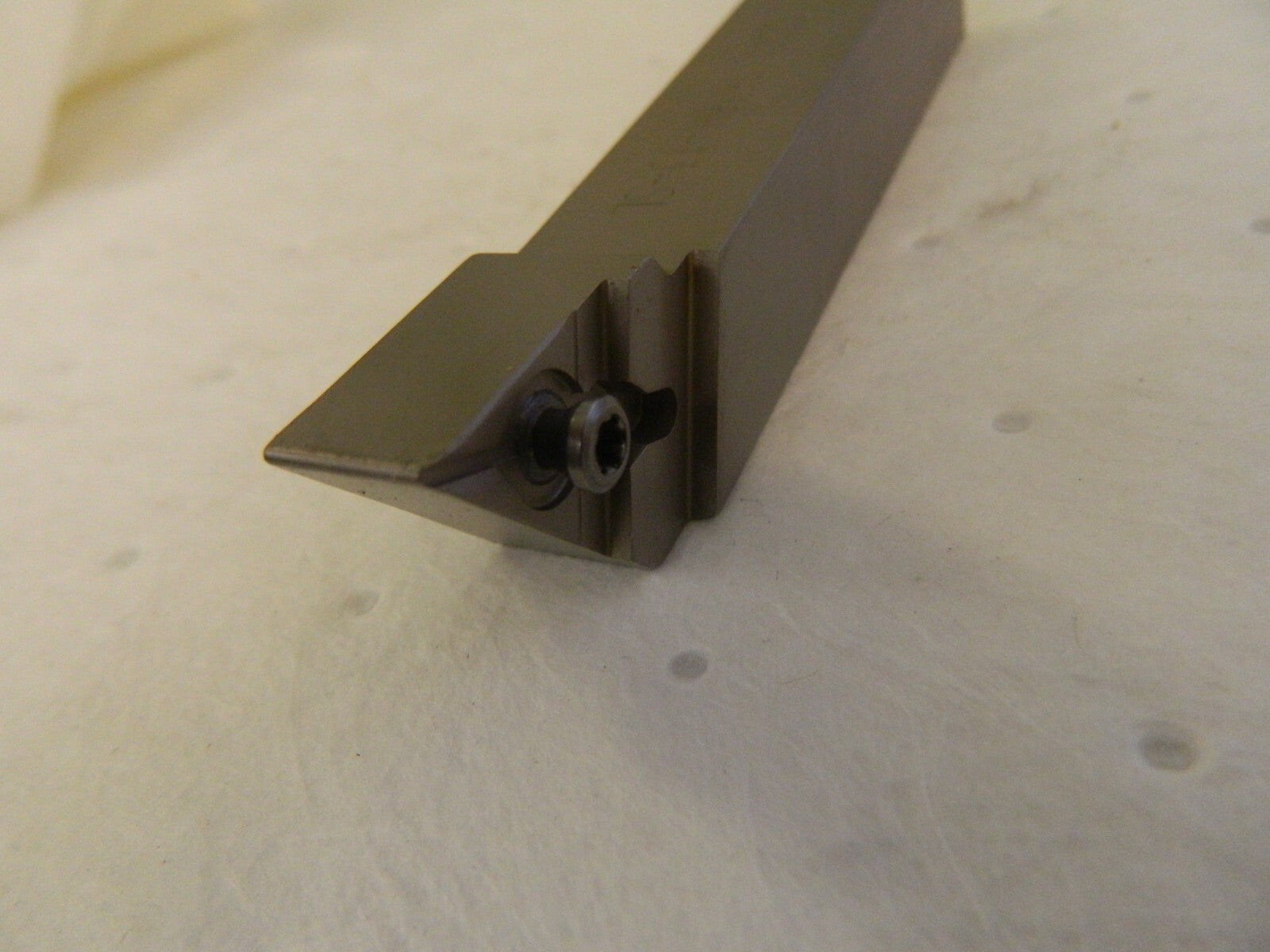

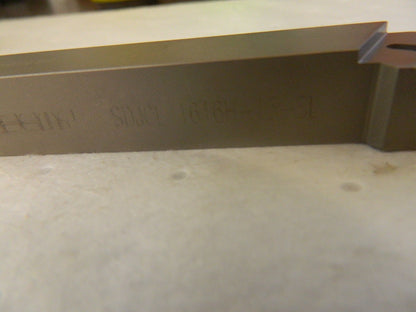

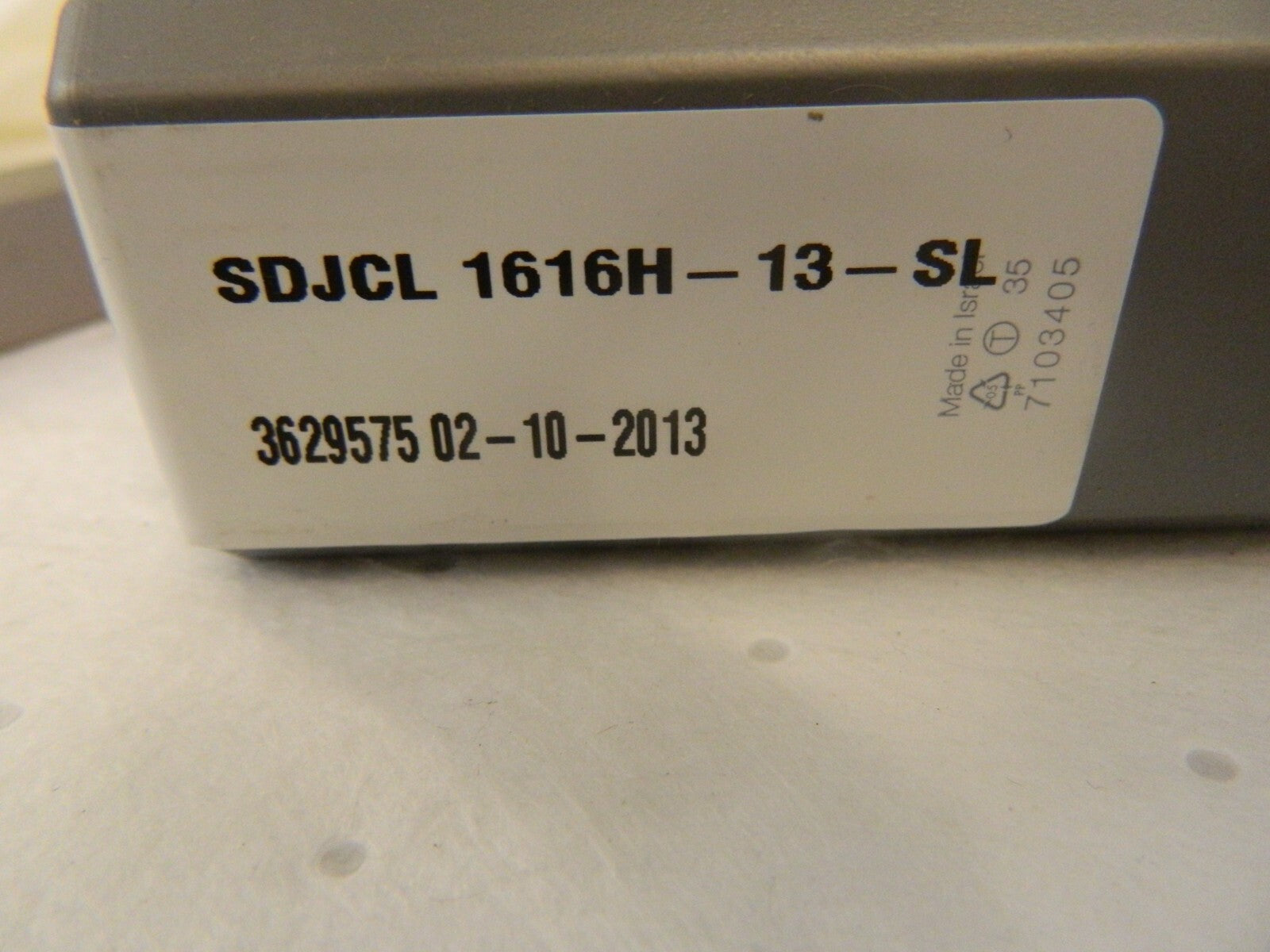

 Please review photos, comes as shown.
