Iscar Indexable Grooving Toolholder SCHR16-22BF 2801684

Iscar
Indexable Grooving Toolholder

MSRP: $150.00

• Toolholder Type: External Grooving
• Hand of Holder: Right Hand
• Maximum Depth of Cut (Decimal Inch): 0.3150
• Minimum Groove Width (Decimal Inch): 0.0200
• Toolholder Style: SCH
• Maximum Groove Width (Decimal Inch): 0.0980
• Insert Holding Method: Clamp
• Insert Compatibility: SCIR 22
• Compatible Insert Size Code: SCIR/L-22-NX; SCIR/L 22 ER/EL/ERA/ELA; SCIR/L-22-AR/AL; SCIR/L-22-AD; SCIR-22-MTR-ISO; SCIR/L-22-N/R/L; SCIR/L-22-NP; SCIR/L-22-MTR/MTL; SCIR/L 22 BR/BL/BRA/BLA
• Shank Height (Decimal Inch): 0.6300
• Series: Swisscut
• Overall Length (Decimal Inch): 4.9210
• Multi-use Tool: Yes
• Primary Workpiece Material: Universal
• UNSPSC Code: 23153308
• Primary Workpiece Material Code: P; S; H; K; M; N
• Product Service Code: 3455
• Complete Insert Compatibility: SCIR 22-BR00-05K7; SCIR 22-050R12-00; SCIR 22-AR00-25K16; SCIR 22-AR10-25K8; SCIR 22-250NP05; SCIR 22-200NP05; SCIR 22-150NP05; SCIR 22-200N-10; SCIR 22-150N-00; SCIR 22-BR10-05K7; SCIR 22-050N-00; SCIR 22-100N-00; SCIR 22-EL00-07K0; SCIR 22-ER00-07K0
• Coolant Through: No

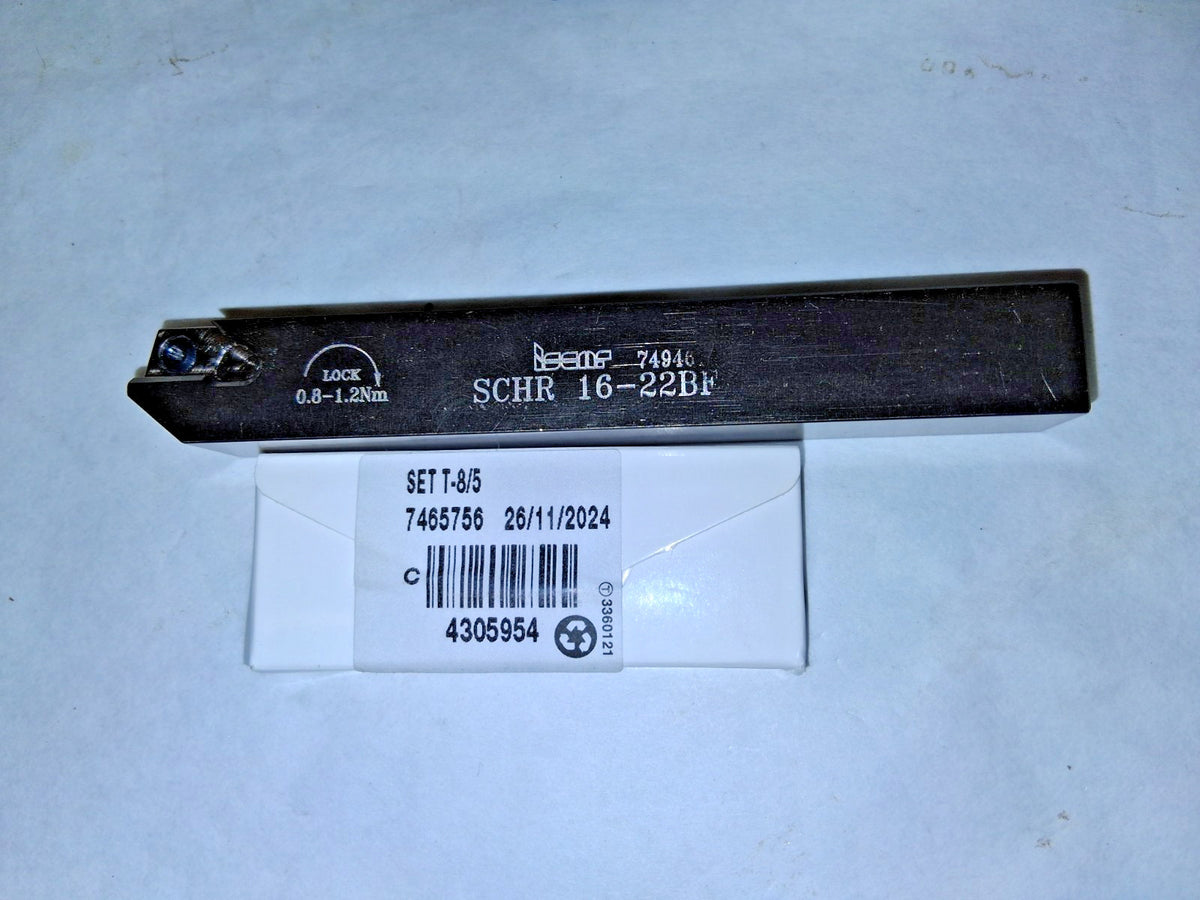

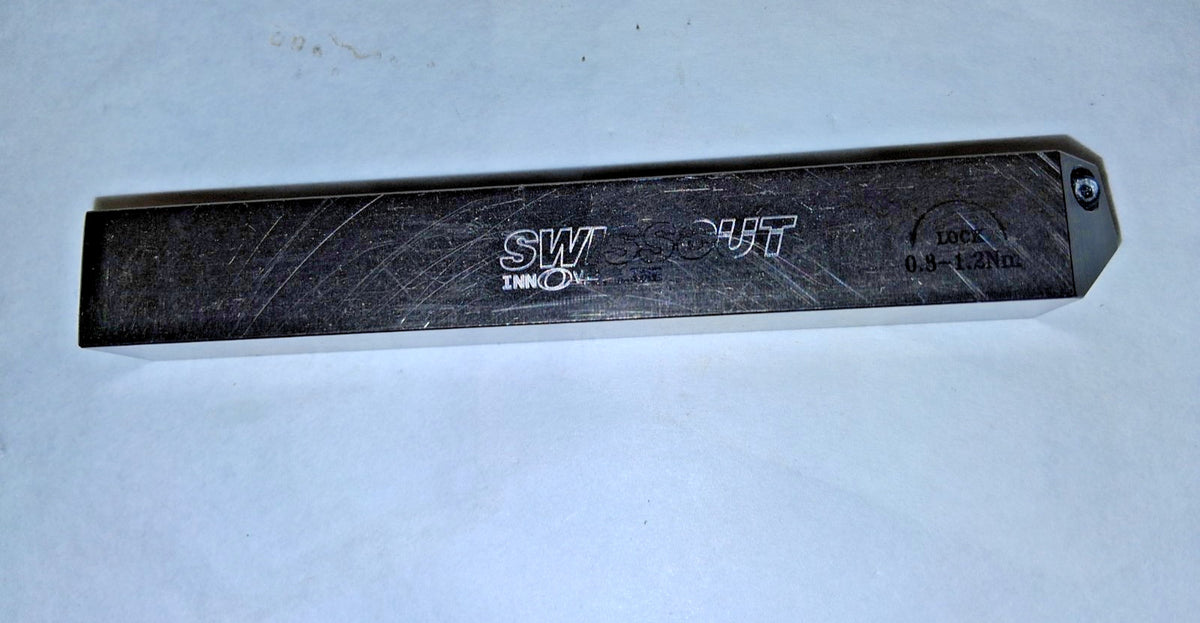

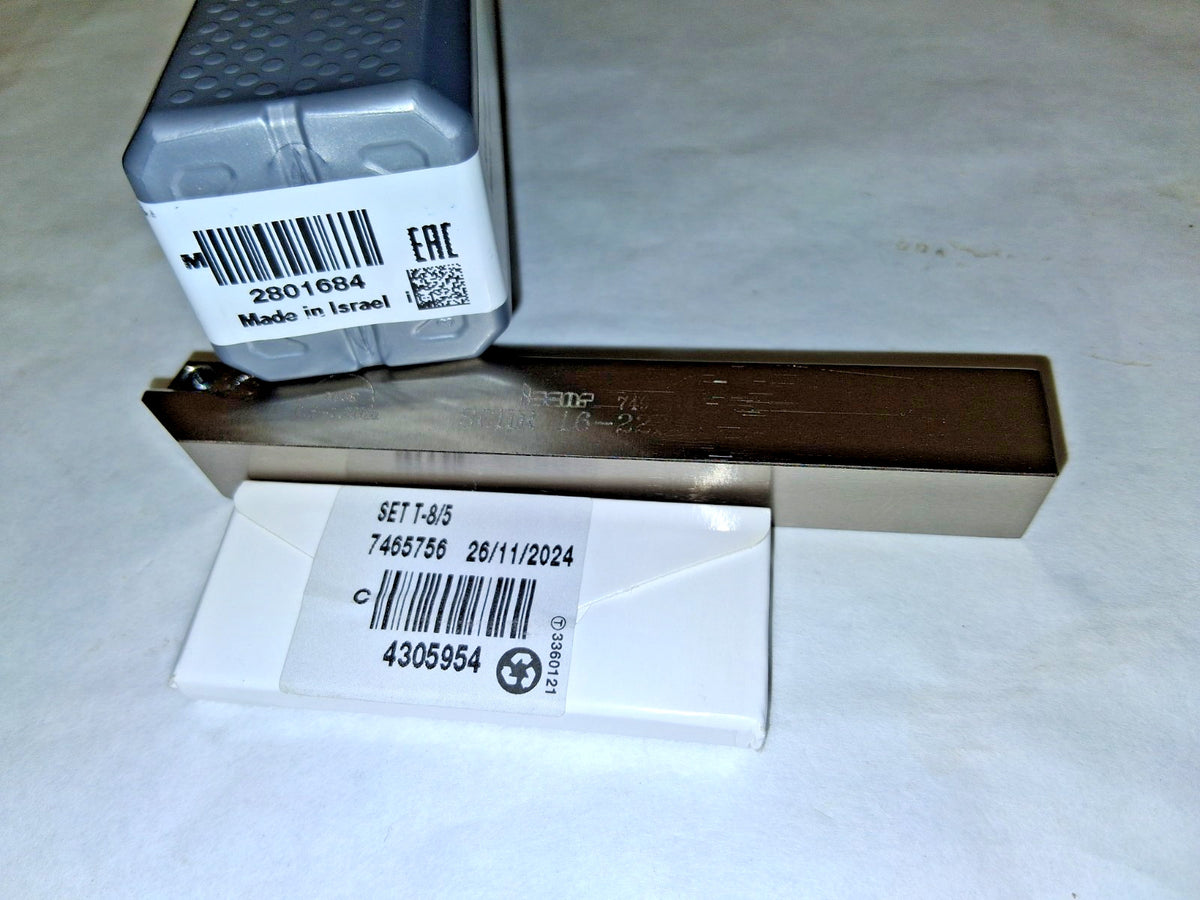

Please review photos, comes as shown.
