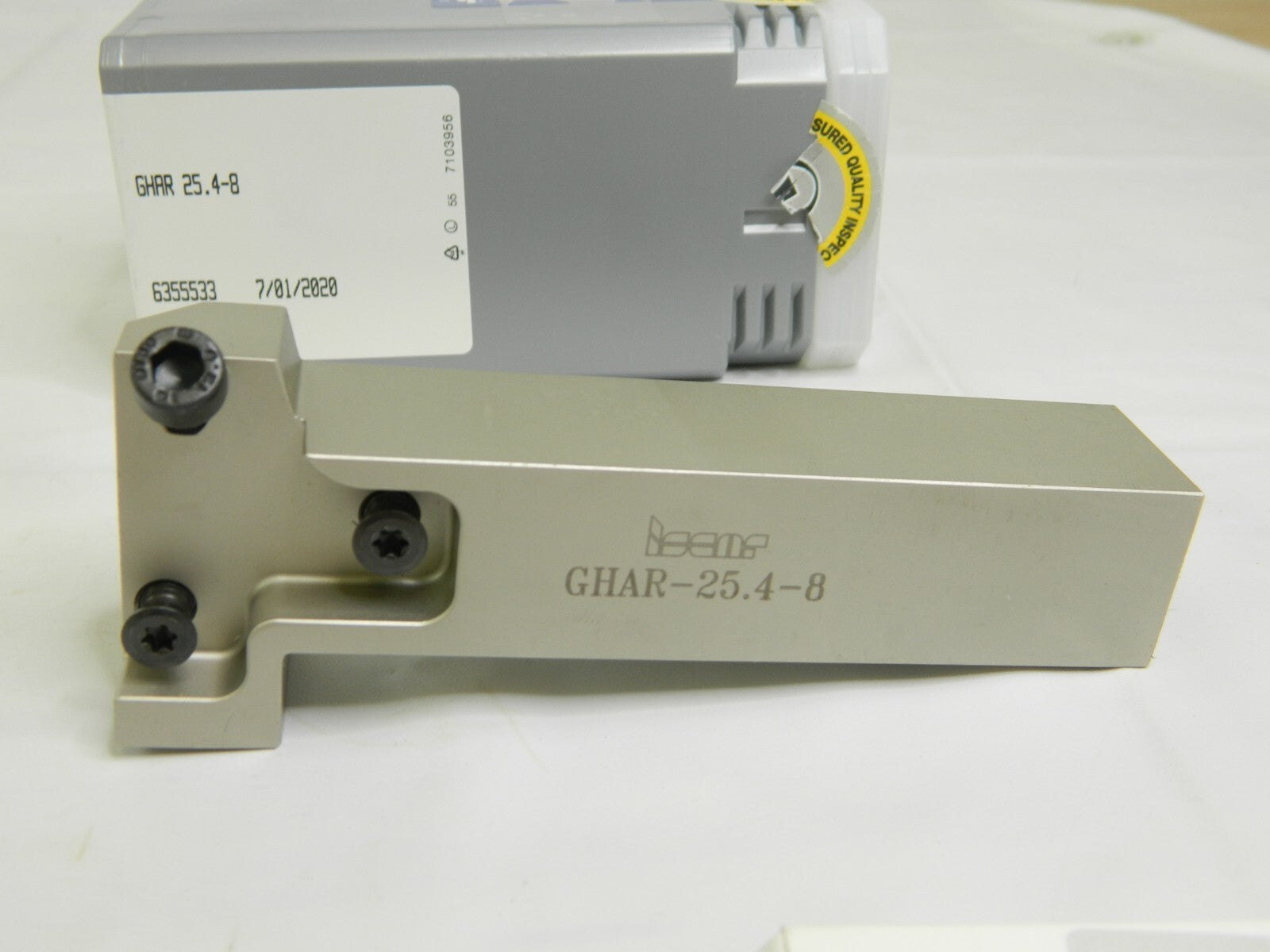

Iscar Indexable Grooving Toolholder 1" Max Depth, External Right Hand 2800633

Iscar
Indexable Grooving Toolholder

MSRP: $120.00

• Internal or External External
• Toolholder Type Non-Face Grooving
• Hand of Holder Right Hand
• Maximum Depth of Cut (Decimal Inch) 1.0000
• Toolholder Style GHA
• Overall Length (Decimal Inch) 5.0000
• Insert Compatibility GDM.. 808; GI.. 8..
• Compatible Insert Size Code GADR/L-8; GAFG-R/L-8; PCADR/L 34N-RE
• Shank Height (Decimal Inch) 1.0000
• Shank Width/Diameter (Decimal Inch) 1.0000
• Series Cut Grip
• Through Coolant Non Coolant Through
• Multi-use Tool Yes
• Cutting Tool Application Grooving; Turning
• Maximum Overhang 1in
• Back Of Bar To Cutting Edge 0.646in
• Primary Workpiece Material Universal
• Primary Workpiece Material Code H; K; M; N; P; S
• Multi-Use Tool Yes
• Multi-Use Application Turning
• Standards ISO 13399
• Insert Holding Method Clamp
• Head Length (Inch) 1.77in
• Shank Length (Decimal Inch) 3.23in
• Cutting Direction Right Hand
• Complete Insert Compatibility GDMF 808; GDMU 808; GDMY 808; GIDA 80-40; GIDA 80-40-D; GIDA 80-40CB-D; GIDA 80-40YZ; GIDA 80-40YZ-D; GIF 8.00E-0.40; GIF 8.00E-0.80; GIF 8.00E-1.20

This item is new and in great condition. SOLD AS IS.

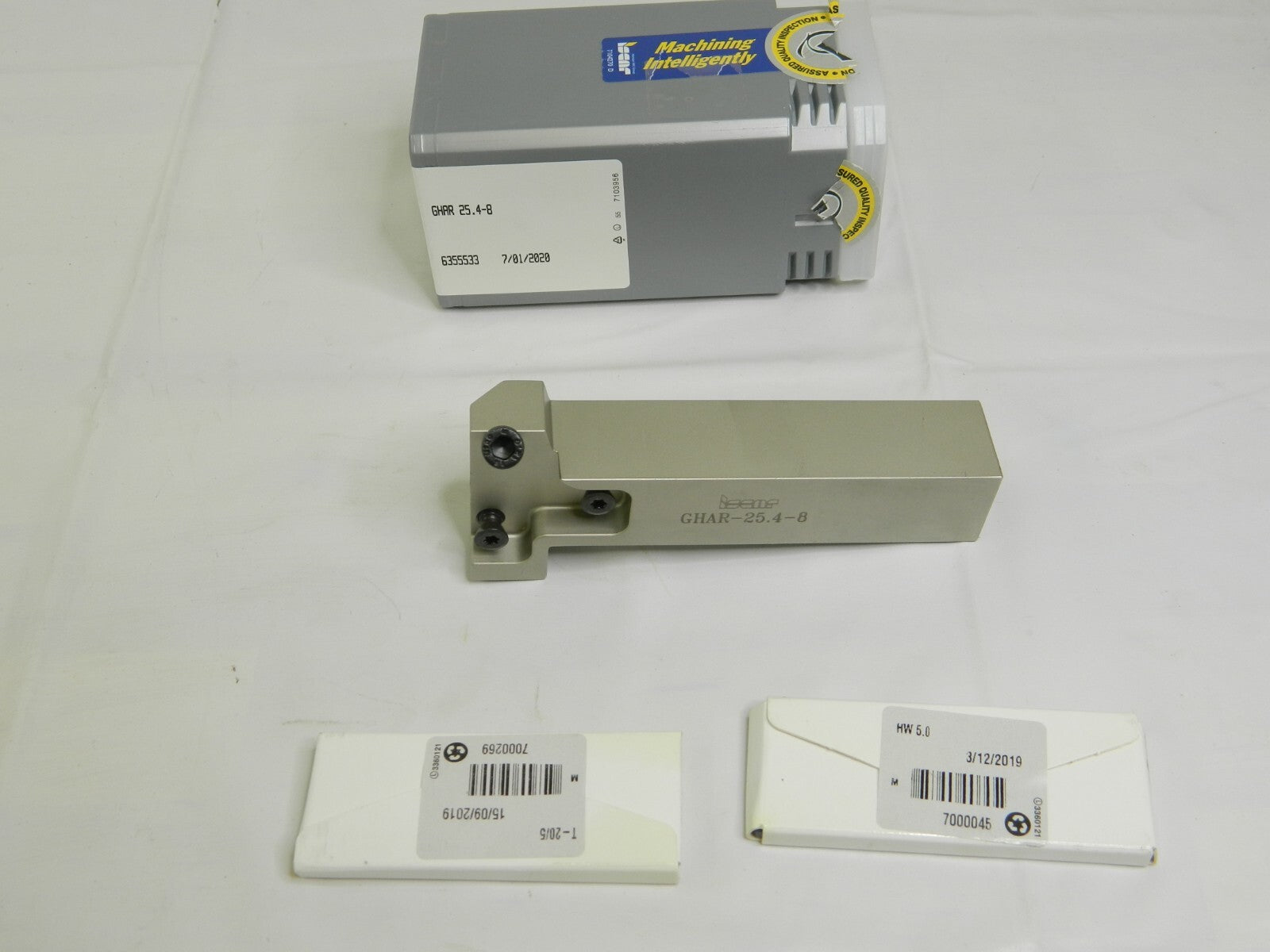

Please review photos, comes as shown.
