Iscar Indexable Grooving & Cut-Off Toolholder 2800242

Iscar
Indexable Grooving & Cut-Off Toolholder

MSRP: $210.00

• Internal or External: External
• Hand of Holder: Left Hand
• Maximum Groove Width (Decimal Inch): 0.1570
• Minimum Groove Width (Decimal Inch): 0.1180
• Toolholder Style: GHG
• Insert Holding Method: Clamp
• Compatible Insert Size Code: GIPY; GIM-W-RA/LA; TIP-P-BSPT; GIF-E; GIMY-F; GIA-K; GIMF; GIM-UT-RA/LA; TIP-P-NPT; GIPM-A46 / GIP-1250; GIM-J; GIMN; TIP-P-UN; GIF; GIMT; GIM-C; GIP-E; GIMY; GIP; TIP-WT; GIM-J-RA/LA; GIPA; TIP-P-BSW; TIP-P-ISO; TIP-MT; GITM; GIM-W
• Insert Compatibility: GI..; TIP
• Shank Height (Decimal Inch): 1.0000
• Shank Length (Decimal Inch): 4.5800
• Shank Width/Diameter (Decimal Inch): 1.0000
• Shank Width/Diameter (Inch): 1
• Series: Cut Grip
• Overall Length (Decimal Inch): 6.0000
• Cutting Tool Application: Grooving; Cut-Off
• Back of Bar to Cutting Edge (Decimal Inch): 0.9500
• Head Length (Decimal Inch): 1.4200
• Standards: ISO 13399
• Manufacturers Catalog Number: GHGL 25.4-3
• Complete Insert Compatibility: GIA 4.00K-0.40; GIF 4.45-0.15; GIF 3.98-0.20; GIA 4.00K-0.80; GIF 3.74-0.20; GIF 4.00E-0.60; GIF 4.00E-0.80; GIF 4.00E-2.00; GIF 4.00E-0.40; GIF 4.23-0.10; GIF 4.78-2.39; GIA 5.00K-0.80; GIA 3.00K-0.40; GIA 6.00K-0.80; GIF 3.48-0.20; GIF 4.78-0.55; GIF 3.56-0.20
• Insert Seat Size: 0.1
• Coolant Through: No
• UNSPSC Code: 23153308

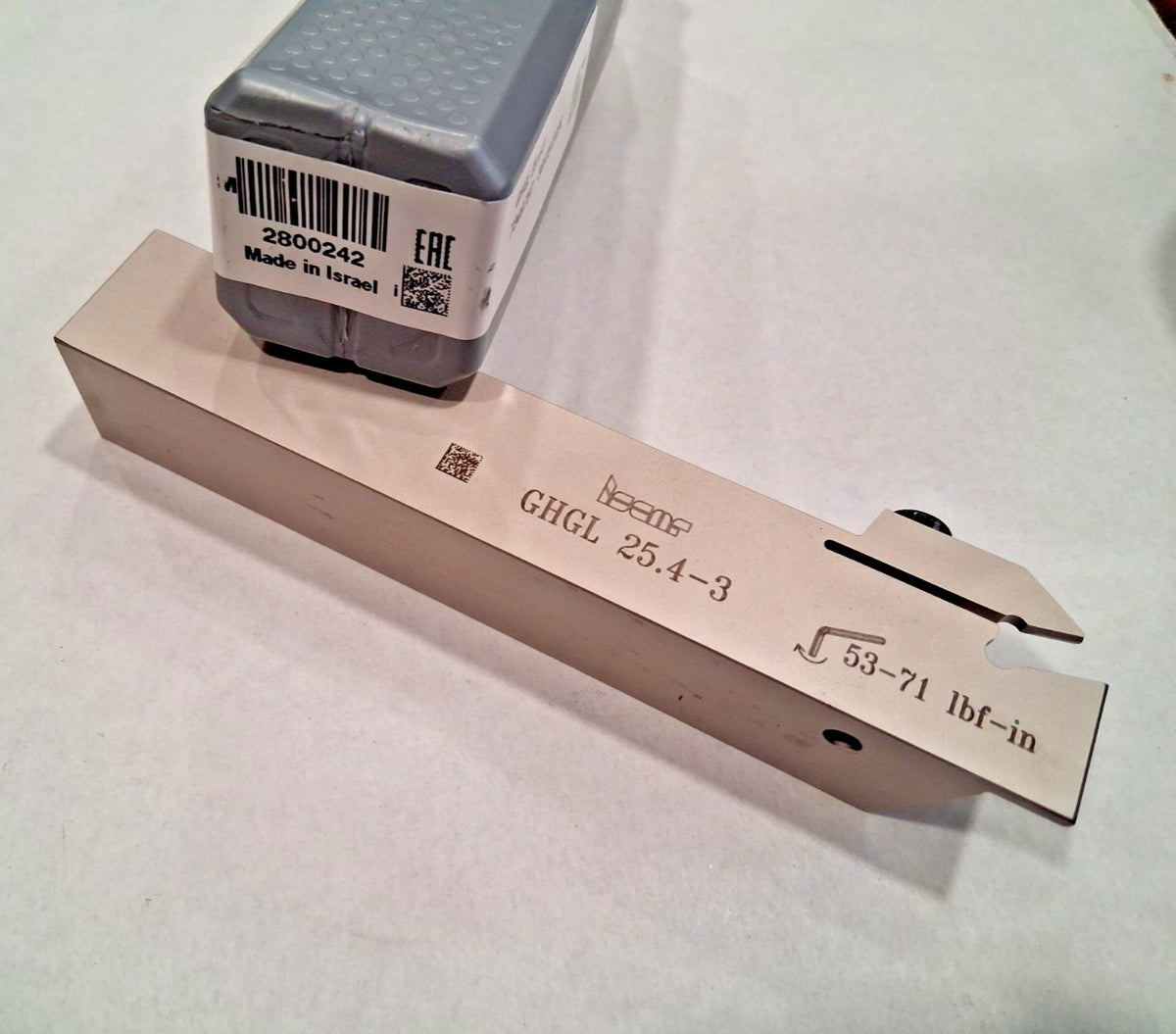

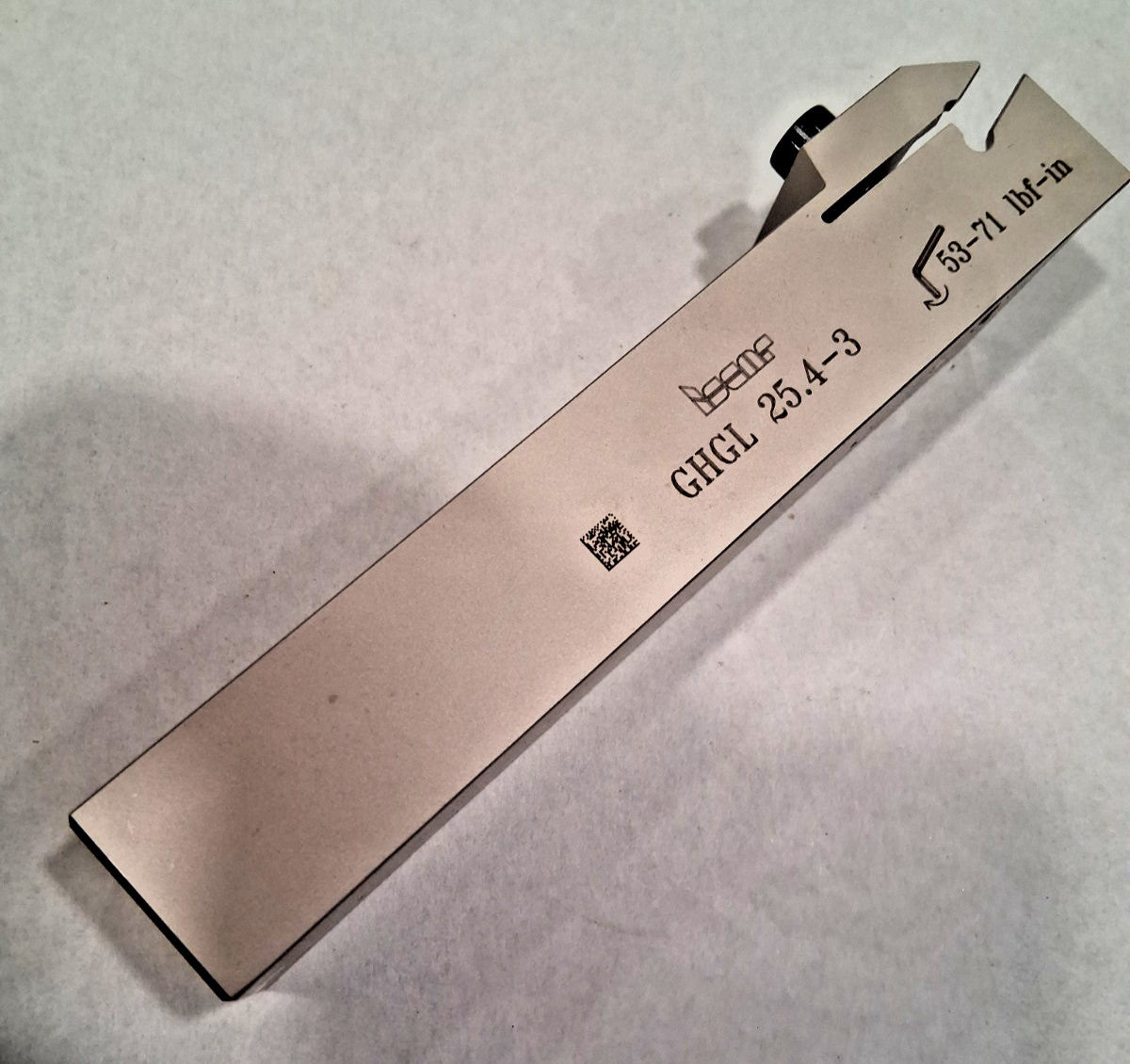

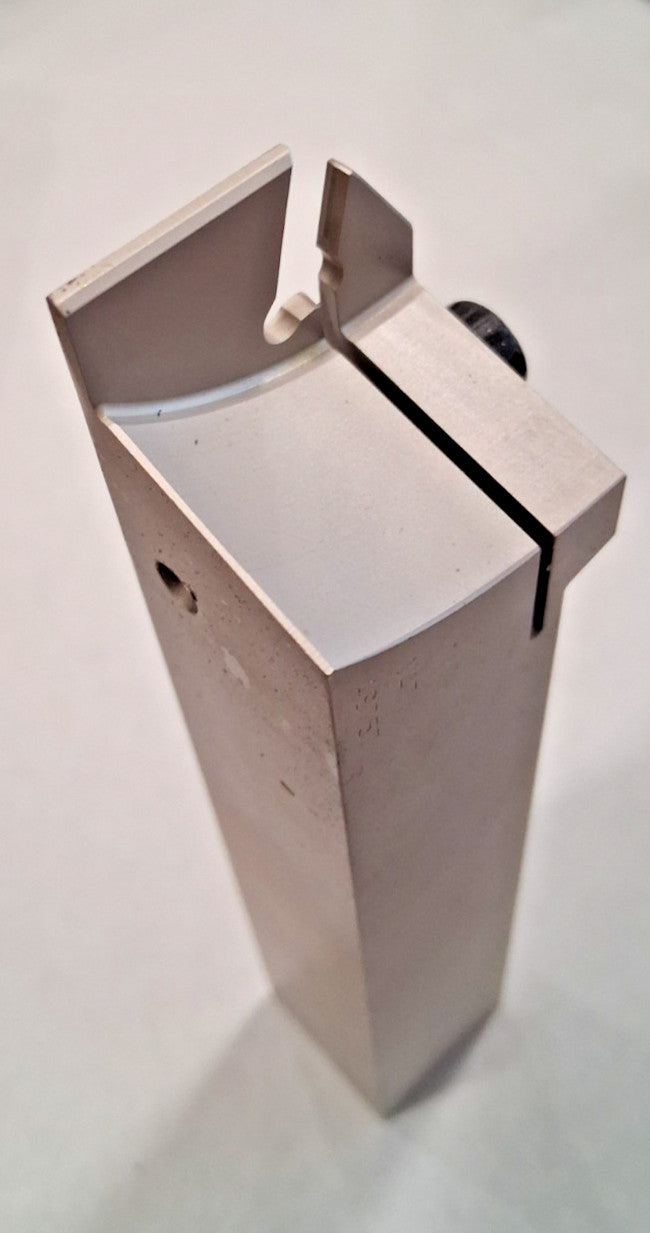

Please review photos, comes as shown.
