ISCAR Indexable Grooving Blade: 1.0236″ High RH 2301334

ISCAR

Indexable Grooving Blade: 1.0236″ High RH 2301334

MSRP: $220

• Cutting Direction Right Hand
• Minimum Groove Width (Decimal Inch) 0.1181
• Minimum Groove Width (mm) 3.00
• Blade Style DGFH
• Blade Height (mm) 26.00
• Blade Height (Decimal Inch) 1.0236
• Blade Width (Decimal Inch) 0.3150
• Blade Width (mm) 8.00
• Maximum Workpiece Diameter (Decimal Inch) 1.1811
• Maximum Workpiece Diameter (mm) 30.00
• Compatible Insert Style DGR/L-C DGRC/LC-C; DGN-P; DGR/L-J/JS; DGN-LF/LFT; DGN-Z; DGR-Z/ZS; DGN/DGNM-J/JS/JT; DGN/DGNC/DGNM-C; DGN-UT/UA
• Series Do-Grip
• Overall Length (mm) 110.00
• Overall Length (Decimal Inch) 4.3307
• Cutting Tool Application Grooving; Turning; Parting
• Standards ISO 13399
• Maximum Groove Width (Decimal Inch) 0.1252
• Maximum Groove Width (mm) 3.18
• Complete Insert Compatibility DGL 3102J-15D; DGL 3102C-6D; DGN 3002Z; DGR 3100JS-15D; DGR 3102C-15D; DGR 3000ZS-15D; DGR 3100JS-6D; DGLC 3102C-6D; DGL 3100JS-15D; DGR 3102C-6D; DGN 3102LFT; DGL 3100JS-6D; DGR 3002Z-6D; DGL 3102C-15D; DGR 3000ZS-6D; DGN 3102LF
• Single Or Double End Double

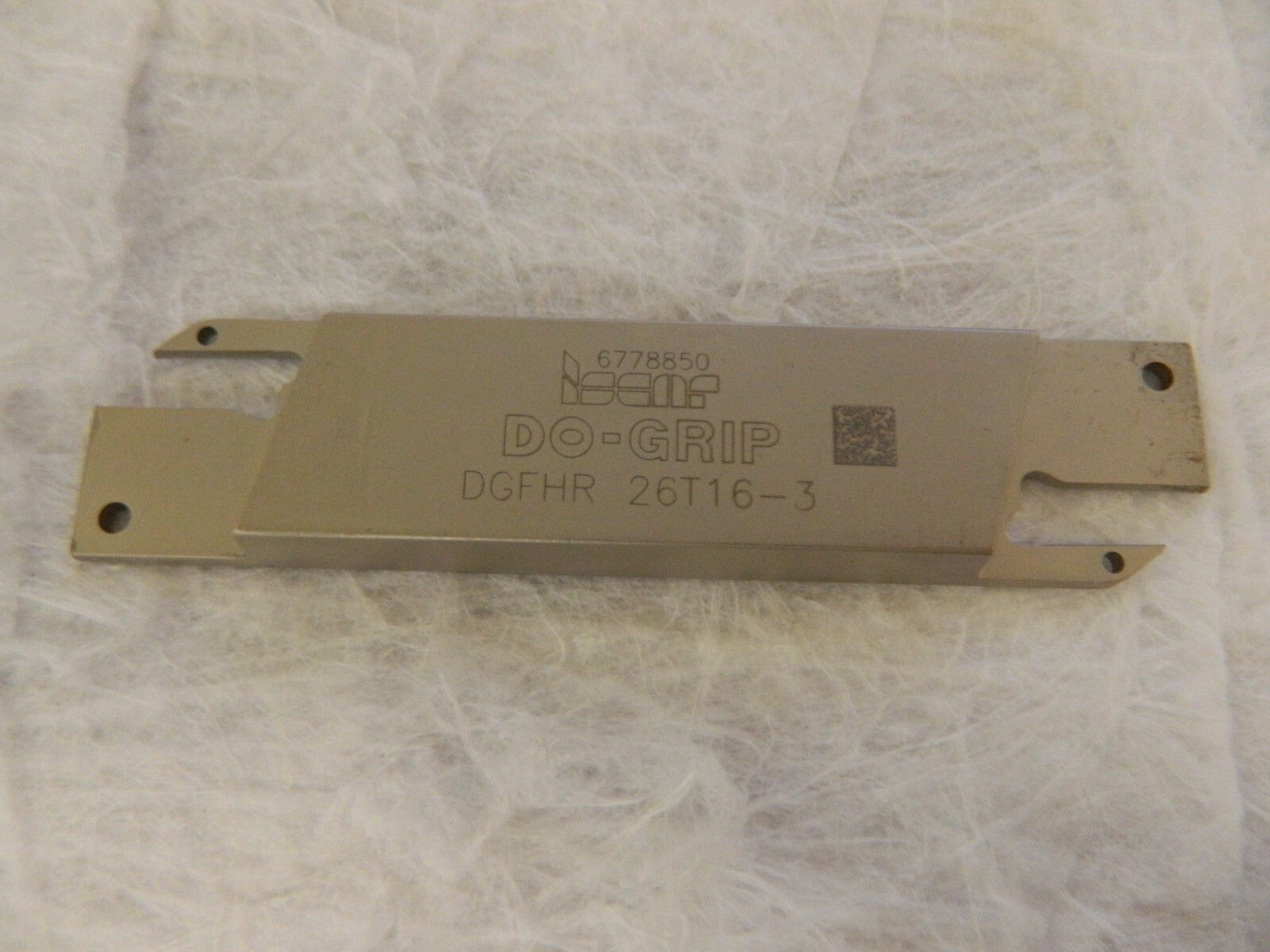

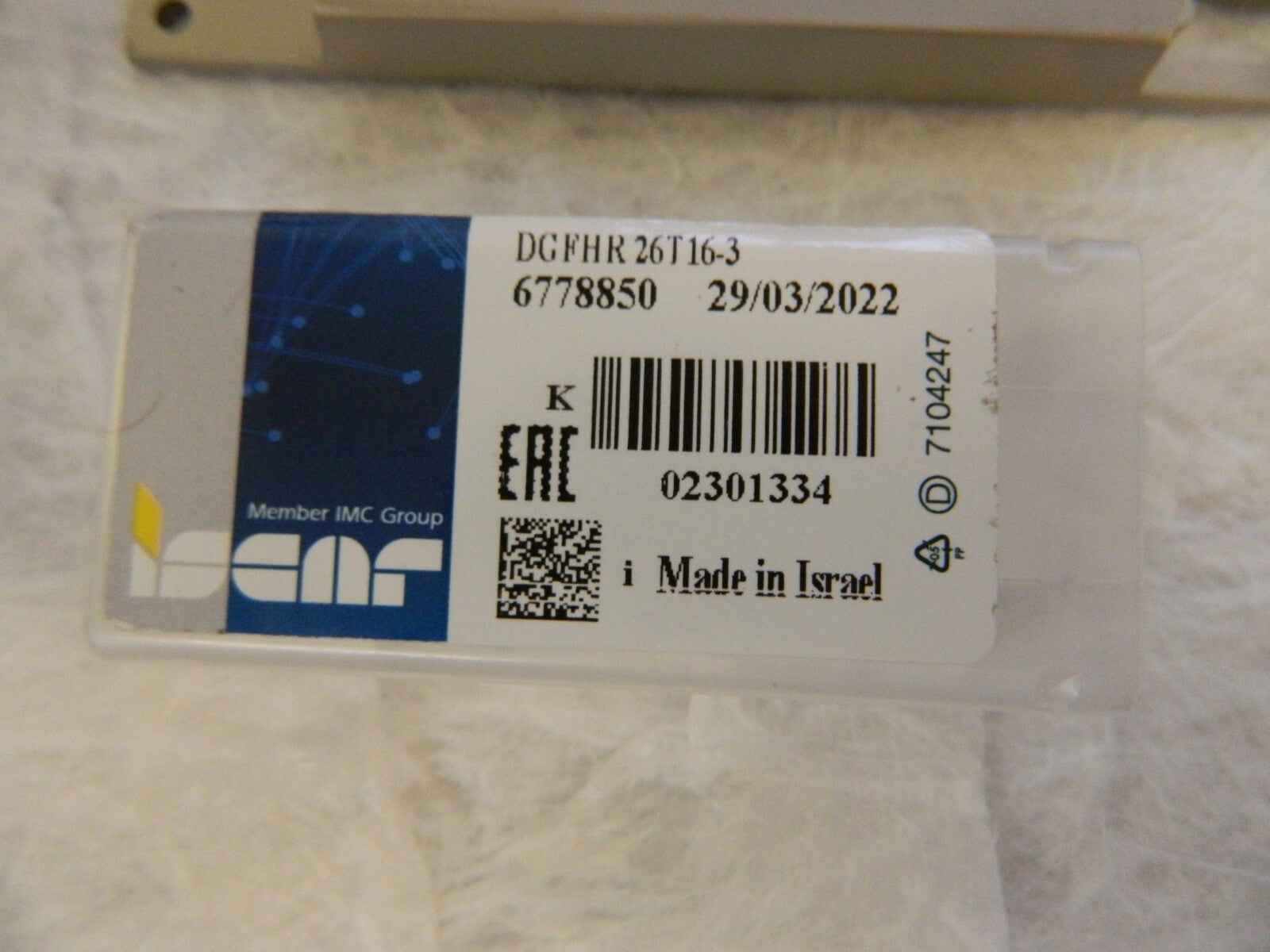

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
