Iscar H690 EWN D1.50-4-W1.50R07 MILL
Iscar H690 EWN D1.50-4-W1.50R07 MILL
Regular price
$181.56 USD
Regular price
$400.00 USD
Sale price
$181.56 USD
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND Iscar
Item
MSRP: $400.00
- specs
| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 1-1/2″ |
| Cutting Diameter (DC) | 1-1/2″ | Functional Length (LF) | 3.063″ |
| Cutting Item Count (CICT) | 4 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.275″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 4-1/4″ | Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Body Material | Steel |
| Master Insert Identification (MIID) | H690 WNMU 070512PNTR | Connection Code Machine Side (CCMS) | Weldon |
(Description).

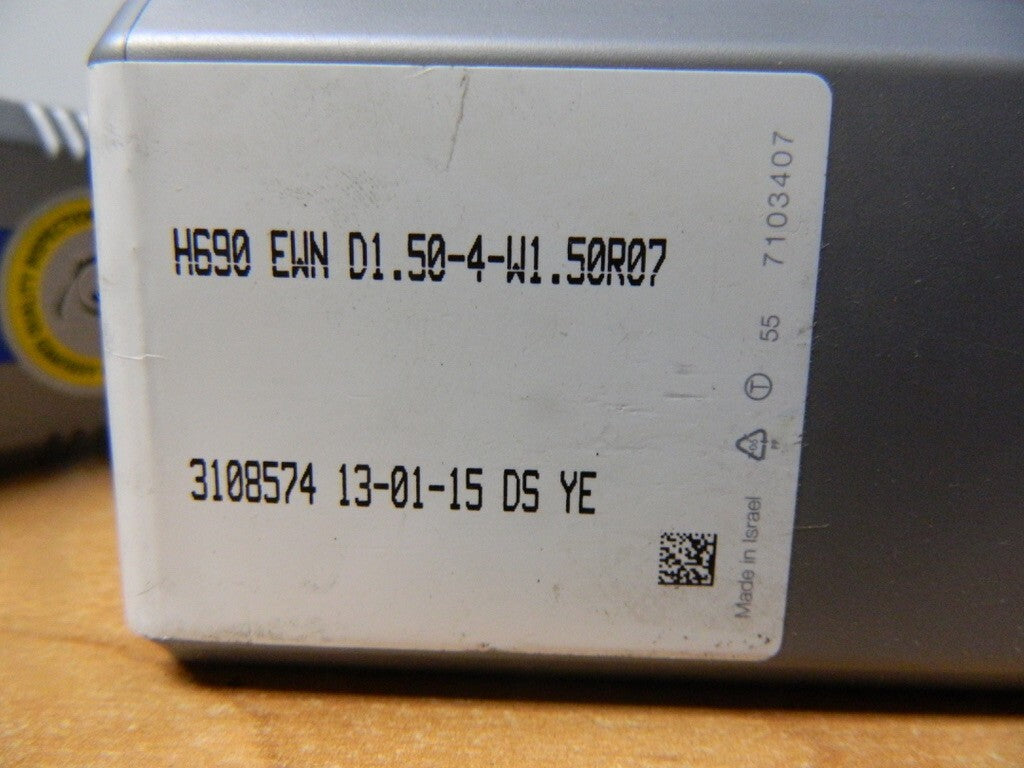

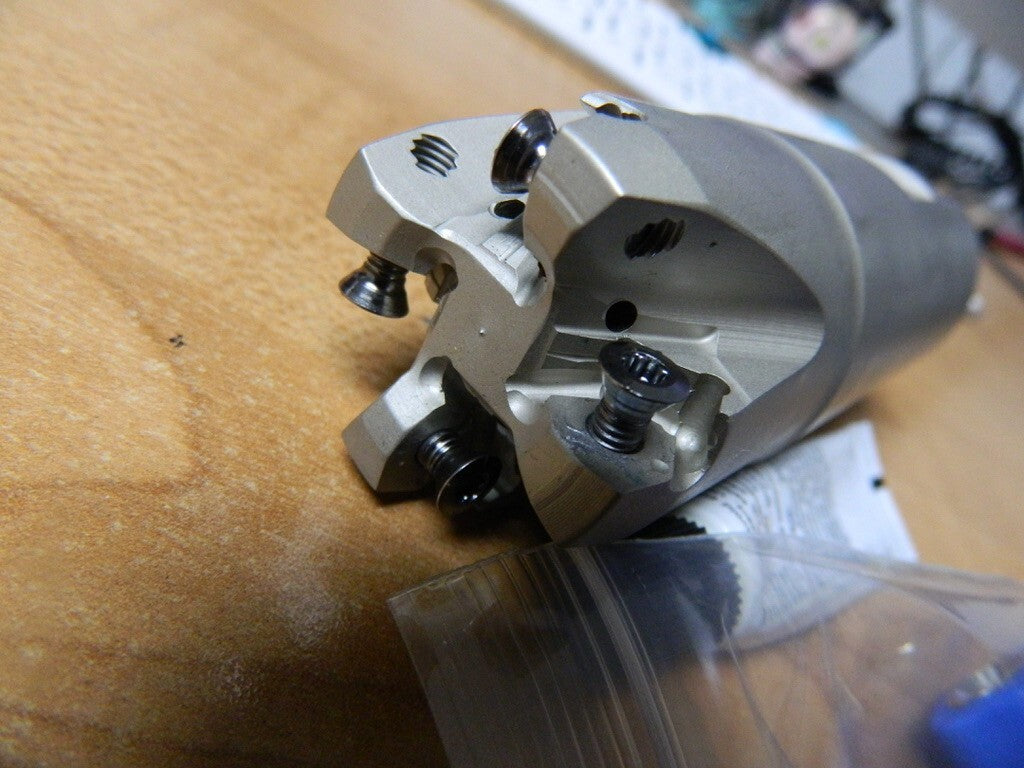

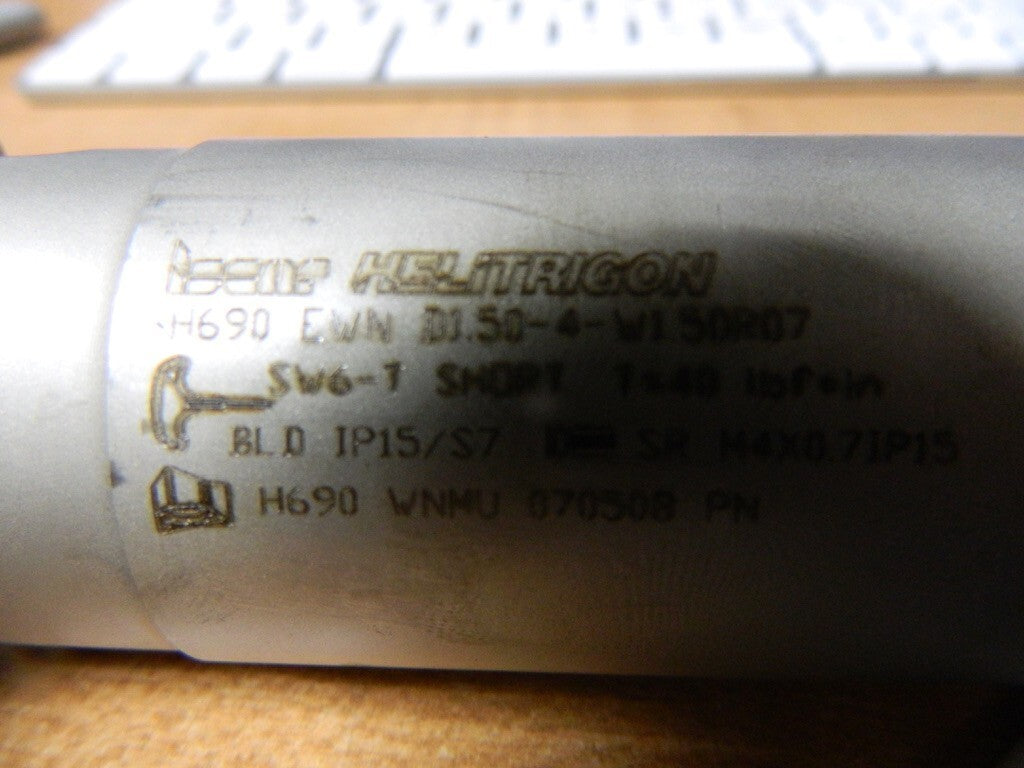

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
