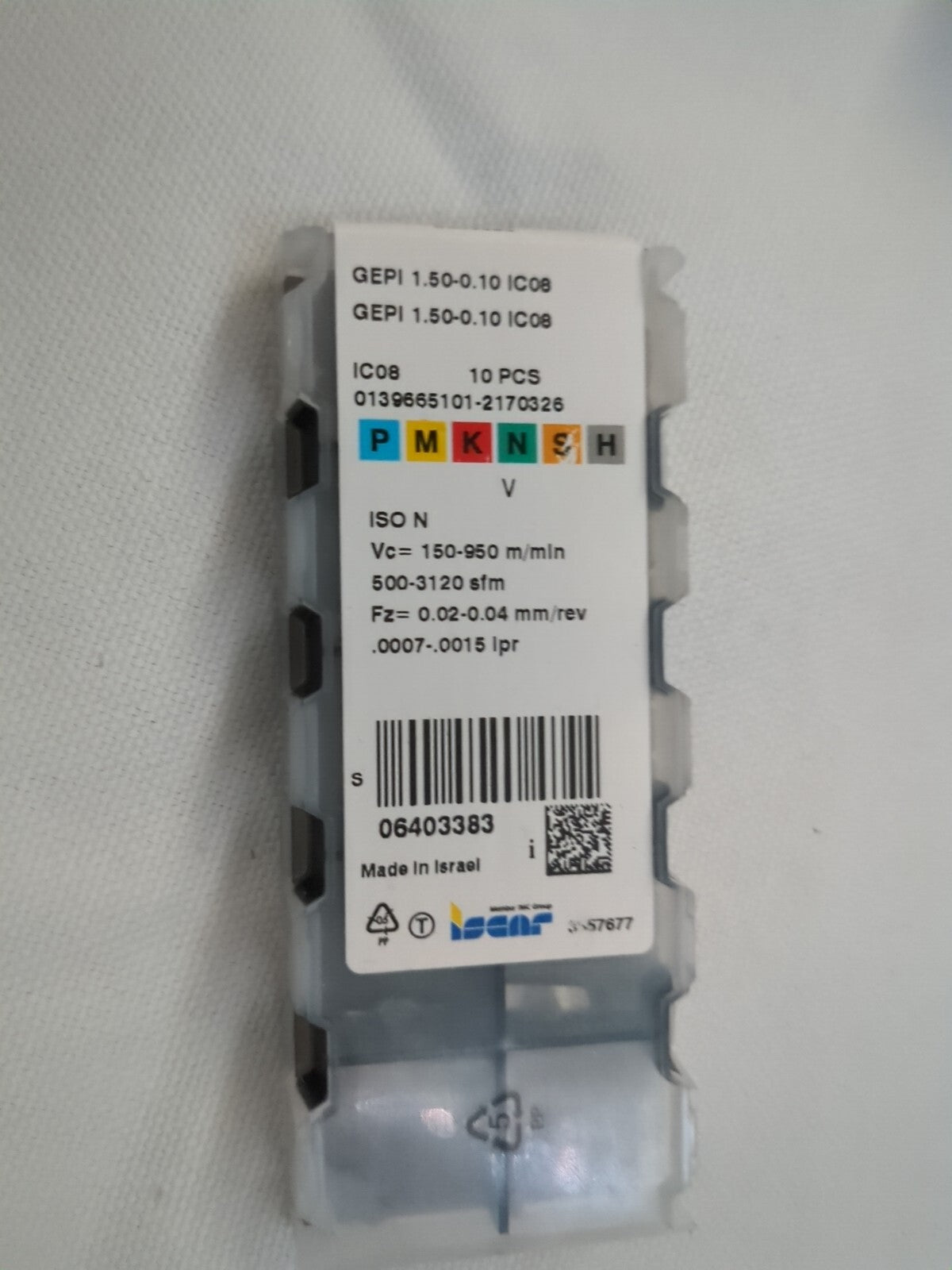

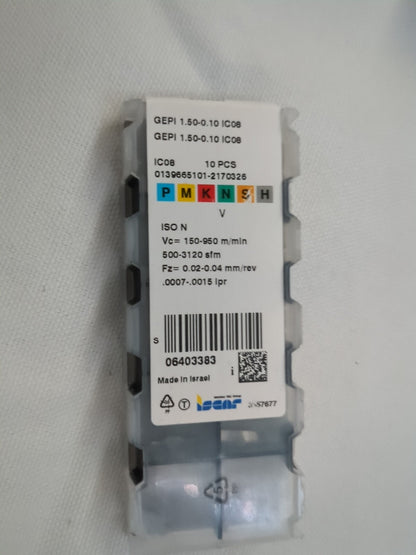

ISCAR Grooving Insert 10pc: GEPI150010 IC08, Solid Carbide 6403383

ISCAR Grooving Insert 10pc: GEPI150010 IC08, Solid Carbide 6403383

MSRP: $270

• Insert Style GEPI
• Insert Size Code 150010
• Cutting Width (Decimal Inch) 0.0591
• Cutting Width (mm) 1.50
• Insert Hand Neutral
• Maximum Depth of Cut (Decimal Inch) 0.0787
• Maximum Depth of Cut (mm) 2.00
• Insert Material Carbide
• Manufacturer Grade IC08
• Full Radius No
• Corner Radius (Decimal Inch) 0.0039
• Corner Radius (mm) 0.10
• Rake Positive
• Insert Holding Method Clamp
• Insert Size 150010
• Maximum Depth Of Cut Range (Decimal Inch) 0.0750 to 0.1000
• Maximum Depth Of Cut Range (mm) 2.00 to 3.00
• Multi-use Tool No
• Series Cut Grip
• Rake Angle 8
• Overall Length (Decimal Inch) 0.3937
• Primary Workpiece Material Non-Ferrous Metal
• Primary Workpiece Material Code N
• Iso Code ISO 13399
• Standards ISO 13399

(Description).

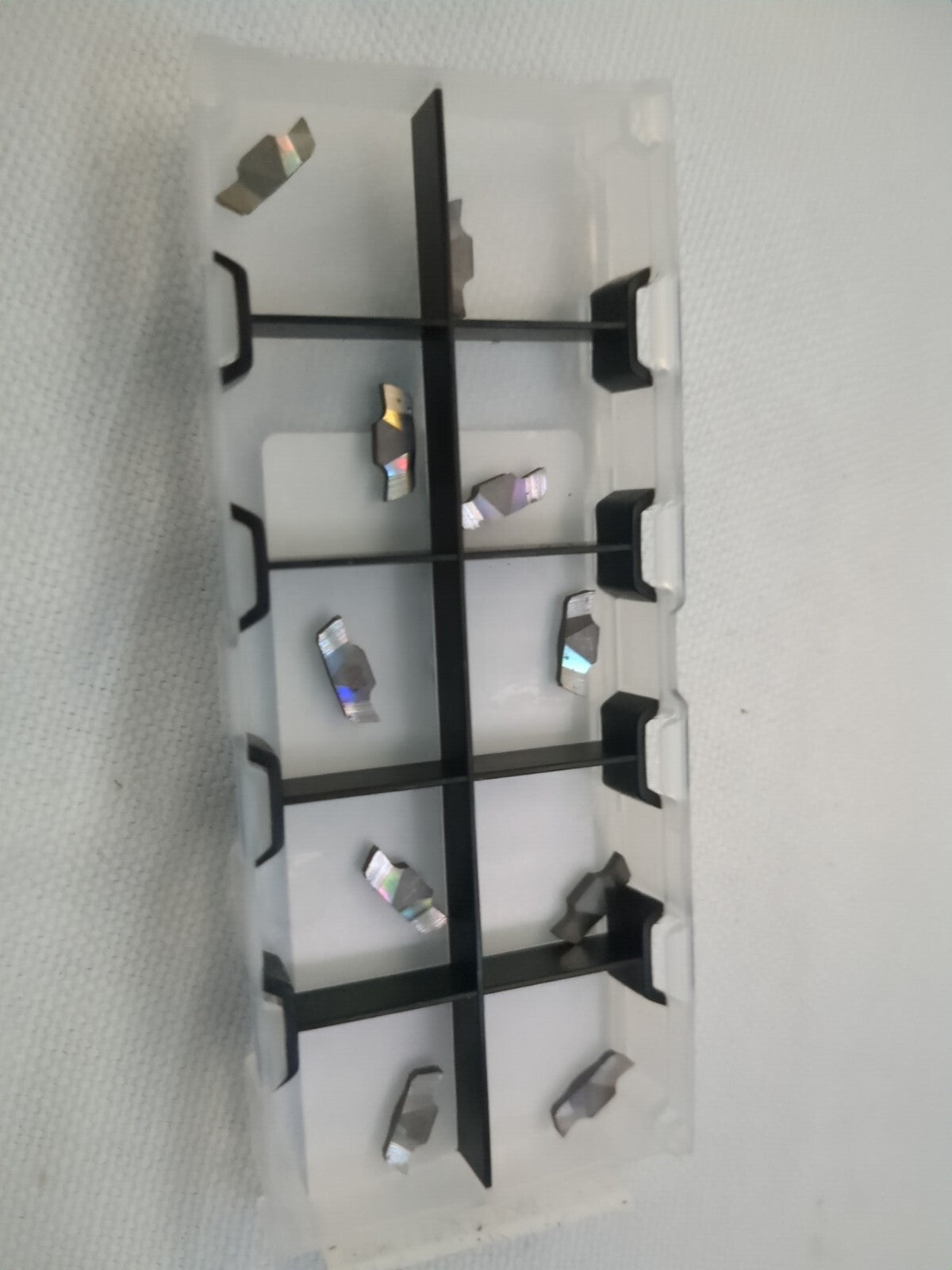

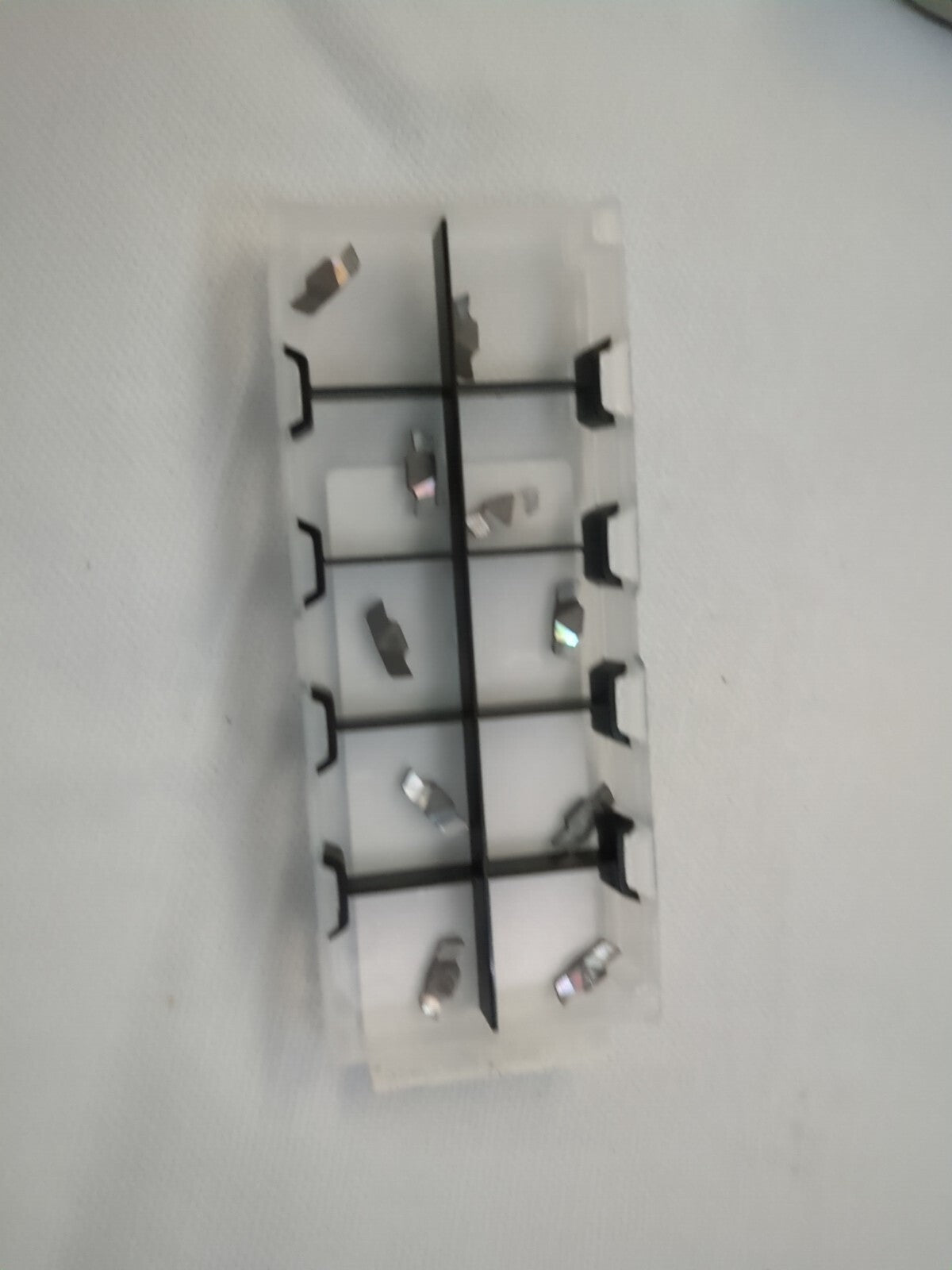

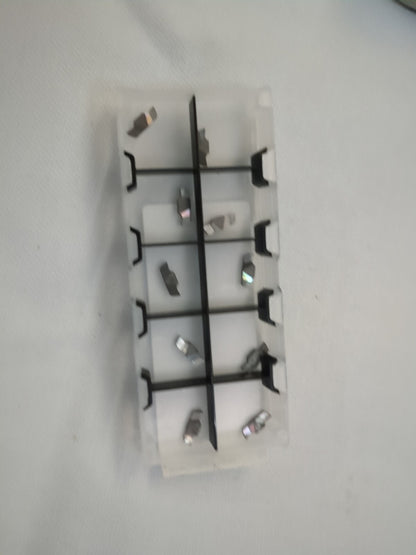

Please review photos, comes as shown.
