ISCAR Corner Radius End Mill: 6 mm Dia 5621111

ISCAR Corner Radius End Mill: 6 mm Dia 5621111

MSRP: $50

• Mill Diameter (Decimal Inch) 0.2362
• Mill Diameter (mm) 6.00
• Number Of Flutes 3
• Length of Cut (mm) 13.00
• Single Or Double End Single
• End Mill Material Solid Carbide
• Coating/Finish AlTiN
• Centercutting No
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0394
• Variable Index No
• Variable Helix No
• Cutting Direction Right Hand
• Corner Radius (mm) 1.00
• Overall Length (mm) 57.00
• Coolant Through No
• Pitch Coarse
• Chipbreaker No
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.5118
• Length Type Standard
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (mm) 6
• Mill Diameter Tolerance e8
• Shank Diameter Tolerance h6
• Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; H; K; M
• UNSPSC Code 27112803
• Material Grade Submicron
• Series EC-B-3/3R
• Material Application Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Coating Classification PVD
• For Use With. Toolholders
• Helix Style High

(Description).

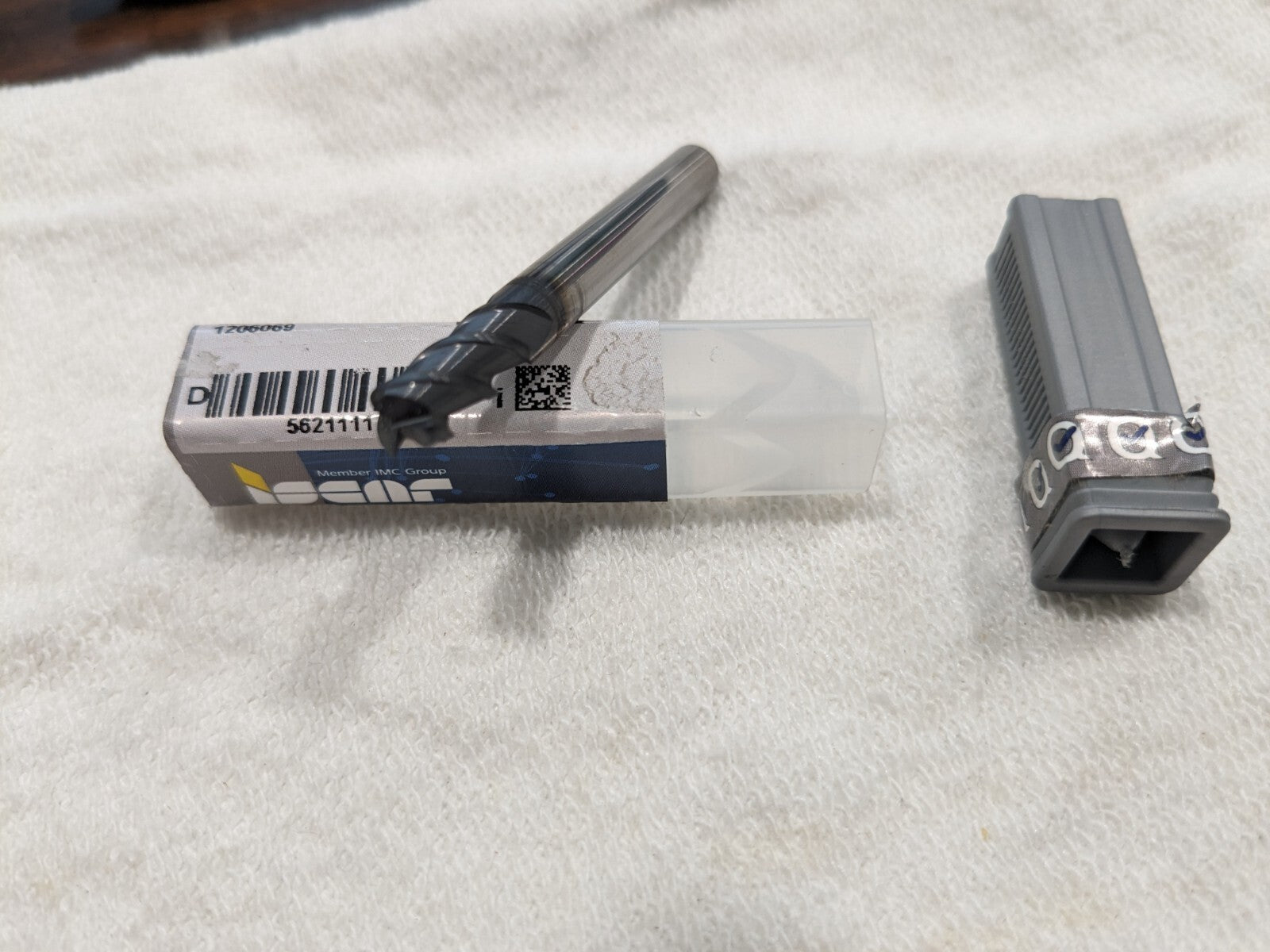

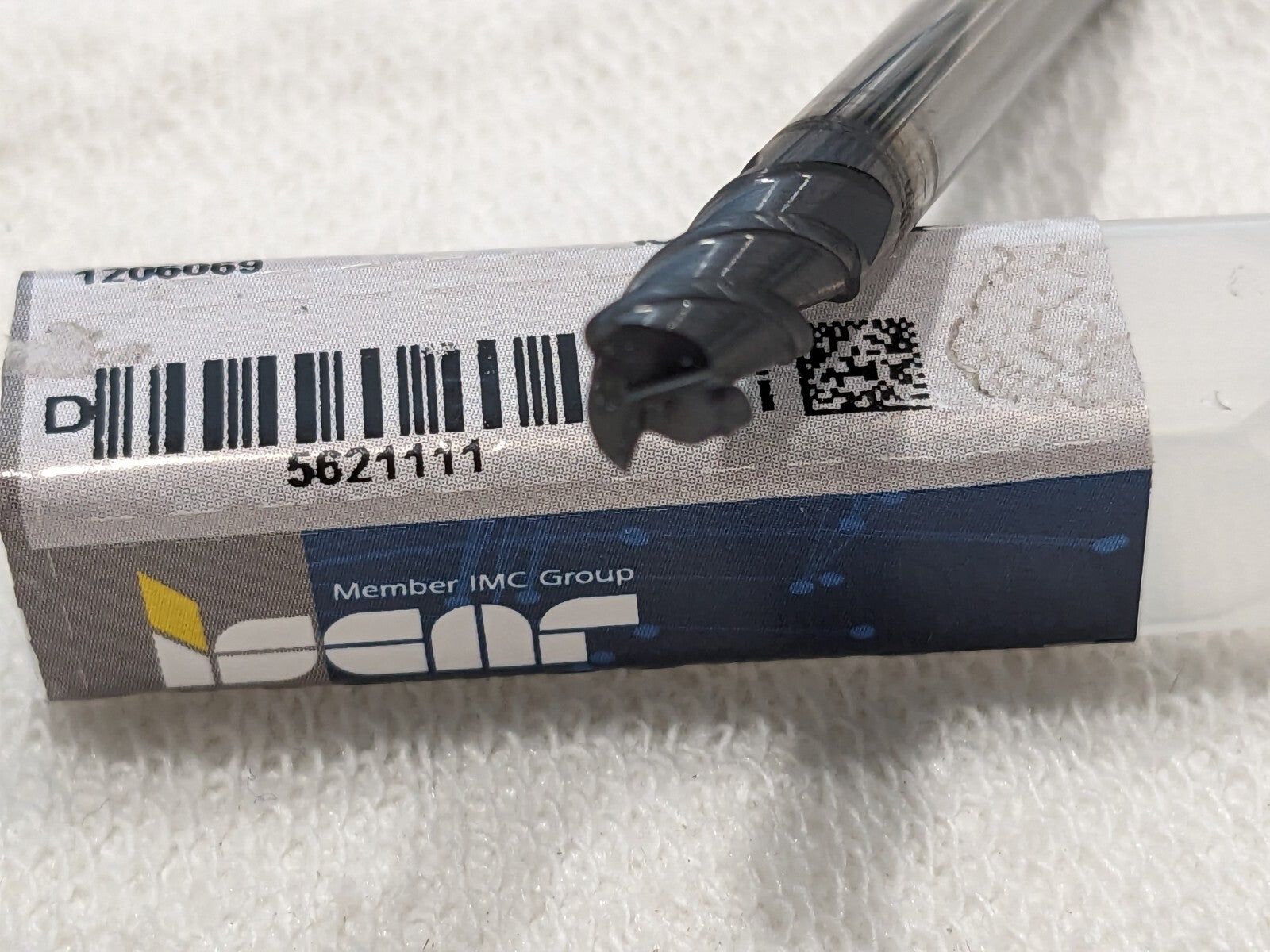

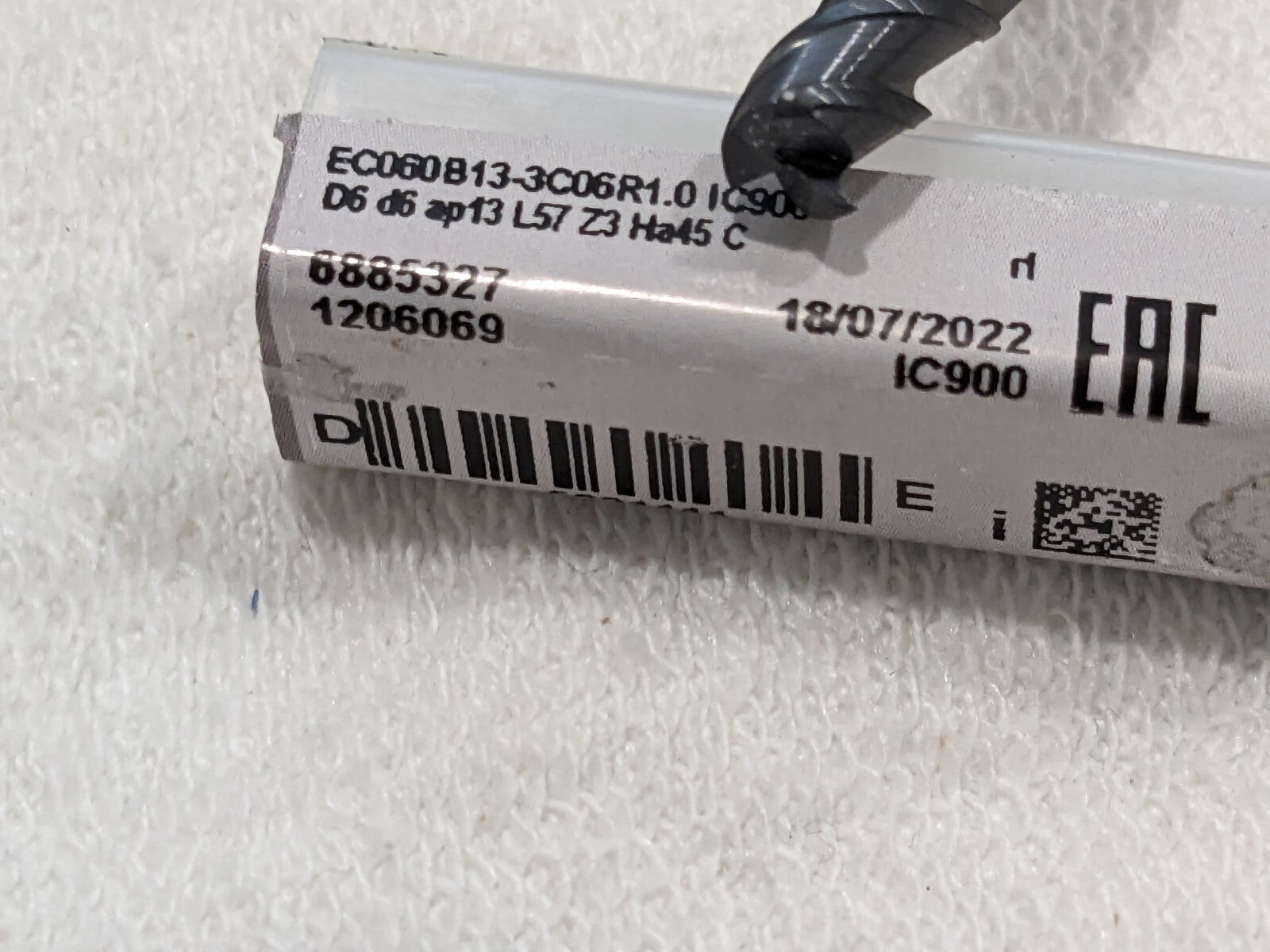

Please review photos, comes as shown.
