Iscar

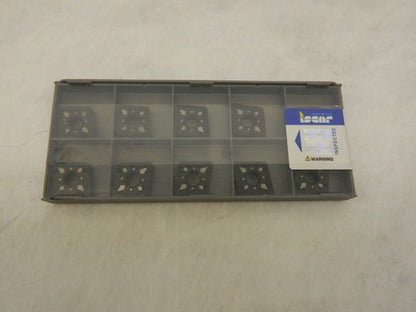

CNMG544NR IC5005 Carbide Turning Insert QTY 10 5550261
MSRP: $220

• Insert Style CNMG
• Insert Shape Code C
• Insert Size Code 544
• Insert Shape Diamond
• Clearance Code N
• Tolerance Code M
• Insert Material Solid Carbide
• Manufacturer Grade IC5005
• Maximum Depth of Cut (mm) 7.00
• Maximum Depth of Cut (Decimal Inch) 0.2756
• Inscribed Circle (Inch) 5/8
• Inscribed Circle (Decimal Inch) 0.6250
• Insert Holding Method Clamp; Pin
• Insert Thickness (Inch) 1/4
• Insert Thickness (Decimal Inch) 0.2500
• Corner Radius (Inch) 1/16
• Corner Radius (Decimal Inch) 0.0625
• Included Angle 80.0
• Relief Angle 0
• Series Isoturn
• Coating Process CVD
• Length Range (Decimal Inch) 0.6000 - 0.6500
• Insert Length (Decimal Inch) 0.6260
• Insert Length (mm) 15.90
• Primary Workpiece Material Cast Iron; Steel
• Primary Workpiece Material Code H; K; P
• Iso Code ISO 13399
• Standards ISO 13399
• Stocking Category D
• Chip Breaker NR
• Coating/Finish TiCN; Al2O3; TiN

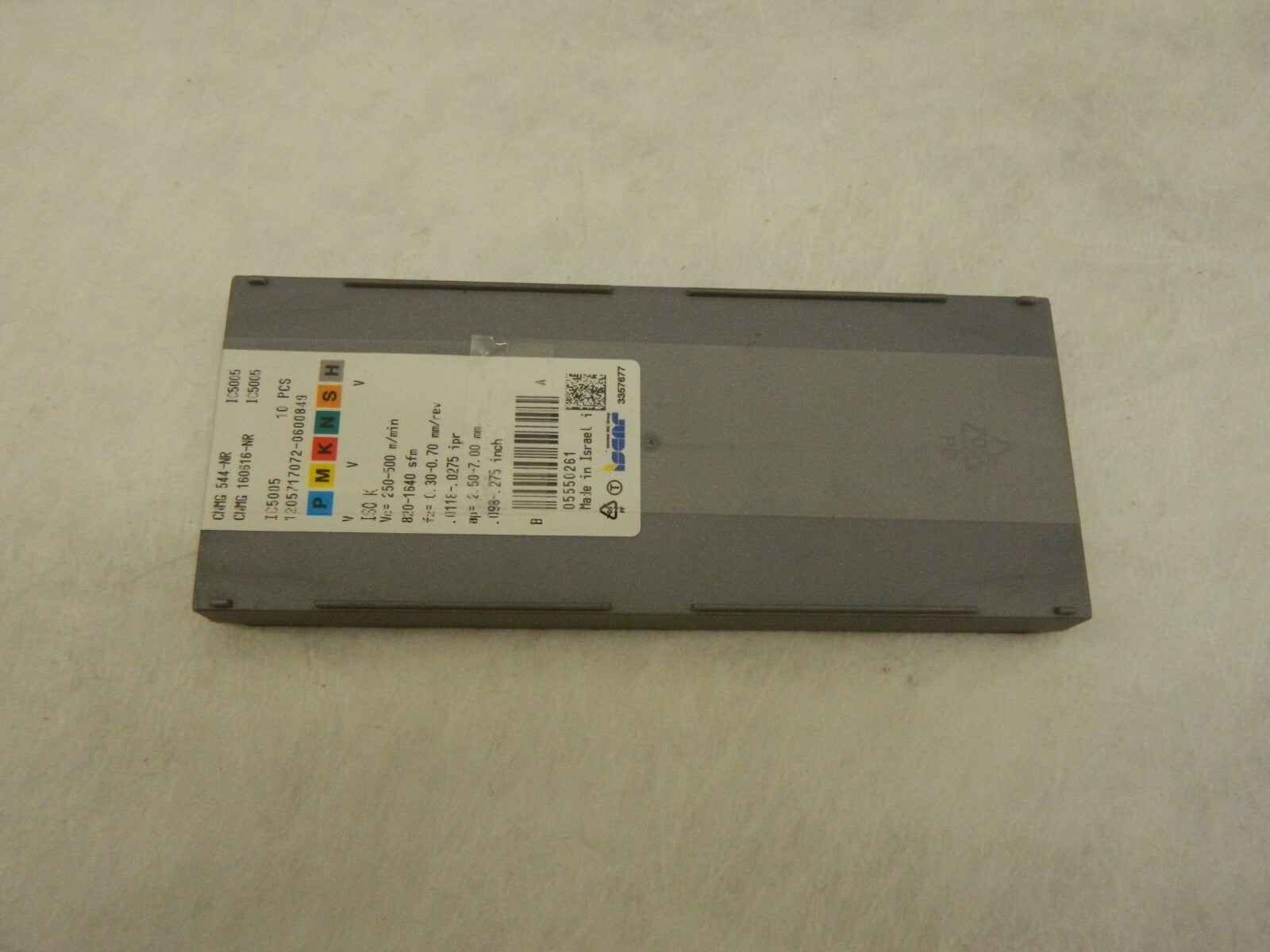

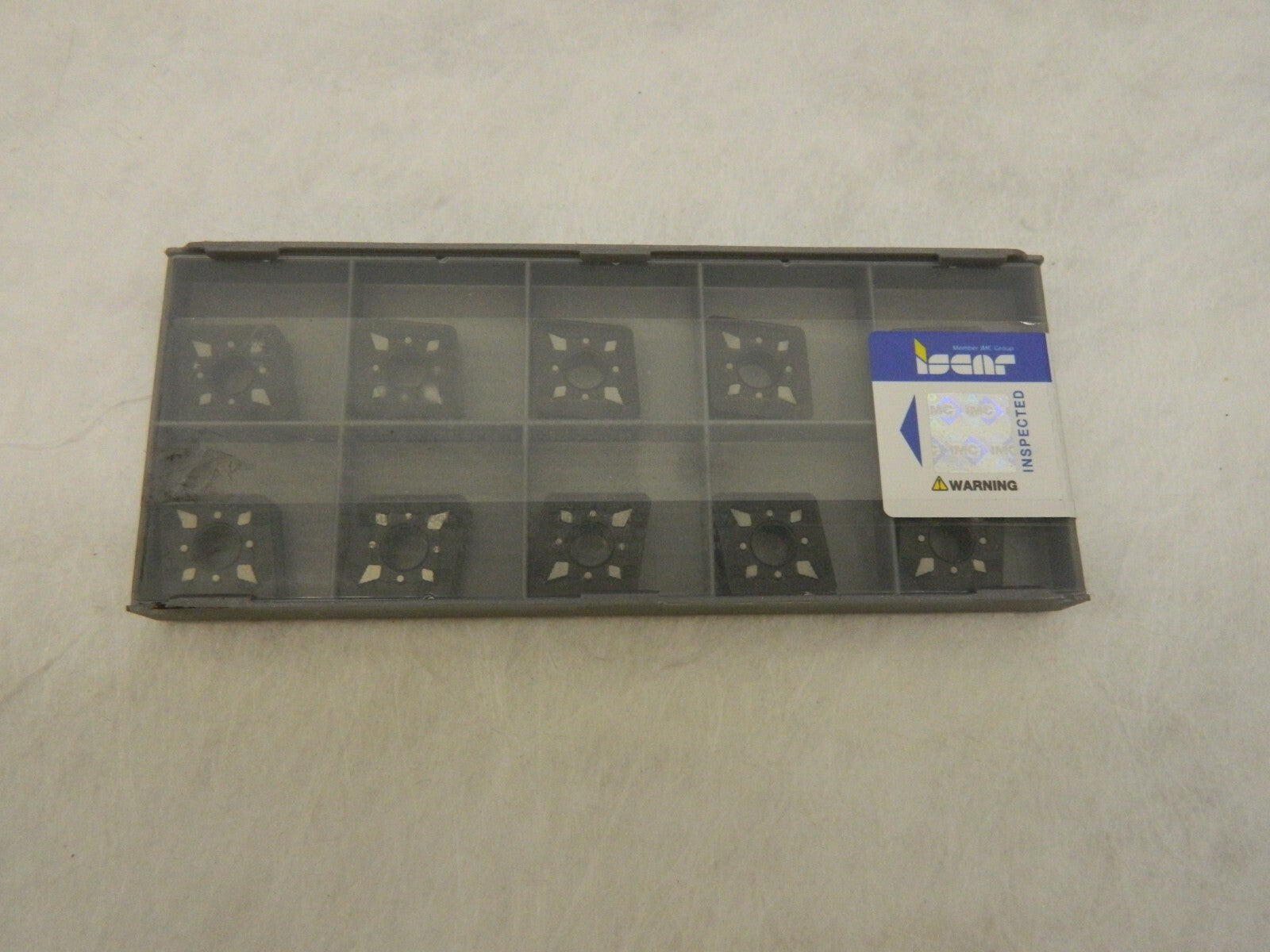

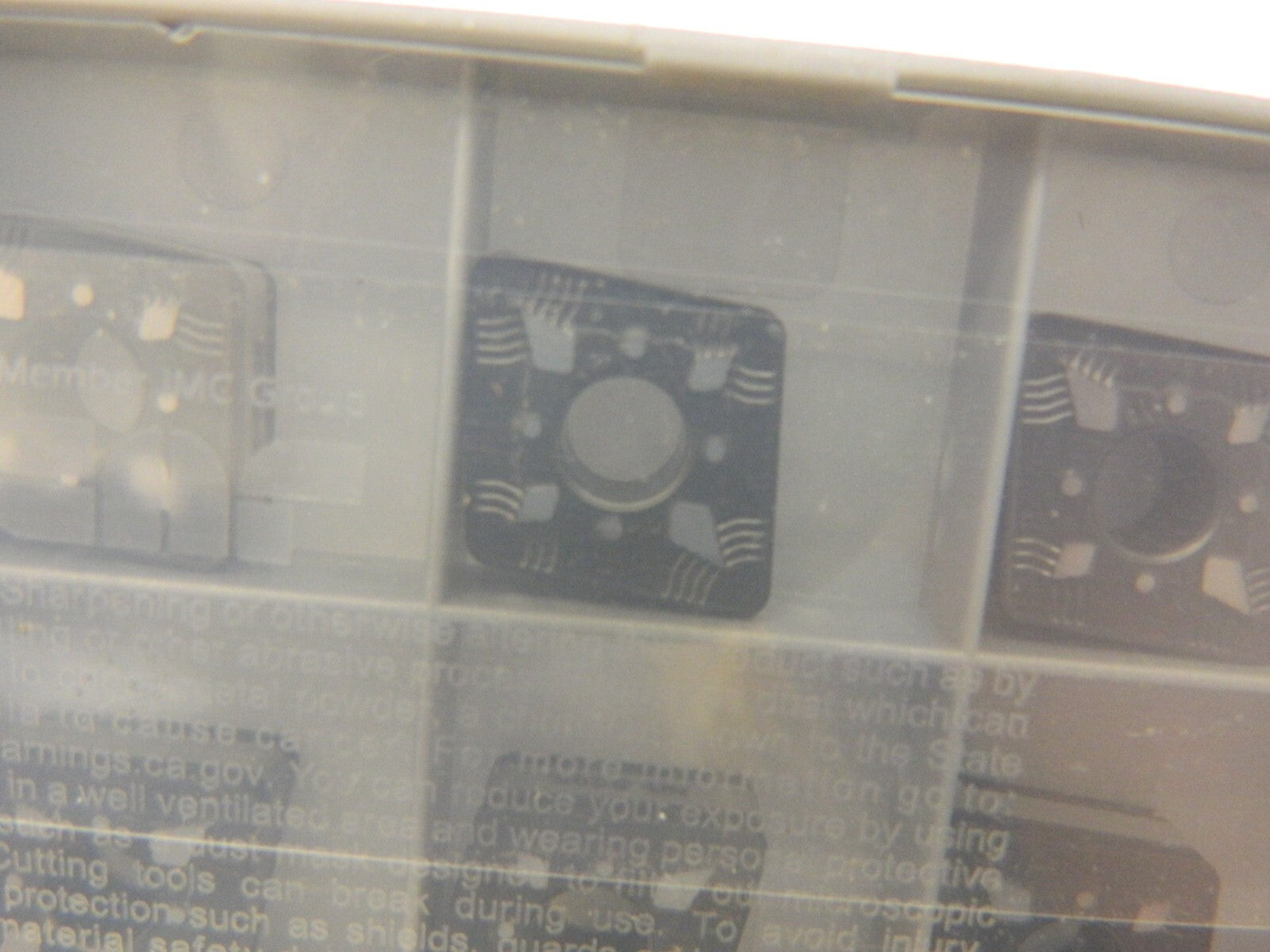

 Please review photos, comes as shown.
