Iscar

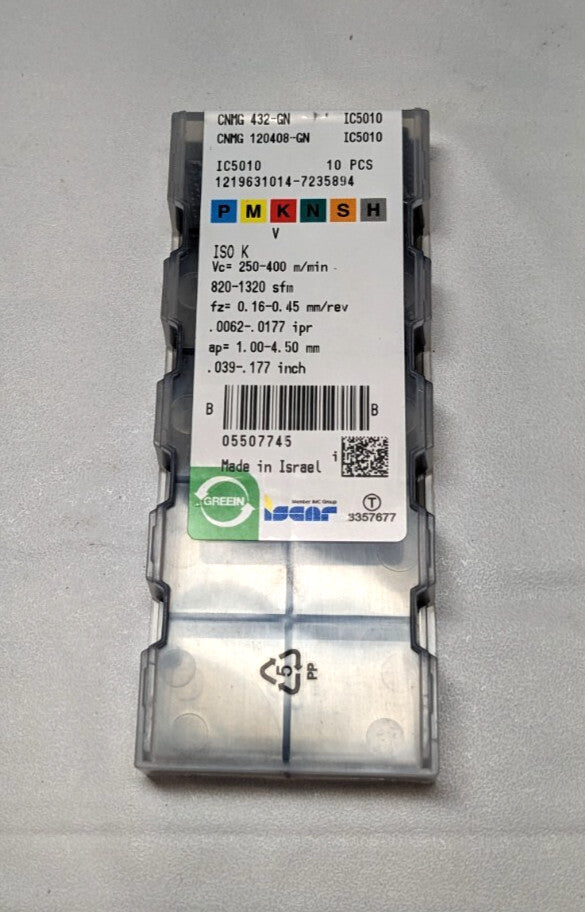

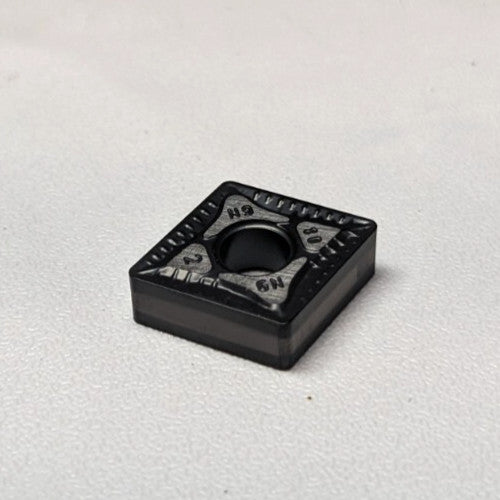

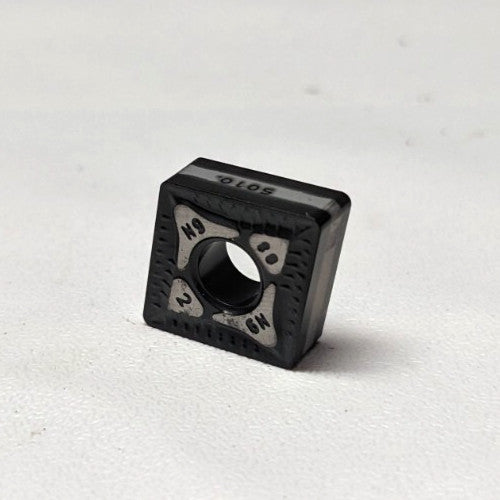

Carbide Turning Insert CNMG 432-GN IC5010  *QTY 5*

MSRP: $90.00

• ANSI Insert Code     CNMG432
• ISO Insert Code    CNMG120408
• Relief Angle     0
• Insert Style    CNMG
• Corner Radius (Inch)   1/32
• Corner Radius (Decimal Inch)    0.0315
• Included Angle   80
• Manufacturer Grade    IC5010
• Coating/Finish         TiCN; TiN; Al2O3
• Insert Thickness (Inch)      3/16
• Insert Thickness (Decimal Inch)   0.1874
• Series     Isoturn
• Inscribed Circle (Decimal Inch)   0.5000
• Inscribed Circle (Inch)    1/2
• Insert Material         Carbide
• Insert Shape       C - Diamond (Rhombic) 80-Deg
• Chip Breaker Operation         Medium Machining; Roughing
• Grade Characteristics   Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance    Negative
• Insert Shape Code        C
• Maximum Depth of Cut (mm)       4.50
• Maximum Depth of Cut (Decimal Inch)      0.1772
• Insert Holding Method     Pin; Clamp
• Clearance Code    N
• Tolerance Code   M
• Coating Process      CVD
• Insert Length (Decimal Inch)      0.5079
• Insert Length (mm)      12.90
• Primary Workpiece Material      Cast Iron
• Primary Workpiece Material Code       K
• Iso Code        ISO 13399
• Standards  ISO 13399
• Chip Breaker      GN
• ANSI Size Code    432
• ISO Size Code   120408
• Country of Origin      Israel

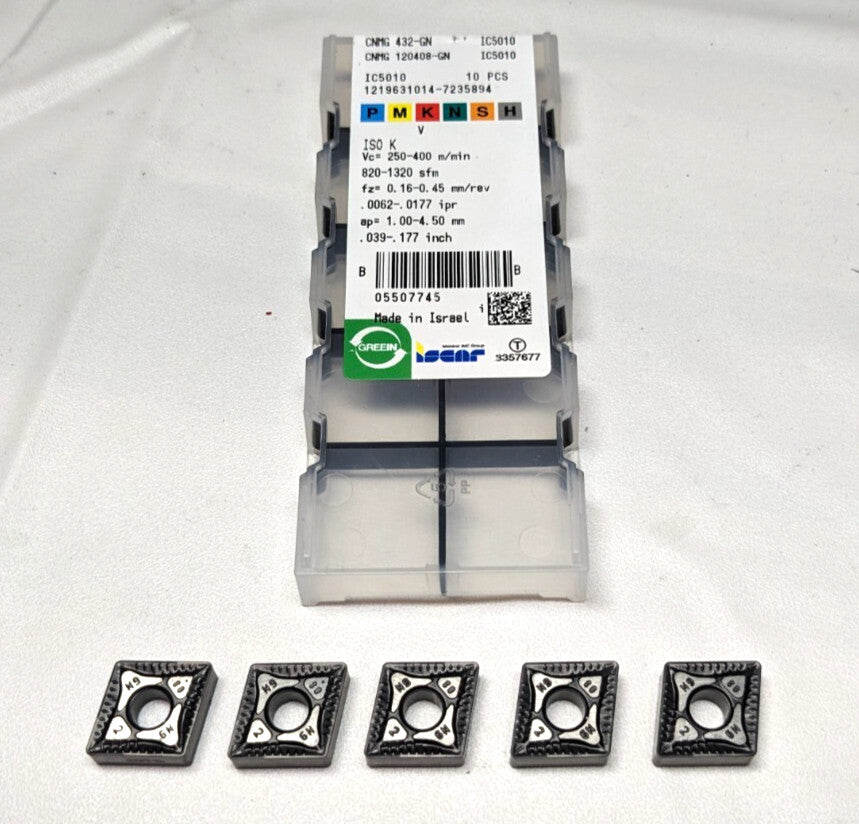

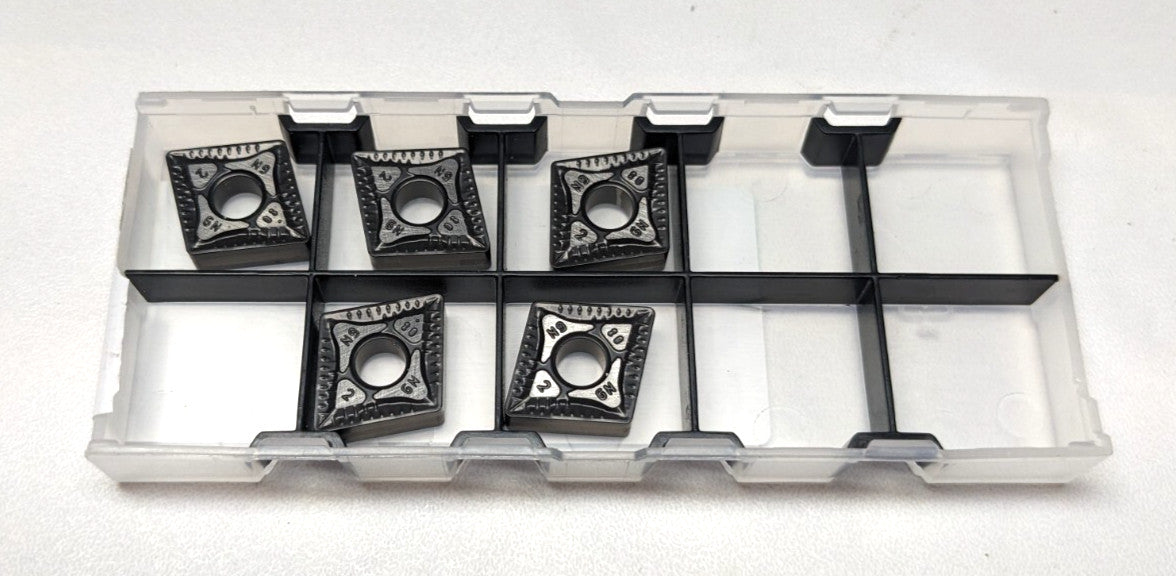

*This sale is for a NEW 5 PACK of carbide inserts.  You will receive exactly what is shown in our pictures.  SOLD AS IS, WITHOUT WARRANTY.

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
