Iscar Carbide Turning Inserts VNMG 331 NF IC 907 10 Pack 5505285
Iscar Carbide Turning Inserts VNMG 331 NF IC 907 10 Pack 5505285
Regular price
$124.60 USD
Regular price
$250.00 USD
Sale price
$124.60 USD
Shipping calculated at checkout.
Iscar
1 Pack of 10 Carbide Turning Inserts
MSRP: $250.00
- specs
ANSI Insert Code VNMG331
ISO Insert Code VNMG160404
Relief Angle 0
Insert Style VNMG
Corner Radius (Inch) 1/64
Corner Radius (Decimal Inch) 0.0157
Included Angle 35
Manufacturer Grade IC907
Coating/Finish TiAlN
Insert Thickness (Inch) 3/16
Insert Thickness (Decimal Inch) 0.1874
Series Isoturn
Inscribed Circle (Decimal Inch) 0.3748
Inscribed Circle (Inch) 3/8
Insert Material Carbide
Insert Shape V - Diamond (Rhombic) 35-Deg
Chip Breaker Operation Finishing
Grade Characteristics Cast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance Negative
Insert Shape Code V
Hole Diameter (Decimal Inch) 0.1500
Maximum Depth of Cut (Decimal Inch) 0.0980
Insert Holding Method Pin; Clamp
Clearance Code N
Tolerance Code M
Coating Process PVD
Length Range (Decimal Inch) 0.6500 - 0.7000
Rake Positive
Insert Length (Decimal Inch) 0.6535
Insert Length (mm) 16.60
Primary Workpiece Material Code P; S; K; M; N
Iso Code ISO 13399
Standards ISO 13399
Material Grade C7; C8
Chip Breaker NF
ANSI Size Code 331
ISO Size Code 160404
UNSPSC Code 23242105
Insert Size Code 331
(Description).

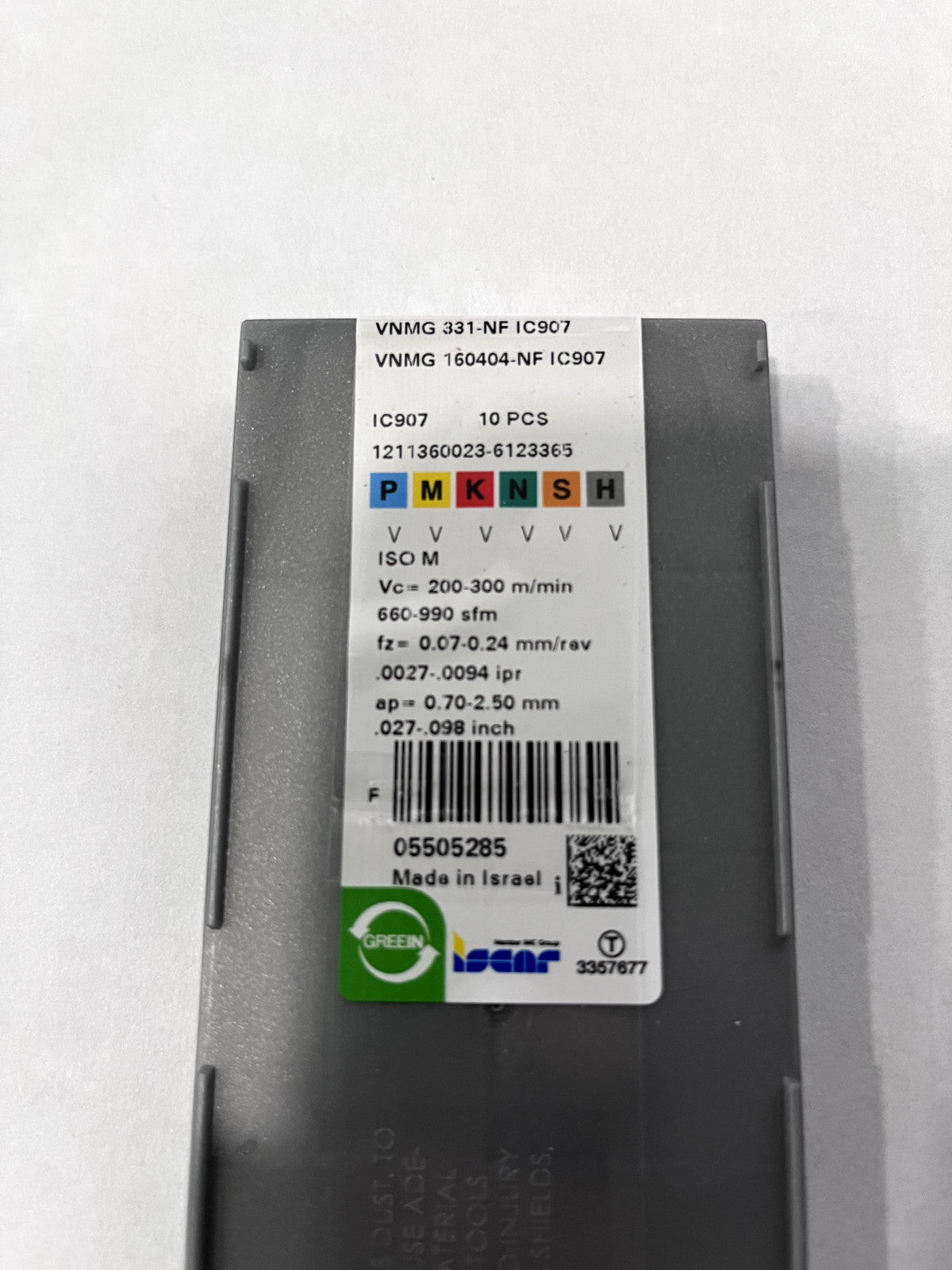

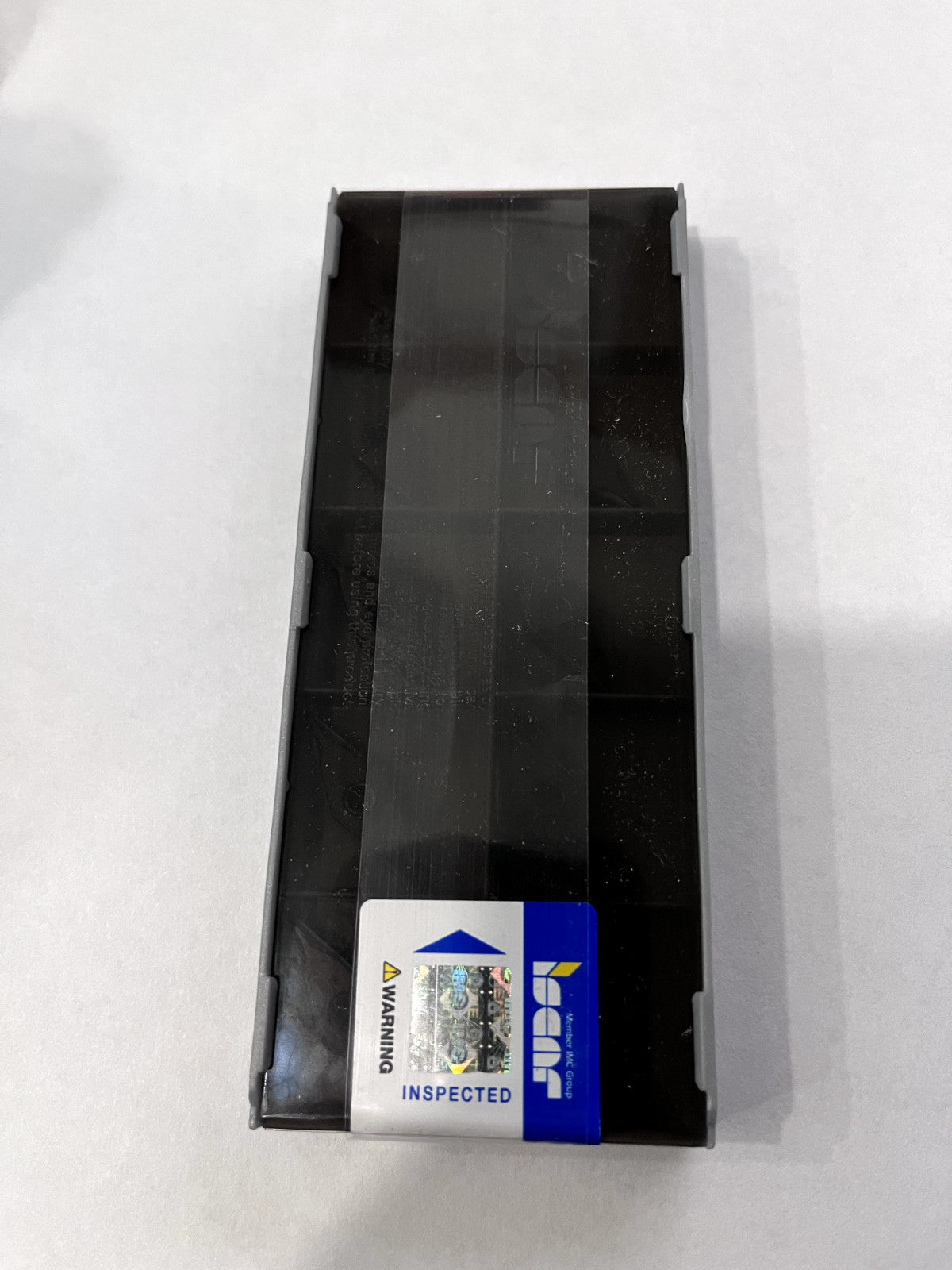

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
