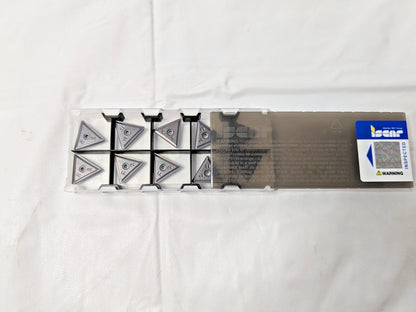

Iscar Carbide Turning Inserts TPMR 322 IC907 QTY 10 Pcs 5505155

Iscar
1 Pack of 10 Carbide Turning Inserts

MSRP: $200

• Insert Style: TPMR
• ANSI Size Code: 322
• ISO Size Code: 160308
• Insert Shape: T - Triangle
• Included Angle: 60.00
• Inscribed Circle (Decimal Inch): 0.3748
• Inscribed Circle (Inch): 3/8 Corner
• Radius (Inch): 1/32
• Corner Radius (Decimal Inch): 0.0315
• Insert Material: Carbide
• Manufacturer Grade: IC907
• Coating/Finish: TiN; TiAlN
• Relief Angle: 11.000
• Insert Thickness (Inch): 1/8
• Insert Thickness (Decimal Inch): 0.1248
• Series: Isoturn
• Chip Breaker Operation: Finishing Grade Characteristics: Cast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance: Positive
• Maximum Depth of Cut (mm): 4.00
• Maximum Depth of Cut (Decimal Inch): 0.1575
• ANSI Insert Code: TPMR322
• ISO Insert Code: TPMR160308
• Insert Holding Method: Clamp
• Clearance Code: P
• Tolerance Code: M
• Coating Process: PVD
• Rake: Positive
• Insert Length (Decimal Inch): 0.6496
• Insert Length (mm): 16.50
• Primary Workpiece Material Code: P; S; K; M; N
• Iso Code: ISO 13399
• Standards: ISO 13399
• Material Grade: C7; C8
• Chip Breaker: R
• UNSPSC Code: 23242105

Please review photos, comes as shown.
