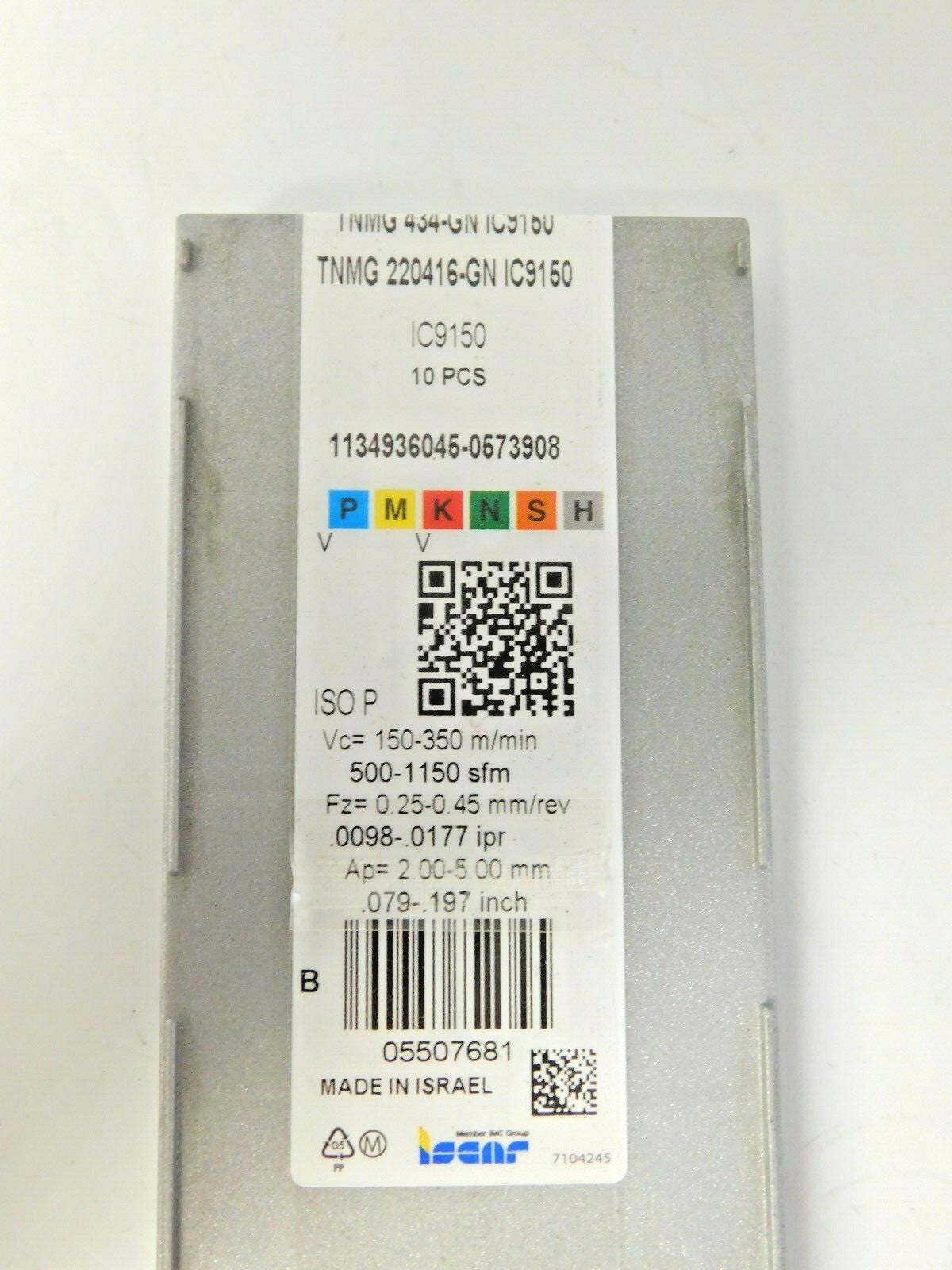

Iscar Carbide Turning Inserts TNMG434-GN Grade IC9150 Qty 10 5507681
Iscar Carbide Turning Inserts TNMG434-GN Grade IC9150 Qty 10 5507681
Regular price
$73.42 USD
Regular price
$150.00 USD
Sale price
$73.42 USD
Shipping calculated at checkout.
Iscar
MSRP: $150
Model: 5507681
Description:
Insert Style TNMG
Insert Size 434
Material Carbide
Length (mm) 22.00
Length (Decimal Inch) 0.8660
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1870
Corner Radius (Inch) 1/16
Corner Radius (Decimal Inch) 0.0630
Manufacturer's Grade IC9150
Coating TiCN/Al2O3/TiN
Material Grade C3/C4/C6/C7/C8
Chip Breaker GN
Hole Diameter (Decimal Inch) 0.2030
Relief Angle 0
Coating Process CVD
Included Angle 60
Maximum Depth of Cut (mm) 5.00
Maximum Depth of Cut (Decimal Inch) 0.1969
Insert Holding Method Pin & Clamp
Shape Triangle

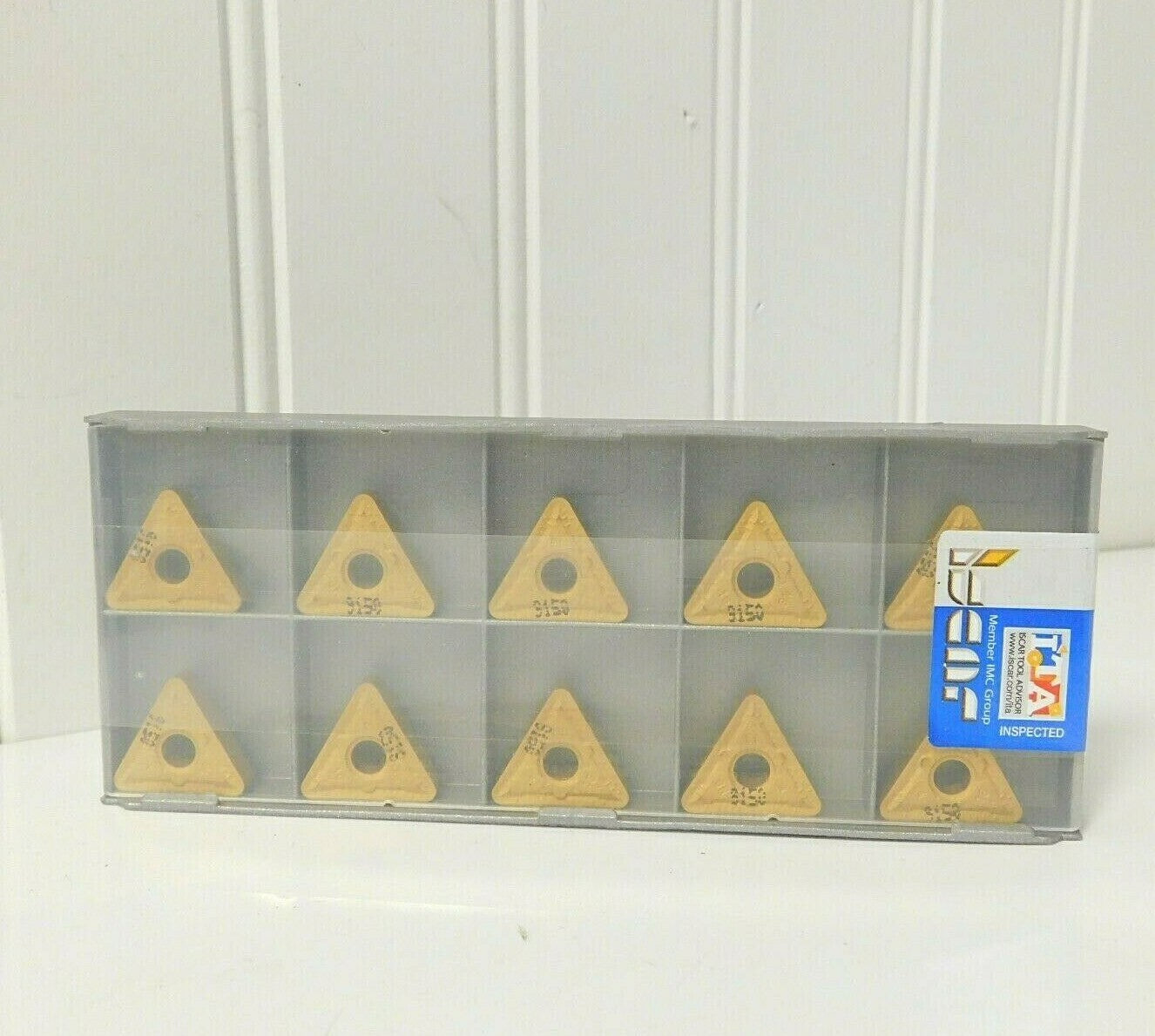

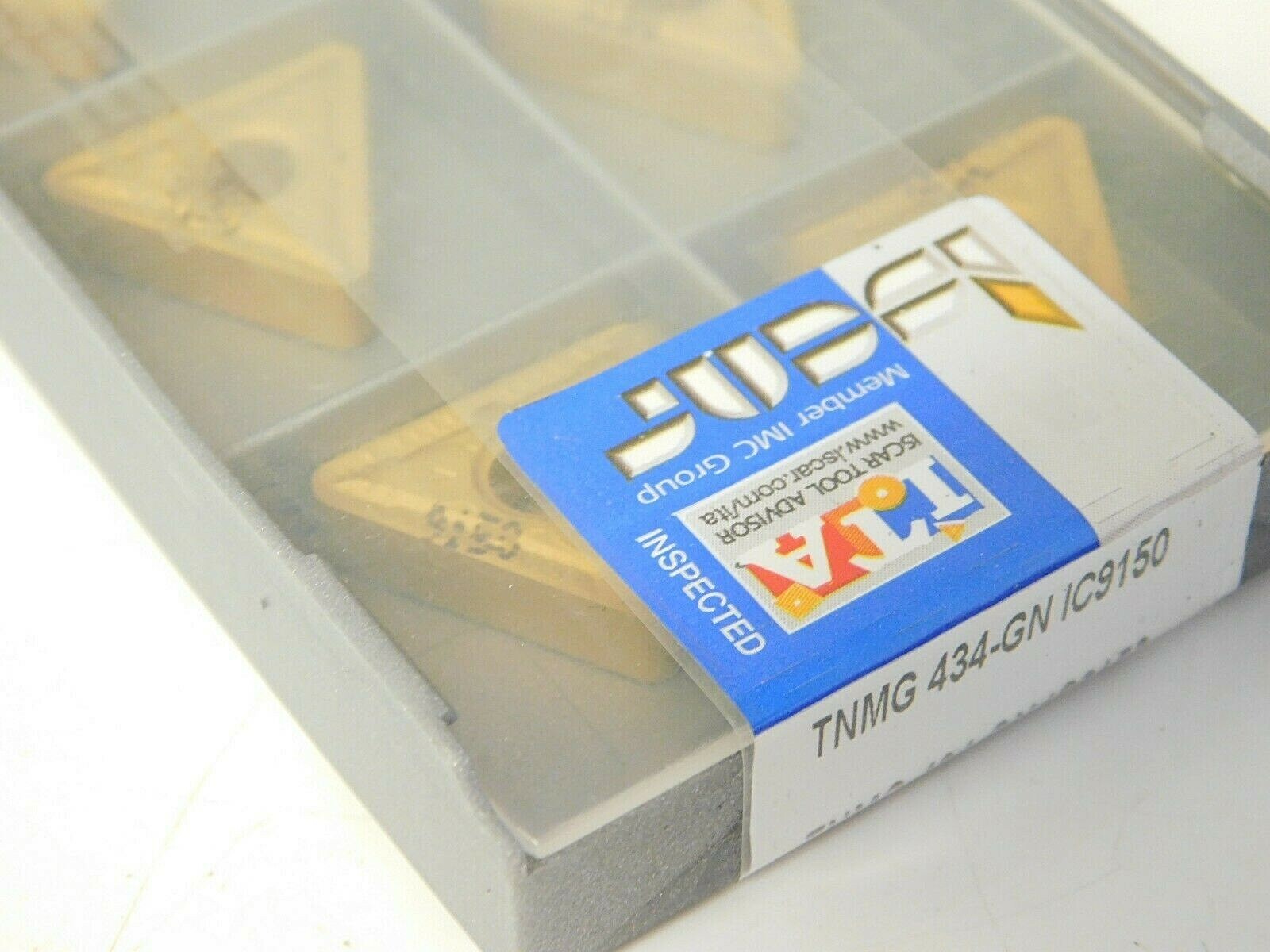

This listing is for One pack of 10 Carbide Turning Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
