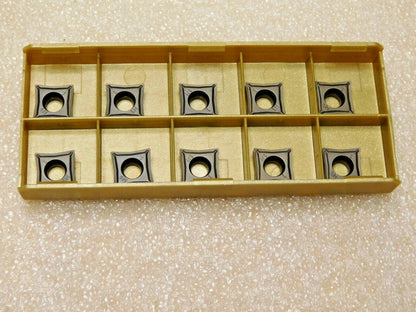

Iscar Carbide Turning Inserts QCMT 3-1-SM Grade IC8150 Qty 10 5508691
Iscar Carbide Turning Inserts QCMT 3-1-SM Grade IC8150 Qty 10 5508691
Regular price
$68.53 USD
Regular price
$140.00 USD
Sale price
$68.53 USD
Shipping calculated at checkout.
Iscar
MSRP: $140
Model: 5508691
Description:
Insert Style QCMT
Insert Size 3-1
Material Carbide
Length (mm) 10.40
Length (Decimal Inch) 0.4094
Inscribed Circle (Decimal Inch) 0.3800
Thickness (Inch) 5/32
Thickness (Decimal Inch) 0.1563
Corner Radius (Inch) 1/64
Corner Radius (Decimal Inch) 0.0157
Manufacturer's Grade IC8150
Coating TiCN/Al2O3
Chip Breaker SM
Hole Diameter (mm) 4.40
Hole Diameter (Decimal Inch) 0.1732
Rake Positive
Relief Angle 7
Coating Process CVD
Included Angle 80
Series Isoturn
Maximum Depth of Cut (mm) 2.50
Maximum Depth of Cut (Decimal Inch) 0.0984
Insert Holding Method Screw
Shape Square
*NEW*OPEN PACKAGE/BOX FOR INSPECTION AND PICTURES ONLY. Item is in excellent condition. Please Refer to our Pictures and description. SOLD AS IS. If you have any questions, please contact us!
This listing is for One Pack of 10 Carbide Turning Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
