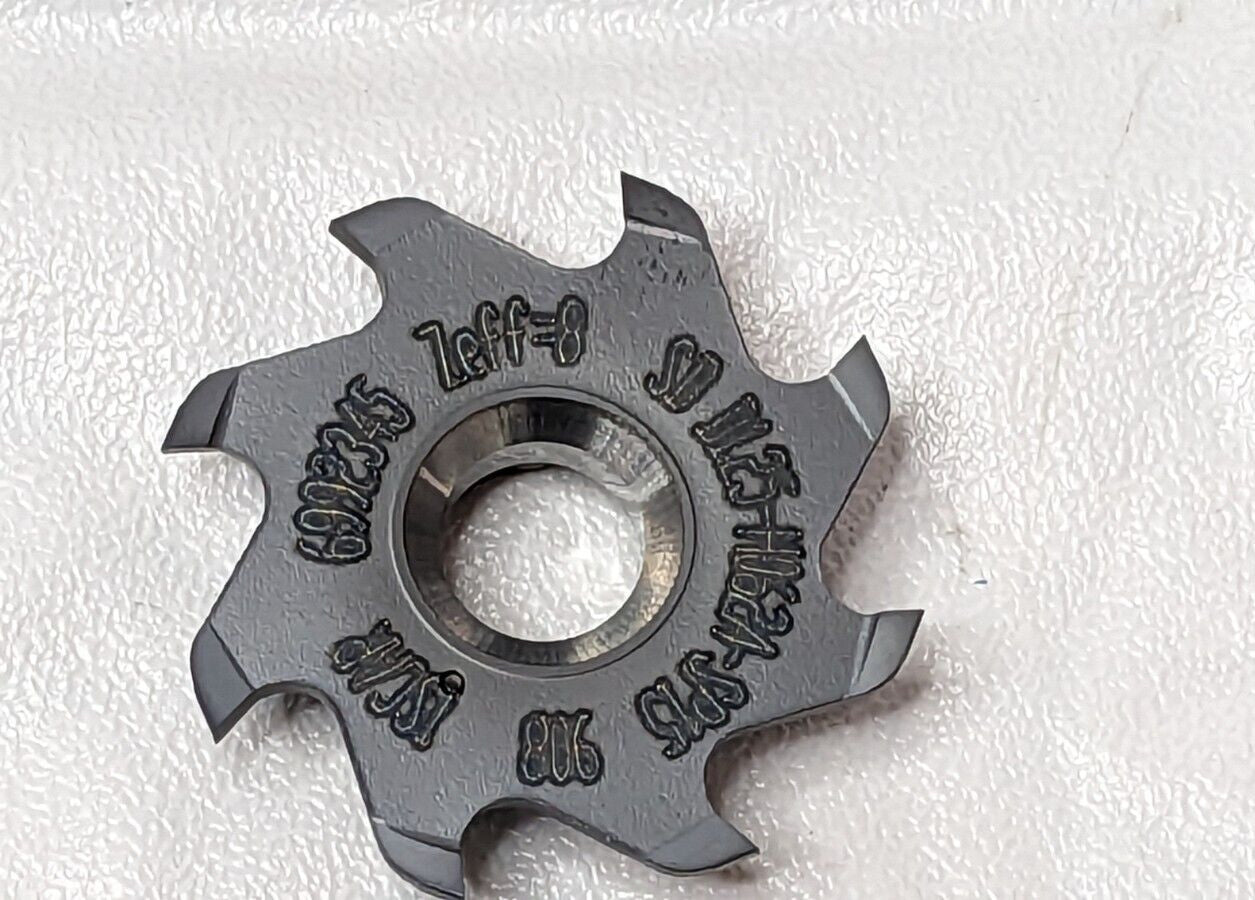

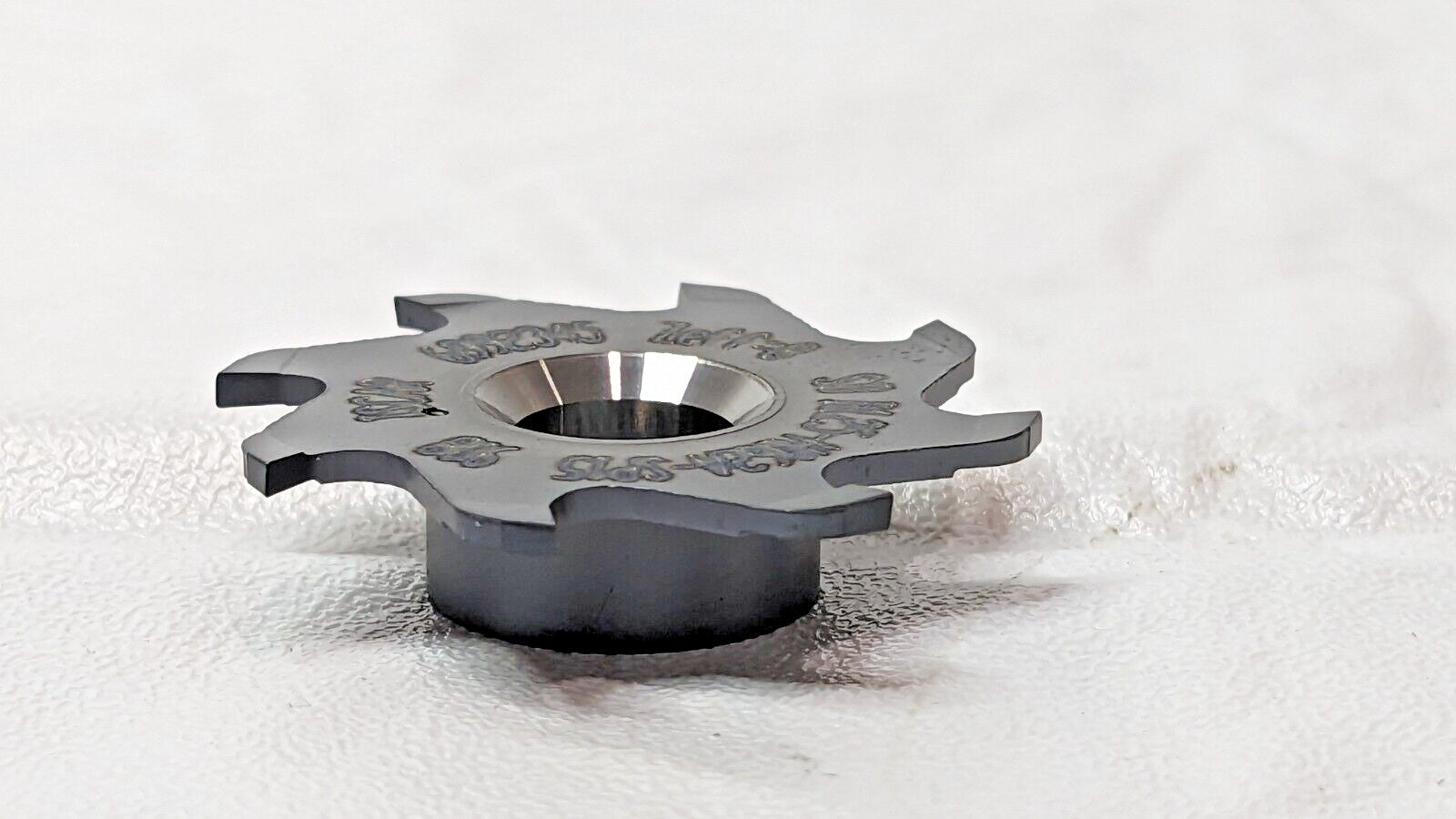

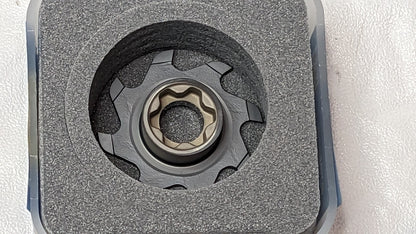

Iscar Carbide T-Slot Milling Tip Insert 8FL SD D1.25-H062A-SP15 IC908 5667104

Iscar
Carbide T-Slot Milling Tip Insert

MSRP: $155

• Milling Tip Type T-Slot
• Milling Tip Style SD-SP
• Maximum Depth of Cut (Decimal Inch) 0.3150
• Cutting Diameter (Decimal Inch) 1.2380
• Tool Material Carbide
• Manufacturer Grade IC908
• Insert Hand Right Hand
• Chipbreaker None
• Series SD-SP
• Coating Process PVD
• Corner Radius (Decimal Inch) 0.0080
• Cutting Width (Decimal Inch) 0.062
• Functional Length (Decimal Inch) 0.3150
• Primary Workpiece Material Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; H; K; M; N
• Standards ANSI
• Milling Tip Full Description SD D1.25-H062A-SP15
• Lead Angle 90
• Manufacturers Catalog Number 5667104
• Chamfer Angle 0
• Overall Length (Decimal Inch) 0.315
• Insert Size D1.25-H062A
• Coolant Through No
• Material Grade Sub Micrograin
• Included Angle Degree 90
• Coating/Finish TiAlN
• UNSPSC Code 23291601
• Length Of Cut (Decimal Inch - 4 Decimals) 0.3150
• Number Of Flutes 8

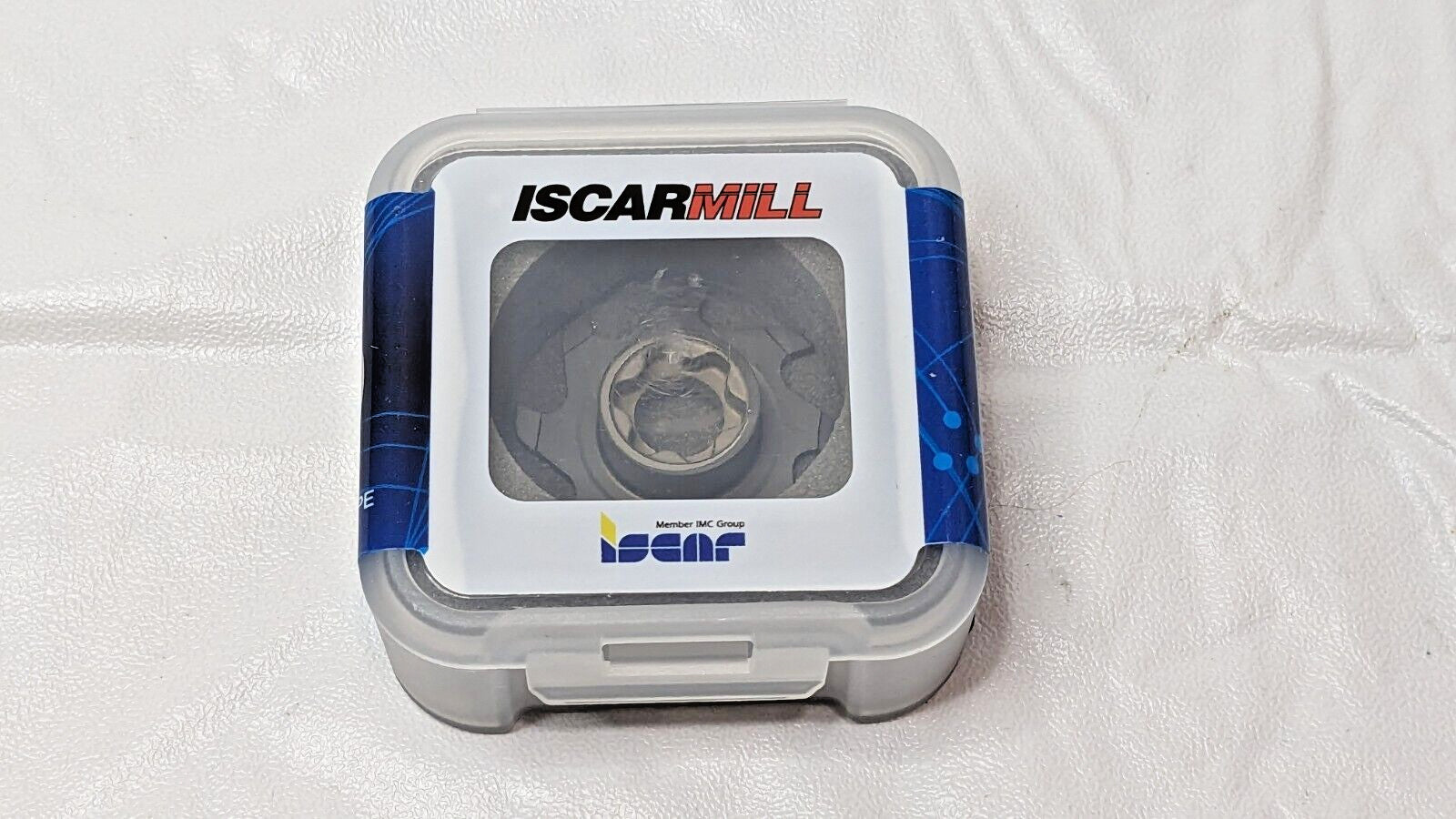

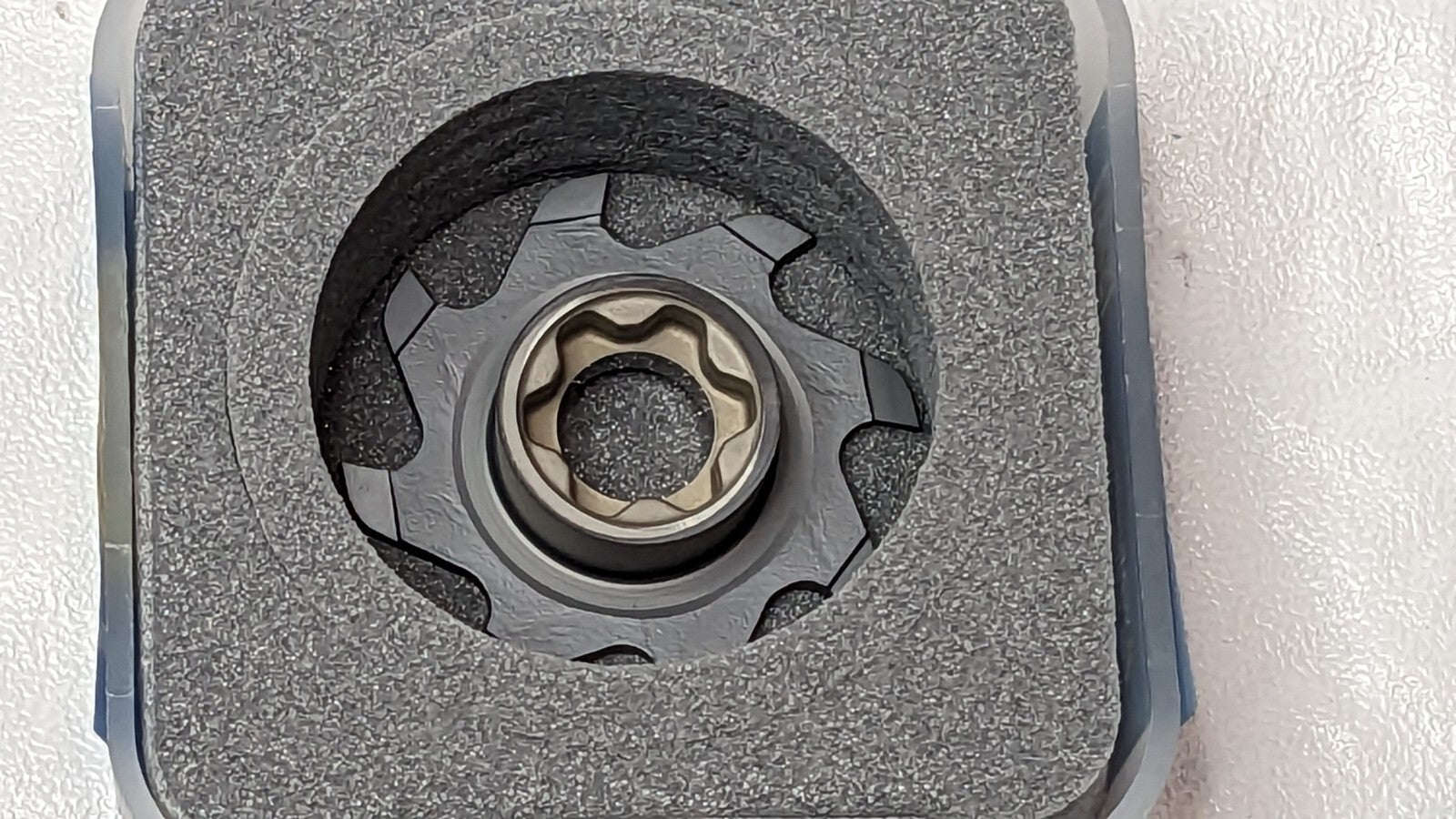

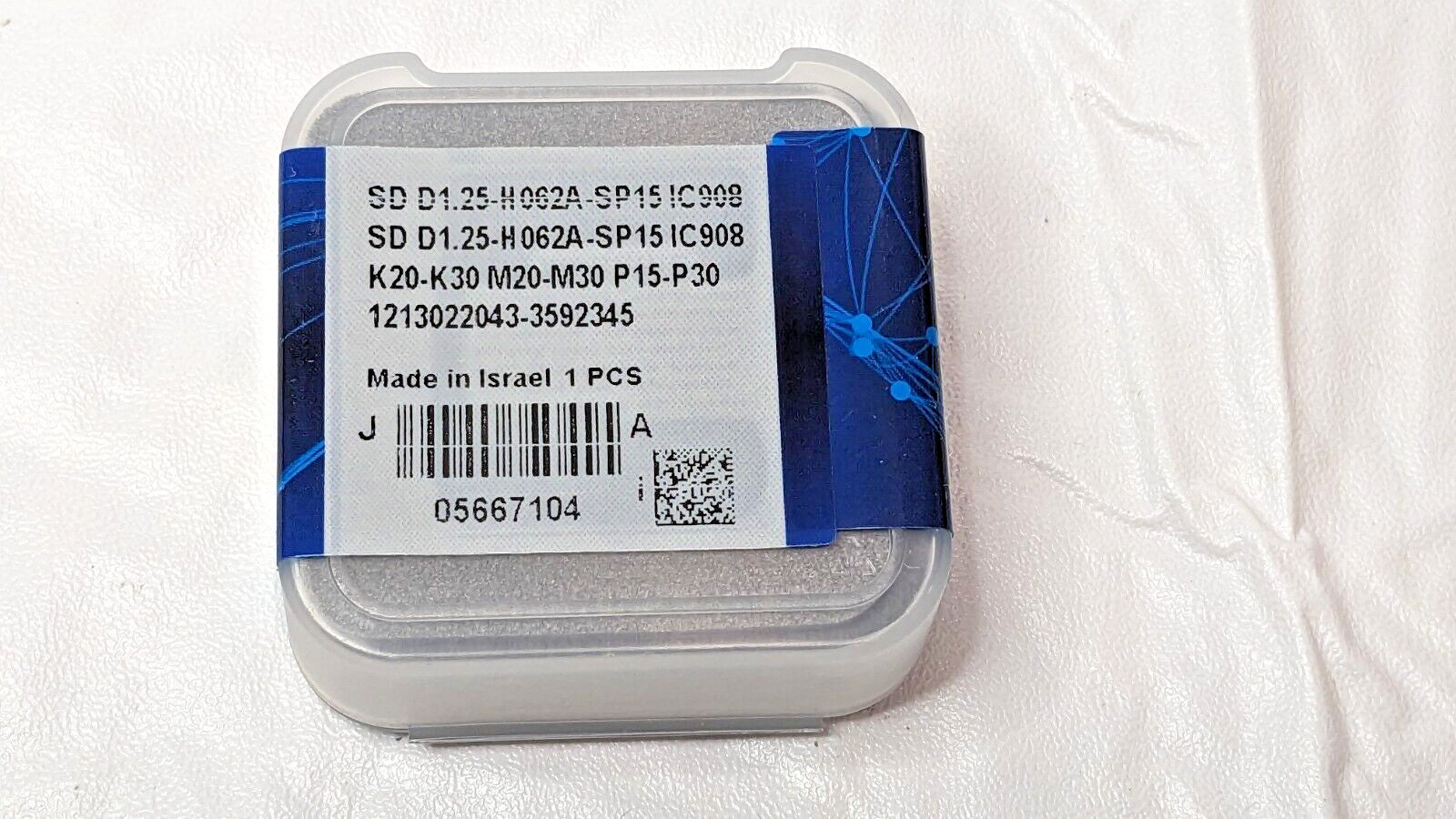

*Open package for inspection & photos only*

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
