Iscar Carbide Replaceable Drill Tips ICP 0744 0.7440" Dia 18.90 mm QTY2 5506642

Iscar
Carbide Replaceable Drill Tips 1 pack of 2

MSRP: $315

• Cutting Diameter (Decimal Inch) 0.7440
• Cutting Diameter (mm) 18.90
• Tip Material Solid Carbide
• Manufacturer Grade IC908
• Material Grade Submicron
• Series ICP
• Coating Process PVD
• Insert Geometry P
• Insert Seat Size 18
• Functional Length (Decimal Inch) 0.2998
• Primary Workpiece Material Steel
• Primary Workpiece Material Code P
• Secondary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium
• Secondary Workpiece Material Code S; H; K; M
• Standards ISO 13399
• Height (Decimal Inch) 0.413
• Height (mm) 11.00
• Overall Length/Projection (Decimal Inch) 0.4137
• Web Thinning Web Thinned
• Drill Point Angle 140
• Flute Type Helical
• Insert Holding Method Clamp
• ISO Number ICP 189
• Coolant Through No
• Flute Length (mm) 8.00
• Point Type Standard
• Spiral Type Regular Spiral
• Style ICP
• Applications Drilling; Chamfering; Gundrills; Hole Making
• UNSPSC Code 23242105
• Coating/Finish TiAlN
• Included Angle Degree 140
• Number Of Flutes 2

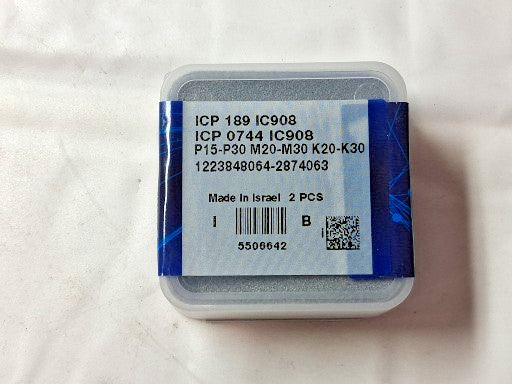

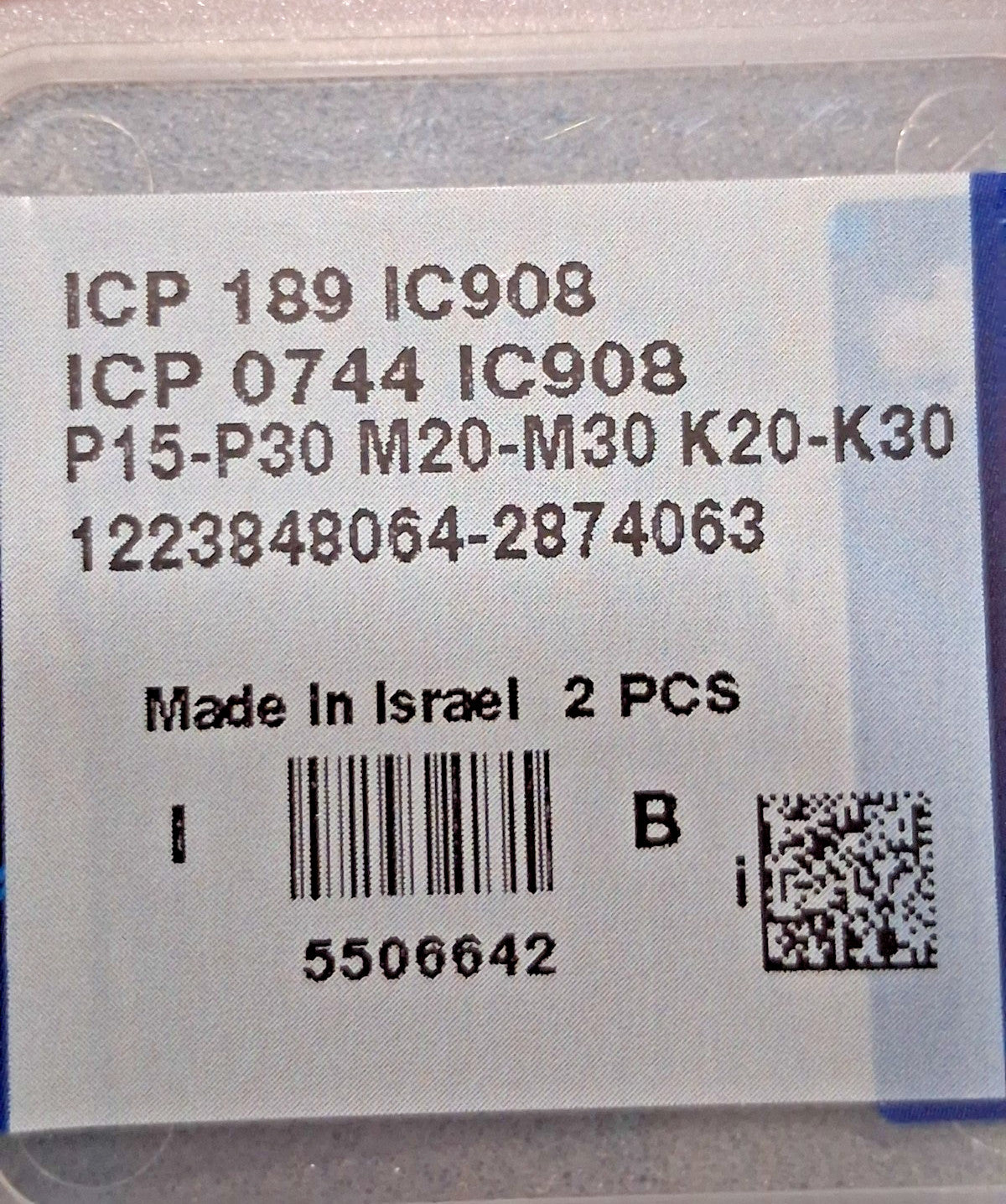

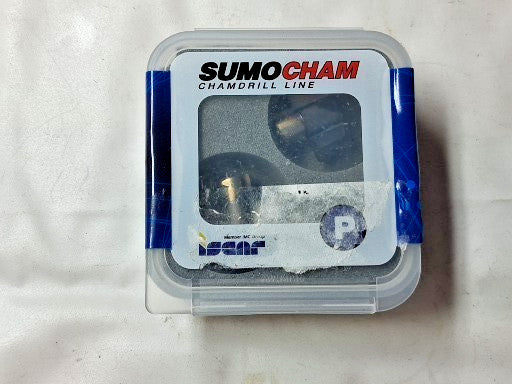

Please review photos, comes as shown.
