Iscar Carbide Profiling Inserts QTY10 KNUX 3331 R11 5504866

Iscar
Carbide Profiling Inserts box of 10 inserts

MSRP: $275

• Insert Style: KNUX Insert Size Code: 1604
• Insert Material: Carbide Material Grade: M20; M30; P30; P20
• Width (Inch): 3/8 Manufacturer Grade: IC9025
• Thickness (Inch): 3/16 Insert Height (Decimal Inch): 0.1875
• Thickness (mm): 4.75 Maximum Depth of Cut (Decimal Inch): 0.1576
• Maximum Depth of Cut (mm): 4.00 Insert Holding Method: Screw
• Insert Hand: Right Hand Corner Radius (Decimal Inch): 0.5000
• Corner Radius (mm): 0.51 Included Angle: 55.00
• Relief Angle: 0.000 Chipbreaker: None
• Inscribed Circle (Decimal Inch): 0.3751 Inscribed Circle (Inch): 3/8
• Inscribed Circle (mm): 9.53 Series: KNUX
• Coating Process: CVD Rake: Negative
• Insert Length (Decimal Inch): 0.7770 Number Of Cutting Edges: 4
• Hole Diameter (Decimal Inch): 0.0000 Primary Workpiece Material: Stainless Steel; Steel
• Primary Workpiece Material Code: P; M Iso Code: ISO 13399
• Standards: KNUX 160405 R11 Rake Angle: -12.000
• Side Length (Decimal Inch): 0.7770 Side Length (mm): 19.71
• Shape: Parallelogram Applications: Profiling; Turning
• MSC/Manufacturer Number: KNUX 160405 R11 Coating Classification: CVD
• Coating/Finish: TiCN; TiN; Al2O3 Thickness (Decimal Inch - 4 Decimals): 0.1875
• Width (Decimal Inch - 4 Decimals): 0.3751 UNSPSC Code: 23242105

(New in the box. Taken out for inspection and photos.

Outside packaging may be slightly damaged, scuffed or dirty.

Items inside are fine. Comes with instructions. NO warranty is included).

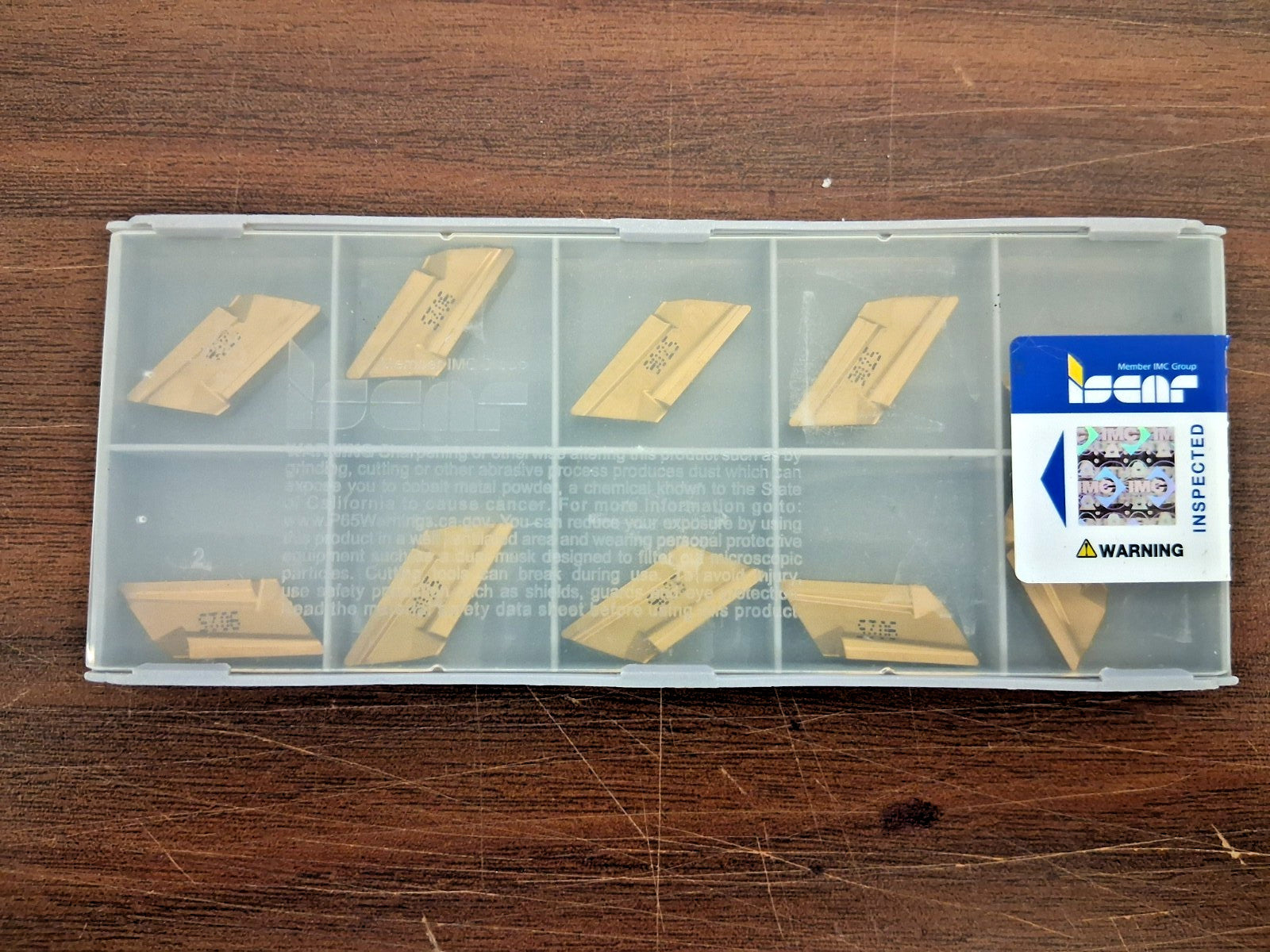

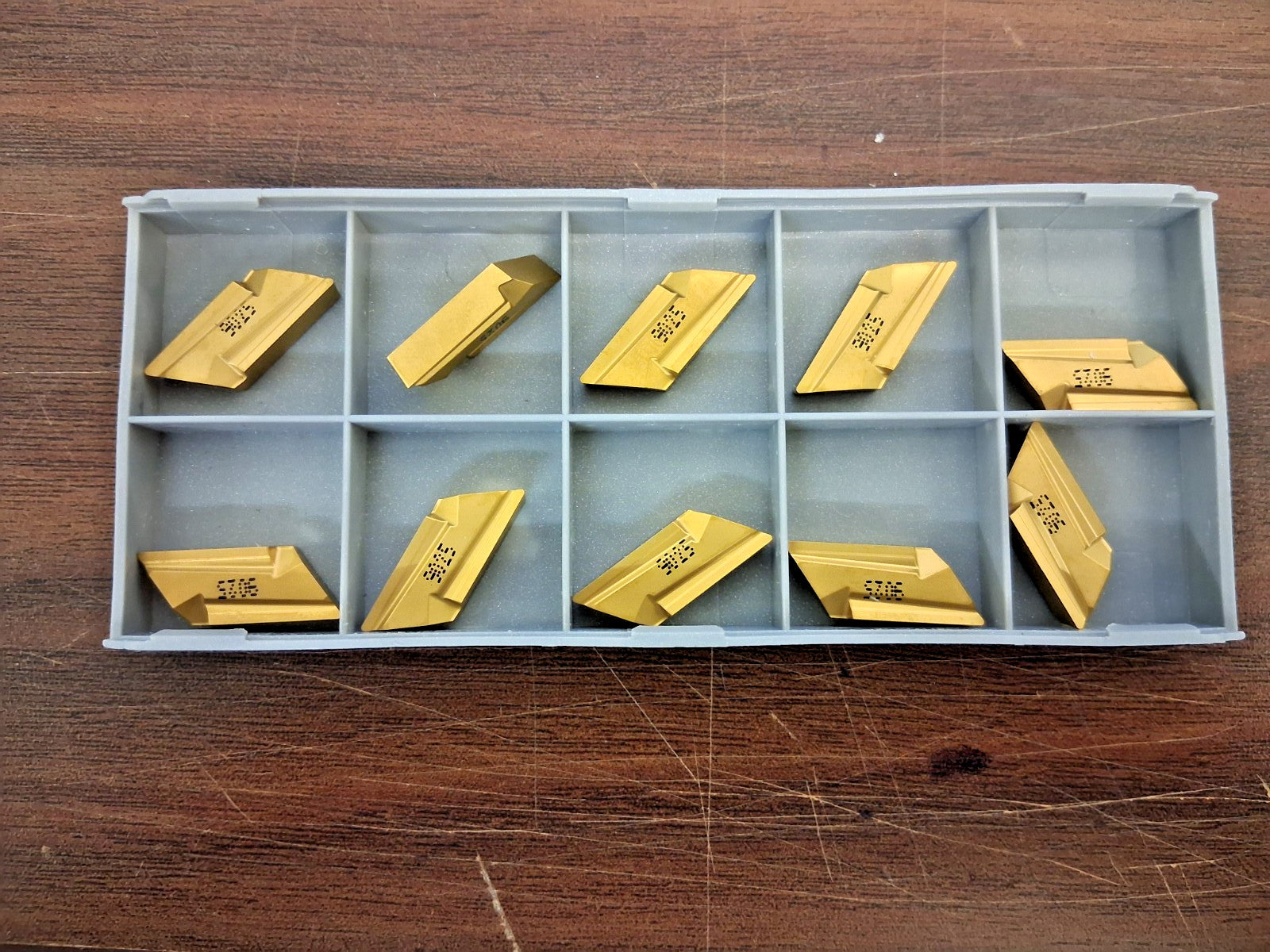

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
