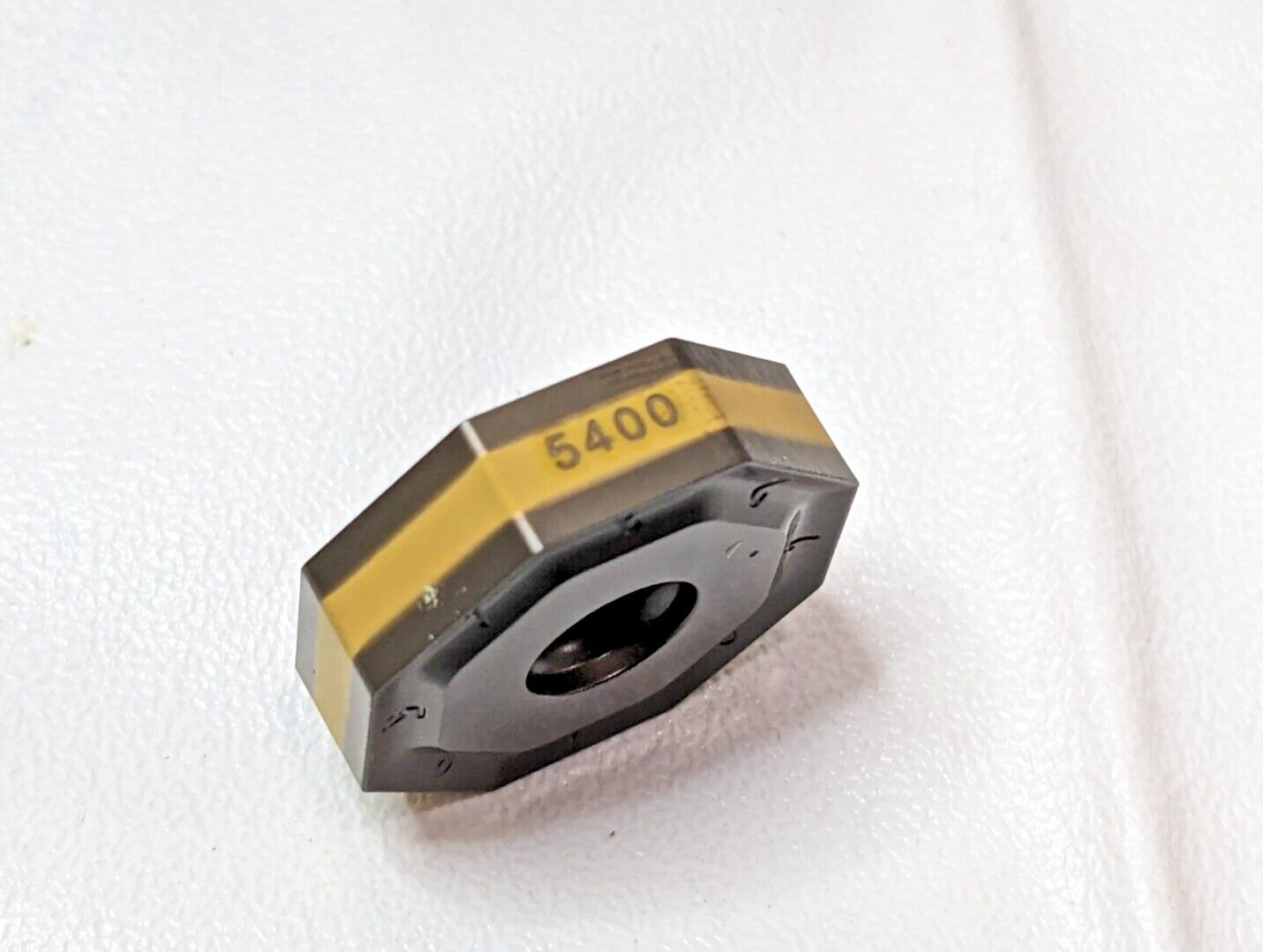

Iscar Carbide Milling Inserts ONMU 080608-TN-MM IC5400 QTY 10 Pcs 5606671

Iscar
Carbide Milling Inserts

MSRP: $200

• Insert Style ONMU
• Insert Size 08
• Insert Material Solid Carbide
• Insert Shape Octagon
• Manufacturer Grade IC5400
• Corner Radius (Decimal Inch) 0.0315
• Corner Radius (mm) 0.80

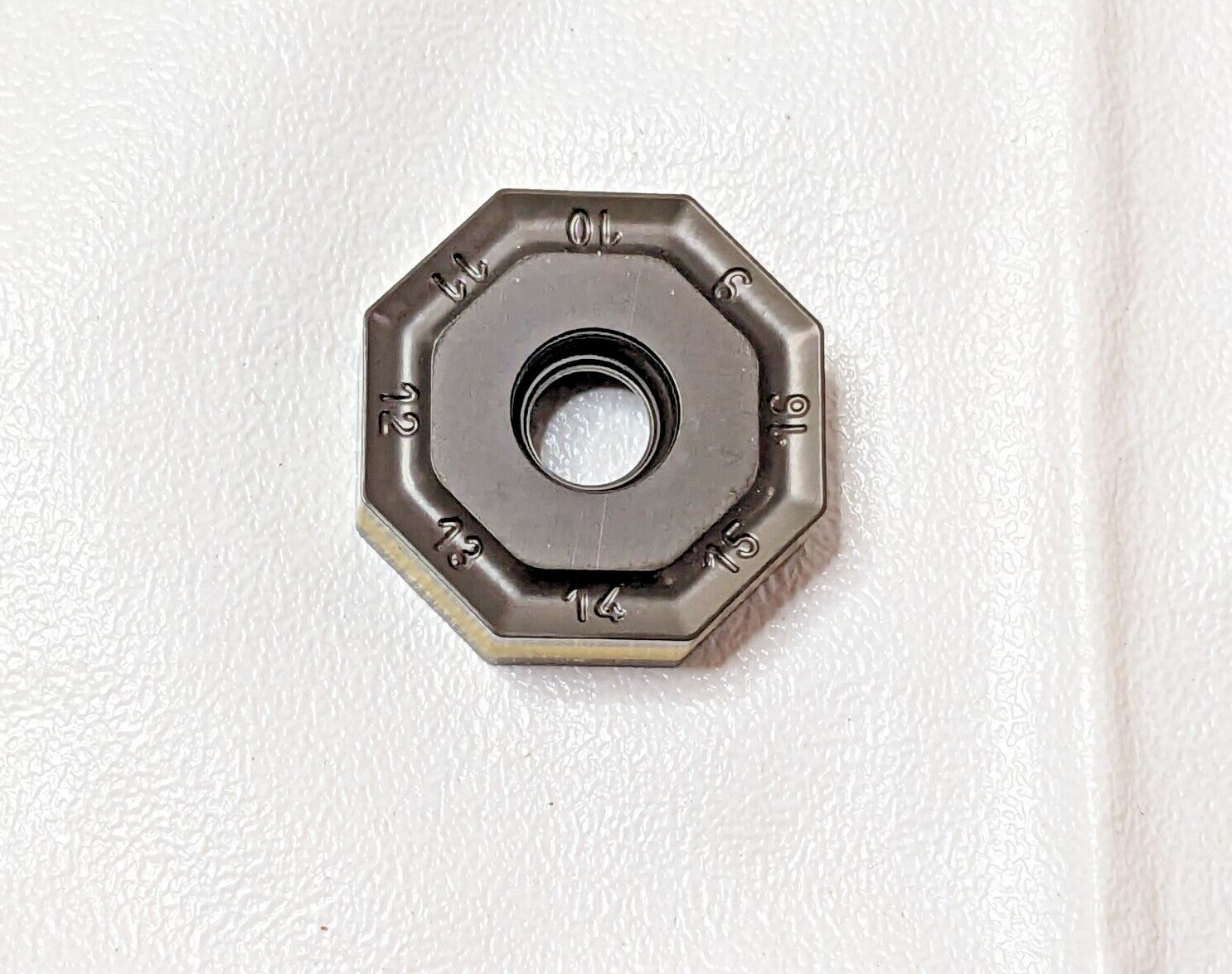

• Number Of Cutting Edges 16
• Thickness (Decimal Inch - 4 Decimals) 0.2360
• Coating/Finish TiCN; TiN; Al2O3
• Relief Angle 0.00
• Maximum Depth of Cut (Decimal Inch) 0.2170
• Maximum Depth of Cut (mm) 5.50
• Insert Size Code 080608
• Inscribed Circle (Decimal Inch) 0.7953
• Thickness Range (Decimal Inch) 0.2350 to 0.2500
• Corner Radius (Inch) 1/32
• Inscribed Circle Range (Decimal Inch) 0.7000 to 1.0000
• Length Range (Decimal Inch) 0.7000 to 0.9000
• Insert Hand Neutral
• Series 16MILL
• Coating Process MTCVD
• Cutting Edge Effective Length (Decimal Inch) 0.2170
• Rake Negative
• Primary Workpiece Material Stainless Steel; Steel
• Primary Workpiece Material Code P; M
• Ansi Code ONMU 080608-TN-MM IC5400
• Iso Code ONMU 080608-TN-MM
• Standards ISO 13399; ANSI
• Rake Angle 24
• Cutting Edge Style T-Land
• Manufacturers Catalog Number ONMU 080608-TN-MM IC5400
• Cutter Series Compatibility F45NM; F45WG
• Chip Breaker MM
• Material Application Stainless Steel; Steel
• UNSPSC Code 23291601
• Insert Holding Method Screw
• Coating Classification CVD
• Single or Double Sided Insert Double
• Included Angle Degree 135
• Width (Decimal Inch - 4 Decimals) 0.7953
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.7953
• System Of Measurement Decimal Inch

*Open package for inspection & photos only*

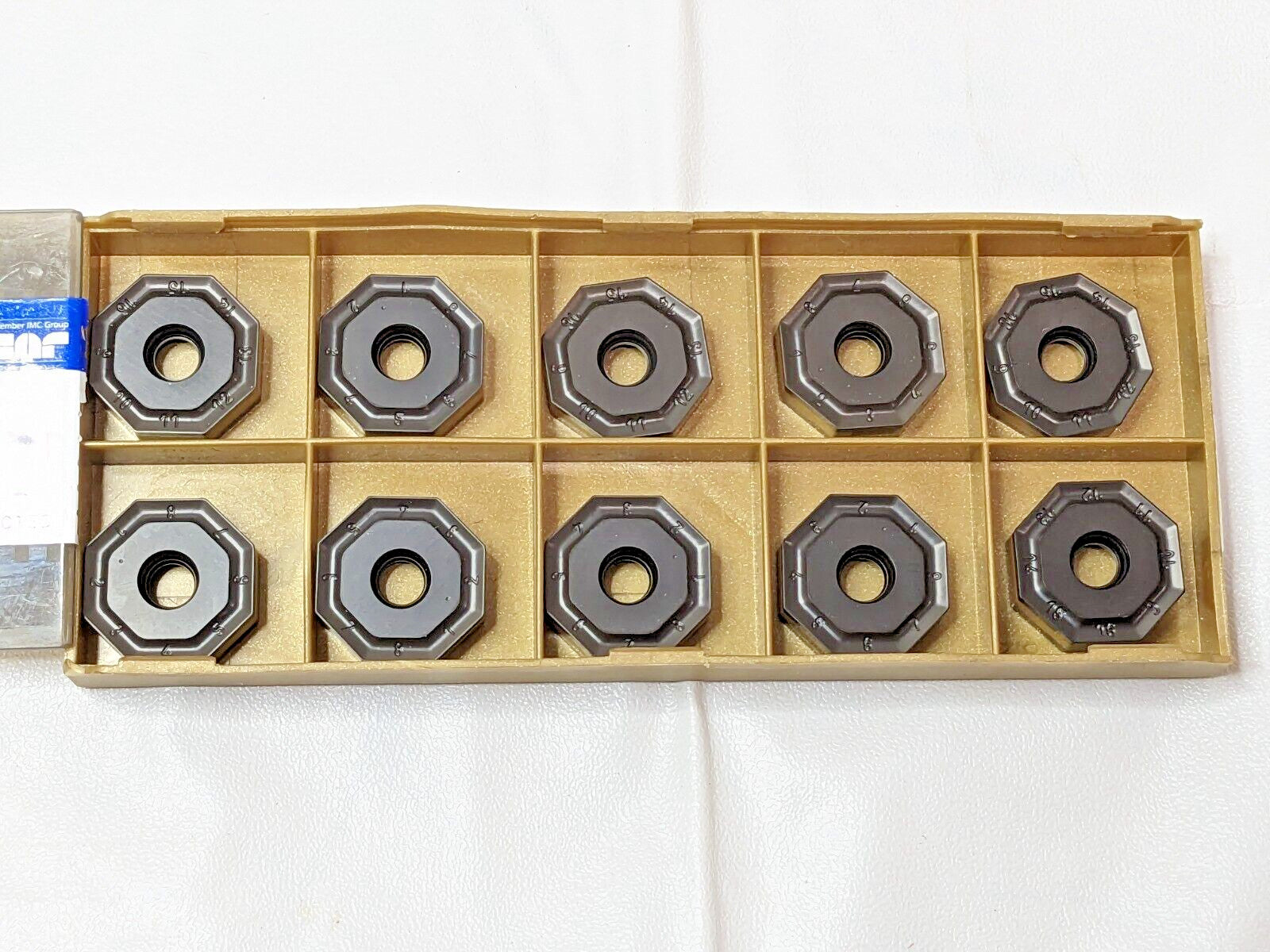

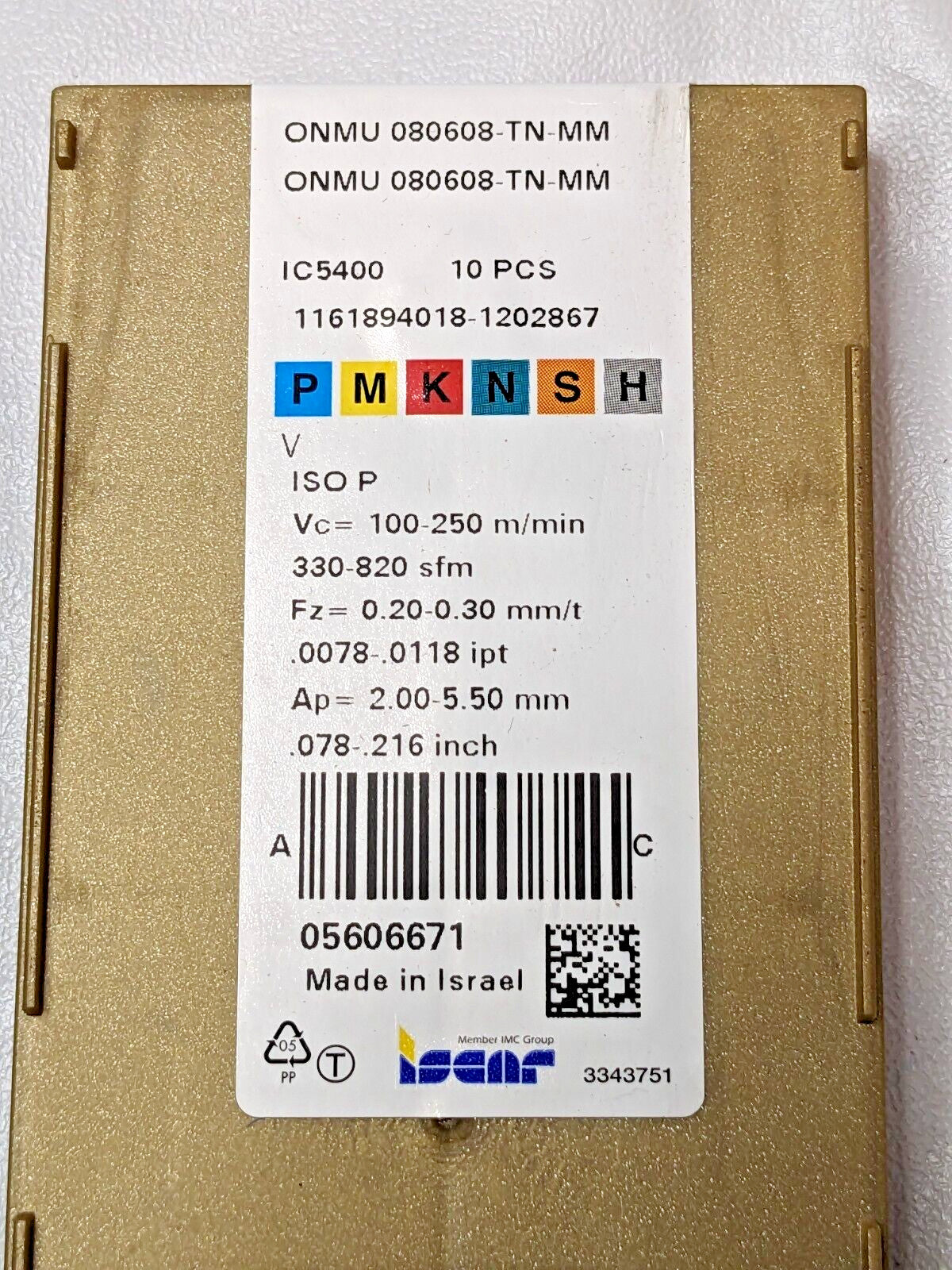

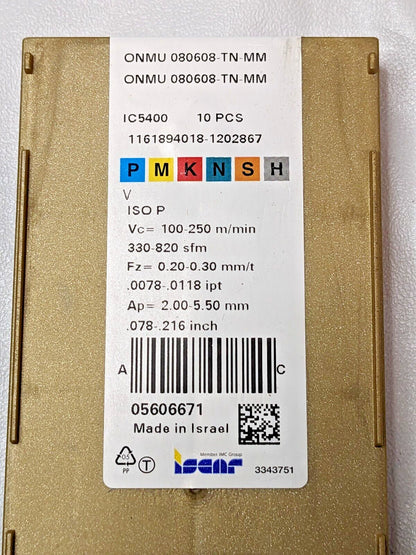

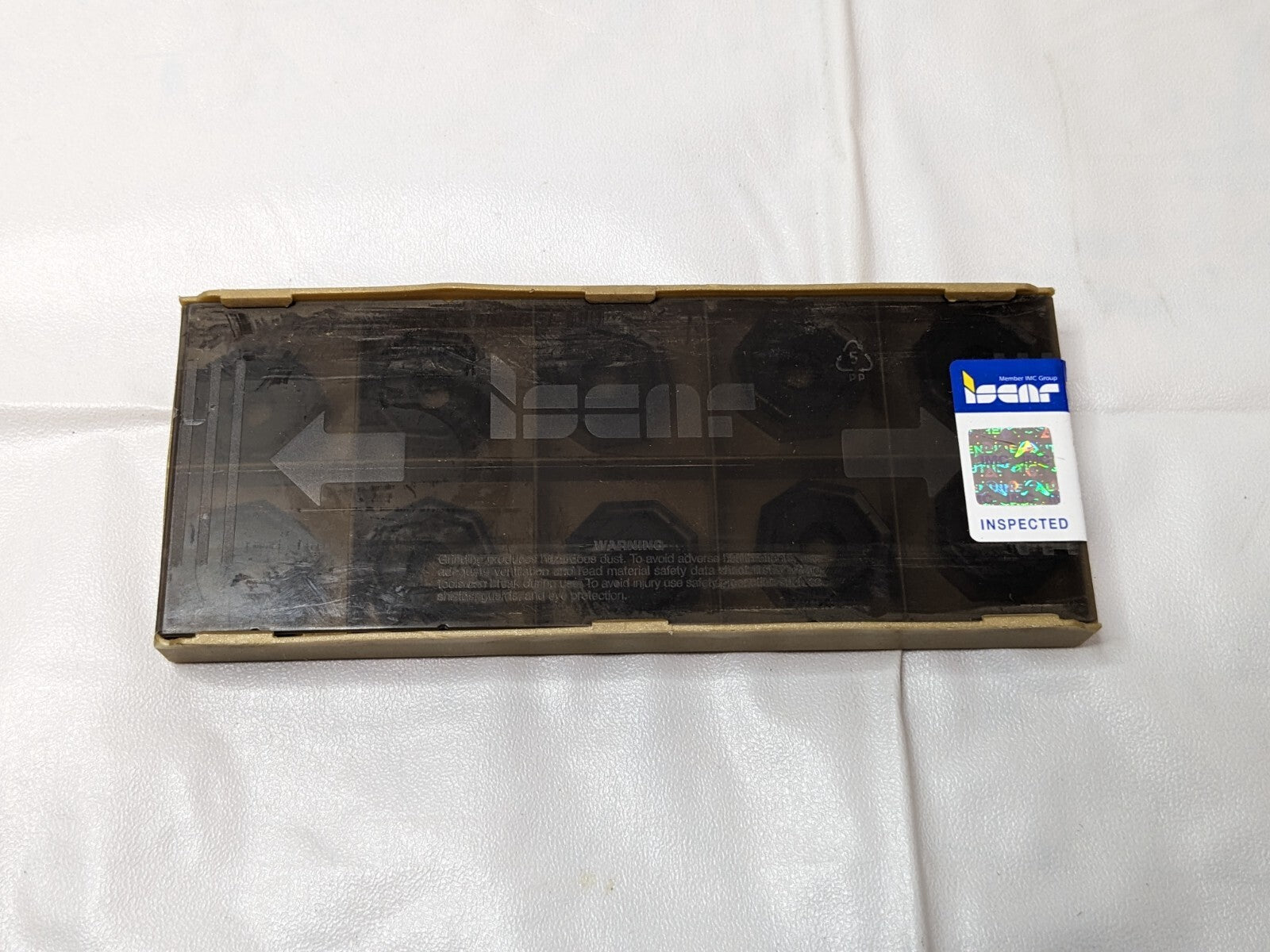

Please review photos, comes as shown.
