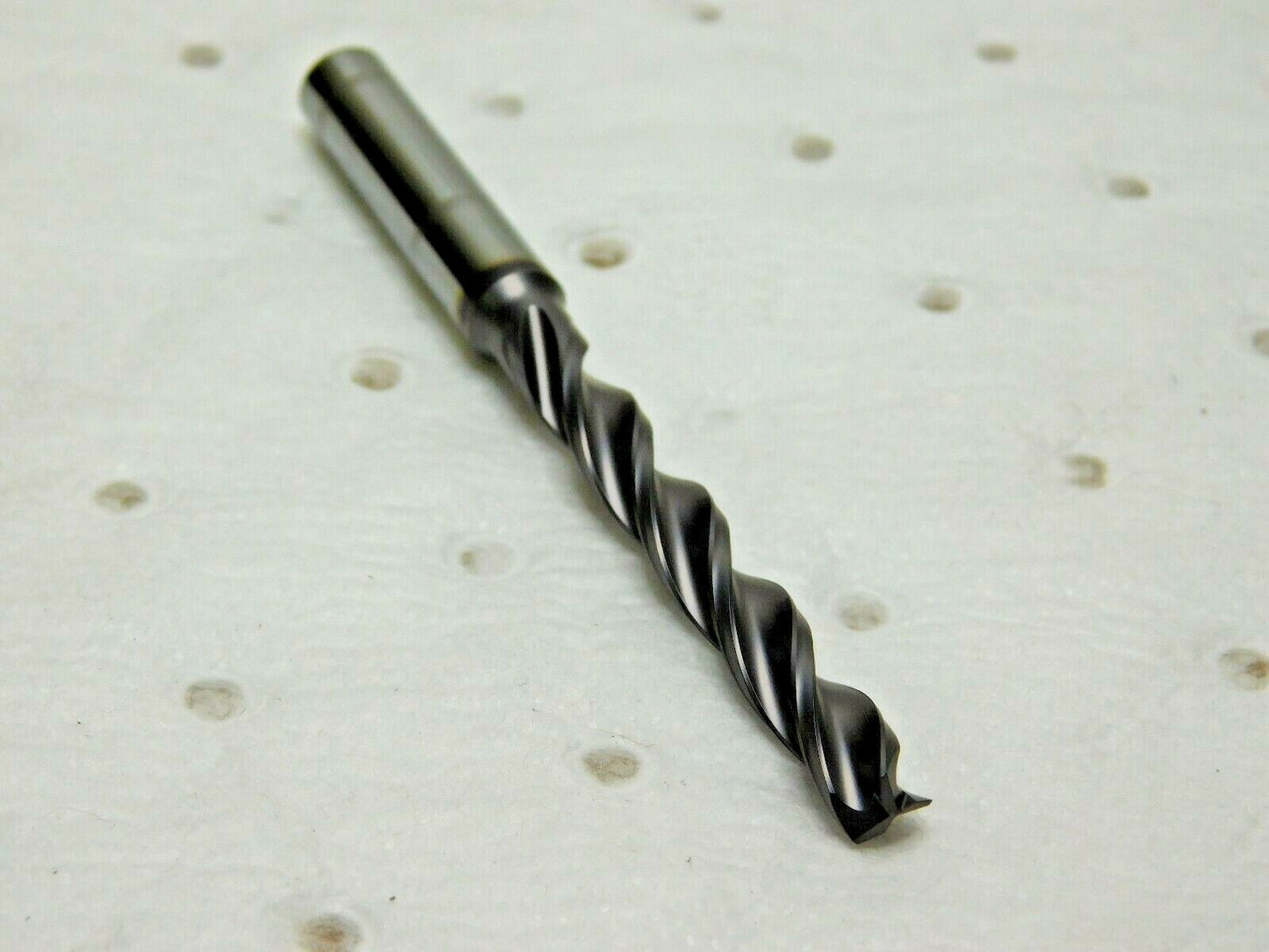

Iscar Carbide Jobber Drill RH 4mm 150° SCCD 063-043-080 AP5 Grade IC908 5531200
Iscar Carbide Jobber Drill RH 4mm 150° SCCD 063-043-080 AP5 Grade IC908 5531200
Regular price
$47.17 USD
Regular price
$100.00 USD
Sale price
$47.17 USD
Shipping calculated at checkout.
Iscar
MSRP: $100
Model: 5531200
Description:
Drill Bit Size (mm) 6.30
Drill Bit Size (Decimal Inch) 0.2480
Drill Point Angle 150
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating TiAlN
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Coolant Through No
Flute Length (mm) 53.00
Overall Length (mm) 91.00
Flute Length x Diameter Ratio 5xD
Point Type Standard
Shank Diameter (mm) 8.00
Maximum Drilling Depth (mm) 43.00
Spiral Type Regular Spiral
Specification Designation DIN
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) 0.006 to 0.021
Number of Flutes 3
Specification Number DIN 6537
Material Grade Submicron
Series/List SCCD-AP5
This listing is for One Jobber Drill that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
