Iscar Carbide Jobber Drill RH 4mm 150° SCCD 040-029-060 AP5 Grade IC908 5531184
Iscar Carbide Jobber Drill RH 4mm 150° SCCD 040-029-060 AP5 Grade IC908 5531184
Regular price
$35.38 USD
Regular price
$75.00 USD
Sale price
$35.38 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Iscar
MSRP: $75
Model: 5531184
Description:
Drill Bit Size (mm) 4.00
Drill Bit Size (Decimal Inch) 0.1570
Drill Point Angle 150
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating TiAlN
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Coolant Through No
Flute Length (mm) 36.00
Overall Length (mm) 74.00
Flute Length x Diameter Ratio 5xD
Point Type Standard
Shank Diameter (mm) 6.00
Maximum Drilling Depth (mm) 29.00
Spiral Type Regular Spiral
Specification Designation DIN
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) 0.004 to 0.016
Number of Flutes 3
Specification Number DIN 6537
Material Grade Submicron
Series/List SCCD-AP5

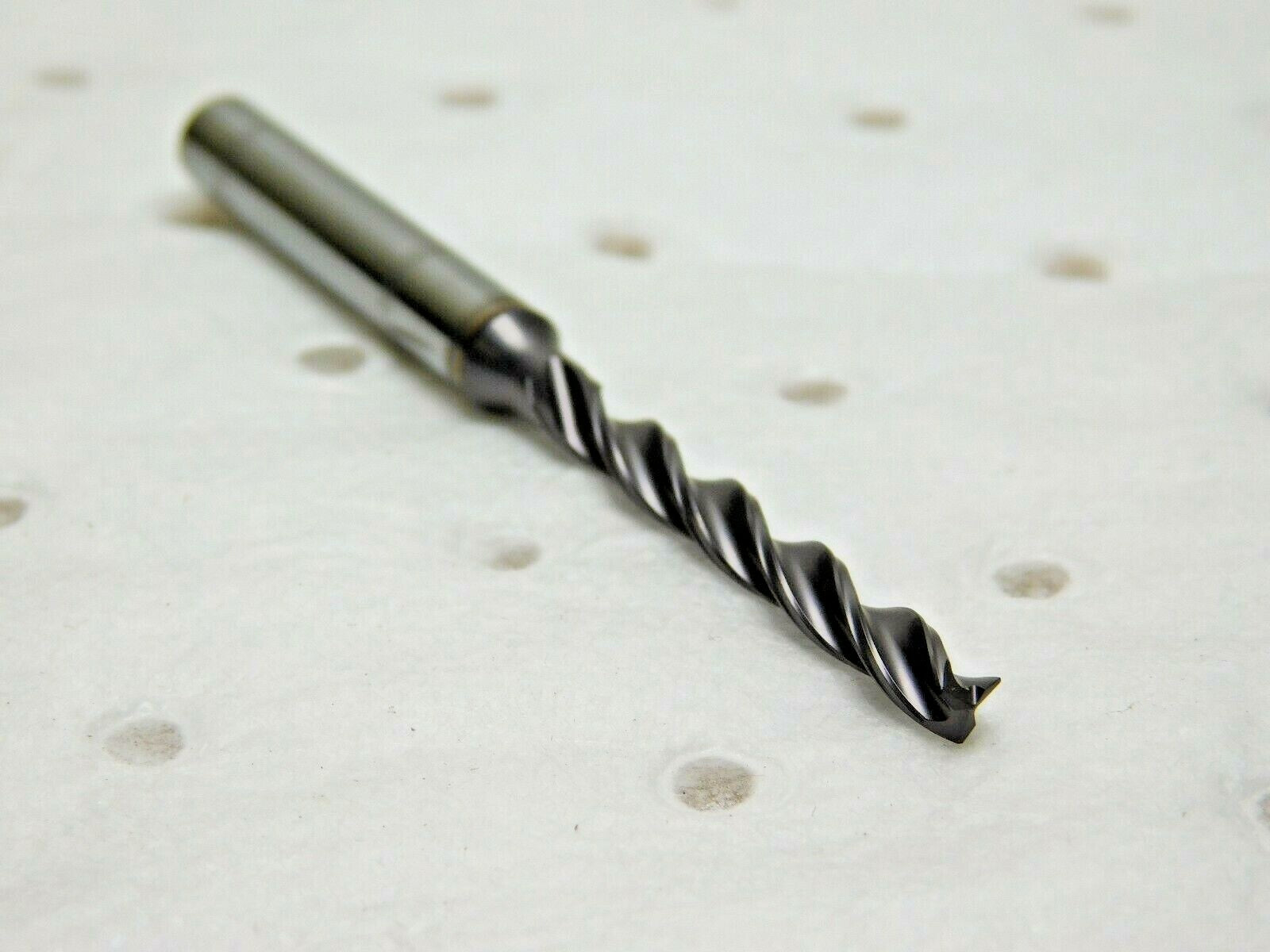

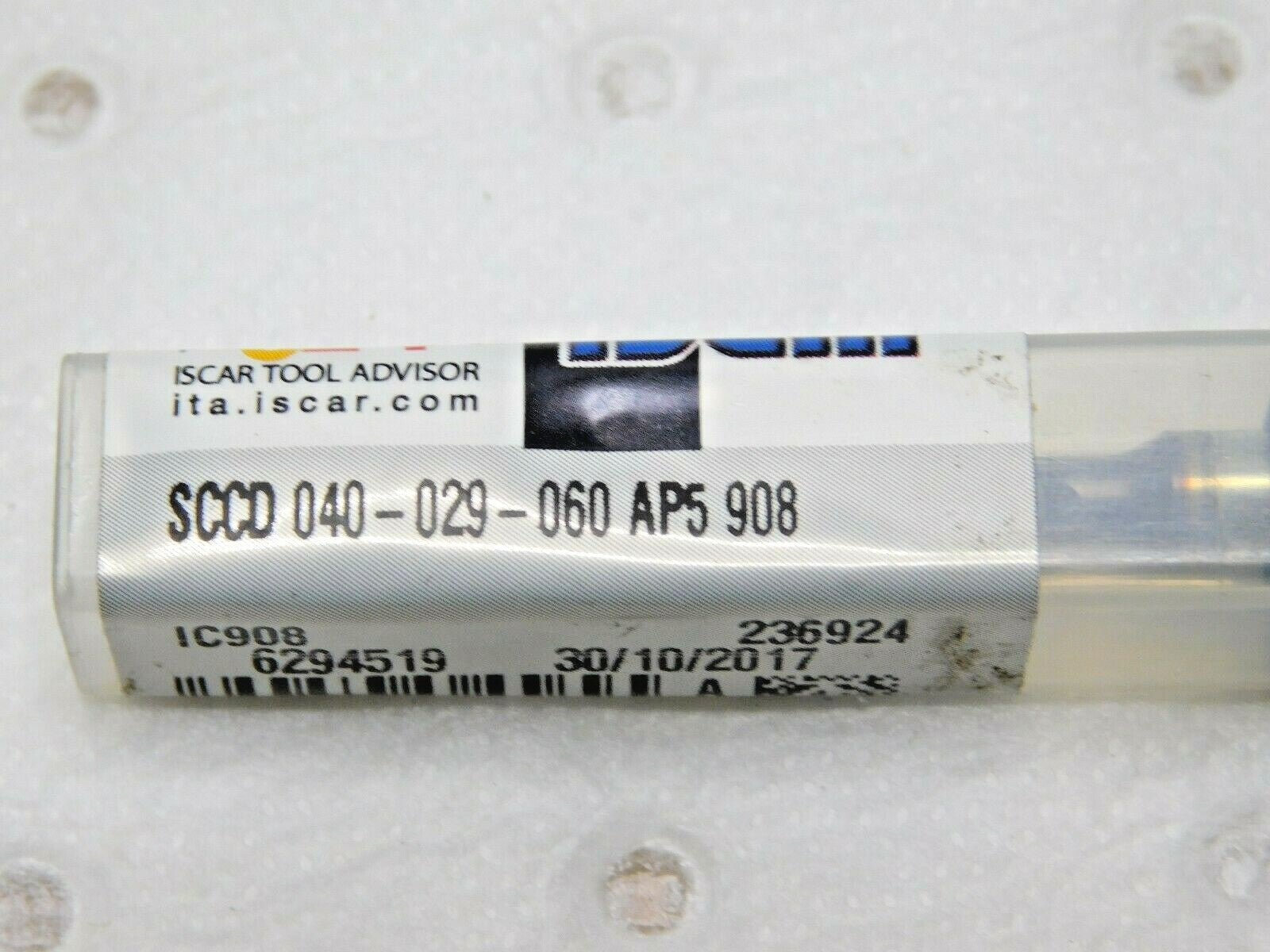

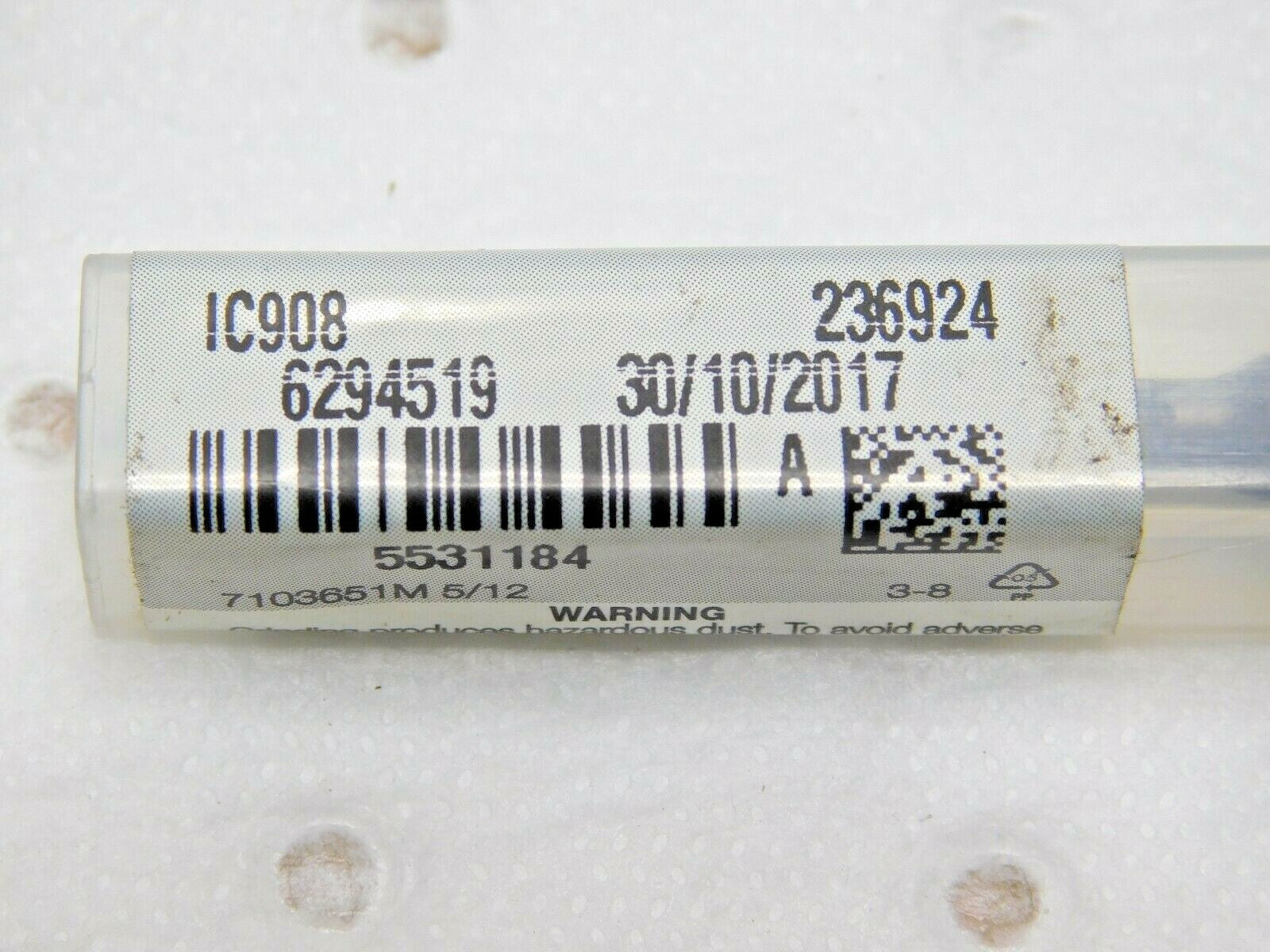

This listing is for One Jobber Drill that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
