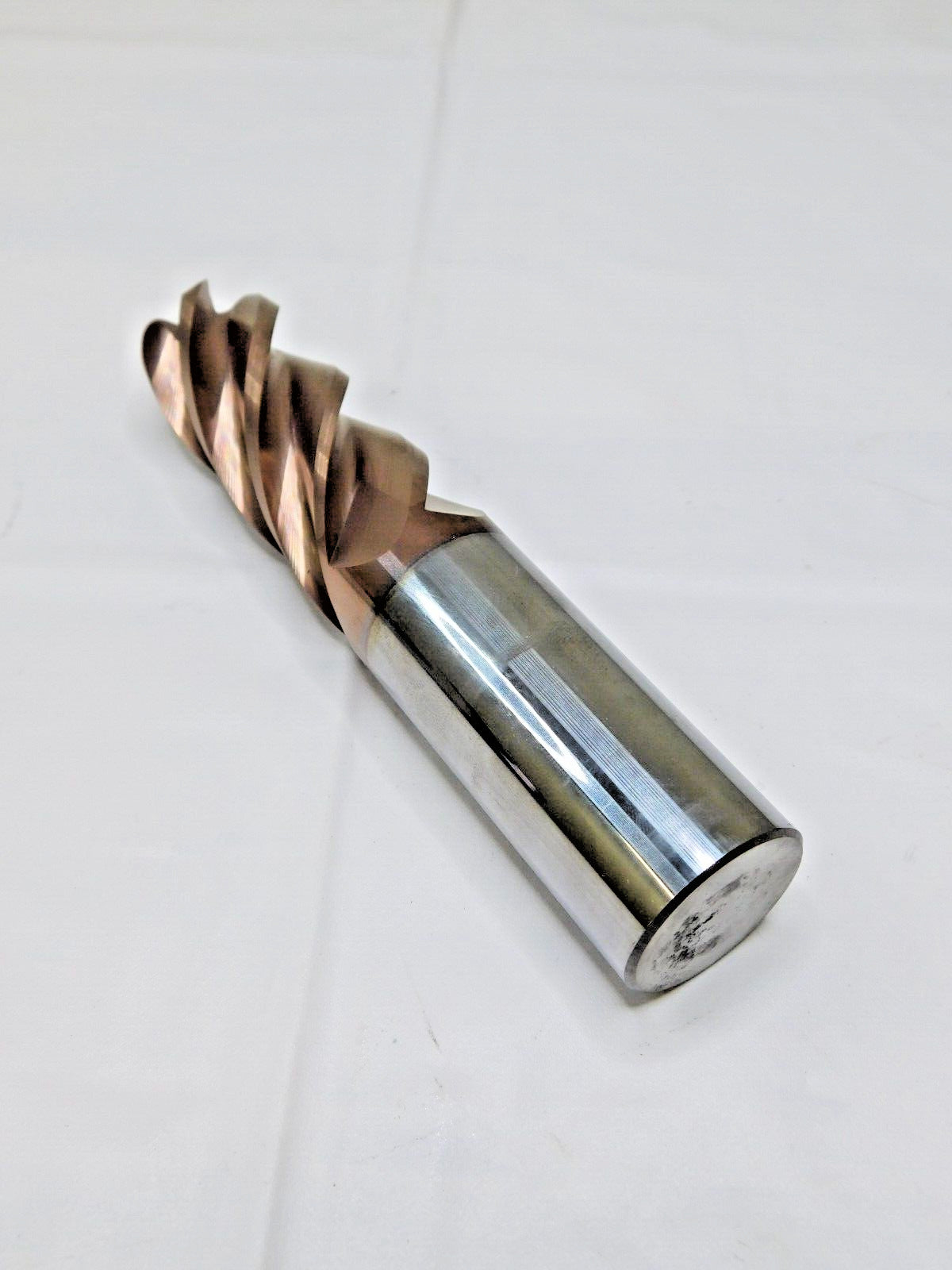

Iscar Carbide End Mill 1"CD X 5"OAL 5FL ECYI-S5R 1.0-2.00C250CFS5 IC608 3385659

ISCAR
Carbide End Mill

MSRP: $500

• Cutting Diameter (DC) 1″
• Application Helical Interpolation | Rampdown | Shouldering | Slotting
• Connection Diameter Machine Side (DCONMS) 1″
• Corner Radius (RE) 1/4″
• Depth of Cut Maximum (APMX) 2″
• Ramping Angle Maximum (RMPX) 5 Degrees
• Overall Length (OAL) 5″
• Grade IC608
• Cutting Edge Material Carbide
• Tool Type Solid carbide non center cutting endmills 90 Degrees
• Coating AlTiCrSiN
• Coolant Supply Property (CSP) External
• Flute Count (NOF) 5
• Body Material Carbide
• Flute Helix Angle (FHA) 37 Degrees
• Decimal Equivalent 1″
• Shank Type Round
• Measurement Type Inch
• End Shape Corner Radius
• Connection Code Machine Side (CCMS) Cylindrical
• Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys |

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
