Iscar Carbide Ball End Mill 5mm Diam 2FL EB-A2 05-05/10C06H80 IC903 5650091
Iscar Carbide Ball End Mill 5mm Diam 2FL EB-A2 05-05/10C06H80 IC903 5650091
Regular price
$39.16 USD
Regular price
$80.00 USD
Sale price
$39.16 USD
Shipping calculated at checkout.
Iscar
MSRP: $80
Model: 5650091
Description:
Mill Diameter (mm) 5.00
Mill Diameter (Decimal Inch) 0.1969
Number of Flutes 2
Length of Cut (mm) 5.00
Length of Cut (Decimal Inch) 0.1969
Material Solid Carbide
Overall Length (mm) 80.00
Shank Diameter (mm) 6.00
Finish/Coating TiAlN
Single or Double End Single
Helix Angle 30.00
Variable Index No
Variable Helix No
Extended Reach Yes
Nose Radius (Decimal Inch) 0.0980
Helix Style Medium
Mill Diameter Tolerance (mm) -0.020 to 0.038
Flute Type Spiral
Undercutting No
Shank Diameter Tolerance (mm) 0.000/-0.009
Length Type Stub
Reach Length (mm) 10.00
Cutting Direction Right Hand
Flute Direction Right Hand

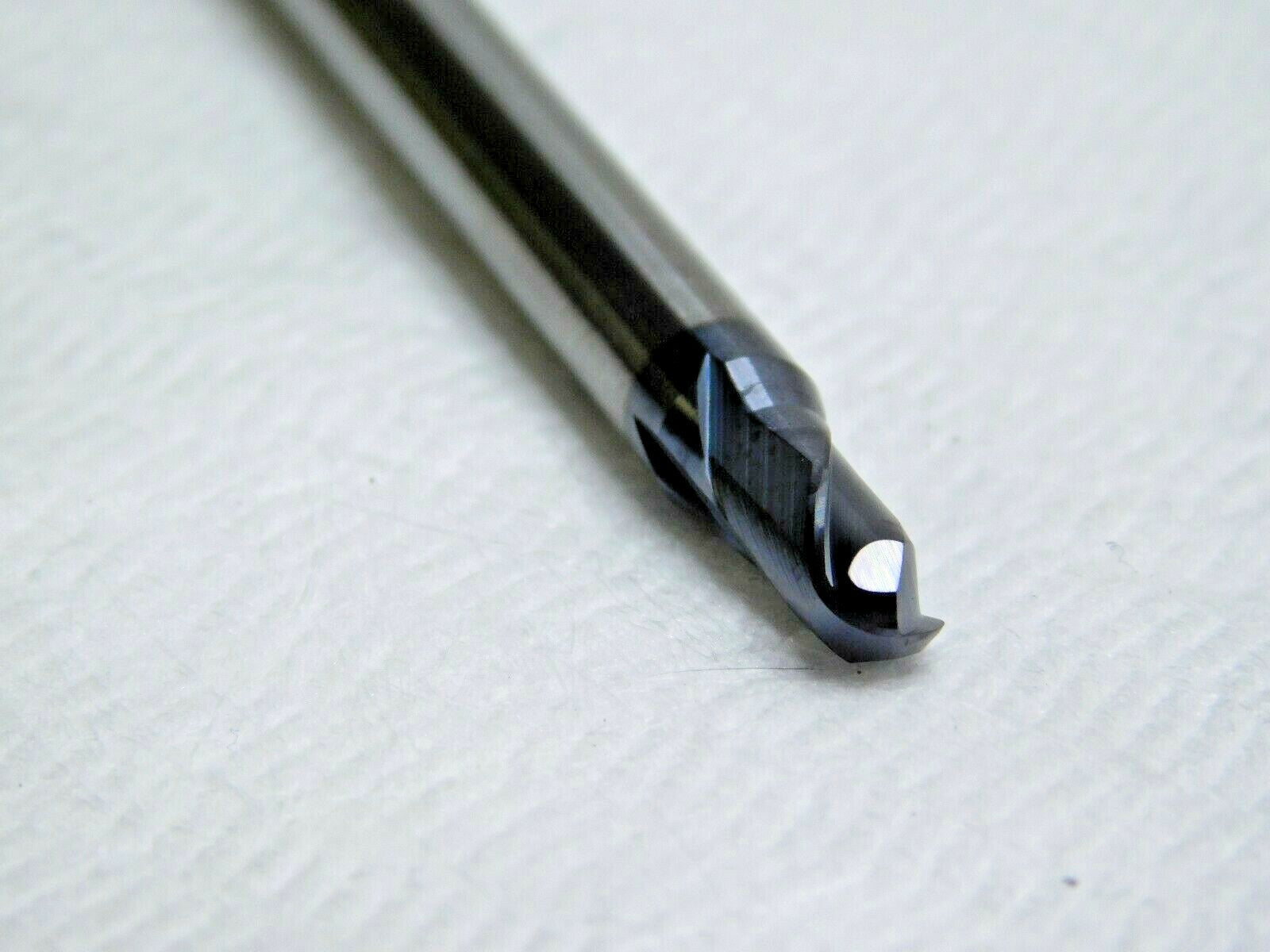

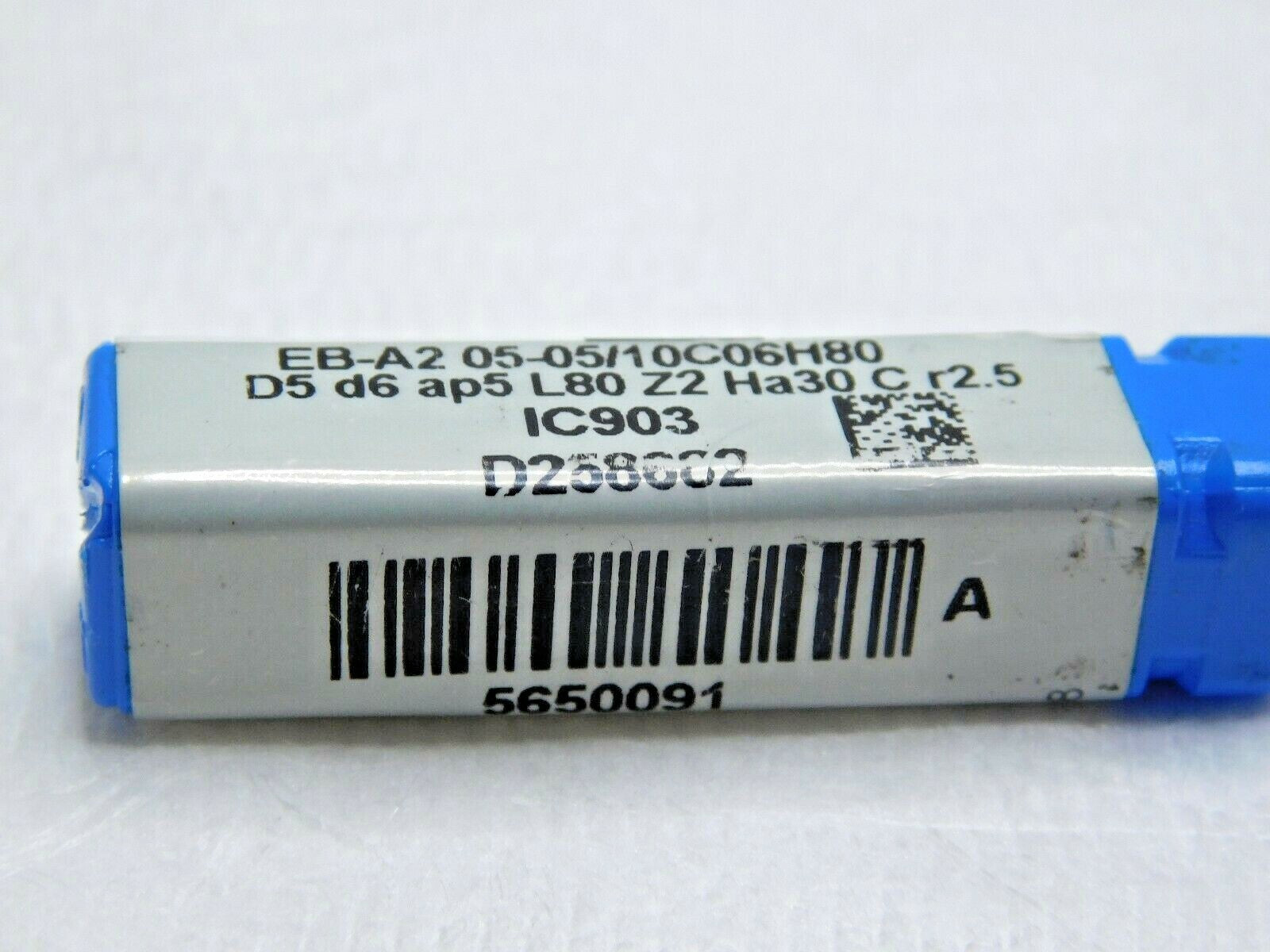

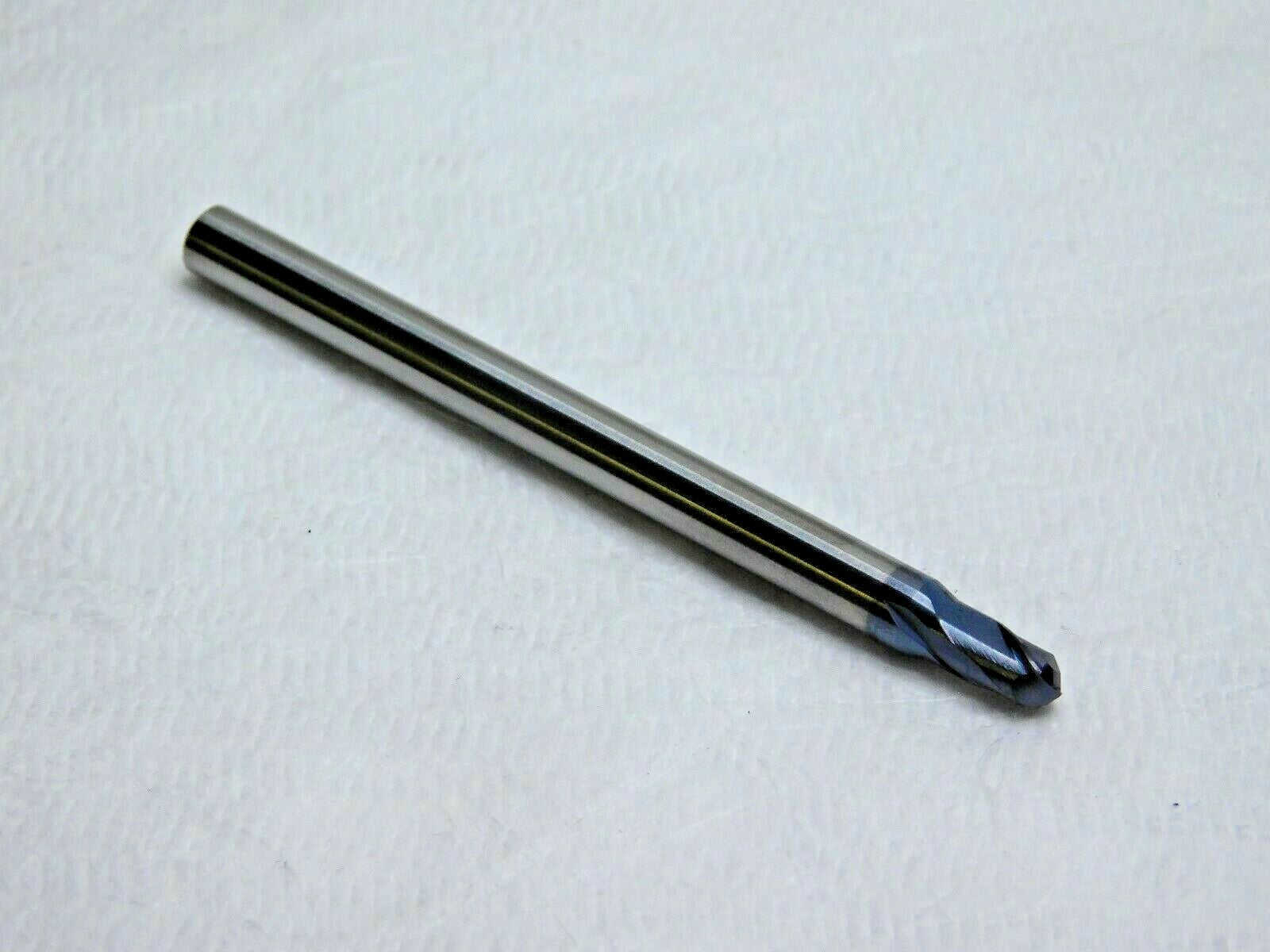

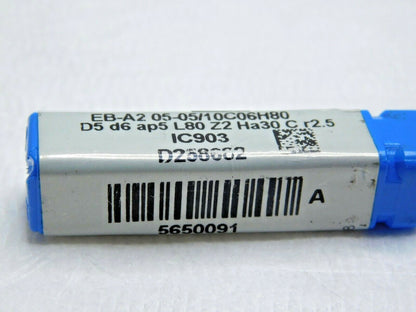

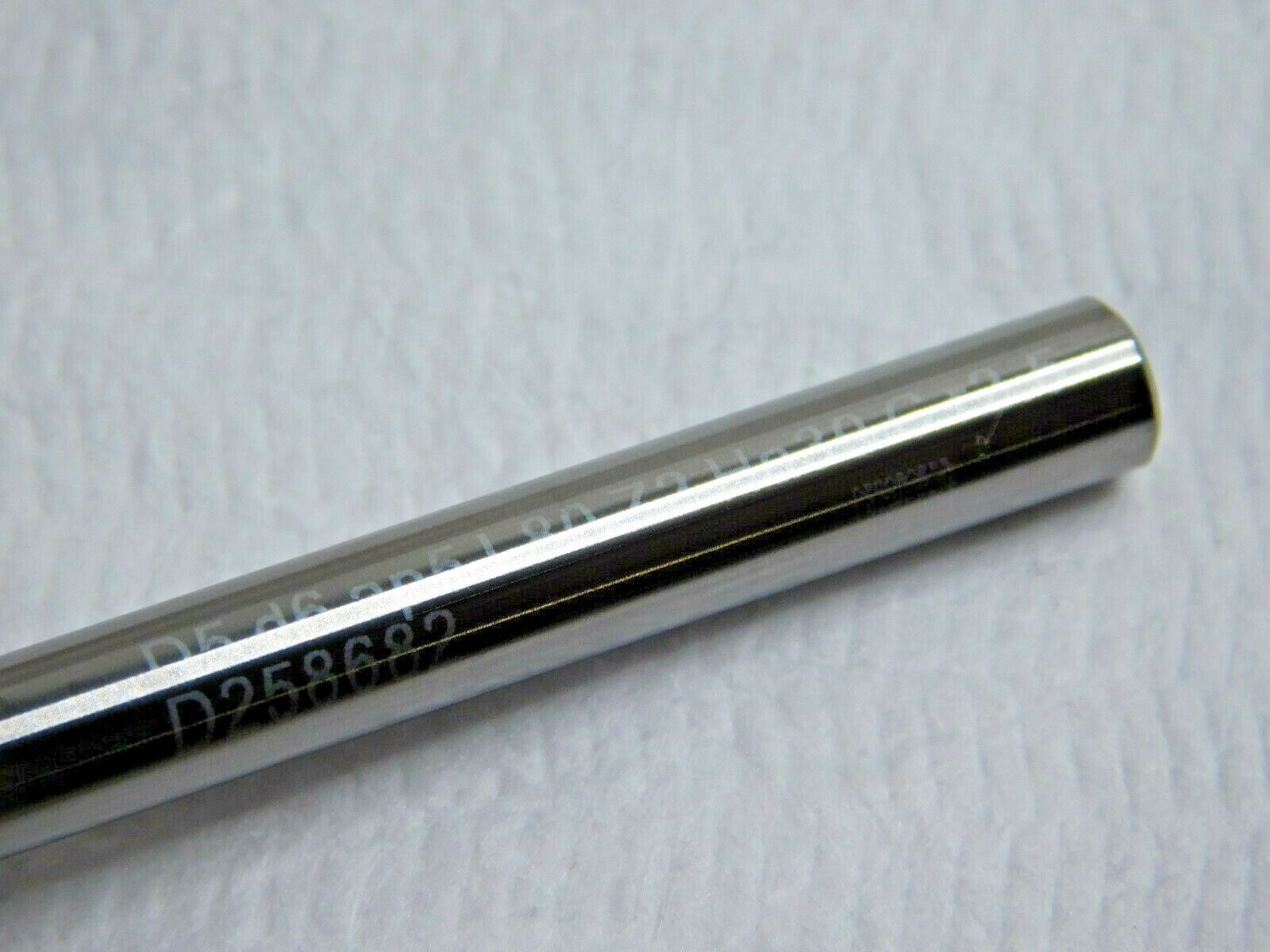

This listing is for One Carbide Ball End Mill that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
