ISCAR Ball Nose End Mill Solid Carbide ESB-A2 10 07/40C10M100 IC903 5650100

ISCAR
Ball Nose End Mill

MSRP: $380.00

• Cutting Diameter (DC) 10 mm
• Application | Profiling |
• Connection Diameter Machine Side (DCONMS) 10 mm
• Corner Radius (RE) 5 mm
• Depth of Cut Maximum (APMX) 7.9 mm
• Neck Diameter (DN) 8.2 mm
• Overall Length (OAL) 100 mm
• Body Half Taper Angle (BHTA) 1.6 Degrees
• Cutting Edge Material Carbide
• Grade IC903
• Coating AlTiN
• Tool Type Solid ball nose
• Flute Count (NOF) 2
• Coolant Supply Property (CSP) External
• Flute Helix Angle (FHA) 30 Degrees
• Body Material Carbide
• Shank Type Round
• Measurement Type Metric
• Usable Length (LU) 40 mm
• Connection Code Machine Side (CCMS) Cylindrical
• Applicable Material  Steel  Stainless Steel Cast Iron Hard Materials Super-Alloys / Titanium
• Unit M

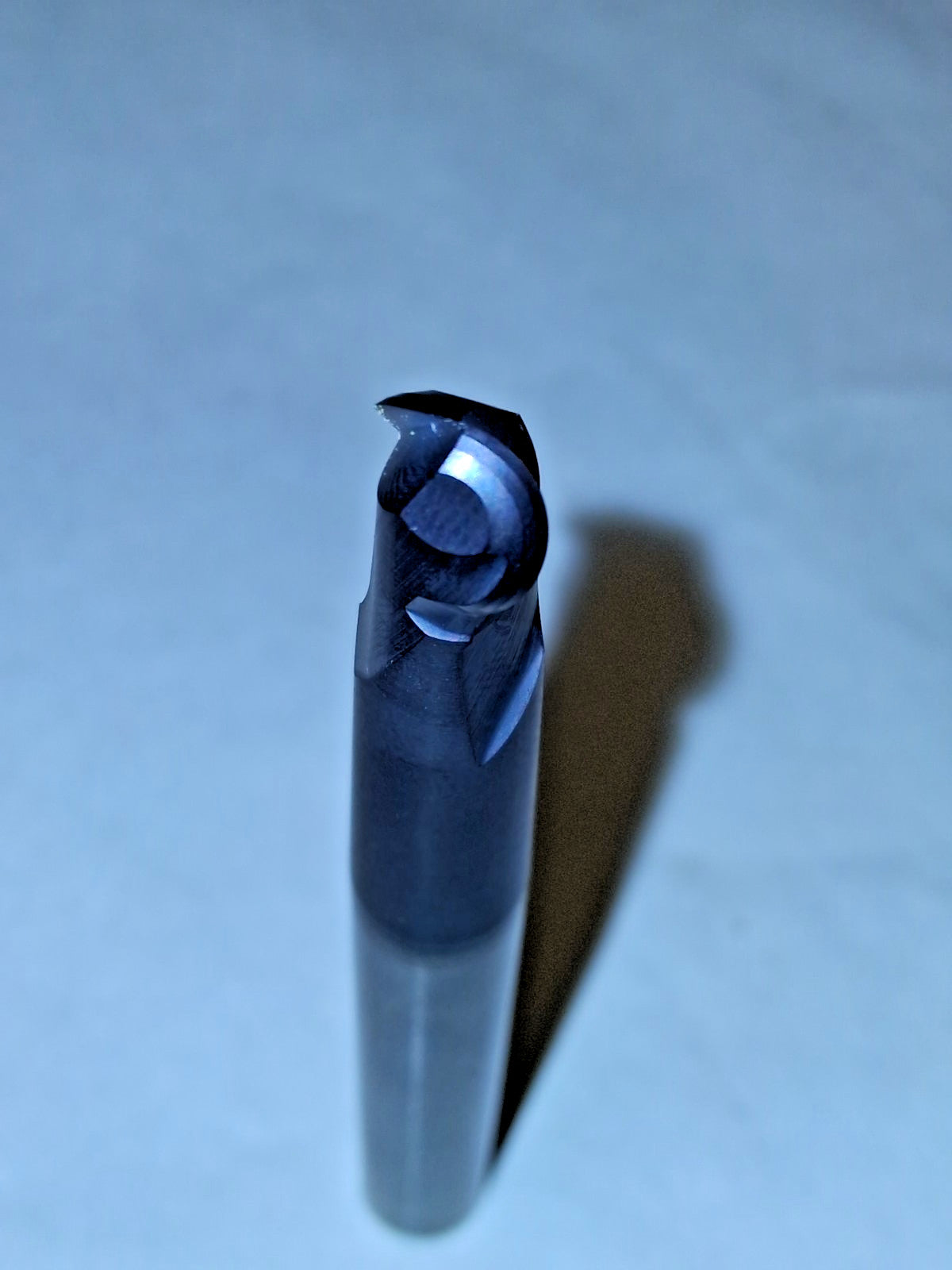

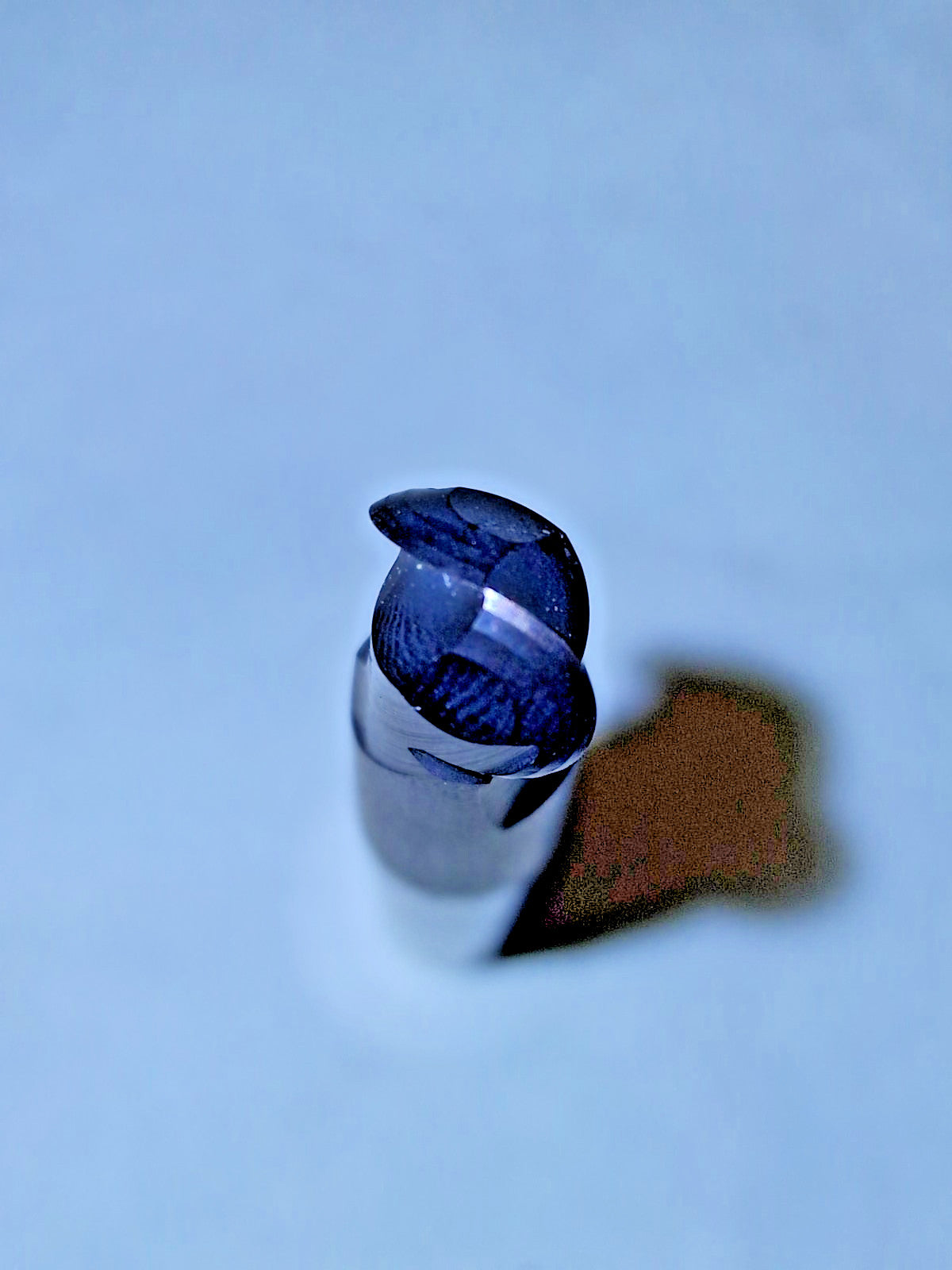

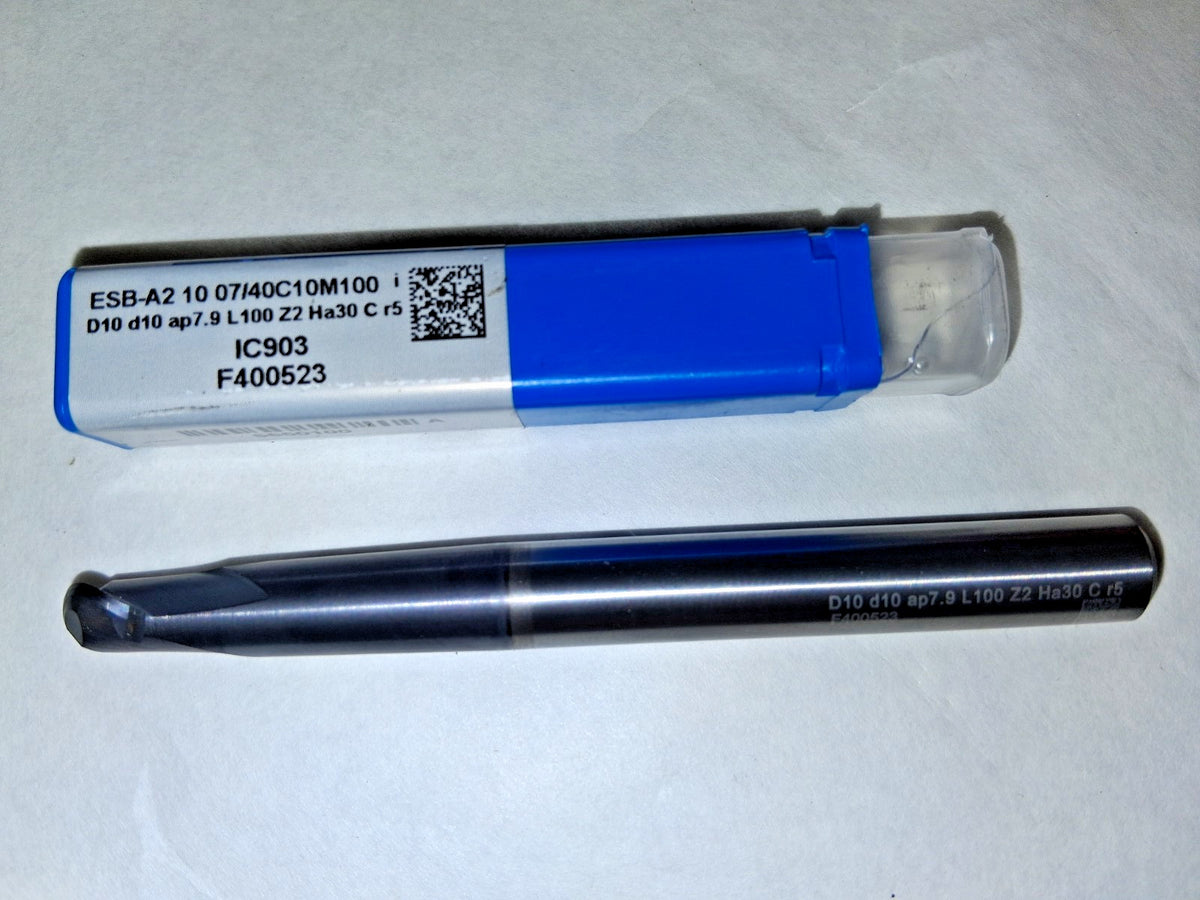

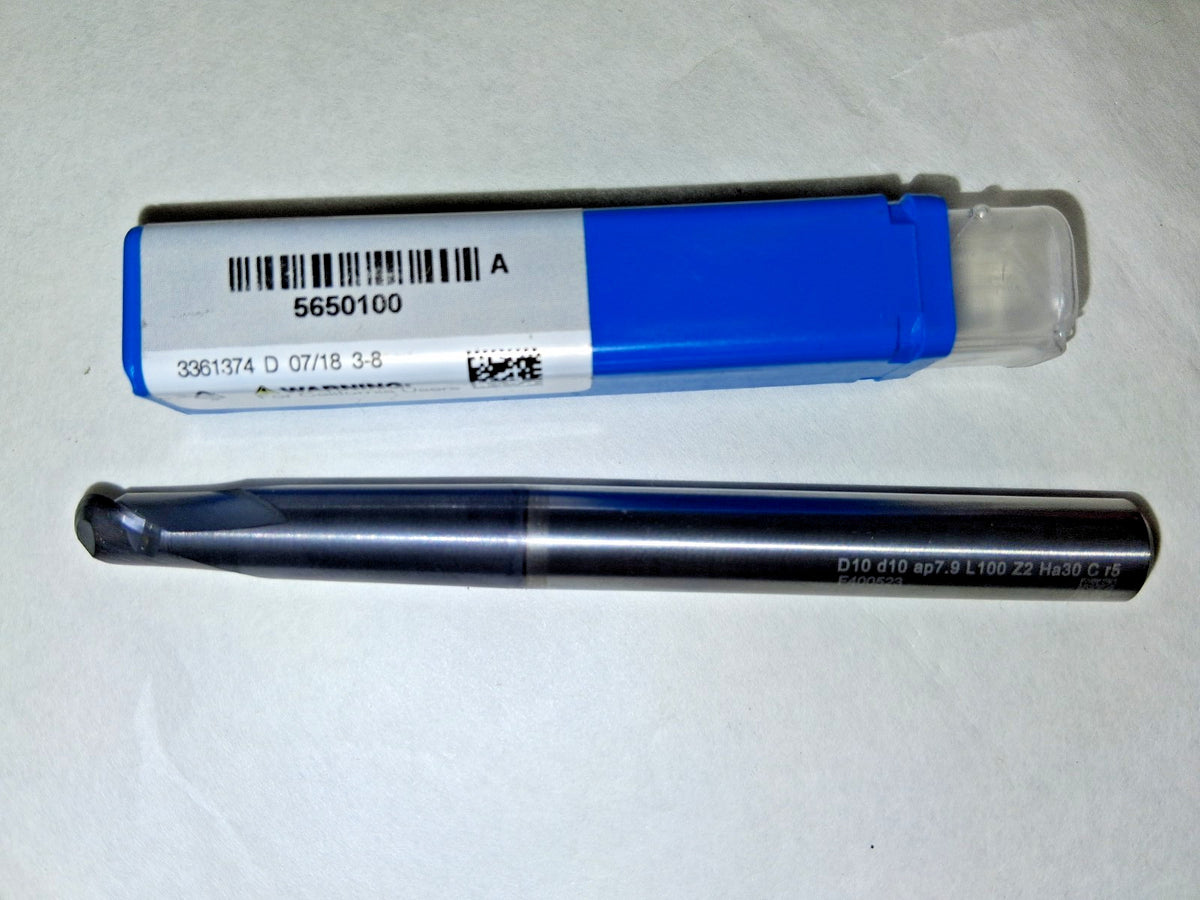

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
