ISCAR Ball End Mill: 0.1575″ Dia 2 Fl 5650004

ISCAR

Ball End Mill: 0.1575″ Dia 2 Fl 5650004

MSRP: $80

• Mill Diameter (Decimal Inch) 0.1575
• Mill Diameter (mm) 4.00
• Number Of Flutes 2
• End Mill Material Solid Carbide
• Length of Cut (mm) 8.00
• Coating/Finish TiAlN
• Extended Reach Yes
• Variable Helix No
• Variable Index No
• Helix Angle 30
• Overall Length (mm) 70.00
• Chipbreaker No
• Undercutting No
• Length Of Cut Range (Decimal Inch) 0.2000 - 0.4000
• Length Type Long
• Helix Style Medium
• Shank Diameter (mm) 6.00
• Nose Radius (Decimal Inch) 0.0790
• Mill Diameter Tolerance -0.020/0.038 mm
• Shank Diameter Tolerance 0.000/-0.009 mm
• Maximum Helix Angle 30
• Primary Workpiece Material Code P; S; H; K; M
• Flute Direction Right Hand
• Cutting Direction Right Hand
• Series EB-A2
• Flute Type Spiral
• UNSPSC Code 27112803
• Centercutting No
• Single Or Double End Single
• Coolant Through No
• Length Of Cut (Decimal Inch - 4 Decimals) 0.3150

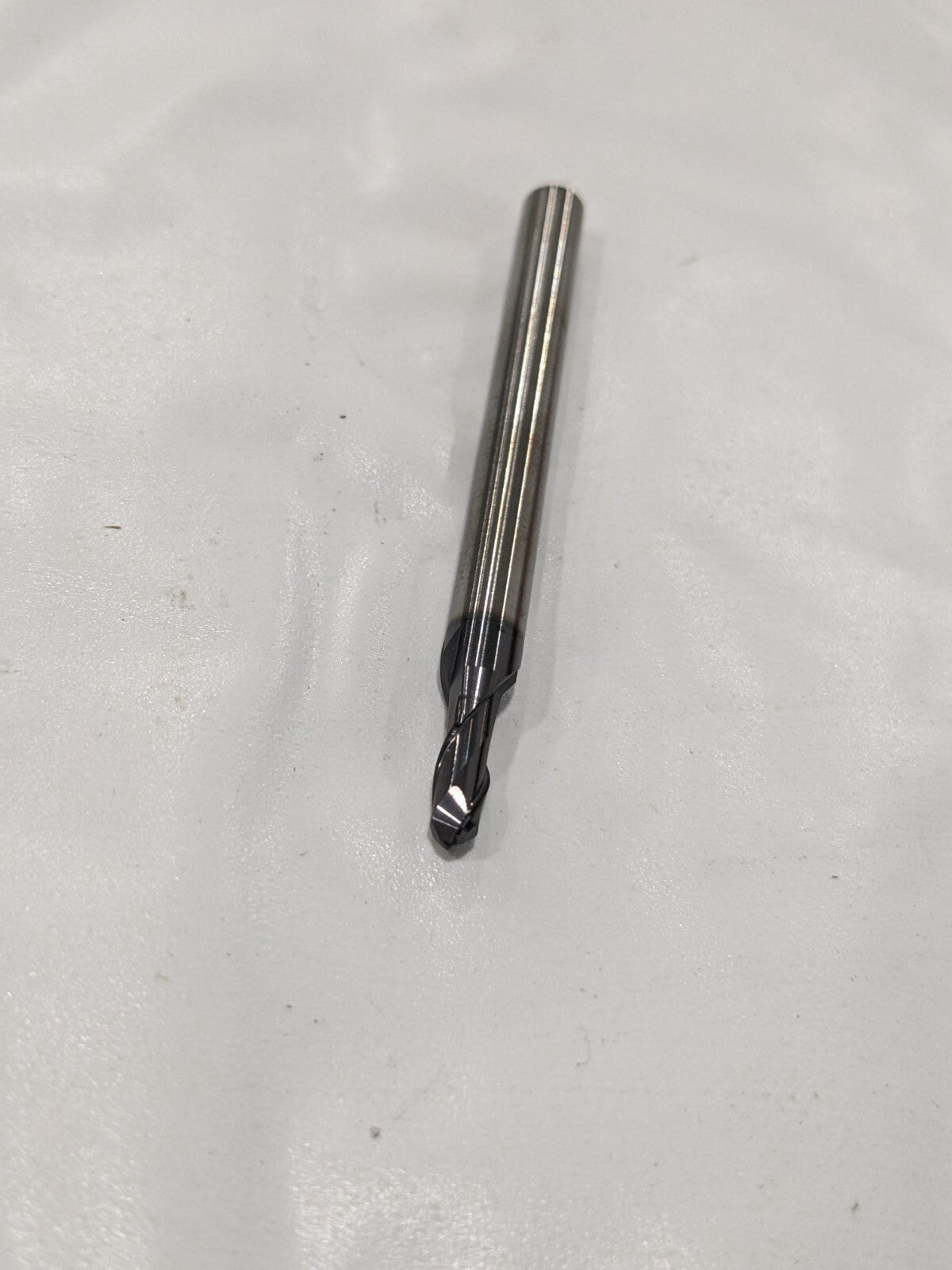

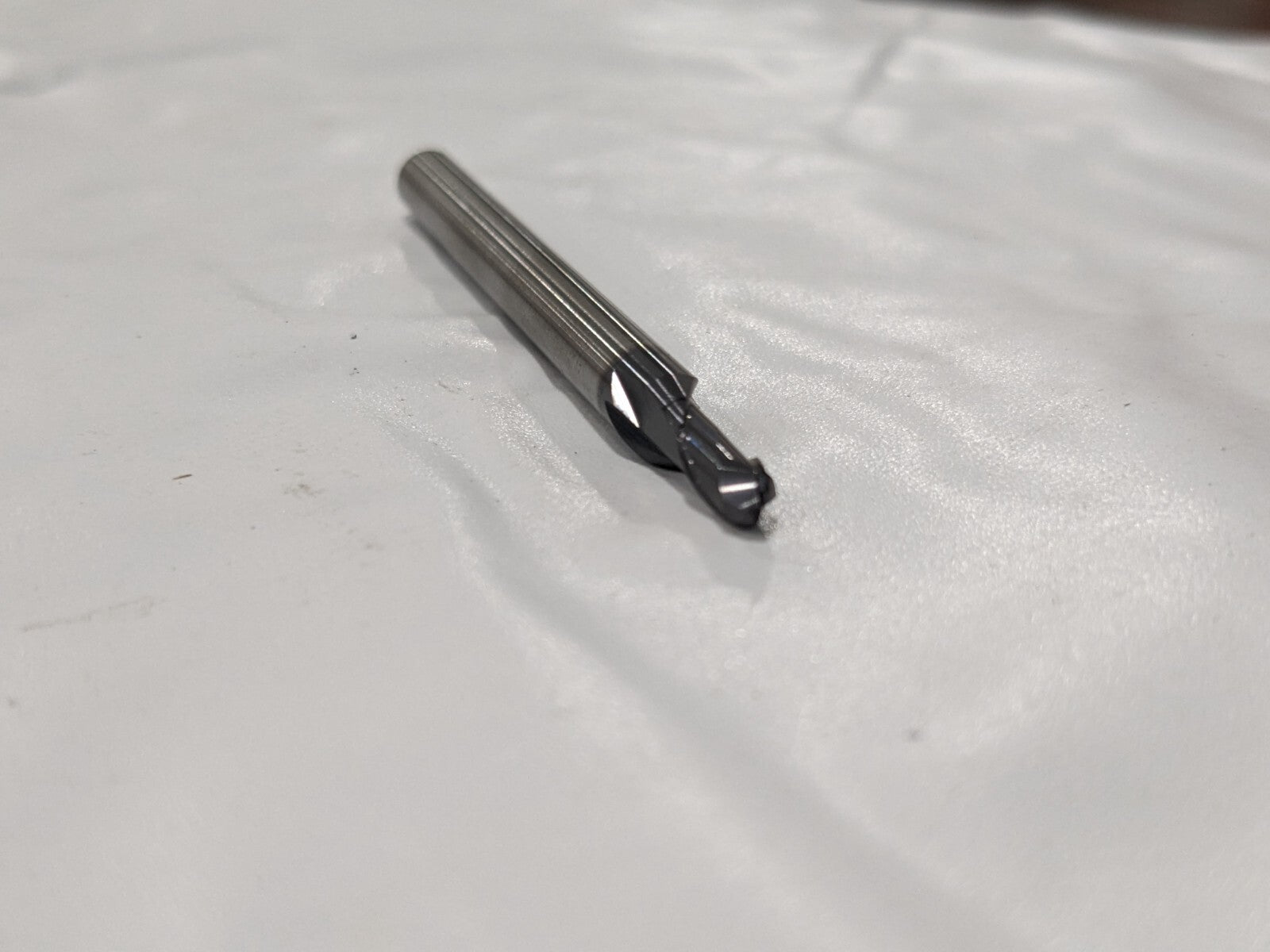

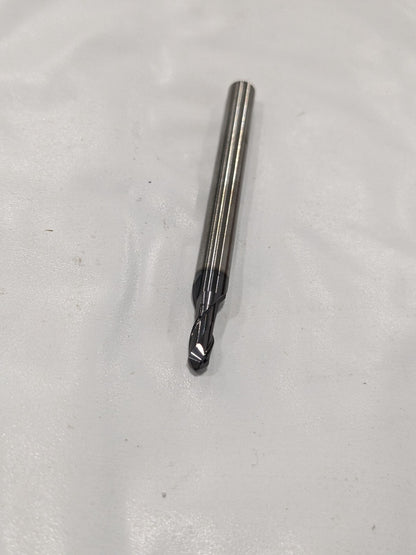

Please review photos, comes as shown.
